PRIOR to USE
Install the mount onto a strong structure such as concrete wall
Use the supplied accessories when installing the mount bracket depends on mounting position
DIMENSION
(Unit: mm)
PARTS SUPPLIED
Bracket Pipe
INSTALLATION
Ceiling Mount w Junction Box
1. Locate at the installation position and drill the wall.
2. Hammer the 4 expansion screws into the wall holes drilled
3. Route the power and BNC cables through the pipe
4. Tight the pipe to wall through the four screws
5. Screw the box into the Pipe, the Pipe can match with AK23 or AK 25 Box
6. Insert the box ring for waterproofing
7. Open the dome cover by loosening screws
8. Connect the power and BNC cable with the camera cables
9. Fixed the Vandal-Proof Dome base to the Junction box
10. Set the camera's viewing angle
11. Put the dome cover to the dome unit and tighten screws.

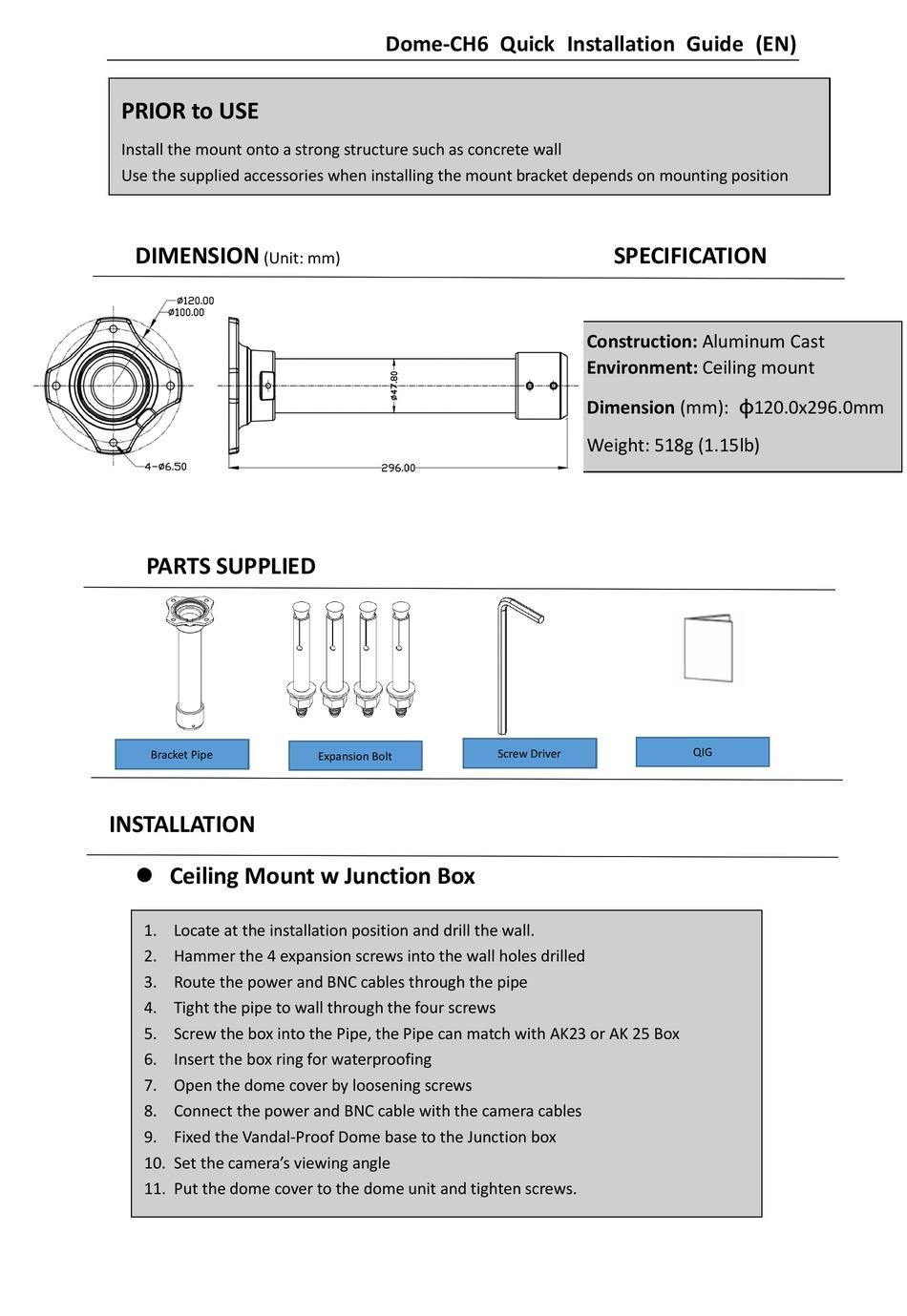

Dome-CH6 Quick Installation Guide (EN)
Expansion Bolt
SPECIFICATION
Construction: Aluminum Cast
Environment: Ceiling mount
Dimension (mm): ф120.0x296.0mm
Weight: 518g (1.15lb)
Screw Driver
QIG
