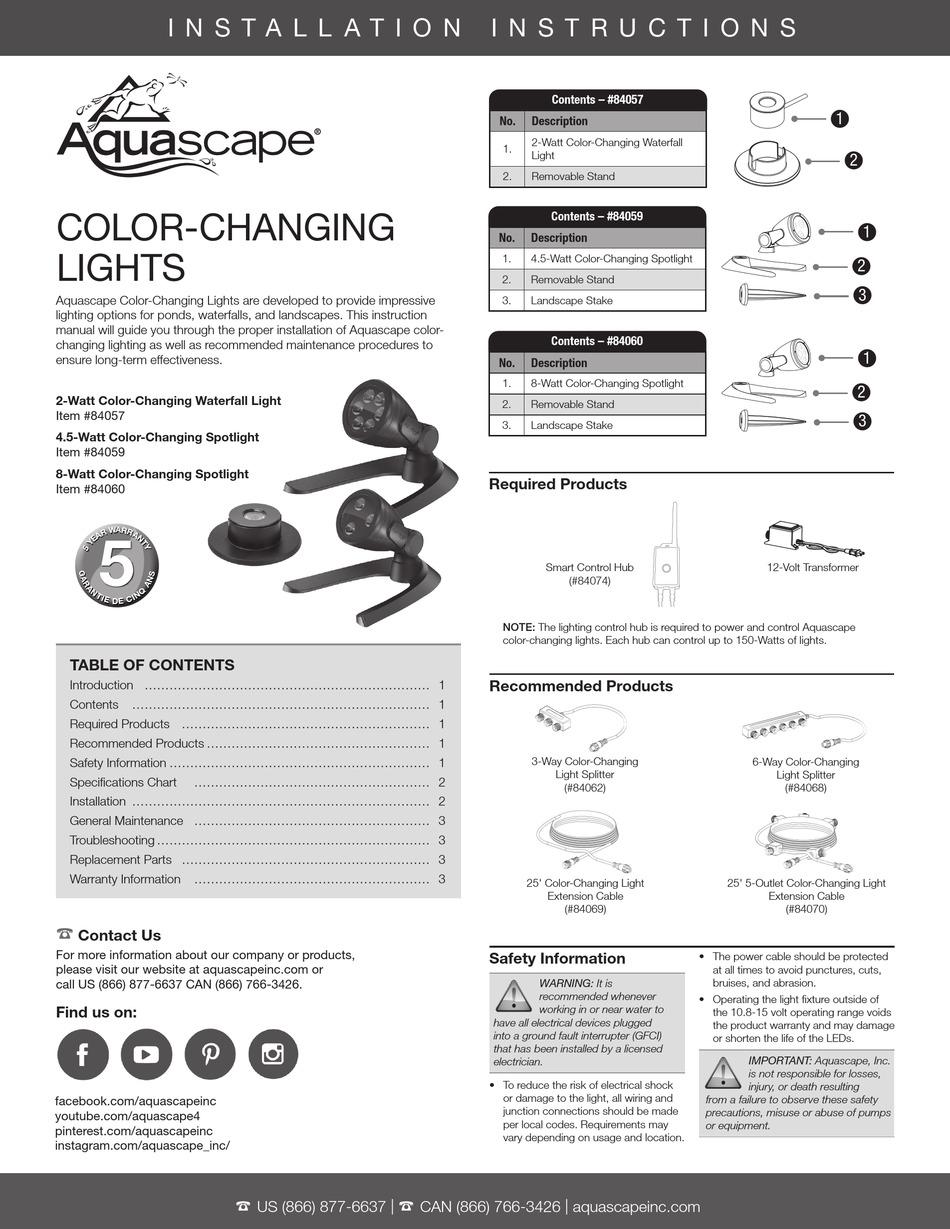

I N S T A L L A T I O N
COLOR-CHANGING
LIGHTS
Aquascape Color-Changing Lights are developed to provide impressive
lighting options for ponds, waterfalls, and landscapes. This instruction
manual will guide you through the proper installation of Aquascape color-
changing lighting as well as recommended maintenance procedures to
ensure long-term effectiveness.

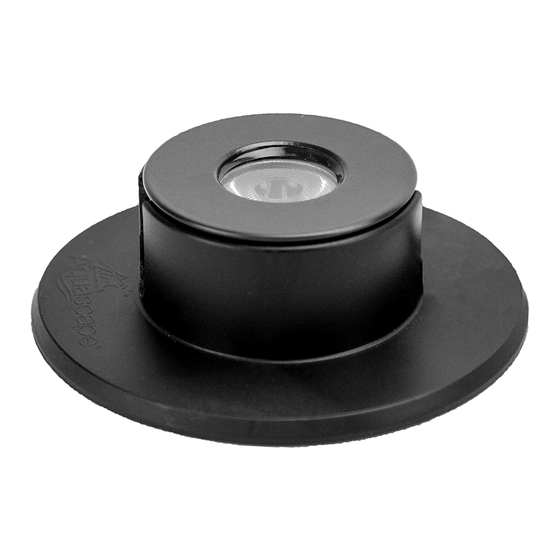

2-Watt Color-Changing Waterfall Light
Item #84057
4.5-Watt Color-Changing Spotlight
Item #84059
8-Watt Color-Changing Spotlight
Item #84060
5
TABLE OF CONTENTS

Introduction ..................................................................... 1

Contents

........................................................................ 1

Required Products ............................................................ 1

Recommended Products ...................................................... 1

Safety Information ............................................................... 1

Specifications Chart ......................................................... 2
Installation ........................................................................ 2
General Maintenance ......................................................... 3
Troubleshooting .................................................................. 3
Replacement Parts ............................................................ 3
Warranty Information ......................................................... 3
☎
Contact Us
For more information about our company or products,
please visit our website at aquascapeinc.com or
call US (866) 877-6637 CAN (866) 766-3426.
Find us on:
facebook.com/aquascapeinc
youtube.com/aquascape4
pinterest.com/aquascapeinc
instagram.com/aquascape_inc/
☎ US (866) 877-6637 | ☎
I N S T R U C T I O N S
Contents – #84057
No. Description
2-Watt Color-Changing Waterfall
1.
Light
2. Removable Stand
Contents – #84059
No. Description
1. 4.5-Watt Color-Changing Spotlight
2. Removable Stand
3. Landscape Stake
Contents – #84060
No. Description
1. 8-Watt Color-Changing Spotlight
2. Removable Stand
3. Landscape Stake
Required Products
Smart Control Hub
(#84074)
NOTE: The lighting control hub is required to power and control Aquascape
color-changing lights. Each hub can control up to 150-Watts of lights.
Recommended Products
3-Way Color-Changing
Light Splitter
(#84062)
25' Color-Changing Light
Extension Cable
(#84069)
Safety Information
WARNING: It is
recommended whenever
working in or near water to
have all electrical devices plugged
into a ground fault interrupter (GFCI)
that has been installed by a licensed
electrician.
• To reduce the risk of electrical shock
or damage to the light, all wiring and
junction connections should be made
per local codes. Requirements may
vary depending on usage and location.
CAN (866) 766-3426 | aquascapeinc.com
1
2
1
2
3
1
2
3
12-Volt Transformer
2 1
B B
A 6-Way Color-Changing A
Light Splitter
2 1
(#84068)
25' 5-Outlet Color-Changing Light
Extension Cable
(#84070)
• The power cable should be protected
at all times to avoid punctures, cuts,
bruises, and abrasion.
• Operating the light fixture outside of
the 10.8-15 volt operating range voids
the product warranty and may damage
or shorten the life of the LEDs.
IMPORTANT: Aquascape, Inc.
is not responsible for losses,
injury, or death resulting
from a failure to observe these safety
precautions, misuse or abuse of pumps
or equipment.
