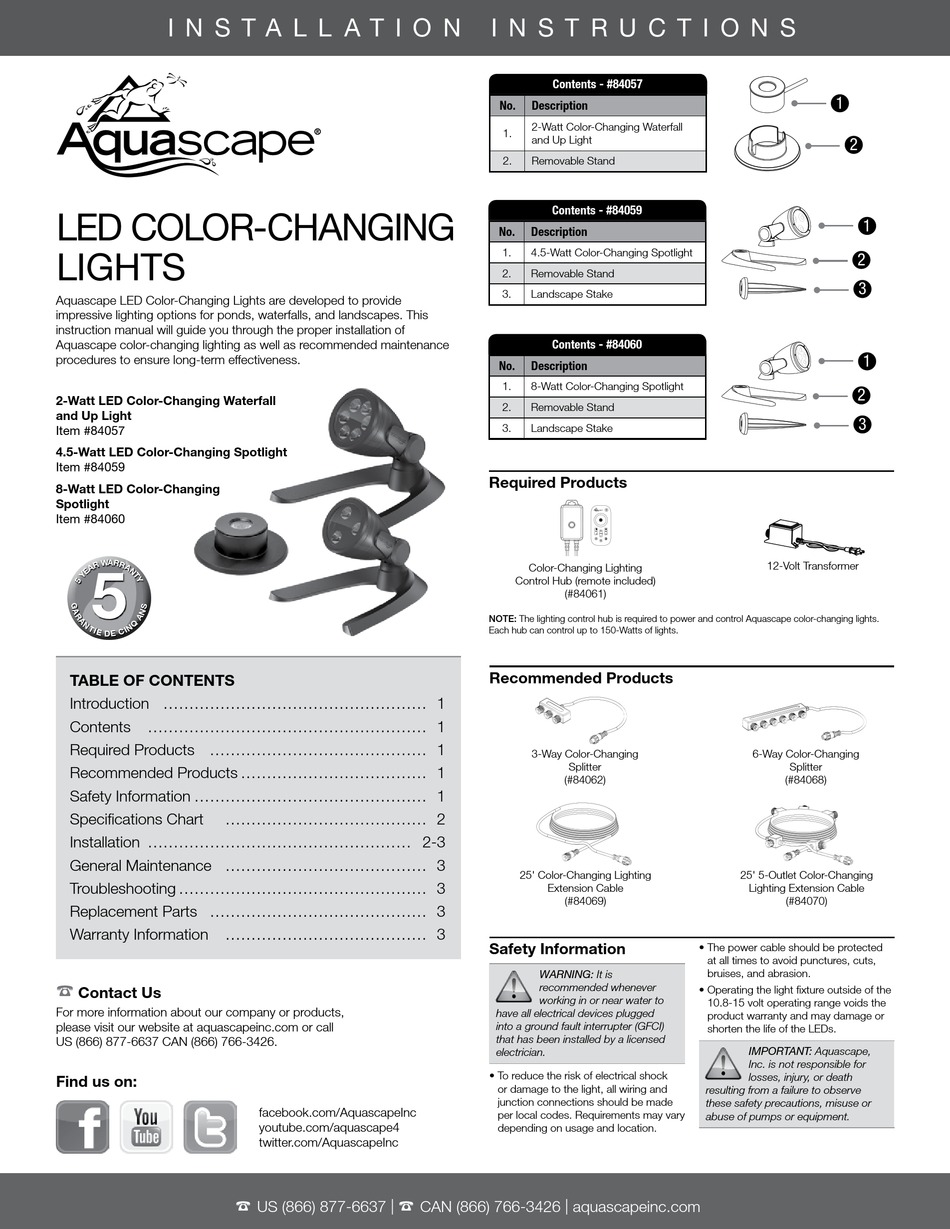

I N S T A L L A T I O N
LED COLOR-CHANGING
LIGHTS
Aquascape LED Color-Changing Lights are developed to provide
impressive lighting options for ponds, waterfalls, and landscapes. This
instruction manual will guide you through the proper installation of
Aquascape color-changing lighting as well as recommended maintenance
procedures to ensure long-term effectiveness.

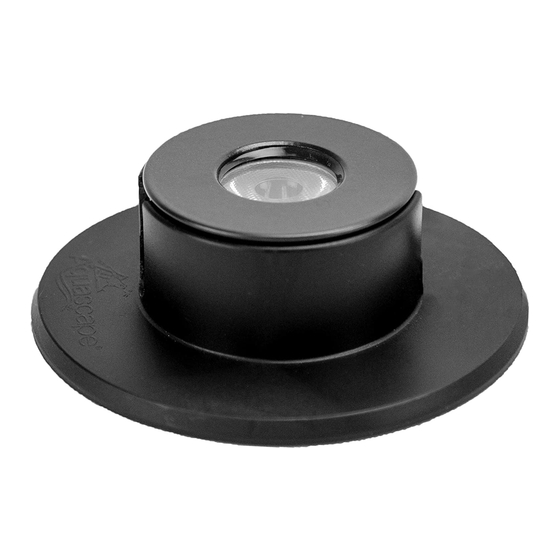

2-Watt LED Color-Changing Waterfall
and Up Light
Item #84057
4.5-Watt LED Color-Changing Spotlight
Item #84059
8-Watt LED Color-Changing
Spotlight
Item #84060
5
TABLE OF CONTENTS

Introduction ................................................... 1

Contents

...................................................... 1

Required Products .......................................... 1

Recommended Products .................................... 1

Safety Information ............................................. 1

Specifications Chart ....................................... 2
Installation ................................................... 2-3
General Maintenance ....................................... 3
Troubleshooting ................................................ 3
Replacement Parts .......................................... 3
Warranty Information ....................................... 3
☎
Contact Us
For more information about our company or products,
please visit our website at aquascapeinc.com or call
US (866) 877-6637 CAN (866) 766-3426.
Find us on:
facebook.com/AquascapeInc
youtube.com/aquascape4
twitter.com/AquascapeInc
☎ US (866) 877-6637 | ☎
I N S T R U C T I O N S
Contents - #84057
No. Description
2-Watt Color-Changing Waterfall
1.
and Up Light
2. Removable Stand
Contents - #84059
No. Description
1. 4.5-Watt Color-Changing Spotlight
2. Removable Stand
3. Landscape Stake
Contents - #84060
No. Description
1. 8-Watt Color-Changing Spotlight
2. Removable Stand
3. Landscape Stake
Required Products
2
B
A
Color-Changing Lighting
2
Control Hub (remote included)
(#84061)
NOTE: The lighting control hub is required to power and control Aquascape color-changing lights.
Each hub can control up to 150-Watts of lights.
Recommended Products
3-Way Color-Changing
Splitter
(#84062)
25' Color-Changing Lighting
Extension Cable
(#84069)
Safety Information
WARNING: It is
recommended whenever
working in or near water to
have all electrical devices plugged
into a ground fault interrupter (GFCI)
that has been installed by a licensed
electrician.
• To reduce the risk of electrical shock
or damage to the light, all wiring and
junction connections should be made
per local codes. Requirements may vary
depending on usage and location.
CAN (866) 766-3426 | aquascapeinc.com
1
B
A
12-Volt Transformer
1
2
B
A 6-Way Color-Changing
2
25' 5-Outlet Color-Changing
Lighting Extension Cable
• The power cable should be protected
at all times to avoid punctures, cuts,
bruises, and abrasion.
• Operating the light fixture outside of the
10.8-15 volt operating range voids the
product warranty and may damage or
shorten the life of the LEDs.
IMPORTANT: Aquascape,
Inc. is not responsible for
losses, injury, or death
resulting from a failure to observe
these safety precautions, misuse or
abuse of pumps or equipment.
1
2
1
2
3
1
2
3
1
B
A
Splitter
1
(#84068)
(#84070)
