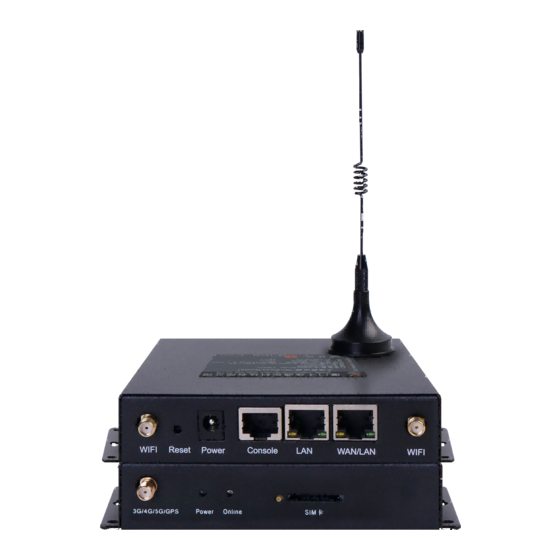

Caimore CM520-86 User Manual
  1. Manuals
  2. Brands
  3. Caimore Manuals
  4. Network Router
  5. CM520-86
  6. User manual

Caimore CM520-86 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
User Manual
CM520-86 & CM520-89
This manual is suitable for:
Feature
Model
WiFi
CM520-8CF/W
Without WiFi
CM520-8BF/W
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen
Tel：+86-592-3799895
Fax：0592-5975885 P：361009
Web： www.caimore.net Email:oversea@caimore.com
 版权所有2003-2009
----
----
才茂通信 通畅天下

Advertisement

Table of Contents
loading

Related Manuals for Caimore CM520-86

Summary of Contents for Caimore CM520-86

  • Page 1 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd User Manual CM520-86 & CM520-89 This manual is suitable for: Feature Model WiFi CM520-8CF/W Without WiFi CM520-8BF/W Xiamen Caimore Communication Technology Co.,Ltd Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel：+86-592-3799895...
  • Page 2 Xiamen Caimore communication technology co.,Ltd. Trademark： Caimore and other Caimore brands are possessed by Xiamen Caimore communication technology co.,Ltd. Other brands or registered brands mentioned in this page are possessed by their owner.

  • Page 3: Table Of Contents

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Catalog 1. Installation................................. 1 1.1 Overview..............................1 1.2 Unpacking.............................. 1 1.2.1 CM520-8C standard parts list....................1 1.2.2 CM520-8B standard parts list....................1 2. Installation................................. 2 2.1 Install SIM Card.............................2...
  • Page 4 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.3 User............................33 4.5.4 Upgrade........................... 34 4.5.5 System Tool..........................34 4.5.6 Debug............................35 4.6 Other..............................36 4.6.1 DTU............................36 4.6.1 FlowCtrl..........................38 4.6.2 Reboot............................. 38...

  • Page 5: Installation

    1. Installation 1.1 Overview To meet the design function, router must be installed correctly. Usually, the installation should be under the guidance of qualified engineer who is approved by Xiamen Caimore communication technology co.,Ltd.  Notice：Please install the router without power! 1.2 Unpacking...

  • Page 6: Installation

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 2. Installation 2.1 Install SIM Card SIM card stores information such as user identification, network settings, additional service information and so on. The router supports 1.8V/3V/5V SIM card, and user can insert SIM card without opening the enclosure.

  • Page 7: Rapidly Configure

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 3. Rapidly Configure For one condition, to make it convenient for customers to test router, and another condition, for most customers who just need some basic functions, this chapter is very useful for these customers.

  • Page 8: Configure Computer's Network

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 3.1.4 Configure Computer’s Network Open Network and Sharing Center. Change adapter settings. Choose “Realtek PCIe GBE Family Controller”. And click “Properties”. Choose “Internet Protocol Version 4(TCP/IP 4)”, and click “Properties”.
  • Page 9 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Obtain a IP address and DNS server address automatically. Type “ipconfig” in cmd, then you can see the “Default Gateway”, that’s the LAN IP address of router.

  • Page 10: Configure Wan

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd There will be a window popping up, and it requires username and password. As picture showing, the default username and password are both “admin”.

  • Page 11: Test Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd the info to corresponding parameters. As picture showing: 3.1.6 Test Configuration  Re-powering the router;  SYS indicator flickers;  Online indicator is on.

  • Page 12: Test Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  WAN/LAN: it’s used as LAN in default.  LAN 2: as default, CM router set its LAN to 192.168.9.0/24. 3.2.6 Test Configuration...

  • Page 13: Detailed Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4. Detailed Configuration 4.1 Basic 4.1.1 WAN Settings about router connecting Internet. 4.1.1.1 SIM Dial  Center/APN/Username/Password: These parameters have been set when leaving factory.
  • Page 14 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.1.2 PPPoE Dial  Username: used to access Internet, provided by operator.  Password: used to access Internet, provided by operator. 4.1.1.3 Static Address ...
  • Page 15 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd So in the “WAN” - ”Static Address” page, “static IP” and “gw IP”(gw means gateway) should be in a LAN, and also, “gw IP” should be upper router’s LAN IP address. Details can be seen in the picture: After setting all the parameters, click “Apply”.
  • Page 16 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.1.4 Static Master SIM Backup  Mode: there are two modes can be chosen--“Staip_wire”and “DHCP_wire”.  Static IP: Please refer to 3.2 Access Internet Through WAN Port (WAN AP Client).

  • Page 17: Lan

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.1.6 DHCP Client  Router connects Internet by getting a IP address via DHCP. 4.1.1.7 WiFi Client  SSID: The identification of Wi-Fi that router connects.
  • Page 18 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  LAN  LAN 2: as default, CM router set its LAN to 192.168.9.0/24.  DNS Server: DNS can be a common DNS server address, such as Google’s “8.8.8.8”, and Baidu’s “114.114.114.114”.

  • Page 19: Wifi

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.3 WiFi  Notice: CM520-8B doesn’t support WiFi.  SSID: Identification of Wi-Fi. Supports up to 32 characters, and the default name is “CaiMoreAP2G”.

  • Page 20: Ddns

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.4 DDNS There are four service provider can be chosen.  Disable:  Don’t setup this function.  Dyndns:  Host: Domain name registrated from dyndns.

  • Page 21: Keep Alive

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.5 Keep Alive It’s a feature to detect the state of data transmission channel between router and Internet in every few minutes automatically. If it detects an abnormal network state, router will restart and re-dial automatically.
  • Page 22 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Filter mode: Client IP filtering and MAC address filtering, client can select according to their actual need.  Client IP filtering: Filter data according to IP address base on appointed policy to admit or prevent corresponding IP address data.
  • Page 23 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd types. IN : From outside network to gateway. OUT : Transmit from gateway LAN. IN/OUT: Include IN and OUT  Interface: Data packet go through interface, such as br0，PPP0 and so on.
  • Page 24 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Picture 4-2-3 Example 2 of IP address filtering: 1、select “setup client IP filter” 2、Running rule: “receive packet matches following rules”, click “Apply” to save.

  • Page 25: Nat/Dmz

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd interface). Usually this rule shields invalid IP address to go through gateway, can reduce data flow, or as bank application, can shield other IP address access to bank IP address to realize filtering functional and reduce data flow.

  • Page 26: Route

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd a technology that map private IP addresses to a WAN address’s different ports, which makes devices in LAN can be accessed by Internet.

  • Page 27: Vpn

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Destination IP: The destination IP address of static route, it can be a host or network segment.  Mask: Subnet mask of destination IP. If destination is a host, please set mask to “255.255.255.255”.

  • Page 28: Pptp

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd IP address.  MTU：the max data packets which can go through tunnel. 4.3.2 PPTP PPTP is a protocol in layer 2, it transfers data by encapsulating PPP data frames within IP packets.

  • Page 29: Ipsec/L2Tp

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd check tunnel state, router will send LCP packet to server in every tunnel check interval. When the number of tunnel-checking failures over the value of “Tunnel Check Times”, router will initiate to terminate the connection and send a request to...
  • Page 30 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Remote Address: IP address of peer side.  Transport Mode: Transport: usually used in the connection between router and server. Tunnel: usually used in the connection between two routers.
  • Page 31 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd SA Lifetime: Phase negotiation time.  Other Parameters:  DPD Delay / DPD timeout: After tunnel is built, in order to check tunnel state, router will send LCP packet in every tunnel check interval.

  • Page 32: N2N

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Mppe-(40|128) Mppe-StateFul  Add Default Route: If it’s checked, then all the data passing through the router will be sent to PPTP tunnel. Also means, all the devices connected to the router are only allowed to access external network through PPTP tunnel.

  • Page 33: Openvpn

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Server IP: IP address of server.  Port: Port of server side.  MAC: MAC address of interface.  MTU: Maximum transmission unit.

  • Page 34: Portal

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Max Download Rate: The maximum downloading speed of whole LAN.  Max Upload Rate: The maximum uploading speed of whole LAN.  Rule Name: Name of rule. Each name should be different.

  • Page 35: Application Filtering

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd authentication. Factory Router: if there is no need to authenticate when users connecting Wi-Fi, please choose it. Local Portal: users who connect router’s Wi-Fi need to authenticate before being allowed to use the network, and the authentication will be done by router itself.

  • Page 36: Follower

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.4.5 Follower Notice: Please don’t modify it without engineer’s help! 4.5 System 4.5.1 Status To check router’s status in this page. 4.5.2 WiFi Probe 4.5.2.1 Time...

  • Page 37: User

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.2.2 MAC Probe  To find devices in LAN. 4.5.3 User To change router’s username and password.  Login Username  Old Password ...

  • Page 38: Upgrade

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.4 Upgrade  Save to Local: Save the settings to local computer. After clicking the button “Save”, there will be a file named “config.tar.gz”.

  • Page 39: Debug

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.5.2 Trace Test  Please type a URL in box. 4.5.6 Debug  Refresh(Reflash): The debug info will be shown after clicking this button.

  • Page 40: Other

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.6 Other 4.6.1 DTU  Center Number: The number of server.  Main Center Address & Port: Set it to main server’s IP address and port or domain name.
  • Page 41 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Device ID: A eight hex number for server to identify different DTU.  SIM Num: A eleven decimal number for server to identify different DTU.

  • Page 42: Flowctrl

     Method: To reboot the router by each year, each month, each day, each hour or define it yourself.  Time: It works when “Method” is “Self Define”. Technical Support If there is any doubt, please access our official website: www.caimore.net or contact technical support staff and whose email address is support@caimore.com.
