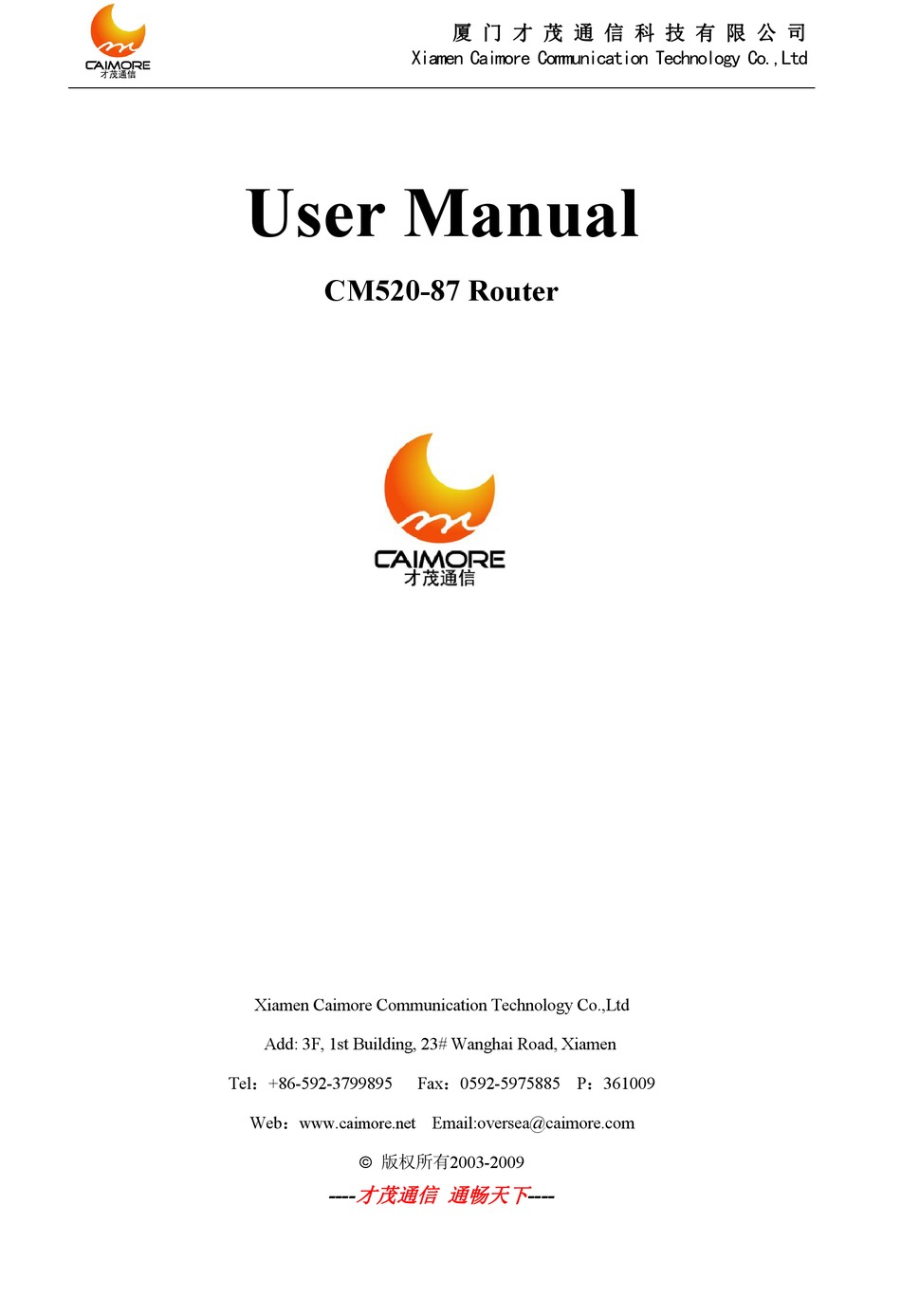

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
User Manual
CM520-87 Router
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen
Tel：+86-592-3799895
Fax：0592-5975885 P：361009
Web： www.caimore.net Email:oversea@caimore.com
 版权所有2003-2009
----
----
才茂通信 通畅天下

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM520-87 and is the answer not in the manual?

Questions and answers

Related Manuals for Caimore CM520-87

Summary of Contents for Caimore CM520-87

  • Page 1 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd User Manual CM520-87 Router Xiamen Caimore Communication Technology Co.,Ltd Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel：+86-592-3799895 Fax：0592-5975885 P：361009 Web： www.caimore.net Email:oversea@caimore.com ...
  • Page 2 Xiamen Caimore communication technology co.,Ltd. Trademark： Caimore and other Caimore brands are possessed by Xiamen Caimore communication technology co.,Ltd. Other brands or registered brands mentioned in this page are possessed by their owner.

  • Page 3: Table Of Contents

    Xiamen Caimore Communication Technology Co.,Ltd Catalog 1. Installation................................. 1 1.1 Overview..............................1 1.2 Unpacking.............................. 1 1.2.1 CM520-87 standard parts list....................1 2. Installation................................. 2 2.1 Install SIM Card.............................2 3. Rapidly Configure............................. 3 3.1 Dial to Internet............................3 3.1.1 Insert SIM Card to SIM Card Slot.................... 3 3.1.2 Connect Antenna........................
  • Page 4 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.4.5 Follower..........................34 4.5 System..............................34 4.5.1 Status............................34 4.5.2 WiFi Probe..........................34 4.5.3 User............................35 4.5.4 Upgrade........................... 36 4.5.5 System Tool..........................36 4.5.6 Debug............................38 4.6 Other..............................

  • Page 5: Installation

    1. Installation 1.1 Overview To meet the design function, router must be installed correctly. Usually, the installation should be under the guidance of qualified engineer who is approved by Xiamen Caimore communication technology co.,Ltd.  Notice：Please install the router without power! 1.2 Unpacking...

  • Page 6: Installation

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 2. Installation 2.1 Install SIM Card SIM card stores information such as user identification, network settings, additional service information and so on. The router supports 1.8V/3V/5V SIM card, and user can insert SIM card without opening the enclosure.

  • Page 7: Rapidly Configure

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 3. Rapidly Configure For one condition, to make it convenient for customers to test router, and another condition, for most customers who just need some basic functions, this chapter is very useful for these customers.

  • Page 8: Configure Computer's Network

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 3.1.4 Configure Computer’s Network Open Network and Sharing Center. Change adapter settings. Choose “Realtek PCIe GBE Family Controller”. And click “Properties”.
  • Page 9 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Choose “Internet Protocol Version 4(TCP/IP 4)”, and click “Properties”. Obtain a IP address and DNS server address automatically. Type “ipconfig” in cmd, then you can see the “Default Gateway”, that’s the LAN...

  • Page 10: Configure Wan

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Type “192.168.9.1:9999” in browser’s URL box. There will be a window popping up, and it requires username and password. As picture showing, the default username and password are both “admin”.

  • Page 11: Test Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd In general situation, it’ll dial to internet automatically as default. But if your SIM card has some special settings like APN/VPDN private network, please check it with operator, then type them in corresponding place.

  • Page 12: Access Internet Through Wan Port (Wan Ap Client)

    3.2 Access Internet Through WAN Port (WAN AP Client) 3.2.1 Connect Antennas 3.2.2 Access Internet Through WAN Port Connect Caimore router’s WAN port to an upper router’s LAN port, and connect your computer to CM router’s LAN port. 3.2.3 Configure Computer’s Network Please refer to 3.1.3 Configure Computer’s Network.

  • Page 13: Configure Lan

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd should be in a LAN, and also, “gw IP” should be upper router’s LAN IP address. Details can be seen in the picture: After setting all the parameters, click “Apply”.

  • Page 14: Detailed Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4. Detailed Configuration 4.1 Basic 4.1.1 WAN Settings about router connecting Internet. 4.1.1.1 SIM Dial  Center/APN/Username/Password: These parameters have been set when leaving factory.
  • Page 15 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.1.2 PPPoE Dial  Username: used to access Internet, provided by operator.  Password: used to access Internet, provided by operator. 4.1.1.3 Static Address...
  • Page 16 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.1.4 Static Master SIM Backup  Mode: there are two modes can be chosen--“Staip_wire”and “DHCP_wire”.  Static IP: Please refer to 3.2 Access Internet Through WAN Port (WAN AP Client).
  • Page 17 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.1.6 DHCP Client  Router connects Internet by getting a IP address via DHCP. 4.1.1.7 WiFi Client  SSID: The identification of Wi-Fi that router connects.

  • Page 18: Lan

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.2 LAN As default, CM router’s LAN is 192.168.1.0/24, and its default LAN IP is 192.168.1.2. You can leave it as default.  LAN 1: it works when router’s working mode is “static address”.

  • Page 19: Ddns

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd “CaiMoreAP2G”. It’s better to modify the name for there may be multiple CM routers in a area.  BSSID: Actually, it’s the MAC address of AP, used to identify the BSS. Please don’t change it.
  • Page 20 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Password: Password to log in dyndns server.  88ip:  Server1/2: 88IP supply DNS server address, check: http://www.88ip.cn/Info/list.asp?Unid=89  Interval: How long to update one time.

  • Page 21: Keep Alive

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.1.5 Keep Alive It’s a feature to detect the state of data transmission channel between router and Internet in every few minutes automatically. If it detects an abnormal network state, router will restart and re-dial automatically.
  • Page 22 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Filter mode: Client IP filtering and MAC address filtering, client can select according to their actual need.  Client IP filtering: Filter data according to IP address base on appointed policy to admit or prevent corresponding IP address data.
  • Page 23 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd types. IN : From outside network to gateway. OUT : Transmit from gateway LAN. IN/OUT: Include IN and OUT  Interface: Data packet go through interface, such as br0，PPP0 and so on.
  • Page 24 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Picture 4-2-3 Example 2 of IP address filtering: 1、select “setup client IP filter” 2、Running rule: “receive packet matches following rules”, click “Apply” to save.

  • Page 25: Nat/Dmz

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd interface). Usually this rule shields invalid IP address to go through gateway, can reduce data flow, or as bank application, can shield other IP address access to bank IP address to realize filtering functional and reduce data flow.

  • Page 26: Route

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd a technology that map private IP addresses to a WAN address’s different ports, which makes devices in LAN can be accessed by Internet.
  • Page 27 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Destination IP: The destination IP address of static route, it can be a host or network segment.  Mask: Subnet mask of destination IP. If destination is a host, please set mask to “255.255.255.255”.

  • Page 28: Vpn

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.3 VPN 4.3.1 GRE  Name：it is limited to use characters 0-9.a-z.A-Z，also can’t repeat name.  Remote IP ：Remote public network IP  Remote Subnet：format is 192.168.1.0/24.
  • Page 29 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Server: IP address or domain of PPTP server.  Remote Subnet / Remote Mask: Intranet information on server side.  Protocol: The way of PPTP to perform PPP authentication -- Pap: in this way, username and password are transmitted in clear text, the security level of it is low.

  • Page 30: Ipsec/L2Tp

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.3.3 IPSEC/L2TP 4.3.3.1 IPSEC  Connection Mode: Initiative: the connection is initiated by local side. Passivity: wait for a connection.  Remote Address: IP address of peer side.
  • Page 31 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd port is 1701.  IPSec Identify: For server, please set this parameter to “@server”. For client, please set this parameter to “@client”.  Phase 1: ...
  • Page 32 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.3.3.2 L2TP L2TP (Layer 2 Tunneling Protocol) is a kind of VPDN technology, it’s specifically used in transferring data in layer 2 tunnel. Also means it’ll encapsulate data units of layer 2(such as PPP data) within an IP or UDP payload.

  • Page 33: N2N

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd tunnel state, router will send LCP packet to server in every tunnel check interval. When the number of tunnel-checking failures over the value of “Tunnel Check Times”, router will initiate to terminate the connection and send a request to rebuild the tunnel.

  • Page 34: Openvpn

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.3.5 OpenVPN  Server IP: IP address of server.  Protocol: TCP or UDP.  Device: Tap or tun. Notice: Protocol and device should be set as same with server’s.

  • Page 35: Portal

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Download Bandwidth: The maximum downloading speed of speed limiting devices. 4.4.2 Portal  Setup: Open this function.  Ad Name: Name of advertisement.

  • Page 36: Application Filtering

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  WEB Server name: It can be set as you want to.  Extern Device: It’s the port that communicates with external devices. Please don’t change it.

  • Page 37: Follower

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.4.5 Follower Notice: Please don’t modify it without engineer’s help! 4.5 System 4.5.1 Status To check router’s status in this page. 4.5.2 WiFi Probe 4.5.2.1 Time...

  • Page 38: User

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.2.2 MAC Probe  To find devices in LAN. 4.5.3 User To change router’s username and password.  Login Username  Old Password ...

  • Page 39: Upgrade

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.4 Upgrade  Save to Local: Save the settings to local computer. After clicking the button “Save”, there will be a file named “config.tar.gz”.
  • Page 40 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.5.2 Trace Test  Please type a URL in box.

  • Page 41: Debug

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.5.6 Debug  Refresh(Reflash): The debug info will be shown after clicking this button.  Clear: The debug info will be cleared up after clicking this button.

  • Page 42: Other

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.6 Other 4.6.1 DTU  Center Number: The number of server.  Main Center Address & Port: Set it to main server’s IP address and port or domain name.
  • Page 43 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd  Device ID: A eight hex number for server to identify different DTU.  SIM Num: A eleven decimal number for server to identify different DTU.

  • Page 44: Flowctrl

     Method: To reboot the router by each year, each month, each day, each hour or define it yourself.  Time: It works when “Method” is “Self Define”. Technical Support www.caimore.net If there is any doubt, please access our official website: or contact technical support staff and whose email address is support@caimore.com.
