TP-Link Archer VR600 Quick Installation Manual

Quick Installation Guide

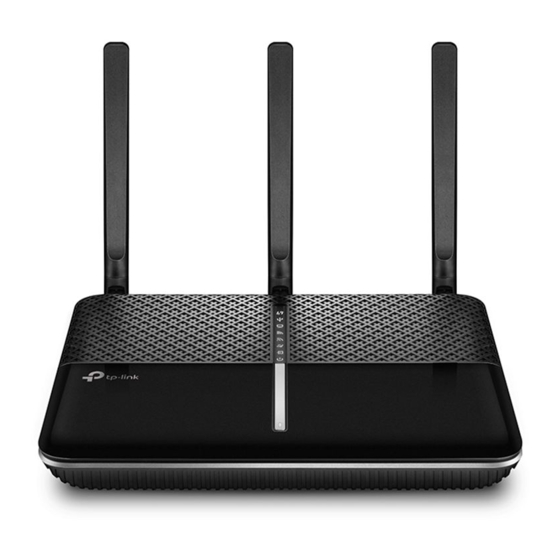

AC1600 Wireless Gigabit VDSL/ADSL Modem Router
Connect the Hardware
Configure the Modem Router
Enjoy the Internet
VR600
1
7106505669 REV1.0.0
PHONE MODEM
Phone(Optional)
If you don't need the phone service, just directly connect the
modem router to the phone jack with the provided phone cable,
then follow steps 3 and 4 to complete the hardware connection.
1
Connecting your computer to the modem router via a wired or
wireless connection
Wired
DSL USB1 USB2 LAN1 LAN2 LAN3 LAN4/WAN
Wireless
Connect wirelessly by using the SSID
(network name) and Wireless Password
printed on the product label at the
bottom of the modem router.
Now you can enjoy your Internet.
If you want more advanced settings, please refer to the User Guide on TP-LINK o cial website at www.tp-link.com.
Phone Jack
DSL USB1 USB2
2
Modem Router
DSL Splitter
Phone Cable
Power
Ethernet Cable
LAN1 LAN2 LAN3 LAN4/WAN Power
3
Push in to turn on
the modem router.
4
Verify that the following LEDs are on
and stable before continuing with
the con guration.
Power On DSL On
Note: The DSL LED takes about 1 to 2 minutes to stabilize.
2
Con guring the modem router via a web browser
A Launch a web browser and type in http://tplinkmodem.net or
192.168.1.1. Create a new password (1-15 characters) and click Save.
Note: If the login page does not appear, please refer to FAQ->Q1.
http://tplinkmodem.net
New Password
Low Middle High
Confirm Password
Save
B
Enter the password you set and click Log in.
Note: For subsequent logins, you only need to enter the password that you have set to log in.
C
Select your Region and Time Zone, then click Next. Follow the step-by-step
instructions of the Quick Setup to complete the initial con guration.
Note: Per FCC regulations, all Wi-Fi products marketed in the U.S. must be xed to the U.S.
Power Adapter
region only.
