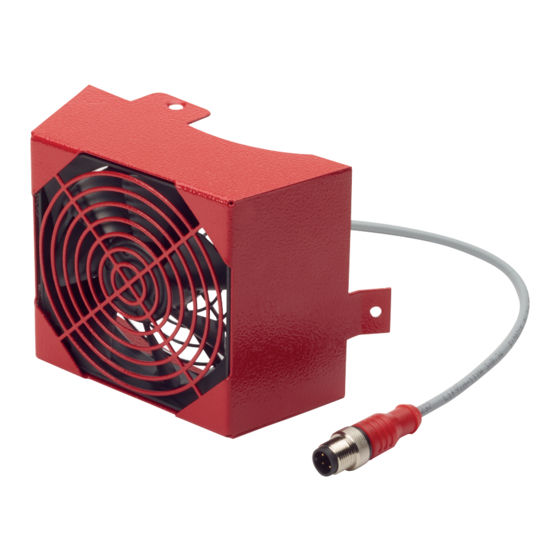

- Page 1 OPERATING INSTRUCTIONS Translation of the Original HIPACE Air cooling...
- Page 2 These operating instructions describe all models and variants of your product. Note that your product may not be equipped with all features described in this document. Pfeiffer Vacuum constantly adapts its products to the latest state of the art without prior notice. Please take into account that online operating instructions can deviate from the printed operating instructions supplied with your product.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity 1.1.1 Applicable documents 1.1.2 Variants Target group Conventions 1.3.1 Instructions in the text 1.3.2 Pictographs 1.3.3 Abbreviations 1.3.4 Stickers on the product Safety General safety information Safety instructions Safety precautions Limits of use of the product Proper use Foreseeable misuse... - Page 4 List of tables List of tables Tbl. 1: Applicable documents Tbl. 2: Versions of the air cooling for turbopumps Tbl. 3: Abbreviations used in this document Tbl. 4: Stickers on the product Tbl. 5: Permissible ambient and operating conditions Tbl. 6: Parameter settings in the electronic drive unit of the turbopump Tbl.
- Page 5 Mounting the air cooling to the electronic drive unit TC 400 Fig. 12: Dimensions PM Z01 300 A | PM Z01 360 A | PM Z01 348 Fig. 13: Dimensions PM Z01 301 A | PM Z01 302 A | PM Z01 361 A | PM Z01 362 A Fig.
-
Page 6: About This Manual
Keep the manual for future consultation. 1.1 Validity This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de- scribe the functions of the named product and provide the most important information for the safe use of the device. The description is written in accordance with the valid directives. The information in this op- erating instructions refers to the product's current development status. -
Page 7: Pictographs
About this manual Sequence of multi-part action steps The numerical list indicates an action with multiple necessary steps. 1. Step 1 2. Step 2 3..1.3.2 Pictographs Pictographs used in the document indicate useful information. Note 1.3.3 Abbreviations Abbreviation Meaning in this document Direct current Metric thread size, nominal size 8 mm Width Across Flats... -
Page 8: Safety
Safety 2 Safety 2.1 General safety information The following 4 risk levels and 1 information level are taken into account in this document. DANGER Immediately pending danger Indicates an immediately pending danger that will result in death or serious injury if not observed. ►... -
Page 9: Safety Precautions
Tbl. 5: Permissible ambient and operating conditions 2.5 Proper use ► Use the air cooling exclusively for cooling Pfeiffer Vacuum turbopumps within the limits of use de- scribed. ► Adhere to the installation, commissioning, operating, and maintenance instructions. ► Do not use any accessory parts other than those recommended by Pfeiffer Vacuum. - Page 10 Safety Training people 1. Train the technical personnel on the product. 2. Only let personnel to be trained work with and on the product when under the supervision of trained personnel. 3. Only allow trained technical personnel to work with the product. 4.
-
Page 11: Product Description
Product description 3 Product description 3.1 Function Pfeiffer Vacuum recommends using air cooling in processes with high gas throughput, bad fore-vacuum pressure and/or high ambient temperatures. If the cooling capacity of the air cooling is insufficient, use water cooling instead. The air cooling for 24 V DC is connected to the respective electronic drive unit and then supplied with voltage from here. -
Page 12: Installation
Installation 4 Installation 4.1 Connecting the air cooling for 24 V DC Prerequisites ● Turbopump switched off and vented Required tools ● Open-end wrench, WAF 7 ● Allen key, WAF 2.5 ● Allen key, WAF 3 Fig. 3: Connecting the air cooling to HiPace 30, HiPace 80, HiPace 60 P and SplitFlow 50 1 Control cable connector plug Hexagon head set screw 2 15-pin D Sub plug on multi-function connection "X3"... -
Page 13: Fig. 5: Connecting The Air Cooling To Hipace 300 With Tc 400
Installation Fig. 5: Connecting the air cooling to HiPace 300 with TC 400 1 Control cable connector plug Air cooling 2 Pump bottom part Countersunk screw 3 Interior hexagon socket screw Fig. 6: Connecting the air cooling to HiPace 350 and HiPace 450 1 Control cable connector plug Hexagon head set screw 2 15-pin D Sub plug on multi-function connection "X3"... -
Page 14: Connecting The Air Cooling For 115/230 V Ac
Installation Fig. 7: Connecting the air cooling to HiPace 400, HiPace 700 and HiPace 800 1 Interior hexagon socket screw Pump bottom part 2 Air cooling Countersink screw 3 Control cable connector plug Procedure 1. Attach the air cooling to the pump bottom part using the screws from the mounting kit. 2. -
Page 15: Connecting The Air Cooling For Hipace 60 P, Hipace 80, And Split
Installation 4.2.1 Connecting the air cooling for HiPace 60 P, HiPace 80, and SplitFlow 50 Prerequisites ● Turbopump switched off and vented Required tools ● Allen key, WAF 2.5 ● Allen key, WAF 3 Fig. 8: Fitting the mounting bracket for air cooling 1 Mounting bracket Air cooling 2 Hexagon socket screw... -
Page 16: Connecting To Mains Power Supply
Recommended use of air cooling on the electronic drive unit At the corresponding ambient temperatures, Pfeiffer Vacuum recommends the use of an additional air cooling on the electronic drive unit. ● Use the Y-connector from the range of Pfeiffer Vacuum accessories to connect the air cooling. Required tools ●... -
Page 17: Fig. 11: Mounting The Air Cooling To The Electronic Drive Unit Tc 400
Installation Fig. 11: Mounting the air cooling to the electronic drive unit TC 400 1 Hexagon socket screw Hexagon nut 2 Air cooling TC adapter 3 Lock washer Procedure 1. Fix the air cooling unit at the upper bore of the electronic drive unit using the installation materials (separate package) and the hexagon socket screw. -
Page 18: Operation
Important settings and function-related variables are programmed ex factory as parameters in the vac- uum pump electronic drive unit. Each parameter has a three-digit number and a description. Parameter- driven operation and control is supported via Pfeiffer Vacuum displays and control units, or externally via RS-485 using Pfeiffer Vacuum protocol. -
Page 19: Technical Data And Dimensions
6 Technical data and dimensions 6.1 Technical data Type designation Air cooling Air cooling Air cooling Part number PM Z01 300 PM Z01 301 PM Z01 348 Pump HiPace 60 P | HiPace 80 | HiPace 300 HiPace 30 | HiPace 80... -
Page 20: Dimensions
Air coolings 115/230 V/AC 6.2 Dimensions 85.3 81.2 Fig. 12: Dimensions PM Z01 300 A | PM Z01 360 A | PM Z01 348 137.7 128.2 141.1 Fig. 13: Dimensions PM Z01 301 A | PM Z01 302 A | PM Z01 361 A | PM Z01 362 A 135.8... -
Page 21: Fig. 15: Dimensions Pm Z01 304 A | Pm Z01 364 A
Technical data and dimensions 56.9 Fig. 15: Dimensions PM Z01 304 A | PM Z01 364 A 35.5 Fig. 16: Dimensions PM Z01 373 | PM Z01 374 Dimensions in mm 21/24... -
Page 22: Declaration Of Conformity
Harmonized standards and applied national standards and specifications: DIN EN 61000-3-2: 2019 DIN EN 61000-3-3: 2020 DIN EN 61010-1: 2020 DIN EN 61326-1: 2013 DIN EN 62061: 2016 Signature: Pfeiffer Vacuum GmbH Berliner Straße 43 35614 Asslar Germany (Daniel Sälzer) Asslar, 2022-07-07 Managing Director... - Page 23 23/24...
