The BUS Zone Expander (BZE) enables to expand the number of bus detectors connected to the RISCO system to more
than 32 detectors and to improve bus performance.
Each BUS Zone Expander creates a separate bus loop that is used only for the bus detectors connected to it. The separate
bus loop increases the total system security in case a certain bus detector is sabotaged.
Each BUS Zone Expander can be defined to support 8, 16, 24 or 32 bus detectors.
The following instructions explain how to connect a bus detector to the system using the BUS Zone Expander.
Note: Communication with the BUS Zone Expander is supported by ProSYS ver. 7 and later and LightSYS. The BUS Zone Expander is
supported by Upload/Download software ver 3.2.x.x and later and Configuration Software.

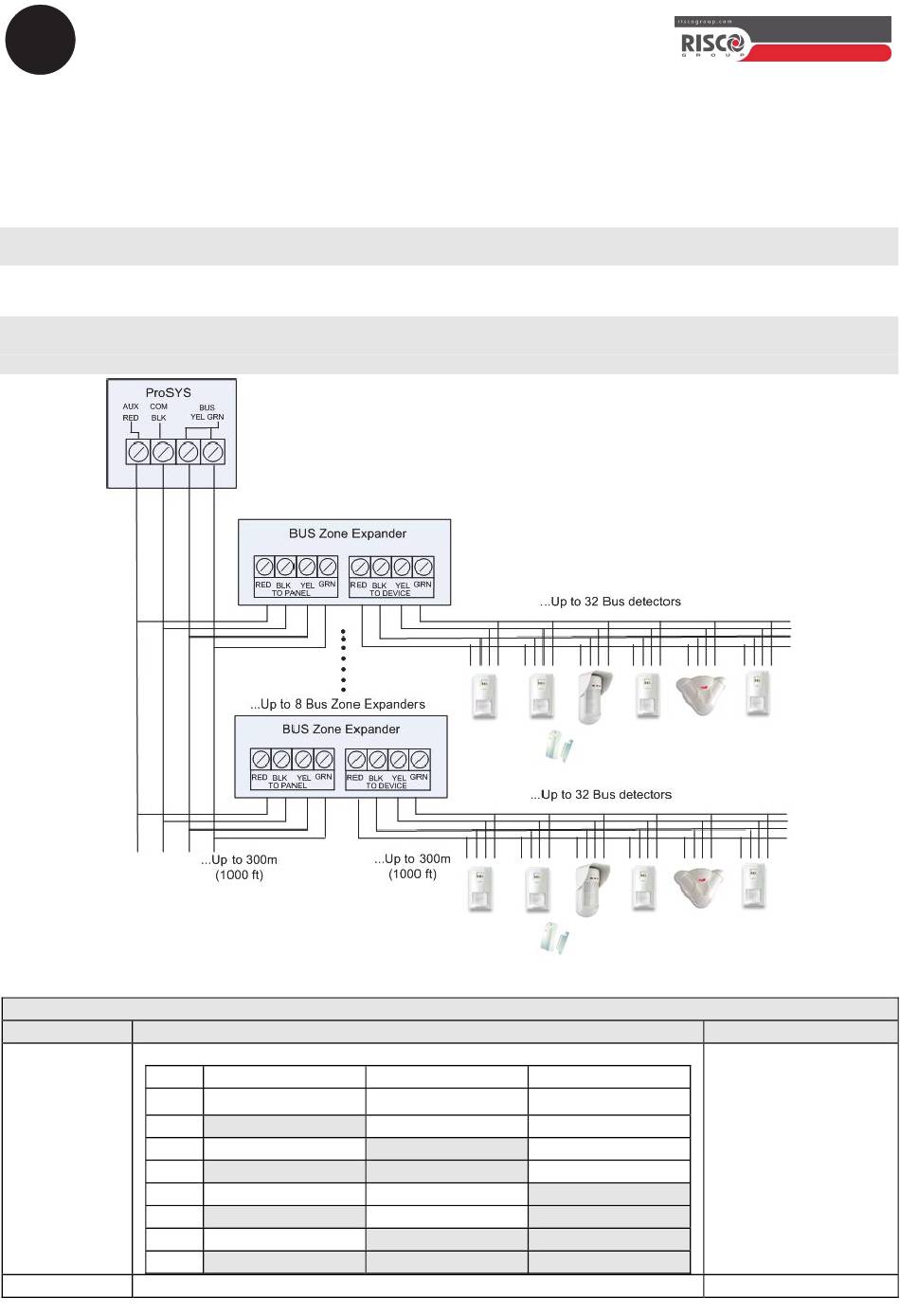

Installation
Note: For maximum operation stability, it is best NOT to exceed a total of:
1. 300 meters (1000 feet) of wiring from the BUS Zone Expander to the panel
2. 300 meters (1000 feet) of wiring from the BUS Zone Expander to the last bus detector
DIP Switches Settings
SW1: ID
Switch
Description
SW1 (1 - 3)
Defines the BUS Zone Expander ID number
ID
1
2
3
4
5
6
7
8
SW1 - 4
Not used
BUS Zone Expander
Model: RP128EZB
SW1 - 1
SW1 - 2
Off
Off
On
Off
Off
On
On
On
Off
Off
On
Off
Off
On
On
On
SW1 - 3
Off
Off
Off
Off
On
On
On
On
Default
ID 1
Advertisement
Related Manuals for Risco RP128EZB
Summary of Contents for Risco RP128EZB
- Page 1 BUS Zone Expander Model: RP128EZB The BUS Zone Expander (BZE) enables to expand the number of bus detectors connected to the RISCO system to more than 32 detectors and to improve bus performance. Each BUS Zone Expander creates a separate bus loop that is used only for the bus detectors connected to it. The separate bus loop increases the total system security in case a certain bus detector is sabotaged.
- Page 2 SW2 - 2 LightSYS which is automatically configured) SW2 - 3 Defines which RISCO system On: LightSYS or ProSYS Plus Off: ProSYS (Bus zone configuration as per SW2 above) SW2 - 4 Controls the configuration of the tamper terminals On: Tamper terminals shorted Off: Tamper terminals open.
- Page 3 Step 2: Defining the type the bus detectors connected to the BUS Zone Expander The display will show: L: (quick keys: ) BUS Zone: BUS ZONE: (01) (x:yy) TYPE=None (0:01)TYPE=NONE In the x:yy designation, the x represents the Note: The display "(x:yy) Type: None" represent BUS Zone Expander ID number and the yy the BUS detector location in the system.
- Page 4 EN50131-3 Grade 3 Environmental class II (For Grade 3 installation using ProSYS Plus panel model RP512M) EMC Compliance Statement: Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU. For the CE Declaration of Conformity please refer to our website: ww.riscogroup.com.
-
Page 5: Installazione
Espansione Zone BUS Modello: RP128EZB L’Espansione Zone BUS (BZE) permette di espandere il numero di rivelatori BUS collegati al Sistema RISCO a più di 32 rivelatori e migliorare le prestazioni del BUS. Ogni Espansione Zone BUS crea un BUS aggiuntivo che viene utilizzato solo per i rivelatori BUS collegati ad esso. Grazie al BUS aggiuntivo, l’Espansione Zone BUS permette di aumentare la sicurezza del sistema nel caso venga sabotato un... -
Page 6: Indicatori Led
SW2 - 3 Definisce a quale sistema RISCO verrà collegata l’espansione On: LightSYS o ProSYS Plus Off: ProSYS (configurazione zone Bus come da SW2 (1 - 2) sopra) SW2 - 4 Controlla la configurazione dei morsetti del tamper On: Morsetti tamper disabilitati Off: Morsetti tamper abilitati. - Page 7 Fase 2: Definizione del tipo di rivelatori BUS collegati all’Espansione Zone BUS Il display mostrerà: L: (tasti rapidi: ) Zona BUS: ZONA BUS: (01) (x:yy) TIPO=No (0:01)TIPO=NO Nella designazione x:yy, la x rappresenta il Nota: Il display "(x:yy) Tipo: No" rappresenta la numero ID dell’Espansione Zone BUS e le yy posizione del rivelatore BUS nel sistema.
- Page 8 EN50131-3 Grado 3 Environmental Class II (Per installazioni Grado 3 utilizzare la centrale ProSYS Plus mod. RP512M) Dichiarazione di Conformità EMC: La sottoscritta RISCO Group, dichiara sotto la propria responsabilità che questo prodotto è conforme ai requisiti essenziali e alle altre rilevanti disposizioni della Direttiva Europea 2014/30/EU.
