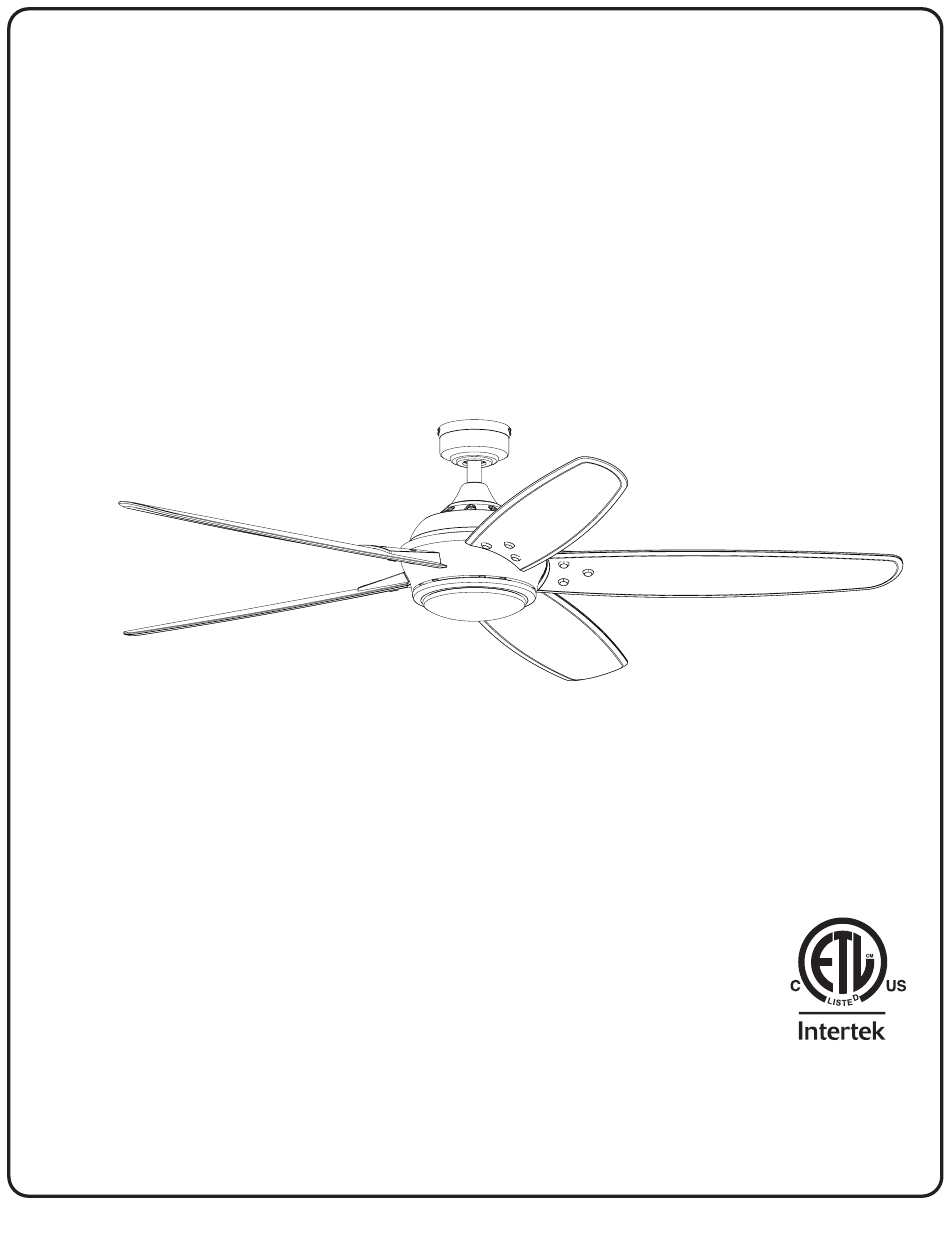

- Page 1 62” CEILING FAN Owner’s Manual Model #51633, 51682 To obtain service, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday. 9678 • 120320...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Canopy 12. Glass Bowl 2. Canopy Cover 13. Light Cap 3. Mounting Bracket 14. Blade Balancing Kit 4. Mounting Bracket Screw 15. Downrod 16 17 (x4) 16. -
Page 3: Mounting Options
DIMENSION REFERENCE A. 14.09 in. B. 11.88 in. C. 9.45 in. D. 5.13 in. MOUNTING OPTIONS Dual Mounting Options Downrod Mount Angled Ceiling Mount (Up to 16 degrees) Choose one of the following mounting options: Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (not included). -
Page 4: Safety Instructions
--Consult the dealer or an experienced radio/TV technician for help. Please note changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. HKC-US 3350 Player’s Club Parkway, #225 Memphis, TN 38125... - Page 5 SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
- Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. Mounting 2. Loosen all four mounting bracket screws and Bracket Screw completely remove the two screws from the round holes in the canopy.
- Page 7 ASSEMBLY INSTRUCTIONS 5. Slide the downrod into the yoke of the motor assembly, align the holes, then re-install the downrod pin and downrod clip. Secure with the two set screws and slide the yoke cover down until it rests on top of the Set Screw Downrod motor assembly.
- Page 8 ASSEMBLY INSTRUCTIONS Braided Cable SECONDARY HANGING SYSTEM For installation in the United States: Building codes Brace in the U.S.A. do not require installation of a Secondary Hanging System. If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to Step 10.
- Page 9 ASSEMBLY INSTRUCTIONS 10. Use wire connectors to connect the fan wires to the Black (Hot) power supply wires according to the wiring diagram and White (Neutral) the following instructions: Bare/Green (Ground) • Connect the green wires from the downrod and Wire Connector mounting bracket to the bare/green (ground) supply wire.
- Page 10 ASSEMBLY INSTRUCTIONS 14. Attach the glass bowl to the light kit by twisting the glass bowl tightly in a clockwise direction until it is secure. CAUTION: Avoid cross-threading the glass during Light Kit installation. Improper installation could cause the glass bowl to be difficult to remove or fall, which could cause serious injury.
- Page 11 ASSEMBLY INSTRUCTIONS Front Back 17. Remove the battery cover from the back of the remote found in the remote pack. Insert the battery from the remote pack into the remote; ensure polarity High of battery matches the polarity indicated in the battery Speed compartment--positive (+) to positive (+) and negative (-) to negative (-).
- Page 12 OPERATING INSTRUCTIONS 1. To operate the fan using the remote, press and release LED Indicator the following buttons: High Speed III - High speed II - Medium speed Medium Speed I - Low speed Low Speed Fan Off - Turns power to fan off. Light Delay - Tap the Light Delay button, which will Fan Off turn off the light after one minute.
-
Page 13: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-706-3267, 8 a.m. -
Page 14: Limited Lifetime Warranty
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other failure of this product.
