INSTRUCTION MANUAL
WATER KIT
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC89 Series and is the answer not in the manual?

Questions and answers

Related Manuals for modec MC89 Series

Summary of Contents for modec MC89 Series

  • Page 1 INSTRUCTION MANUAL WATER KIT ENGLISH...

  • Page 2: Table Of Contents

    Accessories ............................19 Foot held articulated reaction system BA012 ..........19 Torque reaction arm BR001 ..............20 Telescopic valve key EB002 and the extension bar EB012 ........20 Instruction Manual : modec Portable Valve Actuators ..............21 WARRANTY ........................... 22...

  • Page 3: Mc89 Electric Series

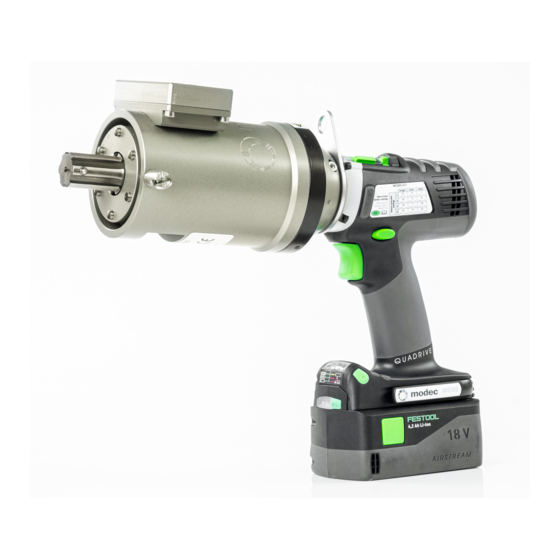

    MC89 ELECTRIC SERIES Instruction manual modec 0 kit guarantees ease, speed and safety when handling underground valves in the water industry. This kit includes accessories thought, designed and produced for operations on your water system. The MC89 battery-powered portable valve actuator contained in this kit is extremely compact and lightweight, with a torque of up to more than 850 Nm.

  • Page 4: Introduction

    Updates will be available on our website www. modec.fr. It is important to refer to the website before setting up or using the actuator, and before carrying out maintenance. Any modifications made to the actuators or their accessories must be approved in writing by modec.

  • Page 5: General Safety Warnings

    Have the tool serviced by a qualified repairer using only modec products when changing • parts. Only use valve accessories recommended and approved by modec. Think to consult the • accessory list provided and/or seek advice from modec for specific uses.

  • Page 6: Transporting The Actuator

    Please also follow any additional regulations that may apply. Storing the actuator modec actuators must be stored in a dry and correctly ventilated environment to ensure there is no corrosion of the internal mechanic parts.

  • Page 7: Certification Ce

    Certification CE...

  • Page 8: Safety Equipment

    2- Fixation ring to fix a strap for handling and carrying: Not for torque management. 3- Flange: enables the attachment of all modec heads, adaptors and torque systems. 4- Left/right switch – to choose rotational direction of the actuator.

  • Page 9: Batteries And Chargers

    PERFORMANCES & TECHNICAL CHARACTERISTICS Free speed Max torque (Nm Weight (kg) Dimensions (l x d x h) (mm) (rpm) (lb.ft)) MC89E-007 115 (85) 354 x 96 x 269 MC89E-035 550(400) 354 x 96 x 269 MC89E-054 850(630) 367 x 96 x 269 Sound and vibration levels Sound and vibration levels are calculated based on the conditions of use at the maximum rated speed.
  • Page 10 Start charging: Before use, the cable must be completely unwound from the recess (1-5).  Insert the charger mains plug in the socket.  Push the battery pack (1-2) into the charging station (1-1) Meaning of the LEDs: Then, the charge status display (1-4) on the charger initially changes to the yellow LED (« self- check») and then indicates the operating condition of the charger: ...

  • Page 11: Starting Up The Portable Valve Actuator

    Charge the battery pack before any further use. Do not continue until complete discharge. After the portable actuator has switched off automatically, do not press the on/off button, this could damage the battery pack. Starting up the Portable Valve Actuator Changing the battery pack INSERTING / REMOVING THE BATTERY Before using the battery pack, check that the...
  • Page 12 Torque / Speed matrix MC89E-007 Speed Torque lim. setting setting Max S (rpm) Max T (Nm) Max S (rpm) Max T (Nm) Max S (rpm) Max T (Nm) Max S (rpm) Max T (Nm) Torque / Speed matrix MC89S-035 Speed Torque lim.

  • Page 13: Setting Up And Use The Water Kit

    Setting up and use the water kit General info The actuator must be kept stable while turning the valve or handwheel. modec Portable Valve Actuators can be used in any position. However, to ensure the operator is working safely and in the best conditions, it is imperative that the actuator is used in the axis of the handwheel being activated.
  • Page 14 5. Attach the torque management system to the front of the portable valve actuator using the two spring loaded pullers. Note: The BA012 torque management system is only valid up to a maximum torque of 350 N.m. It varies according to the nature of the soil (loose earth or bitumen) and the weight of the operator.

  • Page 15: Start

    Check again the direction of the torque retention. In case of resistance resulting from deposits on the stem, turn the valve in both directions several times to ‘clean’ it. modec revolution counter (optional) enables you to always know which position the valve is in.

  • Page 16: Revolution Counter (Option)

    Revolution counter (option) PRESENTATION The digital Revolution counter adds up the revolutions in one direction and subtracts them in the other direction in such a way that the operator always knows where he is in relation to the initial set-up. The tool also measures and shows the rotational speed.

  • Page 17: Maintenance And Servicing

    400 hours or at least once a month. Maintenance operation Weekly Yearly or as needed Check and service the actuator by a registered modec distributor Replace the Revolution counter battery (option) Check the torque limiter by a registered modec distributor...
  • Page 18  People who have been trained by modec should carry out maintenance of the Portable Valve Actuators. Our “After Sales Service” department are ready to help in this respect.

  • Page 19: Problem Solving

    The actuator beeps once and the led Release the On/Off switch, fix a torque Torque reaction safety has triggered User flashes reaction system and start again continuously modec The actuator beeps The motor is faulty Contact a modec Service center Distributor continuously...

  • Page 20: Torque Reaction Arm Br001

    Its length is adjustable from 0.6m to 0.9m in 8cm increments. The length of the fixed extension EB012 is 0.5m. This gives a total (EB002 + EB012) of 1.4m. Maximum allowable torque: 1000 Nm MOUNTING THE PORTABLE ACTUATOR ON A MODEC TELESCOPIC VALVE KEY...

  • Page 21: Instruction Manual : Modec Portable Valve Actuators

    INSERTING THE EB012 EXTENSION INTO THE EB002 TELESCOPIC KEY Instruction Manual : modec Portable Valve Actuators The Portable Valve Actuators users manual videos...

  • Page 22: Warranty

    Components which were not manufactured by us come under the relevant manufacturer’s warranty. This warranty shall only be applicable if the machine is used with modec consumables. We hold no liability if our products are used in an abnormal manner.
  • Page 23 Notes Contact modec : Mail: sales@modec.fr Phone: +33 (0)4 75 40 27 15 Fax: +33 (0)4 75 40 27 36 www.modec.fr...

This manual is also suitable for:

Mc89e-007Mc89e-035Mc89e-054
