Sealey SAC3203B3PH Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Warning:
instructions Hot surface
Switch off
Warning:
Under pressure before servicing
or maintenance
1. SAFETY
1.1. ELECTRICAL SAFETY.
‰
WARNING! It is the user's responsibility to read, understand and comply with the following:
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads,
plugs and all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation
of appropriate safety devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We
also recommend that an RCD (Residual Current Device) is used with all electrical products. It is particularly important to use an RCD
together with portable products that are plugged into an electrical supply not protected by an RCCB. If in doubt consult a
professional Electrician. You may obtain a Residual Current Device by contacting your Sealey stockist. You must also read and
understand the following instructions concerning electrical safety.
9
The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
Electrician at least once a year, using a Portable Appliance Tester (PAT).
9
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance, and
the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified Electrician.
9
Ensure the insulation on all cables and the product itself is safe before connecting to the mains power supply. See 1.1.1. & 1.1.2.
above and use a Portable Appliance Tester (PAT).
9
Ensure that cables are always protected against short circuit and overload.
9
Regularly inspect power supply, leads, plugs and all electrical connections for wear and damage, especially power connections, to
ensure that none are loose.
‰
WARNING! IMPORTANT: Ensure the voltage marked on the product is the same as the electrical power supply to be used and check that plugs are
fitted with the correct capacity fuse.
8
DO NOT pull or carry the powered appliance by its power supply lead or output
cables.
8
DO NOT pull power plugs from sockets by the power cable.
8
DO NOT use worn or damaged leads, plugs or connections. Immediately replace
or have repaired by a qualified Electrician. This particular compressor is supplied
without a mains plug. Follow the instructions below regarding the fitting of an
appropriate plug.
1.2. MODEL SAC3203B3PH REQUIRES A 415V 3 PHASE SUPPLY AND MUST
HAVE AN APPROPRIATE PLUG FITTED.
‰
WARNING! ELECTRICAL INSTALLATION OF THE COMPRESSOR TO A
3 PHASE 415VOLT SUPPLY MUST ONLY BE CARRIED OUT BY A
QUALIFIED ELECTRICIAN. Ensure the power supply cable is connected to the Earth.

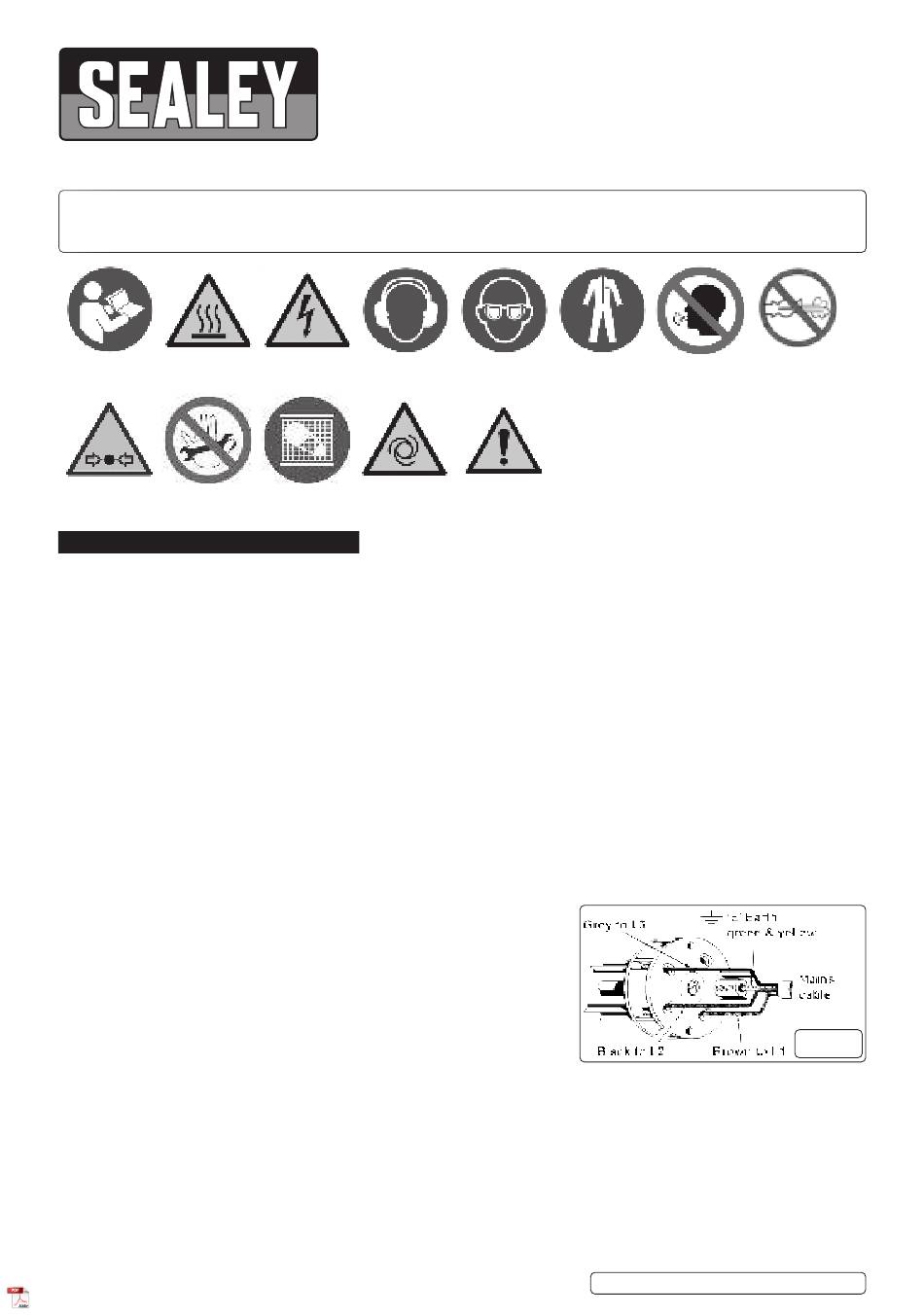

1.2.1. This product must be fitted with a 3 phase plug wired as illustration in (fig 1), wired to an appropriately fused supply.
Connect GREEN/YELLOW wire to Earth 'E'
Connect BROWN wire to L1 Terminal.
Connect BLACK wire to L2 Terminal.
Connect the GREY wire to L3 Terminal.
NOTE: The cable core colours found in the mains cable on this compressor are consistent with Amendment 2 to 7671:2001. When
completed, check there are no bare wires, that all wires have been connected correctly and the cable restraint is tight.
‰
WARNING! IT IS ESSENTIAL TO OBSERVE ANTI-CLOCKWISE (fig.1) PULLEY DIRECTION ON INITIAL START UP. IF
CLOCKWISE OBSERVED, STOP IMMEDIATELY AND CONSULT A QUALIFIED ELECTRICIAN TO INVERT 2 PHASES.
8
DO NOT use this product with a standard extension cable. Only use ARMOURED extension cable.
© Jack Sealey Limited
200L BELT DRIVE AIR COMPRESSOR 3HP
WITH FRONT CONTROL PANEL 415V 3PH
MODEL NO:
Electrical shock Wear ear
hazard protection
Belt guard Warning:
must be in Automatic
place startup
Original Language Version
SAC3203B3PH
Wear eye Wear protective
clothing
protection
Warning:
SAC3203B3PH Issue 4 (3,4,5) 04/04/22
DO NOT
DO NOT
Connect face open the air
mask directly cock before
to compressor
an air hose is
attached
fig.1
