Summary of Contents for Romus BS7

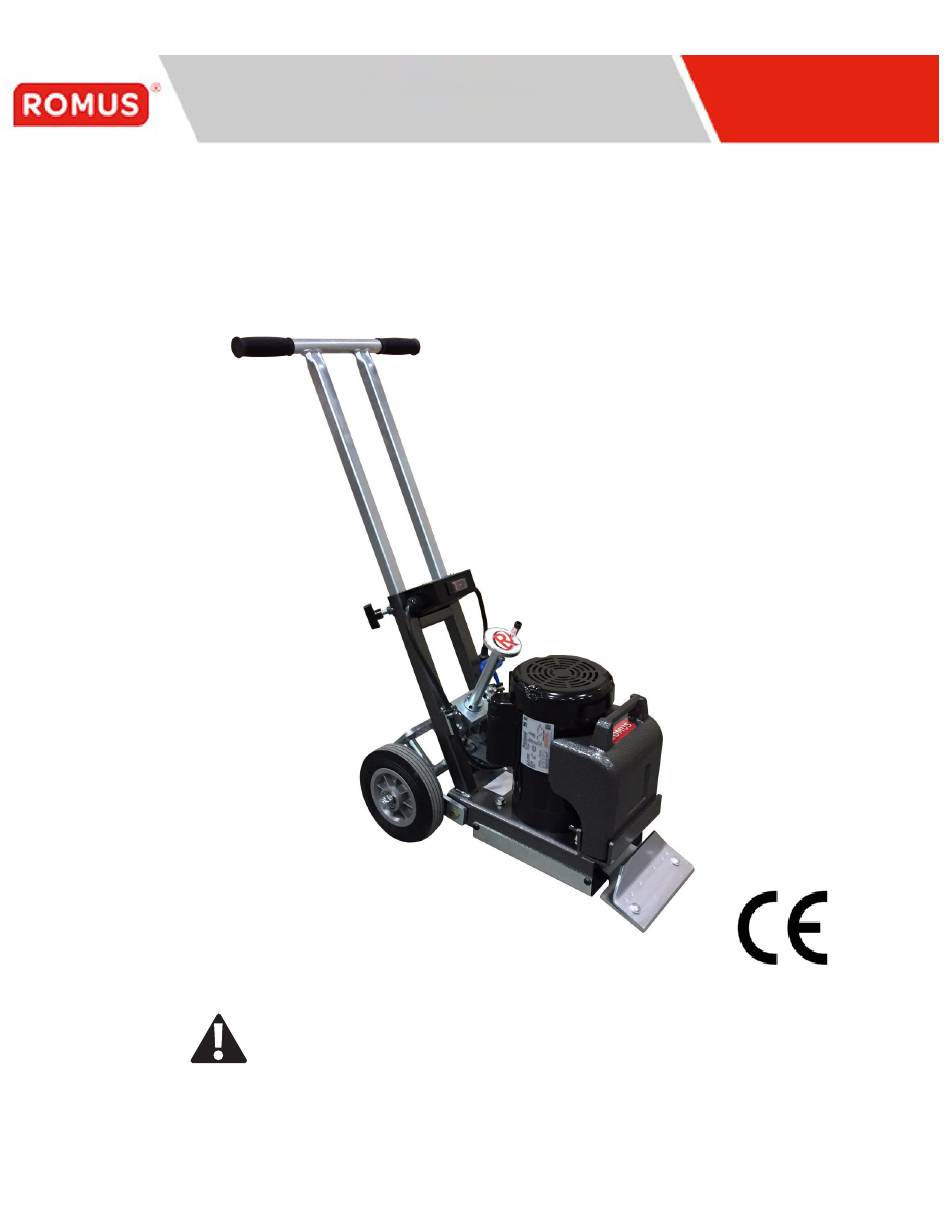

- Page 1 FLOOR STRIPPER BS7 OPERATING & SERVICE MANUAL - EN Ref. 94570 Read Manual Before Operating or Servicing Machine 401862-ROM Rev B www.romus.fr www.romusworld.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ................................3 Features and Specifications ............................4 Safety ....................................5 General Rules for Safe Operation ......................... 5 Walk-Behind Scraper Safety Guidelines ........................ 6 Recommended Electrical Practices ........................7 Components and Assembly ............................8 Transport ................................8 Assembly ................................ -
Page 4: Table Of Contents
THIS PAGE INTENTIONALLY LEFT BLANK 401862-ROM_550-ROM_RevB... -
Page 5: Features And Specifications
Features and Specifications Adjustable Handle Angle Adjustment Foot Bar Removable Weight with Lift Handle Cutting Head/Blade Holder FEATURES Adjustable Handle - Allows the operator to adjust for comfort. Removable Weight with Lift Handle - enables a single person to load and/or unload machine. Removable weight is 20 kg. Foot Bar - Use of lower body strength reduces fatigue. -
Page 6: Safety
Safety GENERAL RULES FOR SAFE OPERATION Before use, anyone operating or performing maintenance on this equipment must read and understand this manual, as well as any labels pack- aged with or attached to the machine and its components. Read the manual carefully to learn equipment applications and limitations, as well as potential hazards associated with this type of equipment. -
Page 7: Walk-Behind Scraper Safety Guidelines
Safety WALK-BEHIND SCRAPER SAFETY GUIDELINES Before use, anyone operating this equipment must read and understand these safety instructions. SCRAPING Beware of hidden obtrusions. Watch out for hidden dangers and protrusions in flooring. Do not use on largely uneven surfaces. Observe location of electrical supplies and extension cords. Do not allow cutting heads to come into contact with any electrical supply or extension cord. -
Page 8: Recommended Electrical Practices
Safety RECOMMENDED ELECTRICAL PRACTICES CAUTION: ALWAYS FOLLOW APPLICABLE ELECTRICAL CODES, STANDARDS AND/OR REGULATIONS. CONSULT YOUR LOCAL ELECTRICAL AUTHORITY OR A LICENSED ELECTRICIAN BEFORE ATTEMPTING TO MODIFY AN ELECTRICAL INSTALLATION. ENSURE THAT CIRCUIT AND GROUND FAULT PROTECTION DEVICES AND ALL OTHER ELECTRICAL SAFETY EQUIPMENT ARE FUNCTIONING PROPERLY. -
Page 9: Components And Assembly
Components and Assembly TRANSPORT Always remove counterweight and blades before loading or unloading. Machine breaks down for easy transportation: • Remove handle (Figure 1). • Lower handle and/or wheel angle. WARNING: KeeP HANDS AND FeeT OUT FROM UNDeR THe MACHINe. T-Bolt CAUTION: LOOSeN T-BOLTS BeFORe TRYING TO ReMOve THe HANDLe. - Page 10 Components and Assembly CONCRETE When working on concrete slab, a normal blade position is bevel up for best perfor- mance, especially when cleaning adhesive. On occasion, bevel down gives better blade life. Test each job for best performance. GYPCRETE AND SOFT-POURED FLOORING Requires blade bevel down to create a better wearing surface.
-
Page 11: Operation
Operation WHEEL AND HANDLE ADJUSTMENT Angle Adjusting the wheel angle will change the blade angle to the floor. Rotate handle clock- Adjustment wise to raise wheels and counterclockwise to lower wheels to the desired blade angle Wheel (Figure 4). • A steep wheel angle is recommended on hard tear-outs, e.g. - Page 12 Operation • Blades can be offset in the cutting head for easier access to toe kicks or for removal along the wall (Figure 7). • Sheet vinyl, solid vinyl, rubber tile, urethane, or PVC sheet roofing will need to be scored for best removal results.
-
Page 13: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution No power Insufficient power Inspect electrical cord for damage. Switch/Circuit Check if circuit breaker and/or switch are tripped. Motor noise Fan guard is malfunctioning. ensure fan guard is not bent. Machine is hard to handle. Machine is too heavy. -
Page 14: Maintenance
Maintenance MAINTAINING EQUIPMENT WARNING: ALWAYS UNPLUG MACHINe BeFORe MAINTAINING. NeveR DISASSeMBLe THe TOOL OR TRY TO DO ANY ReWIRING ON THe TOOL’S eLeCTRICAL SYSTeM. FAILURe TO DO SO COULD CAUSe DAMAGe TO MACHINe OR SeRIOUS INJURY. CONTACT MANUFACTUReR FOR ALL RePAIRS. Keep equipment in good repair by adopting a regular maintenance program. -
Page 15: Parts List And Diagrams
OVERALL MACHINE Parts List and Diagrams OVERALL MACHINE SWITCH UPPER HANDLE MOTOR COUNTERWEIGHT ADJUSTMENT SHAFT WHEEL ASSEMBLY FRAME CUTTING HEAD 401862-ROM_550-ROM_RevB... -
Page 16: Frame And Wheel Assembly
Parts List and Diagrams FRAME AND WHEEL ASSEMBLY FRAME AND WHEEL ASSEMBLY ITeM ITEM PART NUMBeR DeSCRIPTION QTY. PART NUMBER DESCRIPTION QTY. Frame, Base, Silver Vein (550-10XXXX, 550-23XXXX, 550- BASe, WeLDMeNT, SILveR veIN 11XXXX, 550-13XXXX, 550-20XXXX, 550-29XXXX ONLY) 550-11 ASSeMBLY, WHeeL ADJUSTMeNT Frame, Base, Green (550-12XXXX ONLY) 72901 O RING 113... -
Page 17: 550-11 Wheel Adjustment Assembly
Parts List and Diagrams 550-11 WHEEL ADJUSTMENT ASSEMBLY 550-11 WHEEL ADJUSTMENT ASSEMBLY ITeM PART NUMBeR DeSCRIPTION QTY. ITEM PART 404823 WHeeL, ADJUSTMeNT, 3” DESCRIPTION QTY. NUMBER 550-4 T-BAR, ADJUSTMeNT 550-12D Wheel, Adjustment 550-5B COLLAR, SHAFT 7/8 550-4 T-BAR, ADJUSTMENT 550-6 SHAFT, ADJUSTMeNT 550-5B Collar, Shaft 7/8... -
Page 18: Cutting Head
Parts List and Diagrams CUTTING HEAD CUTTING HEAD (FRAME) Angle Shank (Optional) ITeM ITEM PART DESCRIPTION QTY. PART NUMBeR DeSCRIPTION QTY. NUMBER 73259 Bolt, Wizlock, 3/8-16X3/4 73259 BOLT, WIZLOCK, 3/8-16X3/4 70810 Isolator, Vibration 70810 ISOLATOR, vIBRATION 5280-8 Cutting Head 5280-8 HeAD, CUTTING 71131 Bearing 1-1/4 ID, SBLF 206-20... -
Page 19: Motor
Parts List and Diagrams MOTOR ITeM PART NUMBeR DeSCRIPTION QTY. 404928 CAPACITOR, START, 50HZ 400001 COveR, MOTOR FAN, TOP MOUNT SCReWS, PAINTeD 62181 FAN, MOTOR 62182 COveR, CAPACITOR, LeeSON 404929 BOX, CONDUIT, 50HZ 404930 COveR, BOX, CONDUIT, 50HZ 404743 MOTOR, 1 HP, 115/230v, 50HZ 73259 BOLT, WIZLOCK, 3/8-16X3/4 73902... -
Page 20: Switch
Parts List and Diagrams SWITCH SWITCH - INTERNATIONAL MACHINES ITEM PART NUMBER DESCRIPTION QTY. ITeM 404175 Assembly, Electrical Box, UK PART NUMBeR DeSCRIPTION QTY. 404176 Assembly, Electrical Box, EUR 404176 ASSeMBLY, eLeCTRICAL BOX, eUR 404177 Assembly, Electrical Box, AUS 403075 SCReW, PHILLIPS PAN HeAD, M4-0.7X10, CLeAR ZINC 404178 Assembly, Electrical Box, SIN... - Page 21 Parts List and Diagrams SWITCH—CONTINUED ITeM PART NUMBeR DeSCRIPTION QTY. ITEM 550-20XXXX 550-11XXXX 550-13XXXX 550-29XXXX DESCRIPTION QTY. 404158 BOX, SWITCH, ON/OFF, Ce 404158 Box, Switch, On/Off, CE 404180 SWITCH, ROCKeR BReAKeR, 10A, 220-240v, UvR 404144 Switch, Rocker Breaker, 18A, 90-120V, UVR 404172 ASSeMBLY, CORD, POWeR, 1.5MM/3, eU1-16P, 15IN 404180...
-
Page 22: Counterweight
Parts List and Diagrams COUNTERWEIGHT COUNTERWEIGHT ITeM PART NUMBeR DeSCRIPTION QTY. ITEM PART DESCRIPTION QTY. NUMBER 404744 COUNTeRWeIGHT, FRONT, NO LOGO, SILveR veIN Counterweight, Front, Cast, Silver Vein (550-10XXXX, 550-28-SV 550-23XXXX 550-11XXXX, 550-13XXXX, 550-20XXXX, 550-29XXXX ONLY) 73273 SCReW, THUMB, 3/8-16X3/4 550-28-G Counterweight, Front, Cast, Green (550-12XXXX ONLY) 73273... -
Page 23: Labels
Parts List and Diagrams LABELS ITeM PART NUMBeR DeSCRIPTION QTY. 403356-ROM-FR KIT, LABeLS, 550, ROMUS ACCESSORIES ITeM PART NUMBeR DeSCRIPTION QTY. 5170-ROM KIT, BLADeS, 550, ROMUS 401862-ROM_550-ROM_RevB... -
Page 24: Wiring Diagram
Parts List and Diagrams WIRING DIAGRAM—230V 550 Wiring Diagram 230V International 230V SUPPLY MOTOR CONTROL BOX JUNCTION BOX T-R3 T-R1 T-R2 2.5MM-GRN/YEL GROUND GROUND T-F10 T-F30 2.5MM-BRN T-F20 T-F40 2.5MM-BLU ON/OFF SWITCH UNDER VOLTAGE PROTECTED MOTOR 401862-ROM_550-ROM_RevB... - Page 28 www.romusworld.com...
