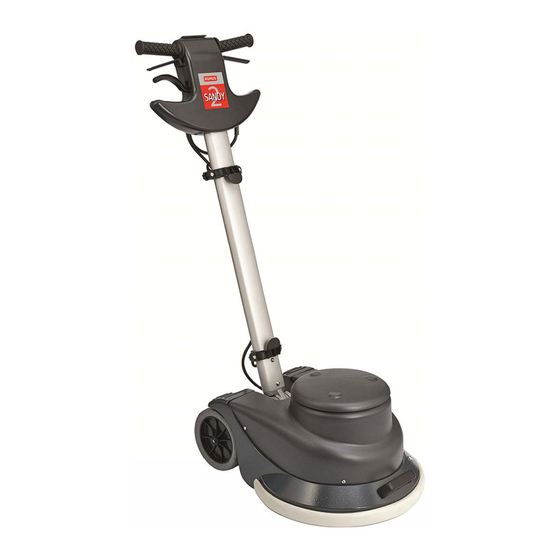

"SANDY 2"
ref.94451-94476-94880
USE AND MAINTENANCE MANUAL_GB


Advertisement

Table of Contents
loading

Related Manuals for Romus sandy 2 CM33-43 F

Summary of Contents for Romus sandy 2 CM33-43 F

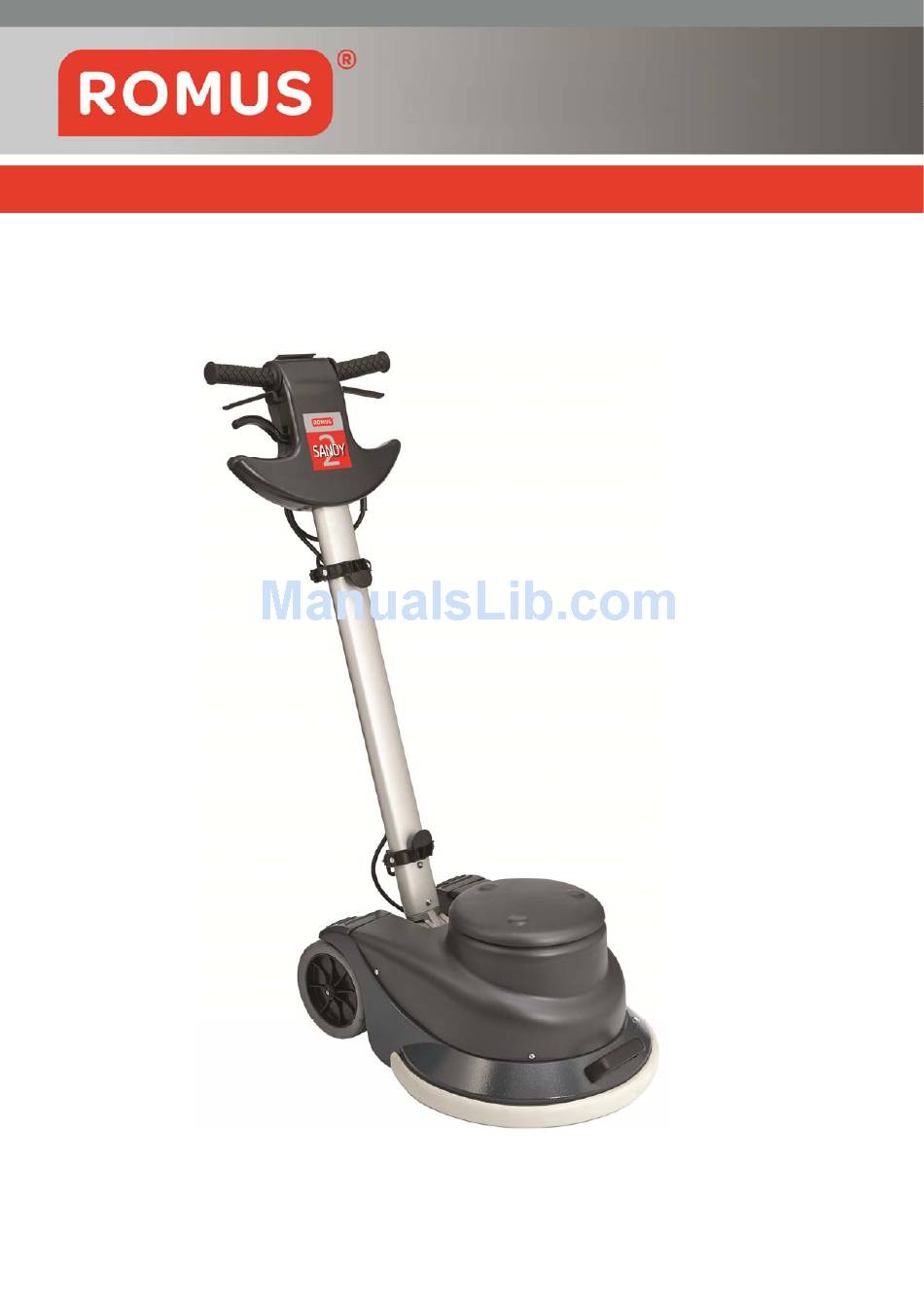

  • Page 1 “SANDY 2” ref.94451-94476-94880 USE AND MAINTENANCE MANUAL_GB  ...
  • Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to parts, details or accessory supply, as considered necessary for reasons of improvement or for manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.

  • Page 4: Table Of Contents

      ELECTRICAL SYSTEM DIAGRAM – 94476- 1800W ............................19   ELECTRICAL SYSTEM DIAGRAM – 94480- 2200W ............................20   EC DECLARATION OF CONFORMITY ................................21   ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 5: On Consignment Of The Machine

    Sound pressure level (ISO 11201) - L dB (A) <70 <70 <70 Uncertainty K dB (A) <2.5 <2.5 <2.5 Hand vibration level (ISO 5349) Uncertainty of measurement of vibrations ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 6: Symbols Used On The Machine

    SYMBOLS USED ON THE MACHINE Indicates the earth connection point of the electric system of the machine Voltage symbol Warning - high voltage 230 Volt. Indicates the maximum gradient. ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 7: General Safety Regulations

    When your machine has reached the end of its long working life, dispose of the materials it contains (especially oils and electronic components) in an appropriate manner, taking into account that the machine itself was constructed by using 100% recyclable materials. ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 8: Machine Preparation

    5. HANDLEBAR COMPONENTS The handlebar components are identified as follows: 1. Main switch control lever. 2. Handlebar tilt adjustment lever. 3. Solution tank tap control lever (optional). ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 9: Steering Column Components

    4. Holding the tank with one hand, move the mobile bracket (3) down until the solution tank is locked to the column. 5. Lock the position of the mobile bracket (3) by tightening the closing knob (1). ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 10: Detergent Solution

    WARNING: during this operation, check there are no people or objects near the brush. WARNING: Make sure the brushes are correctly connected. If this is not the case, the machine could move in an irregular, sudden manner. ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 11: Work

    3. Apply a small amount of detergent solution to the floor by pressing the lever (3) until the brush is saturated with foam (optional solution tank kit). ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...
  • Page 12 6. We recommend that you vacuum up the dirt-loaded foam at intervals with the aid of a vacuum cleaner for liquids (optional solution tank kit). ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 13: At The End Of The Work

    Disassemble the brush and clean it with a jet of water (to disassemble the brush, see “DISASSEMBLING THE BRUSH / PAD-HOLDER” below). ATTENTION: you are advised to always wear protective gloves, to avoid the risk of serious injury to your hands. ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 14: Daily Maintenance

    4. Rotate the brush anticlockwise until it is released from the brush-holder plate, then clean it with a jet of water. Check the bristles. If they are excessively worn, replace the brushes (the bristles should protrude by at least 10mm). ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 15: Weekly Maintenance

    6. To position it on the machine, refer to “ASSEMBLING THE SOLUTION TANK (OPTIONAL)”. ATTENTION: you are advised to always wear protective gloves, to avoid the risk of serious injury to your hands. ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 16: Troubleshooting

    18. THE MACHINE VIBRATES OR OSCILLATES The machine has been sitting in rest position for too long, with the brush or pad holder still inserted. Replace as soon as possible. ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 17: Disposal

     Electric and electronic parts*  Plastic parts (tanks and handlebar)  Metal parts (levers and frame) (*) In particular, contact your local distributor when scrapping electric and electronic parts. ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 18: Choosing And Using The Brushes

    No. of brushes Code Type of bristles Bristles  Brush Length Notes 431361 BRUSH 94451 431360 0.45 BRUSH 94476- 405657 ABRASIVE BRUSH 94480 431362 PAD HOLDER ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 19: Electrical System Diagram - 94451

    Cable 3x1.5x1680 -2- Blue Noise filter Brown cable 1.5x150 -3- Brown Operating condenser 30F Start condenser 145-174F White Klixon Grey 230V motor GNYE Yellow-green Plug 16A Green ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 20: Electrical System Diagram - 94476- 1800W

    Operating condenser 50F 2 white cables 1.5x250 -4- Start condenser 120F 2 black cables 1.5x250 -5- White Klixon Grey 230V motor GNYE Yellow-green Plug 16A Green ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 21: Electrical System Diagram - 94480- 2200W

    Operating condenser 60F 2 white cables 1.5x250 -4- Start condenser 120F 2 black cables 1.5x250 -5- White Klixon Grey 230V motor GNYE Yellow-green Plug 16A Green ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...

  • Page 22: Ec Declaration Of Conformity

    The person authorised to compile the technical file: M. Régis de boissieu Z.A. Les Pouards 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE Champlan, 02/11/2013 ROMUS Legal representative ROMUS - Z.A. Les Pouards, 13 et 15 rue Taillefer 91160 CHAMPLAN – FRANCE...
