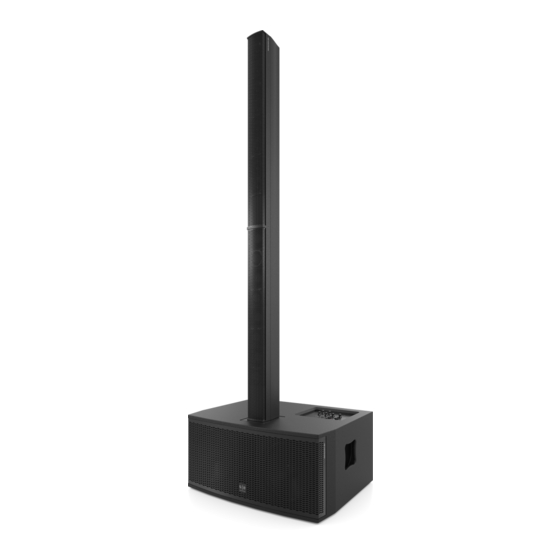

Summary of Contents for SE Audiotechnik C6

  • Page 1 SELF-POWERED COLUMN SYSTEM MANUAL 中文...
  • Page 2 40 years as a speaker developer. It is the sum of German precision and Chinese efficiency that guarantees a high-quality and reliable SE AUDIOTECHNIK product. Please, take the time to carefully read this manual and follow its instructions. It will allow you to get the most out of your product under safe operating conditions and suggest some care instructions leading to long-term endurance.

  • Page 3: Table Of Contents

    INTRODUCTION Features Intended use C6 elements QUICK START GUIDE Precautions Assembly Minimum audience distance USER INTERFACE Rear Panel Control panel: connectivity Control panel: controls and indicators Wiring BLUETOOTH ® C6 STEREO SETUP SPECIFICATIONS Technical Specifications Mechanical Drawings MANUFACTURER'S DECLARATIONS 中文...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS GRAPHICAL SYMBOLS IN THE PRODUCT GRAPHICAL SYMBOLS IN THIS MANUAL The lightning bolt triangle is used to alert the user to the risk of electric shock. Symbol for important safety information related with the risk of electric shock. The exclamation point triangle is used to alert the user to important operating or Symbol to alert the user about important operating or maintenance instructions.
  • Page 5 PRODUCTS DESCRIBED IN THIS MANUAL CAN RADIATE HIGH SOUND PRESSURE LEVELS transport), do not switch it on immediately. Moisture and condensation could damage the (SPL), WHICH CAN LEAD TO IRREVERSIBLE HEARING DAMAGE. SE AUDIOTECHNIK equipment. RECOMMENDS TO RESPECT THE TIMES OF EXPOSURE TO HIGH SPL.

  • Page 6: Package Contents

    SPECIFIC SETUP & OPERATION SAFETY INSTRUCTIONS This product is NOT intended to be suspended on chains or ropes. The packaging of the C6 SELF-POWERED COLUMN SYSTEM includes: Do NOT use handles or other methods to suspend the system, serious injuries can be the result! 1 Array Column Make sure that the equipment is installed securely and cannot fall down.

  • Page 7: Introduction

    C6 suitable for PA, monitoring and install applications. installations with an audience of up to a few hundred listeners. C6 provides a variety of audio inputs, such as Bluetooth , Mic, Line and Hi-Z.

  • Page 8: Quick Start Guide

    QUICK START GUIDE ASSEMBLY This guide briefly describes the main steps of setting up C6 self-powered column system. Place the subwoofer at the desired location. PRECAUTIONS Slide the support column's metal pins in the four corresponding slots located at the subwoofer's top.

  • Page 9: Minimum Audience Distance

    Figure 6. C-Line C6 minimum distance to audience. The ear level height of seated audiences is around 1.2 m in average. In the setup shown above the recommended min. distance between the C6 system and the listeners should be no less than 3-4 meters.

  • Page 10: Control Panel: Connectivity

    Adjusts the total system volume. STEREO LED MAIN INDICATORS Green color, indicates the system is set up Figure 8. C-Line C6 control panel connectivity. in stereo mode. ON LED Green color, indicates that the system is turned on. SYSTEM PUSH BUTTON...

  • Page 11: Wiring

    XLR-3 OUT XLR-3 IN XLR-3 OUT Click Click Shield Shield Cold Cold Figure 9b. C-Line C6 control panel. Figure 11. XLR-3 plug-in and wiring scheme. BLUETOOTH MP3/BT ® BLUETOOTH LED Adjusts the 3.5 mm jack and Bluetooth signal ® C-Line self-powered systems are also equipped with COMBO-connectors for certain signal connections.

  • Page 12: Bluetooth

    ® The C6 provides Bluetooth connectivity for wireless audio streaming. You can follow the outlined steps to The C6 column speaker system can be configured as a stereo system. By using two C6 systems on both ® establish a Bluetooth connection with your compatible device.

  • Page 13: Specifications

    4-point connector for mounting the upper speaker column on the lower speaker column ACCESSORIES 中文 C6 TD Transport Dolly for C6 or C6 SE C6 FC Flightcase for C6 or C6 SE Figure 15. Whole space, 1 W / 1m C-Line C6 column system dimensions.

  • Page 14: Manufacturer's Declarations

    MANUFACTURER'S DECLARATIONS WARRANTY EU DECLARATION OF CONFORMITY SE AUDIOTECHNIK gives a warranty of 4 years on SE AUDIOTECHNIK This device complies with the fundamental requirements and other products. The warranty period begins with the purchasing date. The relevant specifications of the directives of the European Union. The warranty applies to material or production defects that occur.
  • Page 15 HEAD OFFICE Neuenhofer Strasse 42-44 42657 Solingen, Germany info@se-audiotechnik.de ASIA-PACIFIC DEVELOPMENT CENTER No. 8 Development Zone Road Huimin Sub-district, Jiashan County, Zhejiang, 314112, P.R. China service@se-audiotechnik.com www.se-audiotechnik.de , all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, translation, and all other forms of copying of fragments or of the integrality of this user's manual is prohibited.
