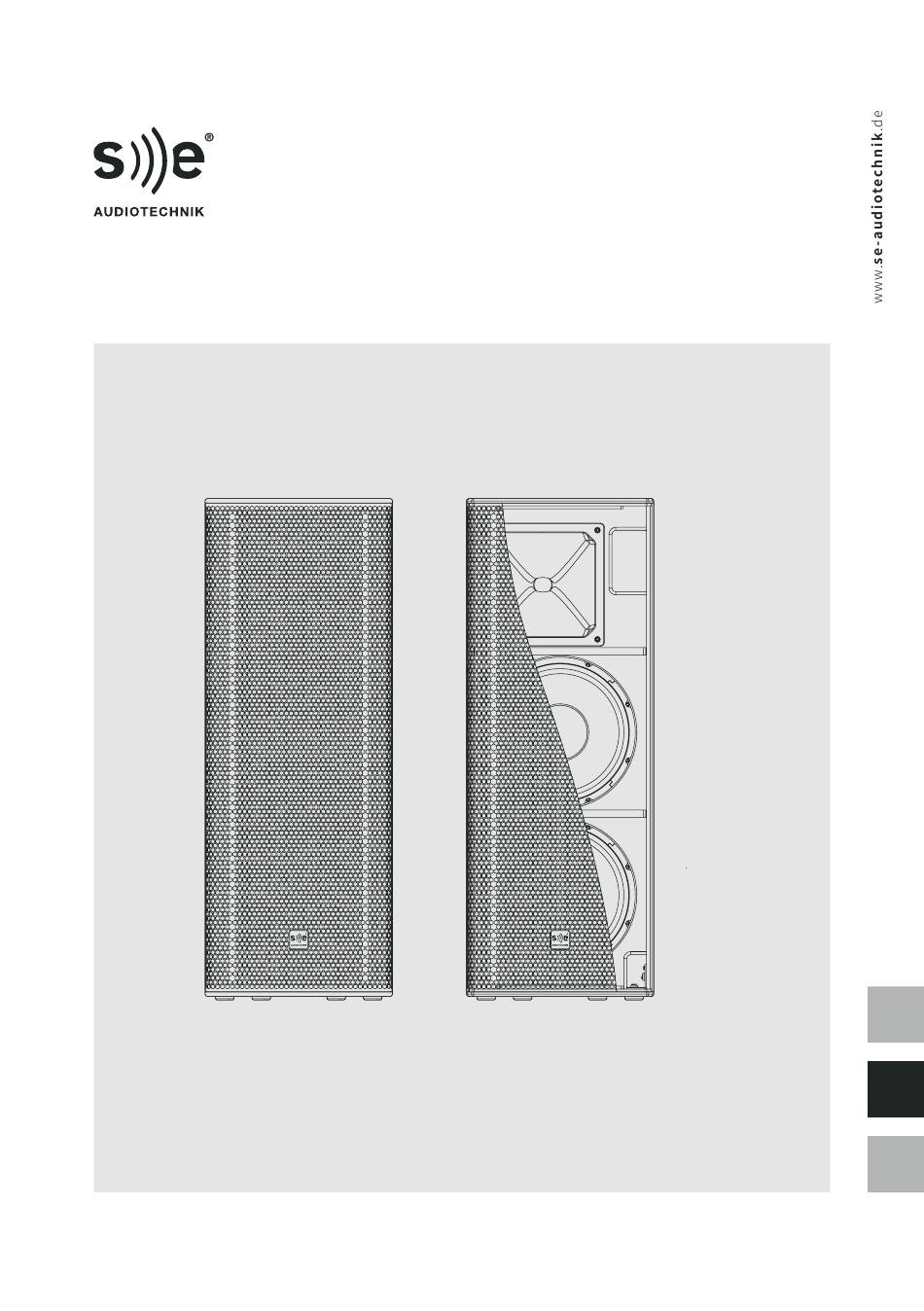

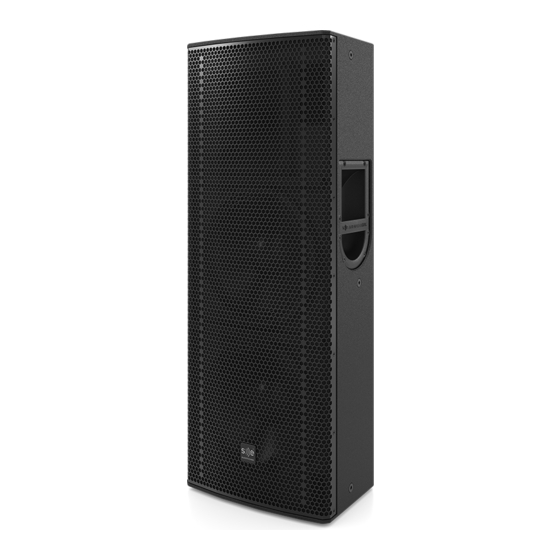

- Page 1 CV 212 2-WAY PASSIVE SPEAKER MANUAL 中文...
- Page 2 There you will also find the latest updates to manuals, firmware and technical documents for additional support. © Copyright by SE AUDIOTECHNIK® 2021. All rights reserved. The content of this document is subject to change without prior notice to improve reliability, function, design or otherwise.
-
Page 3: Table Of Contents
LIST OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PACKAGE CONTENTS INTRODUCTION Features Input panel WIRING AND POWERING INSTALLATION U-BRACKET ACCESSORY Mounting Installation COVERAGE ADJUSTMENT SPECIFICATIONS Technical Specifications Mechanical Drawings MANUFACTURER'S DECLARATIONS 中文... -
Page 4: Important Safety Instructions
Do not attempt to open any part of the unit. There are no user-serviceable parts inside. THIS PRODUCT CAN RADIATE HIGH SOUND PRESSURE LEVELS (SPL), WHICH CAN LEAD TO IRREVERSIBLE HEARING DAMAGE. SE AUDIOTECHNIK® RECOMMENDS TO RESPECT Refer all servicing to qualified service personnel. This is required when the product has been THE TIMES OF EXPOSURE TO HIGH SOUND PRESSURE LEVELS. -
Page 5: Package Contents
Please inspect your product packaging before unboxing it. If it has been damaged during shipping, To ensure maximum versatility, the CV 212 is equipped with a rotatable horn, allowing to easily swap the unbox the product and check for any visual damage before using it. Notify the shipping company vertical and horizontal coverages. -
Page 6: Input Panel
Figure 2. CV 212 input panel. In addition, when using passive loudspeakers as the CV 212, both mechanical and thermal protection signals, which in some applications techniques should be implemented with an external processor and/or if capable, the amplifier itself. -
Page 7: Installation
When using the SPS20 pole, it must be adjusted to its minimum length (75 cm). When using a tripod, open its feet as much as possible to improve the stability of the system. In this regard and in any case, the bottom of the CV 212 must never be more than 1.3 meters from the ground. -
Page 8: U-Bracket Accessory
U-BRACKET ACCESSORY Using the CV 212 UB U-bracket, the CV 212 can be hanged from the ceiling or a truss structure, for permanent installations. Sold separately from the CV 212, this item also includes: 2x M10 handle screws 2x Steel washers 2x Silicone washers Figure 10. -
Page 9: Installation
The CV 212 UB can be hung at one or two points, using the M10 holes in the centre arm. The unit can be Please note that the handle of the handle screws can be rotated in order to find the most suitable position hung directly from a truss structure using the proper adapter/s, like half coupler clamp/s for example. -
Page 10: Coverage Adjustment
COVERAGE ADJUSTMENT By default, the horn of the CV 212 is placed to have a 90° coverage in the horizontal plane and 60° in the vertical. This can be easily changed to adapt to applications where a narrower horizontal and/or wider vertical coverage is needed. -
Page 11: Specifications
Half space, 1W / 1m, on axis. According to EIA-426B Standard (based on RMS Voltage). Figure 15. CV 212 views and dimensions. Annotations given in millimetres. 中文 Max Peak SPL = Max. Cont. SPL (800W / 1m) + 12 dB Crest Factor. -
Page 12: Manufacturer's Declarations
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE) (Applicable in the European Union and other European countries with In the unlikely event that the SE AUDIOTECHNIK® product has a recur- separate collection systems) ring failure, SE AUDIOTECHNIK®, at its discretion, may elect to provide a replacement unit of SE AUDIOTECHNIK®... - Page 13 HEAD OFFICE Neuenhofer Strasse 42-44 42657 Solingen, Germany info@se-audiotechnik.de ASIA-PACIFIC DEVELOPMENT CENTER No. 8 Development Zone Road Huimin Sub-district, Jiashan County, Zhejiang, 314112, P.R. China service@se-audiotechnik.com www.se-audiotechnik.de , all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, translation, and all other forms of copying of fragments or of the integrality of this user's manual is prohibited.
