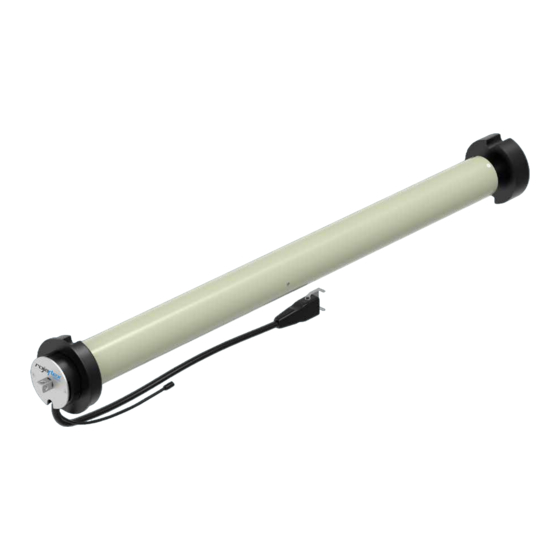

- Page 1 Awning motors Rojaflex series ELFIM-45M With cloth length compensation and integrated radio receiver ORIGINAL ASSEMBLY AND OPERATING INSTRUCTIONS Eine aktuelle Vollversion der Anleitung finden Sie hier/ Original Montageanleitung Manuale d’uso originale You can find a current full version of the manual here/...
-
Page 2: Table Of Contents
Content ELFIM-45M series with cloth length compensation, intgerated radio receiver and electronic limit switches ELFIM-45M-30/15 ELFIM-45M-50/12 CONTENTS Safety instructions ............3-6 Technical data / scope of delivery ........7 Mounting / Prepare mounting ......... 8 Mounting / Electrical connection ........9 Programming and settings ........ -
Page 3: Safety Instructions
During all work on electrical there is a risk of fatal injury from electric shock! The mains connection of the motor and all work on electrical installations may only be carried out by an authorized electrician in accordance with the con- nection diagrams in this manual. www.rojaflex.com... - Page 4 Take special care with moving and open secure them against unintentional / extended equipment, as parts may reconnection. Remove all lines that are fall if fastenings (e.g. springs, brackets, not required. consoles, etc.) weaken or are broken. www.rojaflex.com...
- Page 5 (incorrect installation, incorrect at the end of their life and must not be disposed of with other household operation, etc.). waste. www.rojaflex.com...
- Page 6 This applies in particular to information and environment. telecommunications technology devices such as computers and smartphones. In your own interest, please note that each end user is responsible for deleting the data on the old devices to be disposed of! www.rojaflex.com...
-
Page 7: Technical Data / Scope Of Delivery
Technical data / scope of delivery Technical Data a=690 / B=19 ELFIM-45M 30/15 230 V ~ 50 Hz 0,87 A 200 W 30 Nm 15 Min 4 Min. -10 °C / +50 °C IP 44 6 µF ≤ 70 dB... -
Page 8: Mounting / Prepare Mounting
The mains connection of the tubular motor and all work on electrical installations may only be carried out by an authorized electrician in accordance with the respective connection diagrams of the device. Carry out all assembly and connection work in a de-energized state. www.rojaflex.com... -
Page 9: Mounting / Electrical Connection
To connect the actuator, the mains supply line must be wired with a Hirschmann* STAK-3 coupling. Setting the direction of rotation of the motor see page 10! Mains connection Neutral conductor (N)C- blue Phase (L1) - brown (black) not documented Protective earth (PE) - green-yellow *Hirschmann or Hirschmann-compatible coupling www.rojaflex.com... -
Page 10: Programming And Settings
To do this, start from the beginning and, after pressing the P2 key, press the DOWN key instead of the *Up key. ATTENTION! Changing the direction of rotation of the motor is only possible if NO end positions are programmed! If end positions have already been programmed, they must first be deleted (see page 14). www.rojaflex.com... -
Page 11: Setting The End Positions
Immediately after setting the end position OPEN (Down): 2.3.1 Close the awning with the UP key. 2.3.2 Stop the awning at the desired position CLOSED with the STOP button. 2.3.3 Press the STOP key 5 times. Drive moves up/down briefly. End position CLOSED (OPEN) is set. www.rojaflex.com... -
Page 12: Setting The Comfort Position
Activate / deactivate the jog mode 4.1.1 Press the P2 - UP - DOWN keys on the handheld transmitter in succession. Drive beeps 2 x = jog mode activated Drive beeps 1 x = jog mode deactivated www.rojaflex.com... -
Page 13: Setting The Overrun Function (Cloth Length Compensation)
Motor beeps 1 x = overrun function deactivated Motor beeps 3 x = overrun function activated After the motor (the awning) has reached the lower end position (awning open), the drive runs a short distance in the opposite direction of travel to relax the fabric. www.rojaflex.com... -
Page 14: Programming Additional
Among other things, the awning cloth can be wound up "negatively" or the awning can be damaged! Press the P2 - DOWN - P2 keys on the handheld transmitter in succession. Motor moves up/down and beeps. The end positions of the motor are deleted! www.rojaflex.com... -
Page 15: Programming - Sun- Wind Sensor
Programming Sun-wind sensor The ELFIM-45M awning motors are specially designed for use in awnings and can be controlled directly via suitable sun, wind or vibration sensors. Display Display Menu Menü Einstellen Programmieren Programming RSWS-01 Aktivieren Activate Programming Solar Wind Sensor RSWS-01 9.1.1 Press key P2 3 times in succession on an... -
Page 16: Accessories
• Battery operated (integrated solar panel) • BI-Directional • 433,92 MHz • Display Compatible with Rojaflex radio receivers and awning motors with integrated radio • Adjustable wind and sun sensitivity • Blocking time for all functions in case of wind alarm •... -
Page 17: Troubleshooting / Faq
• Use a voltmeter to check whether the supply voltage • Allow engine to cool for approx. 20 minutes. (230 V) is present and check the wiring. Pay particular attention to the information on impermissible types of connection. • Check installation. www.rojaflex.com... -
Page 18: Declaration Of Conformity
Wir, die Schoenberger Germany Enterprises GmbH & Co. KG, Zechstr. 1-7, D-82069 Hohenschäftlarn, Deutschland erklären unter unserer alleinigen Verantwortung, dass das mit der Marke rojaflex versehene Produkt: Document no. / Dokument-Nr. -
Page 19: Quick Guide
P2 - STOP - UP In down direction P2 - STOP - DOWN Programmed hand-held Program sun-wind sensor transmitter P2 - P2 - P2 Sensor Setting sun function Activate P2 - UP - UP Deactivate P2 - DOWN - DOWN www.rojaflex.com... - Page 20 Our general terms and conditions apply. Membership number: If you have any questions about this product, please contact us at the following address: rojaflex is a registered trademark of Schoenberger Germany Enterprises GmbH & Co. KG Zechtraße 1-7 82069 Hohenschäftlarn...
