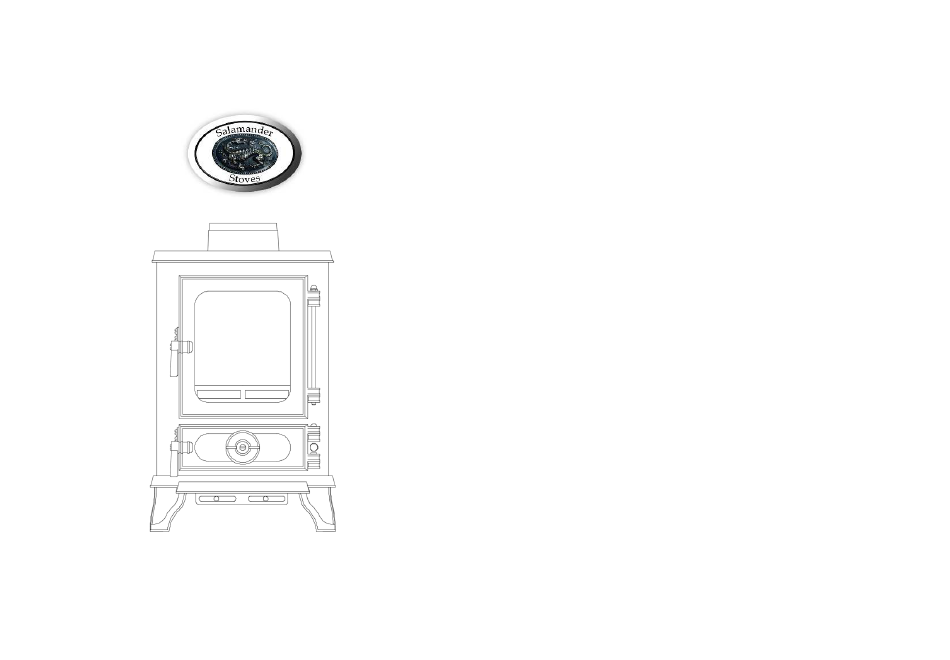

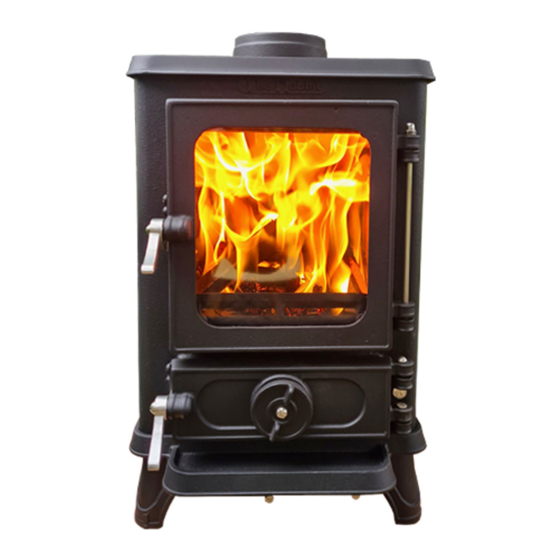

Installation and Operating Installation and Operating Instructions for The Salamander SE Eco Model 1901 SE Eco (Ref 1901 SE Eco Dec 2019) Instructions Contents Section Important Information - Installing and Using The Stove Unpacking Assembly Components Installation Operating Instructions 6.1 Fuel 6.2 Before lighting... -
Page 2: Important Information - Installing And Using The Stove
• Do not make unauthorised changes or modifications to the stove. Only use genuine spare parts from Salamander Stoves. • The stove and chimney flue must be cleaned regularly. It is especially important to check for blockages following a prolonged shutdown period. -
Page 3: Assembly
3 – Assembly 4 – Components The stove is supplied with the flue collar inside the firebox. To fit the collar to the top of the stove, you will need to remove the baffle and the side fire bricks. To do this, use one hand to hold the baffle up before removing the side bricks - please take care as the baffle is heavy. -
Page 4: Installation
Although access to the flue can be gained by removing the stove firebox components, Salamander Stoves takes no responsibility for stoves which have been incorrectly cured. consideration must be given to installing extra access in the flue system to ensure all sections can be cleaned and maintained. -
Page 5: Air Controls
Air Controls Lighting A Wood Fire The Salamander SE Eco stove is fitted with three air controls. When burning wood: • Primary Air Control Ensure that the primary air control is fully closed (turn the airflow wheel on the ash pan door fully clockwise) Located on the front of the ash pan door, the primary air control directs air into the base of the fire. -
Page 6: Lighting A Solid Fuel Fire
Lighting A Solid Fuel Fire Refuelling When burning manufactured smokeless solid fuel: • If there is insufficient fuel burning in the fire bed to light a new piece of fuel, then excessive smoke can occur. New fuel must be placed onto a sufficient bed of glowing embers and/or flames to ensure that the Ensure that the primary air control is in the open position (turn the airflow wheel on the ash pan new piece of fuel catches alight and burns steadily. -
Page 7: Ashing The Stove
De-ashing The Stove 7 – Guidance On Safe Operation Riddling the grate will allow ash to fall from the Fire can be very dangerous fire bed and into the ash pan underneath. During operation, the stove and all of the fittings (door handles and controls etc.) will get very hot. To riddle the grate, slot the riddling lever into the forked end of the multi-tool. -
Page 8: Health And Safety Precautions
8 - Health And Safety Precautions Warning Note Special care must be taken when installing the stove, such that the requirements of the Health and If this stove is properly installed, operated and maintained, then the appliance will not emit fumes into the Safety at Work Act are met. -
Page 9: Maintenance
9 - Maintenance Upon completion of the installation and commissioning: • Please allow a suitable period of time for any fire cement and mortar to fully dry out before lighting Maintenance should only be carried out when the stove is cool. the stove. -
Page 10: Troubleshooting
• Too little air passing accordingly with genuine spare parts from through the bottom grate. Salamander Stoves. • Use of wood that is too dry • Adjust the primary air controls to allow (e.g. wood from old sufficient airflow through the bottom grate. -
Page 11: Ce Plate
12 - Salamander SE Eco Stove Performance Results 13 - CE Plate Wood Logs Results, 0.80 hour refuels Parameter Mean A19/135-1 A19/135-2 A19/135-3 Test duration 0.75 0.78 0.75 0.76 Total efficiency 80.1 79.0 79.2 79.4 Nominal heat output Mean CO emission (at 13% O 0.11 0.08 0.08... -
Page 12: More Information And Statistics
Scan The QR Codes Below For More Information 13.1 More Information and Statistics Energy efficiency class: A Energy efficiency index (%): 105 Warranty Registration Eco Design Seasonal efficiency (%): 69.4 Flue diameter: The Salamander Eco Stove and the Salamander SE Eco have a 100mm/4” size flue outlet. You can connect the outlet to single wall flue with a 100mm/4”...
