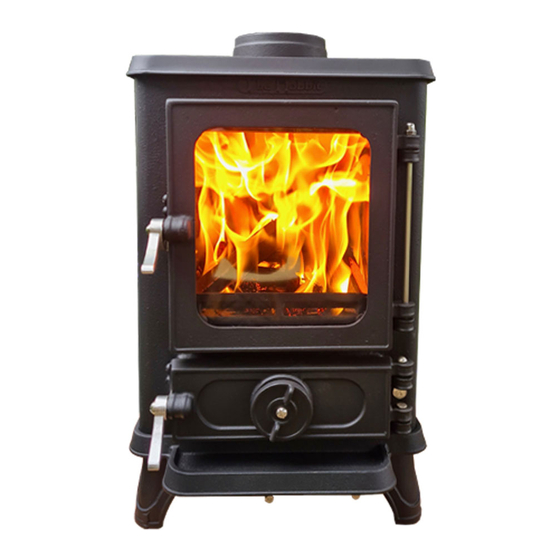

Salamander Stoves Hobbit 1901 SE eco Installation And Operating Instructions Manual
Hide thumbs
Also See for Hobbit 1901 SE eco:
Subscribe to Our Youtube Channel
Related Manuals for Salamander Stoves Hobbit 1901 SE eco
Summary of Contents for Salamander Stoves Hobbit 1901 SE eco

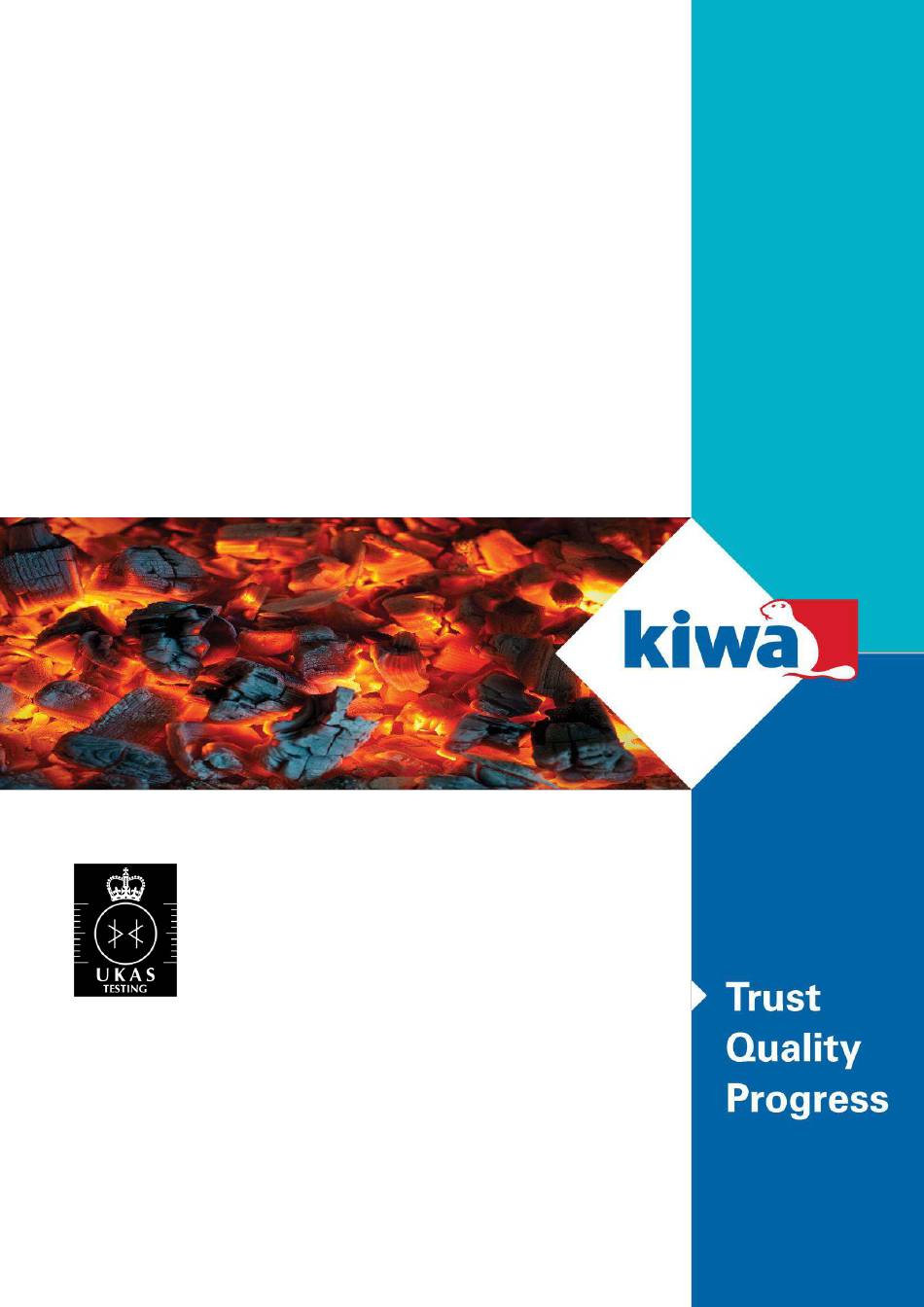

- Page 1 European Type Test Report Roomheater Fired by Solid Fuel Salamander Hobbit SE eco (Model No: 1901 SE eco) Salamander Stoves Rosemount Canada Hill Ogwell Devon TQ12 6AF 0692 Report Number: 6515/Mod 01 Project Number:6515/61201 Date: 12 December 2019...
- Page 2 HEADING SHEETS Roomheaters fired by solid fuel Report Number: Page: HS 1/01 6515/Mod 01 Original Report Contents Sheet Chapter Pages 1/01 1/04 Heading sheets 2/01 2/02 Summary sheets 3/01 Declaration sheet 4/01 4/10 Test sheets 5/01 5/05 Result sheets 6/01 6/12 Enclosures sheet Report Modification Contents...
- Page 3 : United Kingdom Telephone: : 00 44 1242 677877 Facsimile: : 00 44 1242 676506 E-mail: : enquiries@kiwa.co.uk Name of the Manufacturer: : Salamander Stoves Ltd Address of the Manufacturer Rosemount Canada Hill Ogwell Devon TQ12 6AF Telephone: E mail: www.salamanderstoves.com...
- Page 4 HEADING SHEETS Roomheaters fired by solid fuel Report Number: Page: HS 1/03 6515/Mod 01 Report History Project Test Date Description Number Engineer February 2010 Appliance received 6515 February 2010 Testwork commenced March 2010 Testwork complete March 2010 Preliminary examination of documentation May 2010 Final examination of documentation July 2019...
- Page 5 Roomheaters fired by solid fuel Report Number: Page: HS 1/04 6515/Mod 01 The appliance, made by Salamander Stoves Ltd. of the type: Hobbit SE eco Stove (Model No: 1901 SE eco) has been examined to:- BS EN 13240:2001 + Amendment A2:2004...
- Page 6 MODIFICATION SHEETS Roomheater fired by solid fuel Report Number: Page MS 7/01 6515/Mod 01 Modification 01 The manufacturer has re-submitted the Hobbit Stove for testing to Eco-design and energy labelling requirements. The stove is now to be marketed as the Salamander Hobbit SE eco stove, replacing the originally named Hobbit Stove appliance.
-
Page 7: Test Results
MODIFICATION SHEETS Roomheater fired by solid fuel Report Number: Page MS 7/02 6515/Mod 01 Test Results Appliance Hobbit SE eco Stove Flue configuration Top outlet Manufacturer’s Declarations Nominal output (Wood) 4.1 kW Nominated refuel period (Wood) 0.75 hour Nominal output (Maxibrite) 4.1 kW Nominated refuel period (Maxibrite) 1.0 hour... - Page 8 MODIFICATION SHEETS Roomheater fired by solid fuel Report Number: Page MS 7/03 6515/Mod 01 Efficiency Tests Performance test at nominal heat output burning Wood Logs (See clause 6.2 and 6.3 of the Standard) Test Fuel Type Wood Logs Test number A19/135-1 A19/135-2 A19/135-3...
- Page 9 MODIFICATION SHEETS Roomheater fired by solid fuel Report Number: Page MS 7/04 6515/Mod 01 Efficiency Tests Performance test at nominal heat output burning solid mineral fuel (Maxibrite) (See clause 6.2 and 6.3 of the Standard) Tests using Maxibrite A19/265-1 A19/265-2 Mean Test Duration, h 1.05...
- Page 10 MODIFICATION SHEETS Report Number: Roomheater fired by solid fuel Page MS 7/05 6515/Mod 01 Measurements for DIN Plus Certification Tests using Wood Logs Test No Test No Test No Mean A19/135-1 A19/135-2 A19/135-3 Total efficiency, % 80.1 79.0 79.2 79.4 Nominal heat output, kW Mean CO emission (at 13% O ), %...
- Page 11 MODIFICATION SHEETS Roomheater fired by solid fuel Report Number: Page MS 7/06 6515/Mod 01 Enclosures Enclosure Description Page Number Installation and Operating Instructions, Including Data Plate. MS 7/07-16 Appliance Drawings MS 7/17 Manufacturers - Appliance Modifications MS 7/18 End of Report Project Number: Date: 12/12/2019 Initials: JB...
- Page 12 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /0 7 Installation and Operating Installation and operating instructions for the Hobbit ECO model 1901 SE Instructions (Ref 1901 SE eco Dec 2019) Contents Section The Clean Air Act 1993 and Smoke Control Areas...
- Page 13 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /0 8 1 - The Clean Air Act 1993 and Smoke Control Areas 2 - Important information about installing and using the Hobbit stove Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area.
- Page 14 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /0 9 3 – Unpacking the Hobbit Stove 4 – Assembly of the Hobbit Stove TAKE CARE The stove is supplied with the flue collar fitted to the top. If the installation requires the flue to exit Remember the stove is made of cast iron and is very heavy.
- Page 15 PLEASE READ THESE INSTRUCTIONS CAREFULLY For your safety it is very important that your stove is correctly installed. Salamander Stoves cannot accept any responsibility for any fault arising through incorrect installation or use. Regulations All national and local regulations, including those referring to national and European standards need to be complied with when installing the stove.
- Page 16 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /1 1 Air Controls 7 – Operating Instructions The Hobbit SE eco is fitted with three air controls. Fuel PRIMARY AIR CONTROL Wood Use only seasoned timber with a moisture content of less than 20%. Typically this Located on the front of the ashpan door the primary air control directs air into the base of the means wood which has been cut and stored in an open dry shelter for between one fire.
- Page 17 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /1 2 Lighting a wood fire Refuelling If there is insufficient burning material in the firebed to light a new fuel charge, excessive When burning wood smoke emission can occur.
- Page 18 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /1 3 De-ashing the stove Lighting a solid fuel fire Ÿ When burning manufactured smokeless solid fuel The action of riddling the grate will allow ash to fall from bed of the fire into the ash pan Fully open the Primary air control (Wheel on ashpan door turn fully anticlockwise)
- Page 19 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /1 4 8 – Guidance on safe operation 9 - Maintenance Maintenance should only be carried out when the stove is cool Fire can be very dangerous During operation, the stove and all the fittings (door handles and controls) get very hot.
- Page 20 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /1 5 10 – Fault Finding 12 - Hobbit SE eco Stove Performance Results Fire will not burn Wood Logs Results, 0.80 hour refuels The fuel is too wet and not suitable Air inlets to the stove are blocked Parameter...
- Page 21 Manufactured Smokeless Fuel 240 C The appliance is capable of intermittent operation The appliance cannot be used in a shared flue Follow the users manual and only use recommended fuel Salamander stoves Ltd Rosemount, Canada Hill Ogwell, Devon, TQ12 6AF...
- Page 22 Width 225mm Depth 220mm Height 207mm (To Baffle) Section on A-A Section on B-B Name Hobbit SE eco HOBBIT DIMENSIONS Salamander Stoves Ltd Model 1901 SE eco Rosemount, Canada Hill Drawn By Date Drawing No Ogwell, Devon, TQ12 6AF 10.12.19...
- Page 23 K I WA 6 5 1 5 /M od 0 1 J B M S 7 /1 8...
- Page 24 MODIFICATION SHEETS Roomheater fired by solid fuel Report Number: Page MS 7/19 6515/Mod 01 End of Report Project Number: Date: 12/12/2019 Initials: JB 6515/61201...
