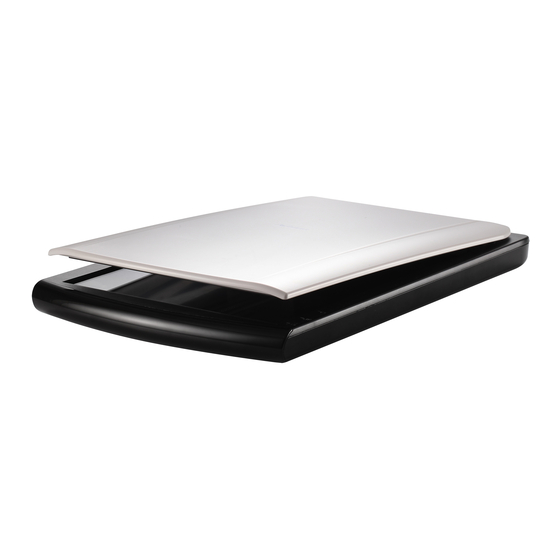

Flatbed Scanner
User's Manual
Regulatory model: BF-1102S
Avision Inc.

Advertisement

Table of Contents
loading

Related Manuals for Avision FB1200

Summary of Contents for Avision FB1200

  • Page 1 Flatbed Scanner User’s Manual Regulatory model: BF-1102S Avision Inc.

  • Page 2: Warranty

    Warranty The information contained in this document is subject to change without notice. Avision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. Avision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 3 User’s Manual Federal Communications Commission (FCC) compliance information statement Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4  Directive 2011/65/EU CE compliance of this product is valid if powered with the correct CE-marked AC adapter provide by Avision. This product satisfies the Class B limits of EN55022, EN55024, safety requirements of EN 60950 and ROHS requirements of EN50581.
  • Page 5 User’s Manual Disposal of Waste Equipment by Users in Private Union This symbol on the product or on its packaging indicates that the product can not be disposed of with your other household waste. Instead it should be sent to appropriate facilities for recovery and recycling in an effort to protect human health and the environment.
  • Page 6 User’s Manual Product Safety Guide Please clearly read all these instructions, and follow all instructions and warnings before installing and using the device. The following indications are used in this document to obviate any chance of accident or damage to you and/or the device. Indicates potentially hazardous situations, which WARNING if instructions are not followed, could result in...
  • Page 7 User’s Manual Do not place or store the device or its AC power adapter:  Outdoors  Near excessive dirt or dust, water, or heat sources  In locations subject to shocks, vibrations, high  temperature or humidity, direct sunlight, strong light sources, or rapid changes in temperature or humidity Do not use the device with wet hands.
  • Page 8 User’s Manual CAUTION: Do not locate the device on rackety or aslope tables. Do not  locate the device on unstable surface. The device may fall down and this may result in injury. Do not place heavy objects on the unit. It may cause unbalance ...
  • Page 9 User’s Manual 1. Introduction Congratulations on your purchase of the Avision’s A4-sized flatbed image scanner. Avision is one of the leading companies to make high quality color image scanner. Before you install and operate the new scanner, please take a few minutes to read through this manual.
  • Page 10 2. Please unpack the packing carefully, and check the contents against the checklist. If any items are missing or damaged, please contact your dealer immediately. 3. To access more service supports, visit www.avision.com to register your Avision’s product.

  • Page 11: Scanner Installation

    User’s Manual Scanner Installation Precautions Keep the scanner out of direct sunlight. Direct exposure  to the sun or excessive heat may cause damage to the unit. Do not install the scanner in a humid or dusty place.  Be sure to use the proper AC power source. ...
  • Page 12 User’s Manual 2.1 Connecting to Power Plug the small end of the power adaptor into the power jack of your scanner. Insert the other end to an appropriate power outlet. 2.2 Installing the Scanner Driver NOTE: The Windows system CD may be required when installing on some PC’s.
  • Page 13 User’s Manual The software installation graphic appears. If not, run “setup.exe”. Contents on the installation graphic: Install Scanner Driver: To communicate with your  scanner, you need to install the scanner driver. View Manual: Click “View Manual” to view or ...
  • Page 14 User’s Manual 2.3 Connecting to Computer Connect the square end of the USB cable to the USB port of your scanner. Connect the rectangle end to the USB port at the rear side of your computer. The computer should detect a new USB device and prompt a “New Hardware Found”...

  • Page 15: Completing Your First Scan

    User’s Manual 3. Completing Your First Scan 3.1 Placing Your Paper 1. Open the document cover then place your original face down on the document glass as shown in Fig. 3-1. 2. Make sure the top of your original near the document alignment mark.

  • Page 16: Verifying Your Scanner Installation

    Verifying Your Scanner Installation To verify if your scanner installation is correct, Avision provides you a useful test program called Avision Capture Tool. With this tool, you can perform simple scans and view the captured images. In addition, it helps you complete your scan at a rated speed.
  • Page 17 User’s Manual Actual Page Size File Format Save File Path Scan Setup Choose your desired file format from the File Format drop down list box. (Default is JPEG, other choice includes TIFF, MTIFF, PDF, MPDF, GIF, and BMP.) The supported file formats vary depending on your scanner model.
  • Page 18 User’s Manual Image Selection From the Image Selection Box, choose your desired image type for your scanned image. (Default is Front B&W) If you have a duplex scanner, choose Front and Rear to scan both sides of your document. Click OK to quit the Scanner Properties dialog box. (To learn more details about the Scanner Properties dialog box, please see the subsequent chapter, Using the Scanner Properties Dialog Box.)
  • Page 19 User’s Manual Display View Thumbnail View 11. You can view the scanned image in Fit Page ( ) or Actual Size (100%) button ( ) from the Viewing toolbars at the right side. 12. Click the Close box or Quit from the File menu to exit the Scan Validation Tool.
  • Page 20 User’s Manual A Glance of the Scanner Properties Dialog Box 1. Tab Options Choice: Image, Compression, Color Dropout, Paper, Multi-Feed Detection, Preview, Options, Settings, Information. 2. Image Choose your image type and the side of Selection Box document you wish to scan. Options vary based on type of scanner.

  • Page 21: Using The Scanner Properties Dialog Box

    User’s Manual Using the Scanner Properties Dialog Box The Scanner Properties dialog box allows you to configure the scanner’s settings. It consists of several tabbed windows each of which will be described in this chapter. Note: In this chapter, all options are available based on a duplex (double-side) scanner.

  • Page 22: Buttons Description

    User’s Manual 4.1 Buttons on the Scanner Properties Dialog Box The buttons on the Scanner Properties dialog box Buttons Description Defaults Click the Defaults button, the factory default settings will be shown on each tab. Cancel Click the Cancel button to leave the Scanner Properties dialog box.
  • Page 23 User’s Manual The following table shows the default settings： Tab name Default settings Image Image：Front B&W Binarization：Dynamic Threshold Resolution：200 dpi Invert：Blank on White Scan Source：Auto Document Feeder Threshold：None Brightness：None Contrast：None Compression None Color Dropout None Paper Cropping：Automatic Deskew：Yes Orientation：Portrait OverScan：0.00 Note: The availability of this option varies due to scanner model.
  • Page 24 User’s Manual Showing or Hiding Tabs The [Scanner Properties] dialog box is displayed in default with three basic tabs - Image, Paper, and Information. To show more tabs, click the [Scanner Properties] icon to access more scan settings. To show more tabs, Click the [Scanner Properties] icon ( ) on the upper left corner, and choose [Tab] to show available tab names.
  • Page 25 User’s Manual...
  • Page 26 User’s Manual The Image Tab The Image tab allows you to choose the front side and (or) the rear side of your document, the type of image, and to set several basic scan settings. Note that except for the resolution, you can set individual scan settings for the front side and the rear side.
  • Page 27 User’s Manual 4.3.1 The Image Selection Box The Image Selection box includes the image type and document side option. you wish to scan both the front side and the rear side of your color document, you can check both Front Color and Rear Color at the same time.
  • Page 28 User’s Manual Example 2：Scanning a two-sided color document, one in B&W, the other in color Side/Image Front Rear Selection Image Type Description Color Choose Color if you wish to scan a color image for your original in color. Gray Choose Gray image if your original contains actual shades of gray.
  • Page 29 User’s Manual Front/Rear Auto Color Detection: Click to automatically detect and scan the front or the rear page of your color document in color image mode. If your document is in colors, the scanner will automatically scan the document into a color image. If your document is non-color, you can choose the output to be either B&W or Gray from the Non-Color Selection option.
  • Page 30 User’s Manual Sensitivity of Auto Color Detection If your documents contain primarily B&W text and small amount of light or pale colors and you do not wish them to be recognized as color image to save the file size, you can increase the sensitivity value by moving the bar to the right to let these images to be detected as B&W.
  • Page 31 User’s Manual Same settings on both sides: Click to apply same scan settings for both sides of your documents. After checking this option, any settings you have changed will automatically applied to both the front side and the rear side. For example, if you choose your ideal resolution to be 300 dpi, this will be applied both to the front side and rear side of your document.
  • Page 32 User’s Manual 4.3.2 Other Image Options Binarization This is the process of converting a grayscale or color image to a bi-tonal image. There are several different methods of performing this conversion. Options: Dynamic Threshold, Dynamic Threshold (AD), Fixed Processing, Halftone 1~5, Error Diffusion.
  • Page 33 User’s Manual Fixed Processing: Used for black-and- white and other high contrast documents. A single level is set to determine the black- and-white transition. The threshold is programmable over the entire density range. Fixed Processing sets Contrast to 0. If Fixed Processing is selected, Contrast is not available.
  • Page 34 User’s Manual Error Diffusion Image Dynamic Threshold Dynamic Threshold (AD) 4-14...
  • Page 35 User’s Manual Threshold Used to convert a grayscale image to a bi-tonal image. The value ranges from 0 to 255. A low threshold value produces a lighter image, and can be used to subdue backgrounds and subtle, unneeded information. A high threshold value produces a darker image, and can be used to help pick up faint images.
  • Page 36 User’s Manual Gray Document Type: Choice: Normal, Photo, Document Three options of document type are provided when you choose Gray as the image type for your scanned document. Choice: Normal, Photo, Document. Document: Choose Document if your original contains • pure text or a mixture of text and graphic since it is an optimal setting for regular business document.
  • Page 37 User’s Manual Normal Photo Document (Threshold: 230) Normal Photo Document (Threshold: 230) 4-17...
  • Page 38 User’s Manual Brightness Adjusts the lightness or darkness of an image. The higher the value, the brighter the image. Drag the slider to the right or left to increase or decrease the brightness. The range is from –100 to +100. Contrast Adjusts the range between the darkest and the lightest shades in the image.
  • Page 39 User’s Manual Resolution A good control of the resolution results a good detail of an image that scans. The resolution is measured by dots per inch (dpi). Normally, the greater the dpi number, the higher the resolution and the image file size.
  • Page 40 User’s Manual Resolution: 150 dpi Resolution: 75 dpi 4-20...
  • Page 41 User’s Manual Invert Reverses the brightness and the colors in the image. The default setting is Black on a White background. Reverse mode is White on a Black background. For color images, each pixel will be changed into its complementary color at the command of Invert.
  • Page 42 User’s Manual Scan Choice: Source Auto Document Feeder: Used to scan  multiple pages. Flatbed: Used to scan a single page. For  example, pages from newspaper clipping, paper with wrinkles or curls. Flatbed (book): Used to scan several  inside pages from book.
  • Page 43 User’s Manual Note: If you have purchased a duplex sheet-fed scanner, choose [Merge Two Sides] on the [Scan Source], then the scanner is able to scan both sides of your document and merge them into a single image. If “Merge Two Sides into One Image” is selected, its choice will be available including “Merge Horizontally”, “Merge Vertically”, “Merge Vertically (Back Side Flip)”.

  • Page 44: Color Matching

    User’s Manual Color The purpose of Color Matching is getting the Matching accurate color. This option uses the default parameters (ICC profile) to adjust the colors of the image. Choice: None, Document, Photo • None: Choose “None” to disable this option.
  • Page 45 User’s Manual 4.3.3 Scanning color images The following options are available for scanning color images. Brightness  Contrast  Resolution  Invert  4.3.4 Scanning grayscale images The following options are available for scanning gray images. Brightness  Contrast  Resolution ...
  • Page 46 User’s Manual 4.3.6 Editing Profiles The Scanner Properties dialog box allows you to change and save your frequently used scan settings into a profile. You can edit these profiles by renaming or deleting them. To add a new profile, Customize your settings. (For example, change your resolution, image type, cropping method, scan size, or other scan settings.) Click the Image tab and then choose “Profiles”...
  • Page 47 User’s Manual To load a profile, From the Image tab dialog box, choose your favorable profile from the “Profiles” dropdown list box. Your favorable profile will be immediately loaded and displayed on Scanner Properties dialog box. To delete a profile, From the Image tab dialog box, click “Profiles”...
  • Page 48 User’s Manual To rename a profile, From the Image tab dialog box, click “Profiles” to prompt the Edit Your Profile dialog box. Choose the profile you want to rename from the dropdown list box and then click the Rename button. Enter new name for the profile.
  • Page 49 User’s Manual 4.4 The Compression Tab The Compression tab allows you to compress your scanned image and choose the level of compression. Bi-tonal images are normally compressed using CCITT standard called Group 4 (G4). Color and grayscale images are often compressed using JPEG technology.
  • Page 50 User’s Manual Compression: To complete your scan at a rated speed, the scanned image is compressed by default during transmission. However, if you wish to obtain the highest image quality, you can choose to uncompress the image data before it is output. Scanned Scanned Image...
  • Page 51 User’s Manual The Compression tab dialog box 4-31...
  • Page 52 User’s Manual 4.5 The Color Dropout Tab 4.5.1 Color Dropout Selection The [Color Dropout] tab allows you to select either green, red, blue, or a color of your choice to remove the details of the selected color from a scanned image. This feature is used to sharpen your text when using OCR (Optical Character Recognition) software.
  • Page 53 User’s Manual Auto/Remove Green (normal Original mode) Remove Red (normal mode) Remove Green (quality mode: Threshold: 18) Preview the color dropout result: To preview the color dropout result, please follow these steps: Click the [Scanner Properties] icon ( ) on the upper left corner, and choose [Tab] to show available tab names.
  • Page 54 User’s Manual Move your cursor over the preview image. Your mouse cursor now becomes an Eyedropper. Click to select a color which you wish to remove. Click and hold your mouse button to view the result after removing the specified color. If the result is satisfactory, click [OK] to close the Preview window.
  • Page 55 User’s Manual The Color Dropout dialog box 4-35...
  • Page 56 User’s Manual To select a color on the Color palette, Click the Color Dropout tab from the Scanner Properties dialog box. Choose Gray or B&W from the Image Selection box and click “Custom” from the Color Dropout drop-down menu. The Color palette appears.
  • Page 57 User’s Manual Move your cursor over the palette. The cursor becomes a cross sign. Click to choose a color. The RGB values are changed simultaneously. 4-37...
  • Page 58 User’s Manual The Paper Tab The Paper tab allows you to define values relating to image output (i.e., Auto Crop or not, Scan Area, OverScan, Multi-Feed Detection). The Paper tab dialog box 4-38...
  • Page 59 User’s Manual 4.6.1 Cropping Cropping allows you to capture a portion of the document being scanned. Choice: Automatic, Automatic (36”), Fixed to Transport, EOP (End of Page) Detection, Automatic Multiple, Relative to Documents. Options Description Automatic adjusts the cropping window Automatic according to different document sizes and automatically straighten a skewed...
  • Page 60 User’s Manual This feature allows you to define the area EOP (End of or zone to be imaged. Use for batches of Page) same-width but different length Detection documents. If you select this option, you can use the arrow keys to define the x and y offset values, width and length to redefine your scanned area.
  • Page 61 User’s Manual The following options are only available when Fixed to Transport is selected. X-Offset — the distance from the left end of the scanner  to the left edge of the scanning area. Y-Offset — the position from the top end of the document ...
  • Page 62 User’s Manual Relative to Document: (used for batches of same-sized documents) This option allows you to crop different areas on your documents and deliver these images in B&W, Gray, or Color separately. For example, there are applications which require you to store the entire document in B&W and a part of the document in color to save storage space.
  • Page 63 User’s Manual Click the Preview tab to display the Preview window. A black rectangular box appears to indicate the max. scan size your have just selected. The Image Selection A black rectangular Click the Preview button to view the entire image in low resolution to correctly crop your relative scan area.
  • Page 64 User’s Manual A Cross Sign Relative Area Check the B&W image from the Image Selection box to scan the entire document. Click the Scan button to start scanning the document in two image types and sizes. (See the result in below.) The entire document in B&W The relative area in color 4-44...
  • Page 65 User’s Manual 4.6.2 Other Paper Selection Carrier Sheet Mode: Check this option to automatically crop the scan window according to your document size when scanning non-standard document (fragile, irregular-size document) with a carrier sheet (optional). Note: The availability of this option varies due to scanner model.
  • Page 66 User’s Manual For documents larger than A4/letter size, such as A3 Align the top of the document to the top of the Carrier Sheet (the printed section) and the folded portion to the right edge of the Carrier Sheet so that the document fits into the Carrier Sheet at the upper corner.
  • Page 67 User’s Manual Notice: [Carrier Sheet] is available for the models that support the  Carrier Sheet. Some functions are disabled when [Carrier Sheet] is checked.  This option may not work properly on some applications.  Scan Area Choose your desired paper size with the drop-down list box. Or you may select a custom paper size by clicking the Scan Area box and then click Add to include in the choice.
  • Page 68 User’s Manual Long Page (<118”): When you need to scan documents whose length exceeds scanner maximum, please choose Long Page. Note if Long Page is selected, the Multi-Feed Detection will not be available. (Note: This option and the maximum allowable document length vary due to type of scanner.) When Long Page (<118”) is selected, be sure to specify your document size in the Length and Width field.

  • Page 69: Transport Timeout

    User’s Manual Transport Timeout Set the amount of time the scanner will wait and then start auto scan after the first scan job is completed. If you have many separate documents need to be scanned at the same scan settings, this feature is especially useful. The default is 0. The value ranges from 0 to 30 seconds.
  • Page 70 User’s Manual Background This option allows you to set your scan Setting background. Choice: White Background, Black Background. Note: For a sheet-fed scanner with an auto document feeder, this option is currently available only in the “Auto crop” mode. For a scanner with a flatbed platen, this option is available either in the “Auto crop”...
  • Page 71 User’s Manual 4.7 The Multi-Feed Detection Tab Multi-Feed Detection Multi-Feed Detection allows you to detect overlapped document that go through the auto document feeder. Multi-Feed usually occurs due to stapled documents, adhesives on documents, or electro-statically charged document. Note： The availability of the function varies based on type of scanner.
  • Page 72 User’s Manual Additional Length Detection Additional Length Detection allows you to define the length of document being multi-fed. This value indicates the additional length exceeding your scan area. The Display window will show the size of the document as you change the value. A value of 0 indicates no additional length detection.
  • Page 73 User’s Manual Multi-Feed Alarm  If a wave file is added, the scanner will make a sound alarm if multi-feed is detected yet no Warning dialog box will be displayed. How to add the sound alarm： 1. Click the Browse button on the right side of the speaker icon. The Open dialog box appears.
  • Page 74 User’s Manual The Preview Tab The Preview tab allows you to preview (a low-resolution scan) your image before final scan. This preview image lets you allocate your scan area. You can choose your scan area by the “Scan Area” drop down list box or placing your cursor on the Display window and dragging it diagonally on the Display window.
  • Page 75 User’s Manual The Enhancement Tab The Enhancement tab allows you to set following additional image processing settings. The Option tab dialog box 4-55...
  • Page 76 User’s Manual Punch You can remove punch holes from the output Hole scanned image when scanning punched document. Removal Note the availability of this feature varies depending on your scanner model. Original Output image Punch holes can not be removed when: •...
  • Page 77 User’s Manual Shadow Removal When 「Flatbed」on the 「Scan Source」 option is selected on the 「Image」tab, the 「Shadow Removal」option will be enabled. Click to remove the shadow on the book spine when scanning a book. Before Shadow Removal After Shadow Removal 4-57...
  • Page 78 User’s Manual Background Processing: The [Background Processing] option allows you to smooth background color or remove it to make image clearer. The option is especially useful for documents with color forms such as invoices. Choices: None (default), Smooth, Removal None - no background processing will be performed (default) Smooth - produces images with a more uniform background color.
  • Page 79 User’s Manual Background Processing: None Background Processing: Background Processing: Smooth Removal Fill Color: White Note: Background color in small zone will not be processed or removed. 4-59...
  • Page 80 User’s Manual Edge Check White or Black if you wish to add white or Fill black edge on the border of your scanned image. Enter the value from 0 to 5 mm. Default value is 0. Original Edge Fill: 5mm (Black) 4-60...
  • Page 81 User’s Manual Despeckle Occasionally small dots or specks appear in the background of a scanned image. Remove unwanted speckles provides a cleaner image for OCR (Optical Character Recognition) processing, and also helps to reduce compressed file size. Define the speckles (also known as image noise) you wish to remove by specifying its number (size) and radius (range).
  • Page 82 User’s Manual Line Removal: When Black and White image mode is selected on the [Image] tab, the [Line Removal] option will be enabled. Line Removal erases lines on the image and then reconstructs characters so the OCR (Optical Character Recognition) accuracy can be improved.
  • Page 83 User’s Manual 4.10 The Rotation Tab The Rotation tab allows you to set the following image rotating options: 4-63...

  • Page 84: Rotate Image

    User’s Manual Rotate Choose the rotation angle from the drop down Image list if you wish to rotate your scanned image. Choice: None, 90°CW(clockwise), 90°CCW(counter clockwise), 180°, Auto based on contents. Auto rotate every even page. Original Rotate 90°CW Rotate 180° Rotate 90°CCW 4-64...
  • Page 85 User’s Manual Auto based on contents: Automatically rotate images based on the contents of document. When「Auto based on contents」 is selected, its modes will be enabled to let you select more options. Mode: Quick, Full Text, Complexity Quick – the default mode to let you rotate images at the fastest speed.
  • Page 86 User’s Manual Split By splitting an image, two separate images are Image created horizontally or vertically. This is useful for documents containing two pages per image when you want to save them as two images (one page for one image). Choice: None, Horizontal, Vertical.
  • Page 87 User’s Manual Flip Side Select “fanfold” to rotate the image of the Rotation reverse side to 180 degrees. This is applied to double-sided document which are viewed in portrait are sometime fed into the scanner in landscape or vice versa. Choice: Book, Fanfold.
  • Page 88 User’s Manual Image Check the Mirror box if you wish to reverse the right Control and left side of your image. Option Original The Mirror Effect 4-68...
  • Page 89 User’s Manual 4.11 The Separation Tab The Separation tab allows you to enable the detection engine to detect the blank page, barcode, and patch code and then notify the software application which supports document separation to separate your multi-page documents. Choices: Blank Page Removal, Barcode Detection, Patch Code Detection.
  • Page 90 User’s Manual Barcode Check [Enable] to detect barcode and notify Detection the software application for advanced processing. Please note the whole document will be checked and no specific detection area needs to be designated. When the bar code has been detected successfully，a file [avbarcode.ini] will be created and stored in the following path: Windows XP: C:\Documents and Settings\All Users\Application...
  • Page 91 User’s Manual DataLogic 2 of 5  EAN 128 (GS1, UCC)  EAN-13  EAN-8  GS1 DataBar  Industrial 2 of 5  Intelligent Mail (One Code)  Interleaved 2 of 5  Inverted 2 of 5  ITF-14 / SCC-14 ...
  • Page 92 User’s Manual Choice for barcode zone on a page: Bottom Left Right Bottom Bottom Top Right Top Left Right Left Note: Recommended resolution: 200~600 dpi for regular barcode,  300~600 dpi for QR code Skewed barcodes may not be recognized correctly. ...
  • Page 93 User’s Manual You can find various sizes of patch codes (PDF) by choosing [Start] menu>[All Programs]>[Avision Scanner Series]>[Patch code] in succession. Simply print the PDF file to produce the patch code sheet. Insert the patch code sheets to wherever you want the file to separate.

  • Page 94: Energy Saving Control

    User’s Manual 4.12 The Setting Tab The Setting tab allows you to set the following settings: The Setting tab dialog box Energy Saving Check the Enable Energy Saver box Control and move the slider to set the amount of time to start the energy saver after your last action.
  • Page 95 User’s Manual Cache Mode: None, Page Number, Memory Size. This option allows you to assign a specified memory size from the available RAM to process the image data. By specifying a smaller memory size, you can free more memory for other applications you are running.
  • Page 96 User’s Manual Show Scanning Check and the scanning progress bar Progress will be shown during scanning. Show Warning Check to show the warning messages Message such as “ADF pad count exceeds 50,000 scans (the number varies based on type of scanner). Please replace the ADF pad and reset the pad count.”...
  • Page 97 User’s Manual 4.13 The Imprinter Tab The Imprinter tab allows you to print alphanumeric characters, date, time, document count and custom message on your scanned image if digital imprinter is selected or at the back of your document if external imprinter is selected. Choice: External Imprinter, Digital Imprinter.
  • Page 98 User’s Manual Contents Print All Check Print All to automatically print the text at all pages of your documents. Uncheck Print All to print the text for the first page of your documents only. Custom Enter your custom text to be included in your print string.
  • Page 99 User’s Manual String Choose your string orientation. Orientation Choice: Normal, Rotated, Vertical, Vertical Inversion, 90 degrees CW, 90 degrees CCW Rotated Normal Vertical Vertical Inversion 90 degrees CW 90 degrees CCW 4-79...

  • Page 100: Print Position

    User’s Manual Print Choose the position you wish to print your Position string. Move the slider to the right to increase the value or to the left to decrease the value. Range: 0~355mm, default:0 mm The value indicates the height from the bottom of your paper to the last letter of your string.
  • Page 101 User’s Manual 4.14 The Information Tab The Information tab displays the following system and scanner information. The Information tab dialog box The “Report” button： If you encounter any error message while using the scanner, click the Report button. A report.txt file [Windows XP: C:\Documents and Settings\All Users\Application Data\%PRODUCTNAME%;...

  • Page 102: Maintenance

    User’s Manual 5. Maintenance 5.1 Cleaning the Glass The procedures 1) Use a clean and lint-free cloth wet with isopropyl alcohol. (95%) 2) Open the document cover as shown in Figure 5-1. Wipe the document glass. 3) Close the document cover. Your scanner is now ready for use.

  • Page 103: Troubleshooting

    User’s Manual 6. Troubleshooting 6.1 Questions and Answers Question: Why does my scanned image always come out too dark? Answer: 1) Please adjust the screen settings to sRGB. 2) Please adjust the brightness settings on the screen from application software. When I choose optical resolution to Question: be 600 dpi, the "auto crop"...
  • Page 104 User’s Manual 6.2 Technical Service Before contacting Avision, please prepare the following information by referring to Section 4.14, The Information Tab:  Scanner serial & revision number (located on the bottom of the scanner);  Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card);...
  • Page 105 Hongcai Technology Limited 7A,No.1010, Kaixuan Road, Shanghai 200052 P.R.C. TEL :+86-21-62816680 FAX :+86-21-62818856 E-MAIL :sales@avision.net.cn Web Site:http://www.avision.com.cn Europe Area Avision Europe GmbH Bischofstr. 101 D-47809 Krefeld Germany TEL: +49-2151-56981-40 FAX: +49-2151-56981-42 E-MAIL: info@avision-europe.com Web Site: http://www.avision.de Espaço Brasil Avision Brasil Ltda.

  • Page 106: Specifications

    User’s Manual 7. Specifications All specifications are subject to change without notice. For the most up-to-date and detailed specifications, please refer to our web site at http://www.avision.com Model Number： BF-1102S Technology: Contact Image Sensor (CIS) Light Source： LED (Light-Emitting-Diode lamp) Optical Resolution：...
