Summary of Contents for TMT Automation ChowBELL2 Pro

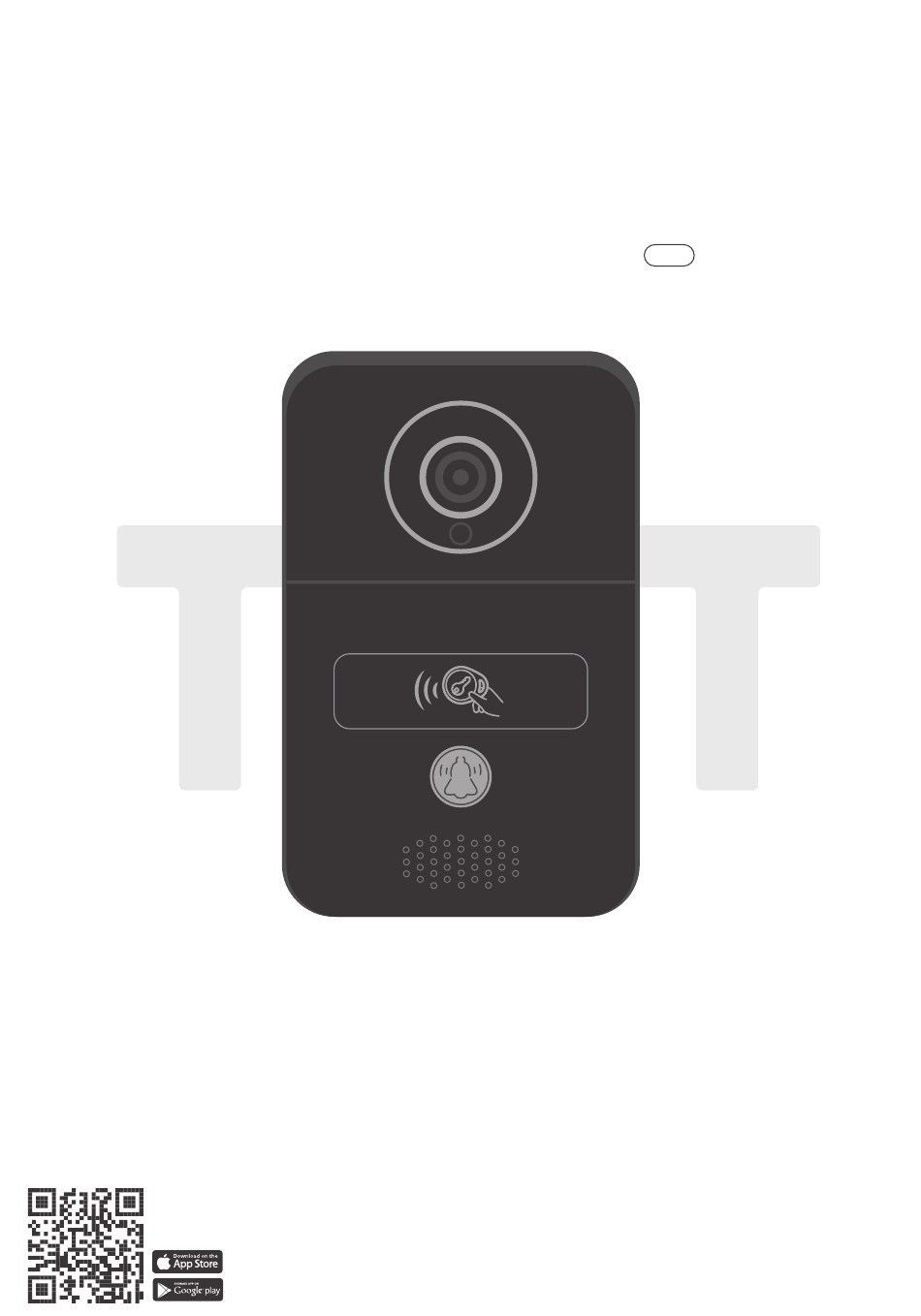

Page 1
ChowBELL2 User Manual for video doorbell www.tmt-automation.com...
Page 2
Speci cations Hardware installation_Wi- Hardware installation_LAN cable Pairing indoor chime with ChowBELL2 Pro Apply for a new Chow account Connect ChowBELL2 Pro to Chow! App Owner shares the ChowBELL2 Pro to other users Connect your ChowBELL2 Pro with a gate opener...
This user manual is designed to provide indications of the ChowBELL2 Pro and its features and functions. ChowBELL2 Pro is a device which can connect to App! and provide two-way audio communication. ChowBELL2 Pro can be intergrated with other Wi-Fi gate openers on the Chow! App.
Kit contents ChowBELL2 Pro Wall mount bracket RFID cards Indoor chime Parts package Power wire 12V Power DC cable Speci cations Display Resolution 1920 x 1080 Image Sensor Viewing Angle 140° Image Compression H.264 Video Image Frame Rate 25 fps...
Page 5
Hardware installation -connect to Wi- Connect to your home Wi-Fi Connect the ChowBELL2 Pro via 2.4GHz Wi-Fi. Please make sure your Wi-Fi signal is strong and stable. Hardware installation Choose a proper location for the Connect the 12V power plug to the Chow BELL2 Pro, be sure to consider DC cable.
Page 6
Connect to LAN cable Please connect your ChowBELL2 Pro to the Wi-Fi network before connect to the LAN cable. ChowBELL2 Pro has a RJ45 port which is used for connecting to the router with a LAN cable. Hardware installation Connect the POE wire to...
Page 7
Pairing indoor chime with ChowBELL2 Pro Connect the indoor chime to the power via the USB port / USB adaptor, please also ensure ChowBELL2 Pro is powered. Step1 Press and hold the indoor chime rings twice and LED blinks once.
Page 8
Apply for a new Chow account 1. Please scan the QR code and download the Chow! App 2. Press Sign Up icon and press the agree icon to continue 3. Pleases type the following information for registration : a. Account (a-z, A-Z, 0-9 only) b.
Page 9
New device -> Accessories -> ChowBELL Pro Tap the (Scan QR code) icon Follow the indications as below: Step 1 - Power the device Step 2 - Reset the device Step 3 - ChowBELL2 Pro sound once when it has been reset...
Page 10
Step 2 Connect ChowBELL2 Pro Step 3 Setting Tap the icon of the ChowBELL2 Pro to enter the operation page.
Page 11
Owner shares the ChowBELL2 Pro to other users The device owner can share the ChowBELL2 Pro up to 4 users through Chow! APP Tap the icon to enter the account manage page Tap the Mange shared device icon Enter the account name to share with...
Page 12
Operation page of ChowBELL2 Pro 2022-05-20 12:40:30 Setting With an extra micro SD card, the recorded videos will be listed in the calendar Switch of the Motion detection. You will get notifications when you turn it ON. Switch of the two-way audio. Turn ON to start the audio function...
Page 13
Connect your ChowBELL2 Pro with a gate opener To connect your ChowBELL2 Pro to the gate opener, please go the operation page of a gate opener. Gate opener operation page Settings Available Accessories Select ChowBELL2 Pro from the list. Settings...
Page 14
Add RFID cards to trigger the NC/COM/NO output terminal on ChowBELL2 Pro (like electric latch control) Terminals of the ChowBELL2 Pro Function of each terminal DC 12-36V Electric Electric AC 8-12V latch latch Yellow(Add) RFID card Red(Delete) RFID card RFID scan area...
Page 15
How to Reset ChowBELL2 Pro to default setting? Answer 1 Delete the ChowBELL2 Pro on the Chow! App by long pressing the ChowBELL2 Pro icon and confirm it. Press Reset button at the back of the ChowBELL2 Pro for 5 seconds to reset ChowBELL Pro to default setting.
