- Page 1 MANUAL PCN90...
-
Page 2: Table Of Contents

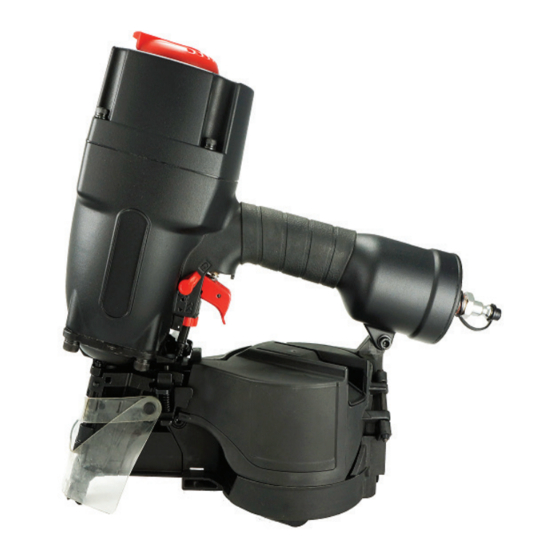

OPERATING INSTRUCTIONS FOR FASTENER DRIVING TOOLS OPERATED BY COMPRESSED AIR Air Nailer –Coil nailer Model No.:MCN90 IMPORTANT: Read all safety rules and operating Instructions carefully before first use it. Keep this Manual for future reference. Residual risks Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: Damage to lungs if an effective dust mask is not worn. -
Page 3: Technical Data
1 Technical data MCN90 Required pressure 90-110PSI(6.3-7.5bar) Type of tool 376*356*132mm Max. pressure 120PSI (8.3bar) Outline dimension Weight (without fasteners) 4.25kg(9.35Lb) Recommended lubricant white mineral oil 16＃ 1.1 Fastener: Fastener size & Nail length: Drives (Dia.2.87-3.7mm)and length (45mm,50mm,65mm, 70mm, 75mm, 83mm, 90mm) wire welded coil nails. -
Page 4: Noise Emission
safety yoke; for the maintenance of fastener driving tools, only spare parts specified by the manufacturer or his authorized representative shall be used; repairs shall be carried out only by agents authorized by the manufacturer or by other specialists, having due regard to the information given in the operating instructions;... -
Page 5: Actuating Systems
muzzle of the tool is pressed against a work piece, These tool are marked with an inverted triangle( ) behind the serial number and are not permitted for use without an effective safety yoke. 2.7 Actuating systems Depending on their purpose, fastener driving tool is fitted with actuating system of single sequential actuation and contact actuation. -
Page 6: Preparing The Tool For Use
Oilers must be checked on a daily basis and if necessary topped up with the recommended grade of oil (see TECHNICAL DATA). Where hose lengths of over 10 m are used., the oil supply for the fastener driving tool cannot be guaranteed, We therefore recommend that 2to 5drops (depending on the loading of the fastener driving tool)of the recommended oil (see TECHNICAL DATA) should be added via the air inlet of the tool, or an oiler attached directly to the fastener driving tool. -
Page 7: Maintenance
5. Maintenance Disconnect the tool from the compressor before adjusting, clearing jams, servicing &maintenance, relocating and during non operation. Regular lubrication, if your tool without using the in-liner automatic oilier, place 2 or 6 drops of pneumatic tool oil into the air inlet before each work day or after 2 hours of continuous use depending in the characteristic of work piece or type of fasteners. - Page 8 Issue date: Coil Nailer Explosive View and Parts list Contact Actuation Version no.: No. Description Qty. No. Description Qty. No. Description Qty. No. Description Qty. Driver guide O-ring7.5*1.8 O-Ring 2.5*1.5 Bolt M6*25 O-ring 9.9*2.4 Shaft sleeve Switch Spring Spring washer 8 Air Deflector Bolt M8*25 Washer...
