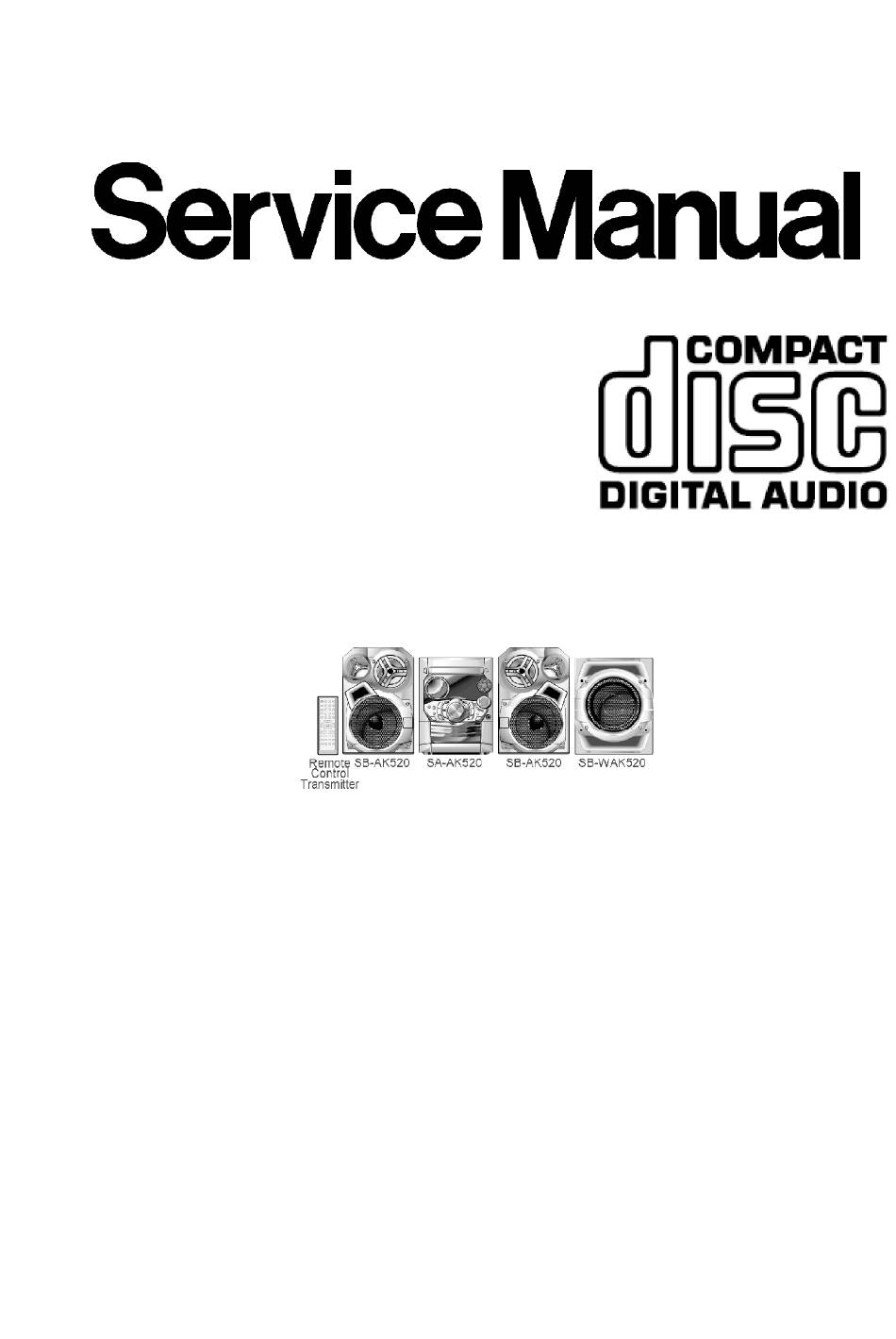

ORDER NO. MD0402036C2
CD Stereo System
SA-AK520E / SA-AK520EB / SA-AK520EG
Colour
(S)... Silver Type
SPECIFICATIONS
Specifications
1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SA-AK520E

Summary of Contents for Panasonic SA-AK520E

  • Page 1 ORDER NO. MD0402036C2 CD Stereo System SA-AK520E / SA-AK520EB / SA-AK520EG Colour (S)... Silver Type SPECIFICATIONS Specifications...
  • Page 2 AMPLIFIER SECTION RMS Power output THD 10%, both channels driven 1 kHz (Low channel) 65 W per channel (6 10 kHz (High channel) 65 W per channel (6 80 Hz (Subwoofer channel) 160 W per channel (8 Total power 420 W (Total) Input sensitivity 250 mV Input Impedance...
  • Page 3 Digital filter 8 fs D/A converter MASH (1 bit DAC) Bit rate 32 kbps - 320 kbps Sampling frequency 32 kHz, 44.1 kHz, 48 kHz GENERAL Power Supply (For E, EG only) AC 230V, 50Hz Power Supply (For EB only) AC 230 - 240 V, 50Hz Power consumption 272 W...
  • Page 4 2. Before Repair and Adjustment Disconnect AC power, discharge Power Supply Capacitors C520 and C540 through a 10 , 5W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
  • Page 5 - No sound is heard when the power is turned on. - Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
  • Page 6 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminium foil or comparable conductive material). 7.
  • Page 7 6. Handling Precautions For Traverse Deck The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity of clothes or human body. So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup). - Handling of traverse deck (optical pickup) 1.
  • Page 8 Use the anti-static wrist strap to discharge the static electricity from your body. 2. Work table grounding Put a conductive material (sheet) or steel sheet on the area where the traverse deck (optical pickup) is placed, and ground the sheet. Caution : The static electricity of your clothes will not be grounded through the wrist strap.
  • Page 9 4. Recommend not to look at pick up lens for a long time. ACHTUNG : Dieses Produkt enthält eine Laserdiode. Im eingeschalteten Zustand wird unsichtbare Laserstrahlung von der Lasereinheit abgestrahlt. / Wellenlänge : 780nm / Maximale Strahlungsleistung der Lasereinheit :100 W/VDE / Die Strahlung an der Lasereinheit ist ungefährlich, wenn folgende Punkte beachtet werden: 1.
  • Page 10 8. Accessories Remote Control Transmitter FM Indoor Antenna AC Power Supply Cord (For E & EG ony)
  • Page 11 AC Power Supply Cord (For EB ony) AM Loop Antenna Antenna Plug Adapter (For EB only) 9. Operation Procedures 10. Disassembly and Assembly of Main Component 10.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing.
  • Page 12 10.2. Disassembly of Top Cabinet and Rear Panel Step 1 Remove 3 screws each side and 5 screws at rear panel. Step 2 Lift up both sides of top cabinet, push the cabinet ass’y toward the rear and remove it.
  • Page 13 - Disassembly of Rear Panel Step 3 Remove 8 screws. Step 4 Detach wire at CN305 (Fan).
  • Page 14 Step 5 Draw rear panel backward to remove. 10.2.1. Disassembly for CD Lid (The CD changer unit can be removed after the CD Lid is removed) - Follow the (Step 1) - (Step 5) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel When opening the disc tray automatically (Using Power Supply) Step 1 Connect the AC power cord.
  • Page 15 Step 4 Release the 2 claws, and then remove the CD Lid. Step 5 Press the OPEN/CLOSE button, the disc tray will be close. [Open the disc tray manually (Using service tools)]...
  • Page 16 Step 1 Insert the gear tool into the hole on the underside of CD chassis and then rotate in the direction of arrow. The disc tray will be open. Step 2 Release the 2 claws, and then remove the CD lid cover.
  • Page 17 Step 3 Repeat Step 2 but rotate the gear tools in anti-clockwise direction. Step 4 The disc tray will be close. 10.3. Disassembly of CD Mechanism Unit - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid Step 1 Detach the FFC boards (CN309 &...
  • Page 18 Step 2 Release the claws of both ends, and then lift up the CD Mechanism Unit. Step 3 Remove 4 screws. Step 4 Remove the CD chassis. Step 5 Lay the CD mechanism unit as shown. - Note: For disassembly of CD mechanism unit, please refer to Section 10.7 of this manual.
  • Page 19 10.4. Disassembly Main P.C.B., Transformer P.C.B. & Power P.C.B. 10.4.1. Disassembly for the Main P.C.B. - Follow the (Step 1) - (Step 5) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid - Follow the (Step 1) - (Step 5) of Item 10.3 - Disassembly of the CD Mechanism Unit Step 1 Disconnect FFC board at CN303, CN302 &...
  • Page 20 Mechanism Unit Step 1 Remove 3 screws. Step 2 Disconnect connector CN950. 10.4.3. Disassembly of the Power P.C.B. - Follow the (Step 1) - (Step 5) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid - Follow the (Step 1) - (Step 5) of Item 10.3 - Disassembly of the CD Mechanism Unit - Follow the (Step 1) - (Step 2) of Item 10.4.1 - Disassembly for the...
  • Page 21 Insulate Power P.C.B. with insulation material to avoid short circuit. - Replacement of Power Amplifier IC & Voltage Regulator Step 1 Remove 2 screws (For Power Amp IC) and 1 screw (For Voltage Regulator) . Step 2 Break the joint with a metal cutter as shown below. Step 3 Unsolder the terminals of Power Amp IC, transistor and replace the components.
  • Page 22 10.5. Disassembly of Panel P.C.B. & Tact Switch P.C.B. - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid - Follow the (Step 1) - (Step 5) of Item 10.3 - Disassembly of the CD Mechanism Unit - Disassembly of Panel P.C.B.
  • Page 23 Step 3 Remove the 8 screws. Step 4 Disconnect FFC board (CN302). - Disassambly of Tact Switch P.C.B. Step 5 Disconnect connector CN900. Step 6 Pull out the volume knob. Step 7 Pull Panel P.C.B. forward.
  • Page 24 10.6. Disassembly of Deck Mechanism Unit & Deck P.C.B. - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid - Follow the (Step 1) - (Step 2) of Item 10.3 - Disassembly of the CD Mechanism Unit Step 1 Detach FFC board.
  • Page 25 Step 6 Unsolder the motor terminals. Step 7 Remove 3 screws. Step 8 Remove Deck P.C.B. 10.7. CD Mechanism Main Component Replacement Procedures - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid - Follow the (Step 1) - (Step 5) of Item 10.3 - Disassembly of the CD Mechanism Unit...
  • Page 26 Step 3 Rotate the hexagonal wrench in the direction of arrow (clockwise), and then open the disc tray fully. Step 4 With pressing the claw (A), rotate the hexagonal wrench clockwise. (The slide plate R moves for a little amount.) Step 5 Pressing the claw (B) in the direction of arrow (1), the connection lever moves in the direction of arrow (2).
  • Page 27 Step 7 Remove the traverse deck ass’y from the timing lever. Caution: When removing or inserting the traverse deck avoid touching the OPU lens and pressing onto the turntable. Step 8 Remove 3 screws. Step 9 Unsolder the motor terminals (4 points). Step 10 Remove the FFC board from the connector, and then remove the CD Servo P.C.B.
  • Page 28 Step 11 Remove the pin. Step 12 Release the claw, and then remove the traverse deck ass’y. Note: Be careful not to lose the 3 floating spring because those will also be removed on removal of the traverse deck ass’y. - Installation of the CD Servo P.C.B.
  • Page 29 - Note for installation of the CD servo P.C.B. - Installation for traverse deck ass’y Step 1 Install the traverse deck ass’y to the timing lever. Step 2 Align the boss of traverse deck ass’y with the slot of traverse cam gear. Step 3 Force the claw of timing lever.
  • Page 30 Step 4 Force the disc tray fully. Step 5 With pressing the claw (B) in the direction of arrow (1), force the connection lever in the direction of arrow (2). 10.7.2. Replacement for the Disc Tray Step 1 Remove 4 screws.
  • Page 31 Step 2 Remove the upper plate. Step 3 Remove 3 screws. Step 4 With lifting the claw in the direction of (1), draw the CD Detect P.C.B. in the direction of arrow (2). Step 5 Remove the mechanism cover. Step 6 Insert the gear with hexagonal wrench into the hole.
  • Page 32 Step 7 Rotate the hexagonal wrench in the direction of arrow, and then open the disc tray fully. Step 8 Release the both claws, and then draw the disc tray. Step 9 With forcing the left guide bar manually because the left guide bar interfers with claw, draw the disc tray.
  • Page 33 Step 1 Slide the drive rack fully in the direction of arrow. Step 2 Holding the drive rack not to move, install the disc tray. Step 3 Align the drive rack with the drive gear.
  • Page 34 NOTE: Force the right guide bar of tray base manually not to move upwards. Step 4 Holding the disc tray manually, push the disc tray in the direction of the arrow. 10.7.3. Disassembly and reassembly for mechanism base drive unit Step 1 Remove 3 screws.
  • Page 35 NOTE: Take care not to lose the change gear spring. Step 4 Remove the pulley gear, change gear and UP/DOWN gear. Step 5 Release the 2 claws, and then remove the bottom SW P.C.B..
  • Page 36 Step 6 Install the tray lock spring to hook temporary. Step 7 Release the claw, and then remove the tray lock. Step 8 Release the claw, and then remove the rear lock.
  • Page 37 Step 9 Pressing the claw (B) in the direction of arrow (1), force the connection lever in the direction of arrow (2). Step 10 Move the slide plate 1 to the end of stock side.
  • Page 38 Step 11 Lift up the left end of spindle base unit in the direction of arrow (1), and then remove the unit in the direction of arrow (2).
  • Page 39 Step 12 Remove slide plate 1 and slide plate 2. Step 13 Remove the traverse relay gear, traverse cam gear and drive gear. [Dissassembly/reassembly for the spindle base unit] Step 1 Draw the 5 disc spacers. Step 2 Pushing the claw, slide the support plate in the direction of arrow, and then remove it.
  • Page 40 Step 3 Rotate the disc lever in the direction of arrow (1), draw the disc lever. NOTE: Take care not to lose the disc lever spring. Step 4 Release the 2 claws, and then draw the relay gear B. Step 5 Release the 2 claws as shown below.
  • Page 41 NOTE: Hold the loading stopper ass’y manually bacause it is flipped by spring. Step 6 Remove the cushion spring. Step 7 Remove the loading stopper ass’y in the direction of arrow. Step 8 Release the 2 claws, and then remove the relay gear A. Step 9 Release the 2 claws, and then remove the spindle shaft.
  • Page 42 Step 10 Remove the lower spindle spring with tweezers. Step 11 Force the lower hook with thin tip of minus screwdriver. Step 12 Squeeze the shaft of lower hook, and then draw it.
  • Page 43 Step 13 Rotate the lower spindle in the direction of arrow until the lower spindle interferes with stopper. Step 14 Insert the thin tip of minus screwdriver between the lower spindle and UP/DOWN base, and then slacken the lower spindle to release the stopper. Then, rotate the lower spindle and remove it.
  • Page 44 [Reassembly for mechanism base drive unit] Step 1 Install the traverse cam gear. Step 2 Rotate the traverse cam gear to the direction of arrow. Step 3 Install the drive gear and traverse relay gear. *When installing the traverse relay gear, align the trapezoid tooth of gear with tooth of traverse...
  • Page 45 cam gear. Step 4 Install the slide plate 2 to the mechanism base, and then match to the connection lever. Step 5 Install the slide plate 1 to the mechanism base, and then match to the connection leve and align the trapezoid tooth of traverse relay gear with the slide plate 1. Step 6 Install the spindle base unit.
  • Page 46 Step 7 Move the slide plate 1 to forward fully. Step 8 Install the rear lock. (The claw should be latched.) Step 9 Install the Spindle Position P.C.B.. (The claw should be latched.) Step 10 Install the tray lock. (The claw should be latched.)
  • Page 47 Step 11 Remove the tray lock spring from hook,and then latch to the tray lock. Step 12 Install the UP/DOWN gear, change gear, change gear spring, pulley gear and belt in the order of (1) - (5). Step 13 Install the gear holder, and then tighten the screw (a).
  • Page 48 Step 14 Install the tray base, traverse ass’y, mechanism cover and upper plate. [Operation check after servicing] Check the proper operation of following items with gear and hexagonal screwdriver. 1. Open/close of tray base. 2. Moving the tray base to the stock side. 3.
  • Page 49 Step 4 Unsolder the plunger terminals (2 points). Step 5 Unsolder the motor terminals (2 points). Step 6 Release the 2 claws (A), and then remove the Motor P.C.B. Step 7 Release the claw (B), and then remove the motor ass’y. [Notice for motor ass’y installation] 1.
  • Page 50 - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid - Follow the (Step 1) - (Step 2) of Item 10.3 - Disassembly of the CD Mechanism Unit - Follow the (Step 1) of Item 10.4 - Disassembly the Main P.C.B.
  • Page 51 Step 3 Remove 2 screws. 10.9. Replacement for the Deck motor ass’y, capstan belt A, capstan belt B and winding belt - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel - Follow the (Step 1) - (Step 5) of Item 10.2.1 - Disassembly for CD Lid - Follow the (Step 1) - (Step 2) of Item 10.3 - Disassembly of the CD Mechanism Unit...
  • Page 52 Step 4 Remove 3 screws. Step 5 Remove the flywheel R. Step 6 Release the claw of tape side, and then remove the winding lever and spring. Step 7 Remove the flywheel F. [Installation of the belt] Step 1 The boss and marking should be positioned horizontally.
  • Page 53 Step 2 Put the winding belt on the pulley temporarily. Step 3 Install the flywheel F. Step 4 Put the winding belt on the flywheel F. Step 5 Install the winding lever and spring while pressing the winding arm in the direction of arrow.
  • Page 54 Step 8 Put the capstan belt B on the motor ass’y pulley. Step 9 Install the sub chassis to the mechanism, and then tighten screws. Step 10 Remove 3 screws. Step 11 Put the capstan belt B as shown below.
  • Page 55 Step 12 Put the capstan belt A on the motor ass’y pulley. 10.10. Replacement for the cassette lid ass’y - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel Step 1 Push the lever upward, open the cassette lid ass’y. (For DECK1 and DECK2) Step 2 Lift up the cassette lid ass’y in the direction of arrow.
  • Page 56 Step 3 Remove the cassette lid ass’y. (For DECK1 and DECK2). 10.11. Measure for tape trouble - Follow the (Step 1) - (Step 2) of Item 10.2 - Disassembly of Top Cabinet and Rear Panel Step 1 If a cassette tape cannot be removed from the deck since the tape is caught by the capstan or pinch roller during playback or recording, rotate the flywheel F in the direction of the arrow to remove the tape.
  • Page 57 Step 2 Push the lever upward and open the cassette lid ass’y. Take the cassette tape off. 11. Service Position 11.1. Checking Procedure Note: For the disassembling procedure, see Section 10.
  • Page 58 11.2. Checking the Main P.C.B., Power P.C.B. and Transformer P.C.B. 1. Remove Top Cabinet and Rear Panel. 2. Remove CD Lid. 3. Remove CD Mechanism Unit. 4. Connect FFC board (CN309 & CN310) from CD Mechanism Unit. 11.3. Checking the Panel, Tact Switch, Deck & Deck Mechanism P.C.B.
  • Page 59 Service Tools Extension FFC REEX0310 Panewl P.C.B. - Deck (10 Pins) Mechanism P.C.B. 12. Description of Error Code 12.1. Abnormality detection for Deck Mechanism block Abnormal Items Error Method of Detection Display MODE SW abnormal Normal operation during mecha transition, MODE abnormal is memorized.
  • Page 60 Abnormal Items Error Method of Detection Display REST SW abnormal Under normal operation (Self-Diagnostic Mode inclusive), this error occurs when the REST SW not detected within the specified time and shall memorized. Transmission error between Under normal operation (Self-Diagnostic Mode CD servo LSI and micon inclusive), this error occurs when the selection to CD and SENSE=’H’...
  • Page 61 13.3. Cassette Mechanism Test (For error code H01, H02, H03, F01, F02) 1. Press “TAPE, DECK 1/2” to select Deck 2. 2. Load a cassette tape with the erasure prevention tab, remove from left side only and close the cassette holder. 3.
  • Page 62 4. Load a cassette tape with the erasure prevention tab, remove from right side only and close the cassette holder. 5. Press “REVERSE FM MODE/BP” (Tape will be stop after 2 seconds) 6. Load a pre-recorded tape with both side record tabs intact and close the cassette holder.
  • Page 63 13.6. How to get out from Self-Diagnostic function 1. Press “Power” button OFF. 13.7. Power Amplifier Failure (F61) 1. When power amplifier fail, F61 will indicate automatically. 14. CD Test Mode Function This CD test mode is provided to check CD unit without connecting to changer loading mechanism.
  • Page 64 14.2. CD Automatically Adjustment result indication Under CD test mode, pressing the numeric key ‘0’ on the remote controller will display the auto adjustment result. FLOCK, TLOCK and CLVS status shall be shown as below:...
  • Page 65 During the above display, executing CD PLAY will display auto adjustment result for CD PLAY mode. 15. Measurements and Adjustments 15.1. Cassette Deck Section - Measurement Condition - Make sure head, capstan and press roller are clean. - Judgeable room temperature 20 ± 5 °C (68 ± 9°F) - Measuring instrument - EVM (DC Electronic voltmeter) - Digital frequency counter...
  • Page 66 “REC” mode (use “ REC/STOP” key). 3. Measure and make sure that the output is within the standard value. Bias voltage for Deck 2 14±4mV (Normal) Erase voltage for Deck 2 80mV (Normal) Fig.2 Fig.3 15.1.3. Bias Frequency Adjustment (Deck 1/2) 1.
  • Page 67 2. Set the unit to AM mode. 3. Apply signal as shown in Fig. 5 from AM-SG. 4. Adjust Z102 so that the output frequency is maximized in Fig. 6. Fig.5 Fig.6 15.2.2. AM RF Adjustment 1. Connect the instrument as shown in Fig. 7. 2.
  • Page 68 10. Receive 520kHz in the unit. 11. Adjust Z101 (OSC) so that the EVM-DC value is with 1.1±0.5V. Fig.7 15.3. Alignment Points 15.3.1. Cassette Deck Section 15.3.2. Adjustment Point 16. Block Diagram...
  • Page 69 17. Schematic Diagram (All schematic diagrams may be modified at any time with the development of the new technology) Note: : Push switch : Push switch : Open switch : CD switch : Load switch S601 : Open/ Close switch S602 : CD 1 switch S603...
  • Page 70 S610 : Up switch S612 : Power switch S613 : SSEQ switch S614 : Preset switch S615 : Rec switch S616 : Deck 1/2 switch S617 : Menu switch S618 : Enter switch S619 : Index switch S620 : Delete switch S621 : Sub woofer switch S701...
  • Page 71 S905 : Stop switch S906 : Deck 2 Open switch S907 : Tape switch S908 : AUX switch S909 : Deck 1 Open switch S910 : Display switch S951 : Mode switch S952 : Half switch S971 : Mode switch S972 : Half switch S975...
  • Page 72 Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used. Whenreplacing any of components, be sure to use only manufacturer's specified parts shown in the parts list. Caution ! IC, LSI and VLSI are sensitive to static electricity.
  • Page 73 18.6. (F) CD Detect P.C.B., (G) Spindle Position P.C.B., (H) CD Loading P.C.B. & (L) Tuner Pack P.C.B. 18.7. (I) Power (1) P.C.B. 18.8. (J) Deck P.C.B. & (K) Deck Mechanism P.C.B. 19. Wiring Connection Diagram 20. Illustration of IC’s, Transistors and Diodes 21.
  • Page 74 Pin No. Mark Function GCTL GCTL FBAL I/O Focus Balance Control TBAL Tracking balance Control Tracking balance control Focus balance control 21.2. IC702 (MN6627934CH) Servo Processor/ Digital Signal Processor/ Digital Filter/ D/A Converter Pin No. Mark Function DRVDD Power supply for DRAM interface (Pin 2 to 19 and 80) DRAM data I/O signal...
  • Page 75 Pin No. Mark Function DRAM address signal DRAM address signal DRAM address signal DRAM address signal DRAM address signal DVSS2 Ground for digital circuits DVDD2 Power supply for digital cirfcuits SPOUT Spindle motor drive signal output (absolute value output) TRVP Traverse drive output (positive polarity output)
  • Page 76 Pin No. Mark Function RFENV RF envelope signal input (analog input) Off-track signaL input High: Off-track) NRFDET I RF detection signal input Low: detection Dropout signal input High: Dropout LDON Laser ON signal output High: ON RF signal input IREF Reference current input ADPVCC I...
  • Page 77 Pin No. Mark Function EXT1 Expansion I/O port 1 IOVDD2 Power supply for I/O Digital audio interface output signal MCLK Micro controller command clock signal input (Latches data at the rising adge) MDATA Micro controller command data signal input Micro controller command load signal input Low: Load...
  • Page 78 Pin No. Mark Function OUT X2 Crystal oscillator circuit output pin (f= 16.9355 MHz, 33.8688 MHZ) IN X1 Crystal oscillator circuit output pin (f= 16.9355 MHz, 33.8688 MHZ) DVSS1 Ground for digital circuits DVDD1 Power supply for digital circuits Monitor for evaluation 21.3.
  • Page 79 Pin No. Mark Function Motor driver (4) forward- action output N.C. PGND2 Ground connection (2) for driver PVCC2 Power supply (2) for driver Power supply terminal VREF Reference voltage input Motor driver (4) input Motor driver (3) input RSTIN Reset terminal N.C.
  • Page 80 Pin No. Mark Function /RESET/ Reset input (ACTIVE L) EFP_RESET X_OUT 10 MHz main clock Ground (0V) 10 MHz main clock Power supply (+5V) /NMI Connect to Vcc (+5V) Remote control input BLKCK CD block clock input (Inverted) SYNC AC failure detect input ST/DO Tuner IF data/ stereo input...
  • Page 81 No connection Pin No. Mark Function PCONT/ Main transformer control EFP_/CE output DCDET DC detect input SP_A Speana control output A SP_B Speana control output B SP_C Speana control output C No connection HALF_1 Deck 1 half playback input MODE_1 Deck 1 mode playback input PHOTO_2...
  • Page 82 Pin No. Mark Function FL_DOUT Serial data to FL driver (Output) FL_CLK I/O Serial clock to FL driver CD power control (Active low) SSEQ_LED Super Sound EQ LED CD_RST CD reset output STATUS CD Servo LSI status input CD command load output MDATA CD command data output MCLK...
  • Page 83 input Pin No. Mark Function DEMO (H= default demo on, L= SELECTOR default demo off.) 22. Troubleshooting Guide...
  • Page 84 23. Parts Location and Replacement Parts List Notes:...
  • Page 85 - Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise (resistors), etc are used. When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.
  • Page 86 Arabic Dutch Italian Spanish Canadian French En: English Korean Swedish Czech French Polish Traditional Chinese Danish German Russian Simplified Chinese Persian 23.1. Deck Mechanism (RAA4502-S) 23.1.1. Deck Mechanism Parts Location...
  • Page 88 23.1.2. Deck Mechanism Parts List...
  • Page 89 Ref. No. Part No. Part Name & Description Remarks CASSETTE DECK RED0069 R/P HEAD BLOCK UNIT RED0070 P/B HEAD BLOCK UNIT RDG0300 REEL BASE GEAR RDG0301 WINDING RELAY GEAR RDK0026 MAIN GEAR RDV0033-4 WINDING BELT RDV0064 CAPSTAN BELT RDV0071 CAPSTAN BELT B RMB0312 TRIGGER LEVER SPRING RMB0400...
  • Page 91 23.2.2. CD Loading Mechanism Parts List...
  • Page 92 Ref. No. Part No. Part Name & Description Remarks TRAVERSE DECK RML0517 TIMING LEVER RML0516 PLUNGER LEVER RMB0551 UPPER SPINDLE SPRING RMQ0744 LOWER HOOK RDV0056 BELT RML0525 FRONT LOCK LEVER RML0526 DISC LEVER RDG0424 DRIVE GEAR RDG0425 CHANGE GEAR RDG0427 TRAVERSE CAM GEAR RDG0428 TRAVERSE RELAY GEAR...
  • Page 93 Ref. No. Part No. Part Name & Description Remarks RDG0431 RELAY GEAR ‘B’ RME0262 DISK LEVER SPRING RMA1105 SUPPORT PLATE RAE0153Z-S TRAVERSE 358-1 SHGD113-1 FLOATING CUSHION 358-2 SNSD38 TRV MOTOR ASSY SCREW 358-3 RAF0152A-S OPU ASS’Y 358-4 RDG0247 DRIVE GEAR 358-5 RDG0248 RELAY GEAR...
  • Page 96 23.3.2. Cabinet Parts List...
  • Page 97 Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS REEX0202 10P FFC REEX0204 19P FCC REEX0210 17P FFC REEX0211 14P FFC WIRE REEX0212 14P FFC WIRE REEX0215 30P FFC RYQX0111-K TOP ORNAMENT UNIT RGKX0241-S CD LID RGKX0268-1S CONTROL PANEL RGLX0081-Q POWER LIGHT CHIP...
  • Page 98 23.4. Electrical Parts List Ref. No. Part No. Part Name & Description Remarks PRINTED CIRCUIT BOARD REPX0405A CD SERVO P.C.B. (SIDE A) [M] (RTL) REPX0405A CD SERVO P.C.B. (SIDE B) [M] (RTL) REPX0442Q MAIN/ TUNER P.C.B. [M] (RTL) REPX0425C PANEL P.C.B. [M] (RTL) REPX0425C TACT SWITCH P.C.B.
  • Page 99 Ref. No. Part No. Part Name & Description Remarks Q204 KTC3875GRTA TRANSISTOR Q205 KTC3875GRTA TRANSISTOR Q207 KTD1304TA TRANSISTOR Q209 KTC3875GRTA TRANSISTOR Q301 B1GDCFJJ0023 TRANSISTOR Q302 B1ABCF000131 TRANSISTOR Q303 B1ABCF000131 TRANSISTOR Q308 KTA12710YTA TRANSISTOR Q309 KTC3199GRTA TRANSISTOR Q310 B1GCCFGA0005 TRANSISTOR Q312 B1GBCFJJ0039 TRANSISTOR Q313 KTC3875GRTA...
  • Page 100 Ref. No. Part No. Part Name & Description Remarks Q614 B1GACFGG0004 TRANSISTOR Q615 KTA12710YTA TRANSISTOR Q616 KTC3199GRTA TRANSISTOR Q617 KTA12710YTA TRANSISTOR Q618 KRC103MTA TRANSISTOR Q619 KRC103MTA TRANSISTOR Q621 KTC3199GRTA TRANSISTOR Q636 KTC3199GRTA TRANSISTOR Q661 KTC3199GRTA TRANSISTOR Q662 KTC3199GRTA TRANSISTOR Q701 B1ADCF000001 TRANSISTOR Q843...
  • Page 101 Ref. No. Part No. Part Name & Description Remarks D314 MA2J72900L DIODE D324 B0ACCK000005 DIODE D370 B0ACCK000005 DIODE D371 B0BC01000014 DIODE D374 B0EAKM000117 DIODE D375 B0ACCK000005 DIODE D376 B0ACCK000005 DIODE D377 B0ACCK000005 DIODE D378 B0EAKM000117 DIODE D379 B0EAKM000117 DIODE D401 MA2J72800L DIODE D404...
  • Page 102 Ref. No. Part No. Part Name & Description Remarks VR600 EVEKE2F3524M VR VOLUME JOG SWITCHES S601 EVQ21405R SW OPEN/CLOSE S602 EVQ21405R SW CD 1 S603 EVQ21405R SW CD 2 S604 EVQ21405R SW CD 3 S605 EVQ21405R SW CD 4 S606 EVQ21405R SW CD 5 S607...
  • Page 103 Ref. No. Part No. Part Name & Description Remarks CN302 K1MN30A00046 30P FFC CONNECTOR CN303 RJS1A9417 FFC CONNECTOR CN304 RJS1A9414-1 14P CONNECTOR CN305 K1KA02A00008 CONNECTOR CN306 RJT119W15V 15P WIRE HOLDER CN309 RJS1A9414-1 14P CONNECTOR CN310 K1MN19A00026 FFC CONNECTOR CN500 K1KA12A00184 12P CONNECTOR CN501 K1KA12A00184...
  • Page 104 Ref. No. Part No. Part Name & Description Remarks L950 RLQZ371 LINE FILTER L1001 G0C470JA0030 RF CHOKE COIL L1002 7L1A62N BIAS OSC COIL T950 G4C7AFH00004 TRANSFORMER T951 RTP1H3E002 BACK UP TRANSFORMER COMPONENT COMBINATION Z101 RLA2Z007-T COIL Z102 G2BAE0000003 AM IF BLOCK Z120 ENV17290G1Y FM TUNER PACK...
  • Page 105 Ref. No. Part No. Part Name & Description Remarks FP951 K5G102AA0002 FUSE PROTECTOR HOLDERS H501 RJS1A5510 WIRE HOLDER H950 RJS1A5509 9P CABLE HOLDER H952 K1YF15000004 15P WIRE HOLDER JACKS JK101 RJH8304N JK ANTENNA JK300 RJH2213N-2 JK 2P RCA JK301 B3RAA0000005 JK OPTICAL JK601 K2HC103A0023...
  • Page 106 Ref. No. Part No. Part Name & Description Remarks R120 ERJ3GEYJ473V 47K 1/16W R121 ERJ3GEYJ223V 22K 1/16W R122 D0GB272JA002 2.7K 1/16W R123 D0GB683JA002 68K 1/16W R124 ERJ3GEYJ330V 33 1/16W R125 ERJ3GEYJ471V 470 1/16W R126 ERJ3GEYJ102V 1K 1/16W R127 ERJ3GEYJ471V 470 1/16W R128 D0GB820JA019 82 1/16W...
  • Page 107 Ref. No. Part No. Part Name & Description Remarks R227 ERJ3GEYJ473V 47K 1/16W R228 ERJ3GEYJ222V 2.2K 1/16W R229 D0GB183JA002 18K 1/16W R230 ERJ3GEYJ102V 1K 1/16W R231 ERJ3GEYJ104V 100K 1/16W R232 ERJ3GEYJ222V 2.2K 1/16W R233 ERJ3GEYJ472V 4.7K 1/16W R234 ERJ3GEYJ104V 100K 1/16W R235 D0GB152JA002 1.5K 1/16W...
  • Page 108 Ref. No. Part No. Part Name & Description Remarks R309 D0GB273JA002 27K 1/16W R310 D0GB563JA002 56K 1/16W R312 ERJ3GEYJ104V 100K 1/16W R313 ERJ3GEYJ472V 4.7K 1/16W R314 ERJ3GEYJ472V 4.7K 1/16W R315 ERJ3GEYJ822V 8.2K 1/16W R318 D0GB332JA002 3.3K 1/16W R320 ERJ3GEY0R00V 0 1/16W R323 ERDS1FVJ150T 15 1/2W R324...
  • Page 109 Ref. No. Part No. Part Name & Description Remarks R376 ERDS1FVJ220T 22 1/2W R377 ERJ3GEYJ224V 220K 1/16W R378 D0GB101JA002 100 1/16W R379 ERJ3GEYJ104V 100K 1/16W R380 ERJ3GEYJ103V 10K 1/16W R381 ERJ3GEYJ225V 2.2M 1/16W R382 ERJ3GEYJ103V 10K 1/16W R383 ERJ3GEYJ103V 10K 1/16W R384 ERJ3GEYJ103V 10K 1/16W R385...
  • Page 110 Ref. No. Part No. Part Name & Description Remarks R433 ERJ3GEYJ472V 4.7K 1/16W R434 ERJ3GEYJ104V 100K 1/16W R435 D0GB152JA002 1.5K 1/16W R436 D0GB183JA002 18K 1/16W R437 D0GB183JA002 18K 1/16W R438 ERJ3GEYJ224V 220K 1/16W R439 ERJ3GEYJ472V 4.7K 1/16W R440 ERJ3GEYJ472V 4.7K 1/16W R441 ERJ3GEYJ123V 12K 1/16W R442...
  • Page 111 Ref. No. Part No. Part Name & Description Remarks R508 ERDS1FVJ331T 330 1/2W R509 ERDS1FVJ331T 330 1/2W R510 ERDS2TJ272T 2.7K 1/4W R511 ERDS2TJ561T 560 1/4W R512 ERDS2TJ272T 2.7K 1/4W R513 ERDS2TJ332T 3.3K 1/4W R514 ERDS2TJ332T 3.3K 1/4W R515 ERDS1FVJ270T 27 1/2W R516 ERDS1FVJ150T 15 1/2W R517...
  • Page 112 Ref. No. Part No. Part Name & Description Remarks R619 ERDS2TJ682T 6.8K 1/4W R620 ERDS2TJ103T 10K 1/4W R621 ERDS2TJ104T 100K 1/4W R634 ERDS2TJ103T 10K 1/4W R635 ERDS2TJ103T 10K 1/4W R636 ERDS2TJ104T 100K 1/4W R645 ERDS2TJ101T 100 1/4W R646 ERDS2TJ102T 1K 1/4W R647 ERDS2TJ102T 1K 1/4W...
  • Page 113 Ref. No. Part No. Part Name & Description Remarks R744 D0GB393JA002 39K 1/16W R749 D0GB183JA002 18K 1/16W R750 ERJ3GEYJ5R6V 5.6 1/16W R753 D0GB100JA002 10 1/16W R760 D0GB101JA002 100 1/16W R761 ERJ3GEYJ103V 10K 1/16W R762 ERJ3GEYJ103V 10K 1/16W R763 ERJ3GEYJ103V 10K 1/16W R801 D0GB106JA008 10M 1/16W...
  • Page 114 Ref. No. Part No. Part Name & Description Remarks R885 D0GB101JA002 100 1/16W R886 D0GB101JA002 100 1/16W R887 ERJ3GEY0R00V 0 1/16W R888 ERJ3GEY0R00V 0 1/16W R901 ERDS2TJ102T 1K 1/4W R902 ERDS2TJ102T 1K 1/4W R903 ERDS2TJ122T 1.2K 1/4W R904 ERDS2TJ182T 1.8K 1/4W R905 ERDS2TJ222T 2.2K 1/4W...
  • Page 115 Ref. No. Part No. Part Name & Description Remarks R1009 D0GB183JA002 18K 1/16W R1010 D0GB183JA002 18K 1/16W R1011 ERJ3GEYJ103V 10K 1/16W R1012 ERJ3GEYJ472V 4.7K 1/16W R1013 ERJ3GEYJ472V 4.7K 1/16W R1014 ERJ3GEYJ472V 4.7K 1/16W R1015 ERJ3GEYJ470V 47 1/16W R1016 ERJ3GEYJ470V 47 1/16W R1017 ERJ3GEYJ822V 8.2K 1/16W R1018...
  • Page 116 Ref. No. Part No. Part Name & Description Remarks ECEA1CKA101B 100 16V C101 ECJ1VB1E103K 0.01 25V C102 ECEA1CKA101B 100 16V C103 ECJ1VB1E103K 0.01 25V C104 ECJ1VB1H102K 1000P 50V C105 ECJ1VB1H102K 1000P 50V C106 ECJ1VB1E103K 0.01 25V C107 F1H1E473A062 0.047 25V C108 ECJ1VC1H080D 8P 50V C109...
  • Page 117 Ref. No. Part No. Part Name & Description Remarks C209 ECEA1CKA100B 10 16V C211 ECEA1CKA100B 10 16V C212 ECEA1CKA100B 10 16V C213 ECEA1HKAR47B 0.47 50V C214 ECEA1HKAR47B 0.47 50V C215 F1J1E224A126 0.22 25V C216 F1J1E224A126 0.22 25V C217 ECUV1H152KBV 1500P 50V C218 ECEA1CKA100B 10 16V C219...
  • Page 118 Ref. No. Part No. Part Name & Description Remarks C312 ECJ1VB1E103K 0.01 25V C313 ECJ1VB1E103K 0.01 25V C320 ECEA1AKA220B 22 10V C321 ECJ1VB1H103K 0.01 50V C322 ECUV1C104KBV 0.1 16V C323 ECUV1C104ZFV 0.1 16V C324 ECUV1C104ZFV 0.1 16V C325 ECJ1VC1H101K 100P 50V C326 ECJ1VF1C474Z 0.47 16V...
  • Page 119 Ref. No. Part No. Part Name & Description Remarks C389 ECEA0JKA101B 100 6.3V C390 ECEA0JKA470B 47 6.3V C391 ECEA1AKA101B 100 10V C392 ECEA1HKA010B 1 50V C393 ECEA1HKA100B 10 50V C394 ECEA1HKA100B 10 50V C395 ECEA1HKA100B 10 50V C396 ECEA1HKA2R2B 2.2 50V C397 RCE1AM102B 1000P 10V...
  • Page 120 Ref. No. Part No. Part Name & Description Remarks C443 ECUV1H104KBV 0.1 50V C444 ECJ1VB1H471K 470P 50V C444 F1D1H473A012 0.047 50V C445 F1D1H473A012 0.047 50V C450 ECEA1HKAR22B 0.22 50V C451 ECEA1HKA010B 1 50V C452 ECEA1HKA010B 1 50V C458 ECBT1H222KB5 2200P 50V C460 F1D1H473A012 0.047 50V...
  • Page 121 Ref. No. Part No. Part Name & Description Remarks C678 ECBT1H103KB5 0.01 50V C681 ECBT1H101KB5 100P 50V C682 ECBT1H101KB5 100P 50V C701 ECEA0JKA330I 33 6.3V C702 ECJ1VB0J474K 0.47 6.3V C703 ECEA0JKA101I 100 6.3V C704 ECUVNC104KBV 0.1 16V C705 ECUVNC104ZFV 0.1 16V C706 F1H0J105A002 1 6.3V...
  • Page 122 Ref. No. Part No. Part Name & Description Remarks C780 ECUVNC104KBV 0.1 16V C781 ECUVNC104KBV 0.1 16V C782 ECUVNC104KBV 0.1 16V C865 ECJ1VB1E103K 0.01 25V C866 ECEA1CKA100B 10 16V C871 ECEA1CKA100B 10 16V C872 ECJ1VB1E103K 0.01 25V C874 ECEA1CKA100B 10 16V C875 ECEA1CKA100B 10 16V C877...
  • Page 123 Ref. No. Part No. Part Name & Description Remarks C1017 ECJ1VB1H222K 2200P 50V C1018 ECJ1VB1H103K 0.01 50V C1019 ECJ1VB1H102K 1000P 50V C1020 ECJ1VB1H471K 470P 50V C1021 ECJ1VB1H471K 470P 50V C1022 ECJ1VB1H102K 1000P 50V C1023 ECJ1VB1H102K 1000P 50V C1026 ECEA0JKA470B 47 6.3V C1027 ECJ1VB1H102K 1000P 50V C1030...
  • Page 124 Ref. No. Part No. Part Name & Description Remarks PACKING MATERIALS RPGX1280 PACKING CASE [M]EG RPGX1281 PACKING CASE [M]EB RPGX1284 PACKING CASE [M]E RPNX0218 POLYFOAM RPFX0007 MIRAMAT BAG ACCESSORIES N2QAHB000042 REMOTE CONTROL A1-1 RKK-HTR0283 R/C BATTERY COVER RJA0019-2X AC CORD [M]EG/E RJA0053-3X AC CORD...
  • Page 125 PRT0401 D/K/J/N/L...
  • Page 126 E501 IC501 W563 C438 W564 C238 W554 JK951 W565 W547 D502 W540 W501 RIGHT W530 W515 SPEAKERS C501 R250 R279 C241 C243 C242 R249 C442 R450 R449 C443 R247 W514 C441 W505 R447 W560 C445 LEFT R456 W561 R557 SPEAKERS R451 R445 R273...
  • Page 127 CD SERVO P.C.B (REPX0405A) TP16 TP30 C770 TP24 R743 R712 TP22 C716 C758 TP29 C726 TP25 C728 J733 C730 IC701 R718 J712 C731 C753 R721 CN702 IC702 C724 R737 R702 C711 TP32 C712 C723 TP34 TP39 R738 TP41 TP42 S701 XTP12 REST.
  • Page 128 CD SERVO P.C.B (REPX0405A) R761 R762 IC704 R763 TP14 R760 C752 R715 C715 (SIDE B)
  • Page 129 TACT SWITCH P.C.B (REPX0425C) R620 R618 S904 S901 S903 S902 TUNER D928 R617 S618 S621 D929 ENTER SUBW S617 MENU VR600 R619 S613 S905 S910 SSEQ STOP DISPLAY S907 S908 R974 TAPE S620 S619 R975 DELETE INDEX CP900 R910 S614 R908 PRESET 2 3 4 5 6 7 8 9 10 11...
  • Page 130 TRANSFORMER P.C.B (REPX0429D) PRIMARY SECONDARY RL950 W936 W935 W946 JK950 W908 AC IN W907 230V-240V W906 50HZ T950 W934 TRANSFORMER W905 FP951 L950 C959 D956 D954 W941 C950 W945 FP950 T951 250V T2AL SUB-TRANSFORMER W952 D968 C960 W916 W915 D958 W925 D960 W926...
  • Page 131 W935 CN951 W944 W943 W940 W934 FP951 D956 C950 CN950 W952 D508 R532 C956 Q508 D968 R531 W913 W903 W916 C957 D505 W915 W904 D958 Q951 D506 W925 D960 W926 W900 D966 W947 R955 R959 Q953 C954 R960 Q952 W931 C953 R951 R970...
  • Page 132 SCHEMATIC DIAGRAM - 1 : +B SIGNAL LINE : CD-DA SIGNAL LINE OPTICAL PICKUP CIRCUIT CD SERVO CIRCUIT R701 C770 Q701 C701 B1ADCF000001 6.3V33 Q701 LASER POWER DRIVE 6.3V100 C703 C704 RF VOLT R750 C716 680P LD GND R742 R743 4.7K VREF 0.47...
  • Page 133 SCHEMATIC DIAGRAM - 2 : +B SIGNAL LINE : CD SIGNAL LINE : CD-DA SIGNAL LINE CD SERVO CIRCUIT R721 C727 R717 C725 50V1 1000P C726 1000P C728 R718 50V1 C730 C731 6.3V220 LCH OUT C757 A.GND 6.3V100 RCH OUT C758 +3.3V C744...
  • Page 134 SCHEMATIC DIAGRAM - 3 : +B SIGNAL LINE : FM SIGNAL LINE : AM SIGNAL LINE : FM/AM SIGNAL LINE : FM OSC SIGNAL LINE : AM OSC SIGNAL LINE TUNER/MAIN CIRCUIT C103 R104 R107 R109 Q106 TUNER PACK CIRCUIT 0.01 CF202 RLFFETNGD01L...

  • Page 135: Table Of Contents

    SCHEMATIC DIAGRAM - 4 : +B SIGNAL LINE : AUX SIGNAL LINE : MAIN SIGNAL LINE PANEL CIRCUIT : -B SIGNAL LINE : PLAYBACK SIGNAL LINE : RECORD SIGNAL LINE (CP601) ON SCHEMATIC DIAGRAM-11 MAIN CIRCUIT CN303 CR02 MOTOR DECK1_H MOGND DECK CIRCUIT...

  • Page 136: Schematic 8 Cd_Sw1 Diagram-14

    SCHEMATIC DIAGRAM - 5 : CD SIGNAL LINE : MAIN SIGNAL LINE : +B SIGNAL LINE PANEL CIRCUIT : -B SIGNAL LINE (CP602) ON SCHEMATIC DIAGRAM-11 MAIN CIRCUIT CN302 23 22 17 16 15 14 13 12 11 10 R820 R403 R203 Q203, Q403...

  • Page 137: Chg_Cw

    SCHEMATIC DIAGRAM - 6 : +B SIGNAL LINE TRANSFORMER CIRCUIT : -B SIGNAL LINE (H952/W952) ON SCHEMATIC DIAGRAM-13 MAIN CIRCUIT CN306 D378 D379 B0EAKM000117 B0EAKM000117 Q316 Q312 KTA1267GRTA B1GBCFJJ0039 SWITCH PCONT SWITCH Q312 C352 100P C351 100P R338 C353 R805 C350 100P 100P...
  • Page 138 SCHEMATIC DIAGRAM - 7 : -B SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT R358 R359 4.7K R355 4.7K R360 Q302 R315 8.2K Q303 R314 4.7K R313 R320 4.7K C338 R318 R351 0.01 3.3K Q302 Q303 B1ABCF000131 B1ABCF000131 INTERFACE DRIVER SWITCH Q209,Q409 KTC3875GRTA...
  • Page 139 SCHEMATIC DIAGRAM - 8 : -B SIGNAL LINE : +B SIGNAL LINE TO FAN UNIT MAIN CIRCUIT CN305 R353 8.2K C339 R352 Q866 Q867 3.3K 0.01 Q866,Q867 B1GDCFJJ0023 SWITCH DCDET R882 100K R399 Q375 R881 C375 16V330 100K Q375 B1ABCF000011 D377 SWITCH B0ACCK000005...
  • Page 140 SCHEMATIC DIAGRAM - 9 : +B SIGNAL LINE : AUX SIGNAL LINE : MAIN SIGNAL LINE : -B SIGNAL LINE : CD SIGNAL LINE : PLAYBACK SIGNAL LINE : RECORD SIGNAL LINE : FM/AM SIGNAL LINE MAIN CIRCUIT D301 B0BC7R500001 C303 C302 1000P...
  • Page 141 SCHEMATIC DIAGRAM - 10 : +B SIGNAL LINE : MAIN SIGNAL LINE TACT SWITCH CIRCUIT PANEL CIRCUIT SYS6V S910 S621 DISPLAY WOOFER R620 S909 S620 DELETE POWER KEY1 DECK1 OPEN R619 S612 6.8K VR600 S908 S619 EVEKE2F3524M JOG VOL R635 INDEX OPEN/CLOSE VREF...
  • Page 142 SCHEMATIC DIAGRAM - 11 : +B SIGNAL LINE : -B SIGNAL LINE : MAIN SIGNAL LINE PANEL CIRCUIT R645 C643 C636 IC601 C1BB00000574 I/O EXPANDER C635 220P C634 220P R646 R647 GRID4 SEG4 GRID3 SEG5 GRID2 SEG6 GRID1 SEG7 R650 FL_RESET SEG8 /RESET...
  • Page 143 SCHEMATIC DIAGRAM - 12 : +B SIGNAL LINE : -B SIGNAL LINE PANEL CIRCUIT R692 C642 35V22 R693 C640 50V3.3 D613 L601 B0BA7R200003 RLQB101KT-1Y GRID3 GRID4 -VP_A GRID5 Q661, Q662,Q621 GRID6 KTC3199GRTA GRID7 SWITCH GRID8 GRID9 GRID10 GRID11 GRID12 GRID13 GRID14 GRID15 SW5V...
  • Page 144 SCHEMATIC DIAGRAM - 13 : +B SIGNAL LINE : -B SIGNAL LINE TRANSFORMER CIRCUIT D968 B0FBAM000009 VCC+ VCC- POWER (1) C541 C531 CIRCUIT C960 50V3300 50V3300 AC GND (H950/ W950) ON T950 SCHEMATIC RL950 G427AFH00004 RSY0040M-0 AC_IN DIAGRAM-15 D956 D954 FP950 1T3T Q951...
  • Page 145 SCHEMATIC DIAGRAM - 14 : +B SIGNAL LINE : -B SIGNAL LINE C0GAM0000005 MOTOR DRIVE 0.01 50V5.6P 100K B0BA4R600003 CD DETECT CIRCUIT PLUNGER BOTTOMSW POSITION PSLED D_GND PUSH MAIN CIRCUIT P_GND (CN309) ON PUSH GP1S94 SCHEMATIC OPEN DIAGRAM-4 OPEN CLAMP DRIVEPOWER B1GACFGG0004 HALF...
  • Page 146 SCHEMATIC DIAGRAM - 15 : +B SIGNAL LINE : -B SIGNAL LINE : MAIN SIGNAL LINE POWER (1) CIRCUIT IC502 IC502 RSN35H2A-P POWER HIC C258 2200P R277 R534 C515 C518 5.6K C277 0.01 50V1 R269 R270 C458 100K 2200P R477 R535 100K C477...
  • Page 147 SCHEMATIC DIAGRAM -16 : +B SIGNAL LINE : PLAYBACK SIGNAL LINE : RECORD SIGNAL LINE DECK CIRCUIT R1038 R1039 R1055 C1038 4.7K 2.2K 220P C1057 C1044 R1015 C1034 1000P 10V33 50V3.3 C1032 IC1001 0.018 PLAYBACK AN7348S-E1 HEAD P.B EQ/REC AMP/ R1090 C1030 R1040...
  • Page 148 SCHEMATIC DIAGRAM - 17 : PLAYBACK SIGNAL LINE : +B SIGNAL LINE : RECORD SIGNAL LINE MAIN CIRCUIT (CN304) ON SCHEMATIC DIAGRAM-4 DECK CIRCUIT CN1001 Q1017 KTD1146YTA 50V3.3 C1054 MOTOR SWITCH C1064 50V3.3 R1095 R1091 2.2K 100K R1098 R1060 R1057 R1094 C1051 R1049...
  • Page 149 OPTICAL FM ANT AM ANT H950/W950 JK101 JK301 Z120 JK300 CD LOADING P.C.B CN501 SOLDER SIDE Z101 MAIN/TUNER CN300 TUNER PACK P.C.B SOLDER SIDE P.C.B SOLDER SIDE Z102 CN306 CD DETECT P.C.B CN305 SOLDER SIDE POWER (1) P.C.B SOLDER SIDE CN309 13 14 CN310...
  • Page 150 IC701 OPTICAL PICKUP AN22004A-NF SERVO AMP SEMICONDUCTOR LASER OFTR OFTR BDO/OFTR OFTCONT Q701 RFEQ LASER POWER DRIVE 3TENV (ENV) 3TOUT /RFDET /RFDET NRFDET RFAMP BandGap FEOUT PHOTO DETECTOR TEOUT IC703 AN8739SBTE2 FOCUS COIL/TRACKING COIL/ TRAVERSE MOTOR/ SPRINDLE MOTOR DRIVE /RST RESET SIGNAL GENERATOR...
  • Page 151 TO MAIN BLOCK IC702 MN6627934CH SERVO PROCESSOR DIGITAL SIGNAL PROCESSOR/ DIGITAL FILTER/ D/A CONVERTER BLKCK 8~12, A0~10 9~19 15~19,21 A0~10 /RAS CTRL SUBCODE INTERFACE 2,3, D0~3 24,25 2,3,6,7 D0~3 /CAS DRAM INTERFACE IC704 C3ABMB000027 16M DRAM RFSW IREF DSLF PLLF PLLF0 EXT1 EXT1...
  • Page 152 AM ANT FM ANT Z101 Z120 CF201 CF202 Q101,Q102 COIL COIL MIXER IF AMP RF AMP BUFFER (FM) Q110 SWITCH DECODER RM AMP BUFFER PILOT PHASE CANCEL STEREO LEVEL S-CURVE SWITCH AM/FM COMP BUFFER TUNING DRIVE PILOT IC101 Z102 X102 LA1833NMNTLM FM/AM IF AMP, DET/AM OSC,...
  • Page 153 FL DISPLAY FROM POWER TRANSFORMER FL600 P28, P29, P31~P36 8~20 35~60 61,62,64~69 Q636 Q661 Q662 Q621 FL SUPPLY SWITCH SWITCH SWITCH +5V SWITCH 1,2,54~64 25~50 15~20,22,23 S27,S28,S30-S35 IC602 C0HBB0000039 FL DRIVER C0GAM0000005 MOTOR DRIVE OUT1 IC303 DET_OUT OUT2 C1BB00000715 RDS CIRCUIT X302 POWER SUPPLY...
  • Page 154 IC1001 AN7348S-E1 P.B EQ/REC AMP/ ALC/TPS AMP (DECK 1) P.B. HEAD LCH 24(23) Q1014(Q1015) 1(2) 20(5) BUFFER 22(3) 21(4) (DECK 2) R/P HEAD LCH 17(8) 18(7) LOGIC L/H Q1012 Q1020 (Q1013) (Q1021) NOR/CrO & MUTING MUTING HI/LO LOGIC SWITCH RIPPLE LOGIC REJECTION REC/PB...
  • Page 155 IC301 4(39) IN B1(2) C0AABB000117 HEADPHONE AMP Q405(Q205) HPF FREQ 3(5) 1(7) 19(24) OUT1(2) FILTER SWITCH Q401 (Q201) 5(38) IN C1(2) SWITCH Q404(Q204) LPF FREQ Q402 FILTER 9(34) Q407 A_VOLIN1(2) (Q202) SWITCH (Q207) MUTING MUTING IC300 SWITCH 8(35) SWITCH REC1(2) C1BB00000747 AUDIO SOUND PROCESSOR...
  • Page 156 Q863 SUBWOOFER IC840 MUTING CONTROL C0ABBB000067 DUAL OP-AMP DC_DET Q866 Q843 SW_LV2 SUBWOOFER SWITCH LEVEL CONTROL HP_SW Q867 Q845 SW_LV1 SUBWOOFER SWITCH LEVEL CONTROL SYNC...
  • Page 157 16(15) 3(6) -IN2 1(2) OUT 2 1(2) JK951 HIGH CH IC501 (6 W) RSN315H42B-P POWER HIC 13(12) 7(9) -IN1 1(2) OUT 1 1(2) JK952 LOW CH 4(2) (6 W) +VCC 1(2) FILTER 5(1) -VCC 1(2) 4(1) IN GND 10(14) OUT GND AC DET AC DET -VCCM...
  • Page 159 AN7348S-E1 (24P) C1BB00000574 C0GAM0000005 BR93LC46F22 C1AA00000612 MN6627934CH (80P) AN22004A-NF (32P) C0ABBB000067 C0AABB000117 C0HBB0000039 (64P) C1BB00000747 (42P) C1BB00000715 (16P) C3ABMB000027 (26P) LA1833NMNTLM (24P) LC72131MDTRM (20P) RSN35H2A-P AN8739SBTE2 RSN315H42B-P CNB13030R2AU KTC2026 KRC102MTA KTA1046 KRC103MTA 2SB621ARSTA B1AAGC000007 B1GCCFGA005 KTA1267GRTA B1ABCF000011 C1GCCFJJ0015 KTC3199GRTA KTC3875GRTA KTA12710YTA B1GACFGG0004 KTD1304TA...
  • Page 160 CD LOADING P.C.B (REP2578A-N) OPEN PUSH PUSH CD DETECT P.C.B SPINDLE POSITION P.C.B (REP2578A-N) (REP2578A-N) LOAD TUNER PACK P.C.B (REP1999B)
  • Page 161 DECK P.C.B. DECK MECHANISM P.C.B. (REPX0331A) (REPX0321A) Q1001 IC1004 C1006 R1006 C1009 R1005 C1003 J1000 CS1002 TP10 Q1003 J1002 L1002 TP11 R1004 R1001 Q1007 J1003 C1002 TP12 C1026 C1011 S951 C1020 C1021 C1016 MODE R1010 R1009 C1022 R1028 C1010 C1014 S952 C1013 HALF...
  • Page 162 OPTICAL JK300 MAIN / TUNER P.C.B W480 R850 L305 C443 C410 Q867 Q866 (REPX0422Q) Q843 Q845 R877 C442 R401 R859 R456 R851 R256 JK301 Q207 Q407 R448 R858 R455 Q863 R433 C884 C877 C421 R880 R423 R429 R866 R861 R863 Q401 C866 C440...
  • Page 163 OPTICAL FM ANT AM ANT JK101 R371 R372 C370 L305 C443 Q371 Q370 R398 W131 W130 R381 R401 R456 C107 R112 R256 JK301 C371 Q207 Q372 W240 Z120 (ENV17290G1Y) AK520 R379 W100 R377 W210 R423 R429 Q375 Q401 D371 D374 D377 D401 C372...
  • Page 164 PANEL P.C.B (REPX0425C) S601 OPEN/ CLOSE R601 S602 R602 SENSOR FL600 S606 S603 W648 W647 W650 W642 W649 W641 W640 C642 S604 S605 W606 W605 R609 R610 W602 Z600 Q662 Q661 Q636 Q621 D613 C639 R693 C640 S610 C637 W604 R692 L601 R691...
  • Page 165 D600 S612 POWER C641 FL600 W648 W647 W639 W612 W642 W638 W637 W641 W640 W636 C925 IC602 R702 Q662 Q661 Q636 Q621 CP601 L600 C682 C674 W604 R634 R635 Q619 C675 Q618 C920 R918 Q617 Q615 Q616 R915 C924 R919 C921 C923 W616...
  • Page 166 POWER (1) P.C.B(REPX0427B) H950/W950 IC501 IC502 W566 W512 W601 W567 W545 W554 W552 W570 W568 W555 W547 D502 W569 W582 W540 W511 C515 W571 W530 W515 W575 C458 W572 C440 C501 R250 W536 C241 W588 W573 C243 C240 C242 R534 Q514 R249 W537...

This manual is also suitable for:

Sa-ak520ebSa-ak520eg

Table of Contents
