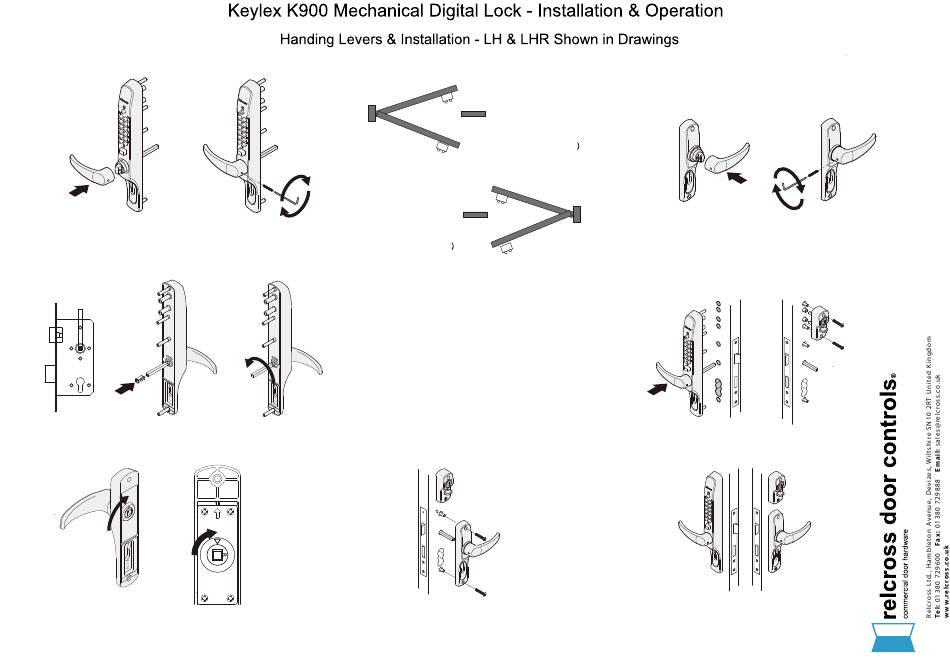

Relcross Door Controls Keylex K900 Installation & Operation Manual

step 1 - Attach external lever using hex head screw
■8 ㎜
L
R
L
L
step 6 - Align the inside lever follower to suit the handing
(L = LH or LHR shown)
RH (Right Hand)
RHR
(Right Hand Reverse
◄ step 3 - Prepare the spindle - 7mm default or 8mm
using the nylon sleeve converter
L
R
◄ step 4 - Rotate the spindle as shown before feeding it
through the lock follower (LH or LHR)
► step 5 - Bolt the outside lock body through the door at the
code change block and fix loosely pending alignment
step 7 - Bolt the inside lever through the door and fix loosely
pending the cylinder or cylinder/turn installation
LH
(Left Hand)
LHR
(Left Hand Reverse
step 8 - Fix bolts securely and check all aspects of
step 2 - Attach internal lever using hex head screw
the lock operation before closing the door
