Relcross Door Controls KEYLEX 700AR Installation

KEYLEX 700AR
LEFT
1. TO RELEASE THE LEVER FROM THE UPRIGHT POSITION, GRIP THE LOCK BODY
FIRMLY IN ONE HAND AND THE LEVER FIRMLY IN THE OTHER. MOVE THE LEVER
THROUGH 90 DEGREES TO EITHER THREE O'CLOCK OR NINE O'CLOCK (AS
REQUIRED). YOU WILL FEEL INITIALLY A STRONG DEGREE OF RESISTANCE DURING
THIS PROCEDURE. THIS IS ONLY THE CLUTCH MECHANISM 'KICKING-IN' . DO NOT
2. LIFT THE LEVER THROUGH 45 DEGREES UNTIL THE LEVER SHAFT HOLE LINES WORRY; YOU WILL NOT DAMAGE THE LOCK.
UP WITH THE HOLE IN THE LEVER.
3. SET THE LEVER BY TIGHTENING THE GRUB SCREW WITH THE ALLEN KEY (BOTH
SUPPLIED IN THE HARDWARE PACK). ALLOW THE LEVER TO RETURN TO THE
HORIZONTAL POSITION.
OUTSIDE
* CAM DISC ASSEMBLY (BY OTHERS)
TO EACH SIDE AT THIS POINT.
MACHINE SCREWS
Clearing Codes
It is essential that any 'spurious' code be cleared before operation of the
lock from the outside. The 'C' clear button should be pressed as a
precursor to the entry of your code.
Entering Codes
Codes should be ideally selected to contain between 3 and 6 digits and
can include a mixture of letters and numerals. Buttons may be pressed in
any order and must be pushed to engage the code. Once the
correct code is entered the lock may be used. If mistakes are made you
may clear the code using the procedure described above.
Changing Codes
Code changing is fast and straightforward requiring only a slotted
screwdriver once the lock body is removed from the door. Each button is
marked with a single line at right angles to the screwdriver slot with
corresponding marks adjacent on the back plate. Rotate the button to
align the two marks thus setting that button as part of the code.

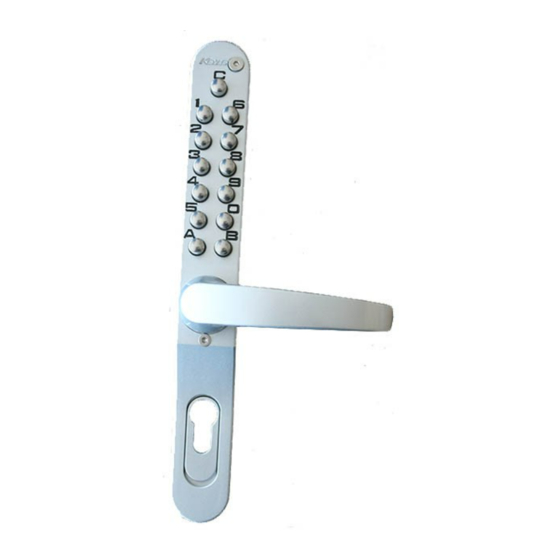

MECHANICAL DIGITAL LOCK
RIGHT
ROTATE THE QUADRANT SPINDLE CLOCKWISE OR ANTI-CLOCKWISE
TO SET THE REQUIRED HAND
INSIDE
1. PREPARE THE DOOR IN ACCORDANCE
WITH THE TEMPLATE. ENSURE THAT
YOU MAKE THE CORRECT CHOICE OF
BACKSET LENGTH. CHECK THIS
CAREFULLY AGAINST THE CHOSEN
LOCK CASE.
2. INSTALL THE LOCK CASE AND
STRIKE PRIOR TO INSTALLING THE
MAIN LOCK BODY.
3. MOUNT THE OUTSIDE LOCK BODY AS
SHOWN AT EACH OF THE AVAILABLE
POINTS.
4. REFER TO THE SECTION BELOW FOR
CODE SETUP. ENSURE THAT THE CODE
IS TESTED AND THAT THE LOCK
WORKS SATISFACTORILY BEFORE
ALLOWING THE DOOR TO CLOSE.
5. CAM DISC ASSEMBLIES* (BY OTHERS)
ARE REQUIRED TO EACH SIDE OF THE
INSIDE LEVER
DOOR TO ACCEPT EACH SPINDLE.
(BY OTHERS)
PLEASE USE THE CAM DISC
ASSEMBLY AS A TEMPLATE WHEN
PREPARING FOR INSTALLATION.
LOCK OPERATION & FUNCTION DESCRIPTION
ESCUTCHEONS
THIS VERSION OF THE
KEYLEX 700 (K700AR TO SUIT
ADAMS RITE LOCK CASES) IS
PROVIDED WITH TWO BLANK
ESCUTCHEONS SINCE THE KEY
OVERRIDE OPTION IS NOT
AVAILABLE.
2mm
HANDING THE LEVER
HANDING
LEFT HAND DOOR RIGHT HAND DOOR
(RH/RHR LOCK) (LH/LHR LOCK)
PROTECTING THE DIGITAL LOCK MECHANISM
NULLIFIES FORCED ATTACK OR VANDALISM FROM THE OUTSIDE
RESETTING THE SLIPPED CLUTCH ON THE KEYLEX 700AR IS STRAIGHTFORWARD
STANDARD
LEVER POSITION
1. PRESS BUTTON "C" TO CLEAR ANY
SPINDLE
2. PUSH APPROPRIATE BUTTONS
3. ROTATE THE LEVER DOWNWARD TO
SLIPPING CLUTCH MECHANISM
PROTECTS THE INTERNAL GEAR MECHANISM
FOLLOW THE PROCEDURE OUTLINED BELOW
SLIPPED AND RESET POSITION
A SLIPPED CLUTCH LEVER LIFT THE LEVER THROUGH 90° TO
POINTS DIRECTLY DOWN RESET THE HORIZONTAL POSITION
AT 90° FROM THE YOU WILL FEEL A 'CLICK' AS YOU LIFT.
STANDARD POSITION ALLOW THE LEVER TO REST IN THE
HORIZONTAL POSITION
INSTALLATION
HOW TO OPERATE THE LOCK USING
THE PRE-SELECTED CODE.
SPURIOUS CODE.
IN THE PRE-SELECTED CODE.
OPEN THE DOOR.
