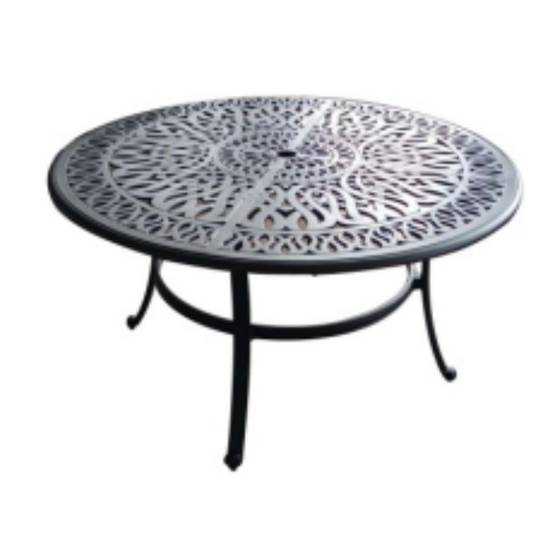

Hartman Amalfi 60903062 Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools however you will require an allen key to assemble product.
4. Please allow 30 minutes for assembly.
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the chair over and into position when
fully assembled.

ASSEMBLY STEPS:

1. LOOSELY attach the centre ring (B) to the legs (C). Secure these using bolts (J) small flat washers (K), and small lock washers (L).DO
NOT TIGHTEN BOLTS AT THIS STAGE
2. Turn the table top (A) upside down on a soft clean surface.
3. Using flat head screw driver screw the bolts (E) into the table top.
4. LOOSELY attach the legs (C) to the table top at the points where the bolts (E) have been placed. Then slide big flat washers (F), big
lock washers (G), and nuts (H) on to the bolt. DO NOT TIGHTEN NUTS AT THIS STAGE
5. Tighten all the bolts (E/J) using the allen key (N) one by one being careful not to over tighten any, as this will cause the thread to become
damaged.
6. Place PVC covers (M) on all visible bolt heads (J) and nut caps (I) on all visible nuts (H)
7. Turn the table onto its legs， screw in adjustable feet(O) and place in desired position
For more information regarding maintenance of your furniture and to register your
warranty, please visit www.hartmanuk.com
Component's

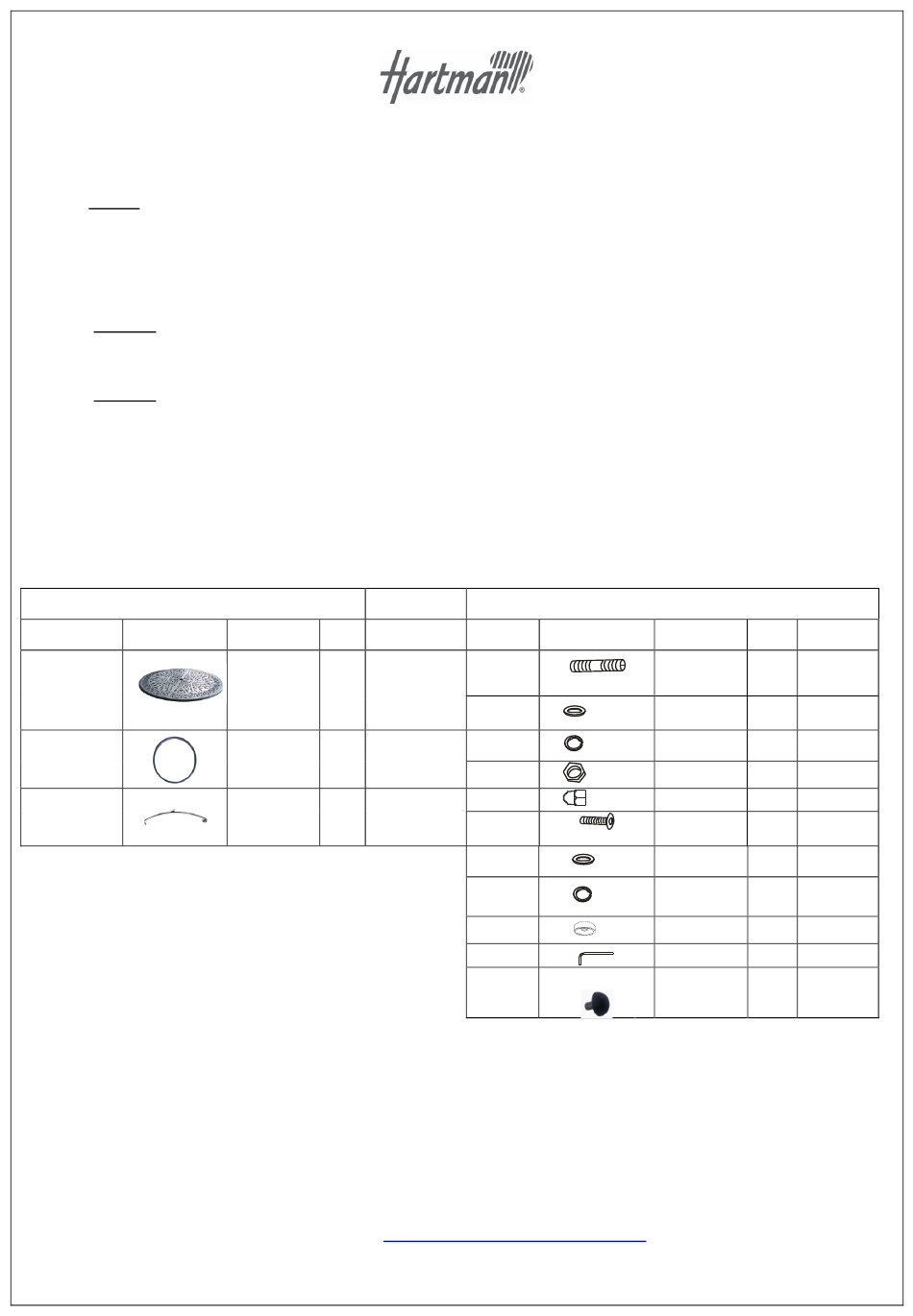

Parts List

Parts Picture
A
B
C
For Replacement Or Lost Spare Parts Please Go To
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Description Q'ty Part No.
60903062A
60903053A
Table Top 1
60903088A
60903062B
60903053B
Centre Ring 1
60903088B
60903062C
60903053C
Table Leg 4
60903088C
http://faq.hartmanuk.co.uk/spares/
Parts list Parts Picture
E (M8*35)
（ M8 ）
F
（ M8 ）
G
H
（ M8 ）
I
（ M8 ）
J
(M6*35)
(M6)
K
(M6)
L
M
(M6)
N
O
Fixings
Description Q'ty Part no.
2002196
Bolt 4
4
Big Flat
Washer 1001162
Big Lock 4
Washer 1002162
4
Nut 1003162
4
Nut Cap 1004162
Bolt 4 2002166
Small Flat
4 1007162
Washer
Small lock
washer 4 1008162
PVC Cover 4 1009162
Allen Key 1 1010162
Screw in
4 1005162
feet
