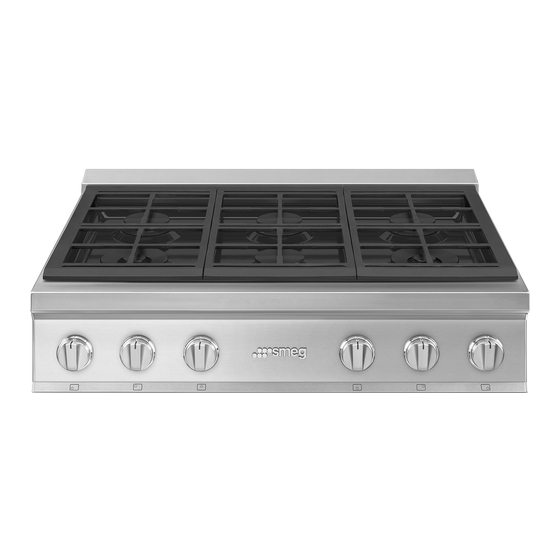

Smeg RTU366GX Manual
Hide thumbs Also See for RTU366GX:

Advertisement

Quick Links

WARNING: If the instructions in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a qualified
installer, service agency or gas supplier.
NOTE: This appliance must be installed solely and exclusively by a qualified
technician. Any technical procedures must be carried out by an authorized
technician.

Table of Contents

11
11
13
14
15
18
19
22
23
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTU366GX and is the answer not in the manual?

Questions and answers

Summary of Contents for Smeg RTU366GX

  • Page 1: Table Of Contents

    Table of Contents 1 Installation 1.1 Cabinet clearances 1.2 Overall dimensions 1.3 Electrical requirements 1.4 Gas supply requirements 1.5 Burner and nozzle characteristics table 1.6 Conversion to Propane Gas (LPG) 1.7 Minimum adjustment 1.8 For the installer WARNING: If the instructions in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.
  • Page 2 Important Safety Instructions READ AND SAVE THESE INSTRUCTIONS - Your safety and the safety of others are very important. We have provided many important safety messages throughout this manual and on the appliance. Read all the instructions before using the appliance and always obey all safety messages.
  • Page 3 Important Safety Instructions IMPORTANT: Installation, gas connections and grounding must conform to applicable codes. Observe all codes and ordinances in force. NOTE: This appliance is manufactured for use with natural gas. To convert the appliance to LP/Propane gas, see the instructions in the “Conversion to Propane Gas (LPG)”...
  • Page 4 Important Safety Instructions • Do not store or use gasoline or other • Do not store items of interest to children flammable vapors and liquids near this in the cabinets above the appliance or any other appliance. Explosions or Children could be seriously burned if fires could result.
  • Page 5 Important Safety Instructions • ELECTRICAL GROUNDING • For appliances equipped with a cord REQUIRED: The appliance must be and plug, do not cut or remove the electrically grounded in accordance ground prong. It must be plugged into a with local codes or, in the absence of matching grounding type receptacle to local codes, with the National Electrical avoid electrical shock.
  • Page 6 Important Safety Instructions • Leak testing must be conducted by the installation. installer according to the instructions in • Remove all tape and packaging before this manual. using the appliance. Destroy the • The appliance and its individual shutoff packaging after unpacking the valve must be disconnected from the gas appliance.
  • Page 7 Important Safety Instructions • We strongly recommend the installation adjusting the bypass screw in the valve. of a ventilation hood above this If flame performance is satisfactory, appliance. The hood must be installed adjustment will not be required. according to instructions furnished with •...
  • Page 8 Important Safety Instructions How to read the user manual This user manual uses the following reading conventions: Installation Information for the qualified technician: installation, operation and inspection. Safety instructions Information Advice 1. Use instruction sequence. • Single use instruction. SAVE THESE INSTRUCTIONS...
  • Page 9: Installation

    Installation 1 Installation 4. Min. 36” (914 mm) clearance between the top of the cooking surface and the 1.1 Cabinet clearances bottom of an unprotected wood or metal cabinet. Min. 30” (762 mm) when bottom of wood or metal cabinet is protected by not less than ¼”...
  • Page 10 Installation Mounting the safety bracket 4. Position the safety bracket centered in the intersection point of the two lines just The safety bracket is a device designed to drawn and then fix it with the two prevent the appliance from being supplied screws.
  • Page 11: Overall Dimensions

    Installation 1.2 Overall dimensions 36” models: 1: Gas connection 2: Electrical connection 30” models Check the location where the appliance is to be installed. The appliance should be positioned for convenient access in the kitchen. NOTE: Observe all governing codes and ordinances. Any openings in the wall or floor where the appliance is to be 36”...
  • Page 12: Electrical Requirements

    Installation An air curtain or other overhead hood, Make sure that the power line rating which operates by blowing a downward matches the specifications indicated on the airflow onto a rangetop, shall not be used ID plate. The ID Plates are visibly located in conjunction with the gas rangetop unless on the back of the appliances.
  • Page 13: Gas Supply Requirements

    Installation Recommended Grounding Method 1.4 Gas supply requirements For your personal safety, this appliance WARNING must be grounded. This appliance is Explosion hazard equipped with a 3-prong grounding plug. To minimize possible shock hazard, the • Use a new AGA or CSA-approved gas cord must be plugged into a mating 3- supply line.
  • Page 14 Installation Do not bend or damage the flexible Position the gasket (supplied with unit) in connector when moving the appliance. The between the inlet and the regulator. Position pressure regulator has 3/8" female pipe the regulator to have its cap easily threads.
  • Page 15 Installation Some yellow streaking is normal during the Test for Gas Leaks initial startup. Allow the appliance to FIRE HAZARD operate for 4–5 minutes and reevaluate before making adjustments. Use a soapy solution WARNING to check that it is Shut-off valve leak-tight.
  • Page 16: Burner And Nozzle Characteristics Table

    RTU304GX (30”) 54000 Do not cover any other labels with the RTU366GX (36”) 84000 Gas Conversion label. • Over time the gas taps may become NOTE: Save the nozzles that were difficult to turn and get blocked.
  • Page 17: Conversion To Propane Gas (Lpg)

    Installation Incoming line pressure 1.6 Conversion to Propane Gas (LPG) Incoming line pressure upstream from the regulator must be 1” (2.5 cm) W.C.P. higher WARNING than the manifold pressure in order to check the regulator. Incoming line pressure to the This conversion kit shall be regulator should be as follows for operation installed by a qualified...
  • Page 18 Installation To convert the regulator to the type of gas Replacing the burner nozzles used, the following must be done: 1. Remove all the grates and all the burner 1. Unscrew the cover of the pressure caps (1) and heads (2); regulator.
  • Page 19 Installation Dual Flame burner Conversion kit list of components 1. Remove the tightening screws (5), the The conversion kit consists of the following cover plate (6) and the gasket (7). components, based on the model: Both 30” and 36” models: •...
  • Page 20: Minimum Adjustment

    Installation For 36” models only • Dual Flame burner: • One label for LGP injectors. • Rapid burner: • Two injectors Ø 1.17 mm for the Dual Flame burners (outer ring). • Two injectors Ø 0.48 mm for the Dual Flame burners (inner ring).
  • Page 21: For The Installer

    Installation Lubricating the surface burner gas valves Over time, the surface burner gas valves may become stiff or jam. Clean them internally and relubricate. This operation must be carried out by a qualified technician. 1.8 For the installer • The plug must remain accessible after the installation is complete.
  • Page 22 PAGE INTENTIONALLY LEFT BLANK...
