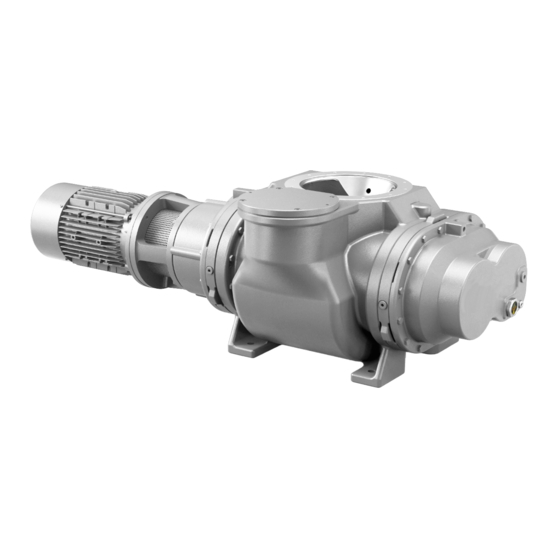

BUSCH Panda WV 4500 B Instruction Manual
Vacuum booster
Hide thumbs
Also See for Panda WV 4500 B:
- Instruction manual (24 pages) ,
- Instruction manual (24 pages) ,
- Instruction manual (36 pages)
Table of Contents
Related Manuals for BUSCH Panda WV 4500 B
Summary of Contents for BUSCH Panda WV 4500 B

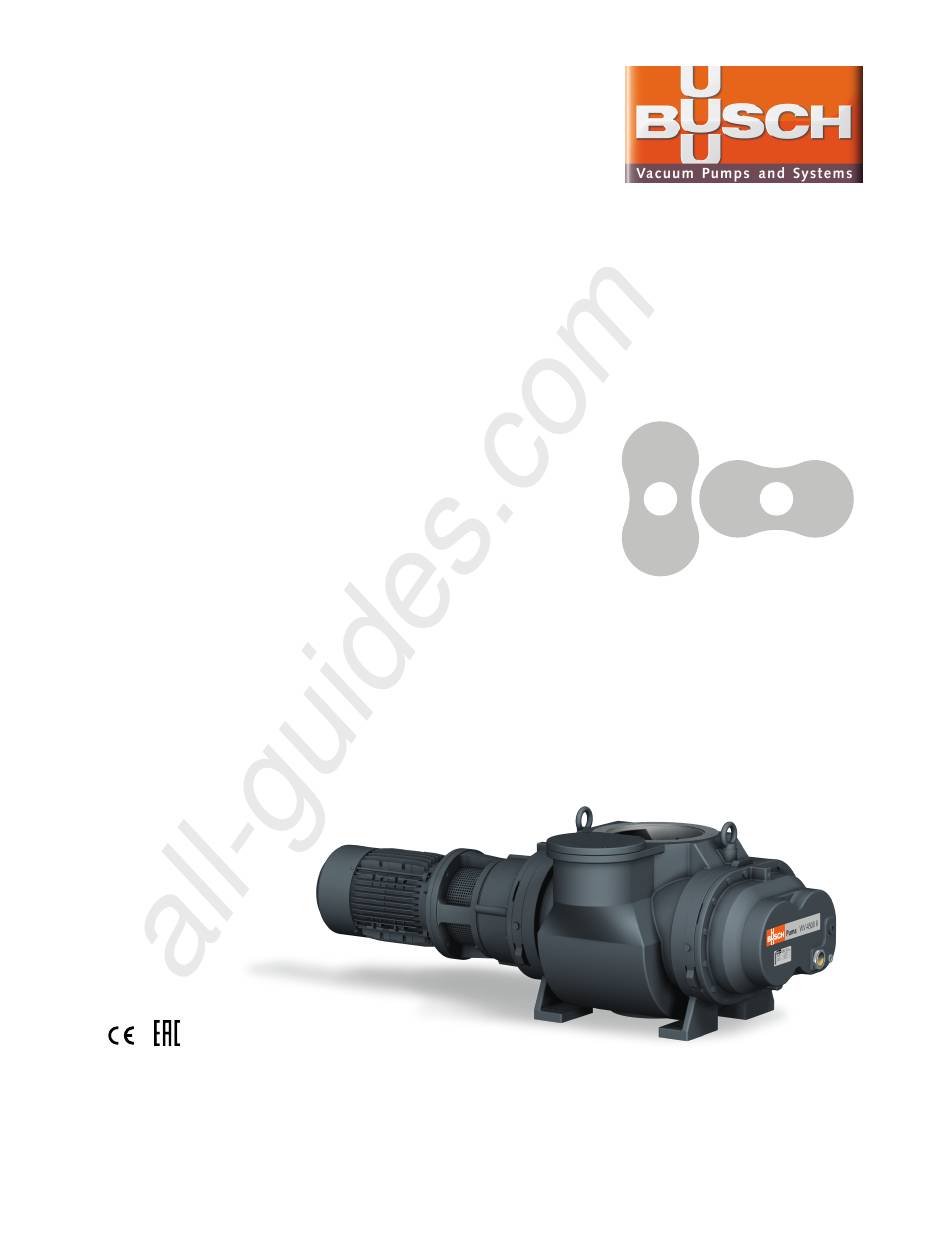

- Page 1 All manuals and user guides at all-guides.com Instruction Manual Panda Vacuum Booster WV 4500 B Ateliers Busch S.A. Zone industrielle, 2906 Chevenez Switzerland 0870559397/A0001_en / Original instructions / Modifications reserved 17/10/2017...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Table of Contents 1 Safety........................... 3 2 Product Description ..................... 4 2.1 Operating Principle....................5 2.2 Application ......................5 3 Transport ........................5 4 Storage......................... 6 5 Installation........................7 5.1 Installation Conditions ..................7 5.2 Connecting Lines / Pipes .................. -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
All manuals and user guides at all-guides.com 2 | Product Description Product Description Suction connection Motor terminal box Discharge connection Oil fill plug Magnetic plug Oil sight glass Nameplate Oil drain plug Bypass valve Barrier gas connection Eyebolt NOTE Technical term. In this instruction manual, we consider that the term ‘machine’... -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The vacuum booster is used in combination with a backing pump in vacuum system. -
Page 6: Storage
All manuals and user guides at all-guides.com 4 | Storage WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! • Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as previously shown. -
Page 7: Installation
• Make sure that the environment of the machine is not potentially explosive. • Make sure that the ambient conditions comply with the Technical Data [► 21]. • Make sure to use a suitable backing pump, if necessary seek advice from your Busch representative •... -
Page 8: Discharge Connection
5.3 Filling Oil NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. 8 / 24 0870559397_WV4500B_A0001_IM_en... - Page 9 All manuals and user guides at all-guides.com Installation | 5 For oil type and oil capacity see Technical Data [► 21] and Oil [► 21]. Oil filling at the motor side Check oil level Oil filling at the gear side Check oil level When the oil filling is achieved: •...
-
Page 10: Electrical Connection
• Provide overload protection according to EN 60204-1 for the motor. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor. -
Page 11: Commissioning
All manuals and user guides at all-guides.com Commissioning | 6 Double star connection, multi-voltage Star connection, multi-voltage motor motor with 12 pins (low voltage): with 12 pins (high voltage): Delta connection, multi-voltage motor with 12 pins (middle voltage): NOTICE Incorrect direction of rotation. Risk of damage to the machine! •... -
Page 12: Process Chamber Flushing
6.1 Process Chamber Flushing Depending on the process type (very demanding application), flushing through the pro- cess chamber (cylinder + lobes) might need to be performed. Seek advice from your Busch representative. NOTICE Flushing without barrier gas. Risk of damage to the machine! •... -
Page 13: Maintenance
All manuals and user guides at all-guides.com Maintenance | 7 Process flow inlet (IN) Barrier gas connection (BGC) Barrier gas connection (BGC) Process flow outlet (OUT) Connection size: – 4 x G3/8 (BGC) Barrier gas requirements: Gas type Dry nitrogen, air or other suitable gas Gas temperature °C 0 ... -
Page 14: Maintenance Schedule
If the oil becomes dark or looks different from the initial colour: • Change the oil immediately, see Oil Change [► 15]. You can consult your Busch representative in order to find out why this colour change has occurred. 14 / 24... -
Page 15: Oil Change
NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. Oil draining at the motor side Cleaning cloth Drain pan 0870559397_WV4500B_A0001_IM_en 15 / 24... - Page 16 All manuals and user guides at all-guides.com 7 | Maintenance Oil draining at the gear side Cleaning cloth Drain pan For oil type and oil capacity see Technical Data [► 21] and Oil [► 21]. Oil filling at the motor side Check oil level 16 / 24 0870559397_WV4500B_A0001_IM_en...
-
Page 17: Overhaul
Improper assembly. Risk of premature failure! Loss of efficiency! • It is highly recommended that any dismantling of the machine that goes beyond any- thing that is described in this manual should be done through Busch. 0870559397_WV4500B_A0001_IM_en 17 / 24... -
Page 18: Decommissioning
• The exclusive use of Busch genuine spare parts and consumables is recommended for the proper function of the machine and for granting of warranty. There is no standard spare parts kits available for this product, if you require Busch gen- uine parts: •... -
Page 19: Troubleshooting
Busch). Solid foreign matter has • Remove the solid foreign entered the machine. matter or repair the ma- chine (contact Busch). • Equip the machine with a mesh screen at the suc- tion connection. The motor is defective. • Replace the motor. - Page 20 Technical Data [► 21]. Oil level too low. • Top up oil. The backing pump is not • Contact Busch. correctly defined. The oil is black. Oil change intervals are too • Drain the oil and fill in long.
-
Page 21: Technical Data
All manuals and user guides at all-guides.com Technical Data | 12 12 Technical Data WV 4500 B 50 Hz 60 Hz Nominal pumping speed m³/h 4500 5400 Nominal motor rating Nominal motor speed 3000 3600 Ambient temperature range °C 5 … 40 Max. -
Page 22: Eu Declaration Of Conformity
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark. - Page 23 All manuals and user guides at all-guides.com Note...
