SIRCHIE LTF100 Technical Information

Laser trajectory finder kit

Advertisement

Quick Links

TI04-394ENG-REV7
Copyright© 2011 by SIRCHIE
SIRCHIE
All Rights Reserved.
®
Products • Vehicles • Training
TECHNICAL INFORMATION
Laser Trajectory Finder Kit
Catalog No. LTF100
INTRODUCTION
Laser projection is the newest and most accurate method
used to determine projectile trajectories at crime scenes.
The laser is attached to a penetration rod, which is then
inserted into a bullet hole so that the laser beam can help
to determine the direction and angle from the source. It
may also be used to locate bullet exit points and other pos-
sible impact locations. The laser may be used with penetra-
tion rods and centering cones inserted into bullet holes, or
it may be used with the tripod mount to project its beam
through bullet holes.

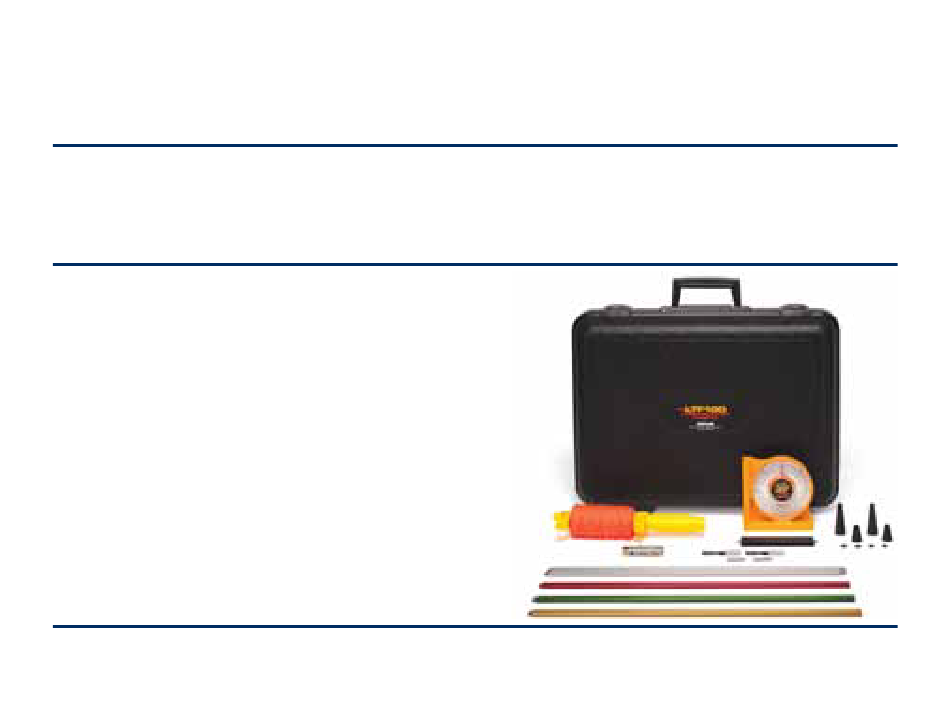

The No. LTF100 Laser Trajectory Finder Kit includes a
high quality Laser Pointer, Centering Cones, Laser Con-
nectors, Universal Tripod Mount, Bullet Tips, Ballistic
100 HUNTER PLACE, YOUNGSVILLE, NC 27596 USA
Ph: (919) 554-2244, (800) 356-7311 • Fax: (919) 554-2266, (800) 899-8181 • Web: www.sirchie.com • Email: sirchieinfo@sirchie.com
1 of 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the LTF100 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIRCHIE LTF100

  • Page 1 Laser Pointer, Centering Cones, Laser Con- nectors, Universal Tripod Mount, Bullet Tips, Ballistic 100 HUNTER PLACE, YOUNGSVILLE, NC 27596 USA Ph: (919) 554-2244, (800) 356-7311 • Fax: (919) 554-2266, (800) 899-8181 • Web: www.sirchie.com • Email: sirchieinfo@sirchie.com 1 of 8...
  • Page 2 TI04-394ENG-REV7 Angle Finder, Stringing Tips for attaching Colored Trajectory String, Multi-Colored Photographic Rods, and Bullet Penetration Rods all contained in a handy carrying case. EXPLANATION OF PRINCIPAL COMPONENTS Ballistic Laser Pointer—This is a Class IIIa laser diode with an output of <5mW and operating at a fre- quency of 630-680nm.
  • Page 3: Operation

    TI04-394ENG-REV7 CAUTIONS/WARNINGS • WARNING! Laser light may cause permanent eye damage. Do not look directly into the laser beam or direct it toward others present at the scene. • Do not look directly into the laser beam reflection if it is directed toward a mirror or other highly reflec- tive surface.
  • Page 4 TI04-394ENG-REV7 Ballistic Laser Pointer: ON/OFF The Ballistic Laser Pointer (Fig. 4) is equipped with a momentary ON/ OFF switch. To activate the beam, press the push button on the body of the laser. For constant light, depress the button and slide the locking collar over the switch.
  • Page 5 TI04-394ENG-REV7 Photography Two methods are available to photograph the actual laser beam: Method 1: The camera should be set on a tripod and a slow shutter speed should be used (i.e., 1/15 to 1/30 sec.). Us- ing available light or indirect flash, introduce No. LTF100S Photo Laser Smoke into the scene.
  • Page 6 (Fig. 9). Optional Forensic Rod Kit: The FRK16 Optional Forensic Rod Kit is available for use with the LTF100 when a large number of FIGURE 9—(Tripod not bullet holes are present at the crime included) FIGURE 10—FRK16 Components scene.
  • Page 7: Maintenance

    TI04-394ENG-REV7 MAINTENANCE Battery Replacement: The Ballistic Laser Pointer requires three (3) Type L1154 batteries (included). 1. Unscrew the cap of the battery compartment located on the rear of the laser. Remove the old batteries. 2. Install three new L1154 batteries with the + terminal facing out of the battery compartment as shown in Fig.
  • Page 8 TI04-394ENG-REV7 LTF100 KIT CONTENTS: OPTIONAL FRK16 KIT CONTENTS: 1- LTF101 Ballistic Angle Finder 16- FRK001 Multi-Colored Acrylic Rods 1- LTF102 Ballistic Laser Pointer Class IIIa 16- FRK002 Centering Cones w/batteries (type L1154) 1- FRK16C Forensic Rod Container 1- LTF103 Bullet Penetration Rods, set of 4...
