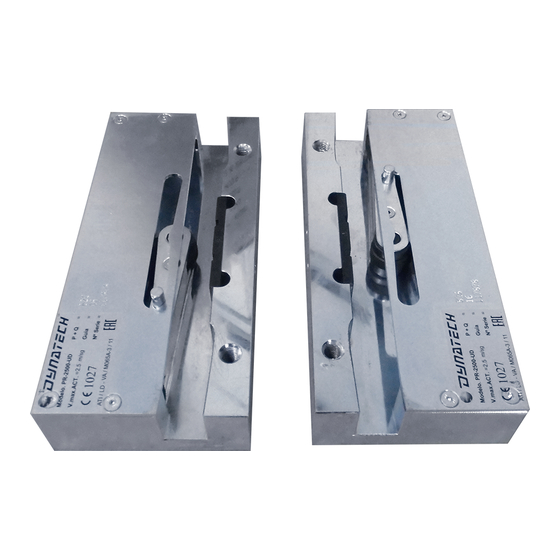

- Page 1 PARACAÍDAS PROGRESIVO DYNATECH/ DYNATECH PROGRESSIVE SAFETY GEAR/ PARACHUTE À PRISE AMORTIE DYNATECH/ BREMSFANGVORRICHTUNG DYNATECH/ PQ-4000-UD INSTRUCCIONES DE USO Y MANUTENCIÓN/ INSTRUCTIONS FOR USE AND MAINTENANCE/ INSTRUCTIONS D’USAGE ET ENTRETIEN/ GEBRAUCHS- UND WARTUNGSANLEITUNG/...
- Page 2 INSTRUCTIONS: PQ-4000-UD Cod: DYN 11.01.08 Date: 20/10/2020 Revision: 08 REVISION DATE 20/10/2020 PRODUCED BY / APPROVED BY J.A. Torrubia/O.Lacámara EFFECTIVE DATE OF SECTION DESCRIPTION CHANGE Explanatory note is added Not applicable Annex section is added Not applicable EFFECTIVE DATE OF...
- Page 9 INSTRUCTIONS: PQ-4000-UD Cod: DYN 11.01.08 Date: 20/10/2020 Revision: 08 INSTRUCTIONS FOR USE AND MAINTENANCE _____________________________________________________ GENERAL INSTRUCTIONS .......................... 3 SAFETY GEAR IDENTIFICATION AND CHARACTERISATION .................. 3 IDENTIFICATION .............................. 3 SAFETY GEAR’S FEATURES USE ........................ 3 ...
-
Page 10: General Instructions
To handle any of the safety gear’s components. DYNATECH DYNAMICS & TECHNOLOGY, S.L. cannot be held responsible for the damage caused due to the non-observance of any of these general instructions. 2 SAFETY GEAR IDENTIFICATION AND CHARACTERISATION 2.1 IDENTIFICATION... -
Page 11: Installation And Adjustment
INSTRUCTIONS: PQ-4000-UD Cod: DYN 11.01.08 Date: 20/10/2020 Revision: 08 Lower limit 2100 2222 2411 2610 2851 3095 3351 3722 P+Q (Kg) 2173 2402 2606 2821 3081 3345 3622 4023 Upper limit 2335 2582 2801 3032 3312 3595 3893 4324 Loads may be duplicated through configuration of this tandem safety gear. See Manual DYN 37/8 – Extendible T25UD/T25 Tandem safety gear for further information. - Page 12 INSTRUCTIONS: PQ-4000-UD Cod: DYN 11.01.08 Date: 20/10/2020 Revision: 08 Figure 4: Direction of assembly Figure 6: Roller position on inverted guide rails Figure 5: Roller position During assembly, the safety gear should be perfectly aligned with the guide rails, both vertically and...
- Page 13 The Standard demands that the installation incorporate an AC-15 or DC-13 safety contact as defined in EN 60947-5-1. 3.3.1 USING DYNATECH’S T-3 DRIVING BAR Both safety gears may be synchronised by assembling Dynatech’s T-3 driving bar. For more information concerning T-3 driving bar assembly, please consult its manual: DYN08 – Instructions T-3. � �...
-
Page 14: Inspections And Maintenance
It is recommended to follow the standard’s provisions for inspections and tests, both for commissioning and regular testing. The safety gear model’s behaviour curves may be requested from Dynatech based on its (P+Q) and the installation’s rated load when tested dynamically with suspensions included. - Page 15 � � � The list of provisions that Dynatech establishes for the maintenance of its installed equipment is added to the Annexes. 4.3.2 CORROSION. All DYNATECH safety gears have anti-corrosion protection. However, it should be regularly checked that the safety gear’s mobile elements are in perfect working condition;...
-
Page 16: General Drawing
INSTRUCTIONS: PQ-4000-UD Cod: DYN 11.01.08 Date: 20/10/2020 Revision: 08 Storage humidity: 15 - 85% without condensation. The safety gears’ packaging should be clean and dry, so that they can be clearly identified. It is not permitted to place constant or unbalanced loads on a package, which may cause the package to be bent, or to allow products to be stacked one on top of the other. - Page 18 INSTRUCTIONS: PQ-4000-UD Cod: DYN 11.01.08 Date: 20/10/2020 Revision: 08 7 ANNEXES...
- Page 19 DATE 15/10/2020 Maintenance company Date: Model / Serial No. Reference of installation 1. GENERAL PROVISIONS APPLICABLE TO DYNATECH SAFETY GEAR DYNATECH PUTTING INTO SERVICE FREQUENCY NO OK OBSERVATIONS INSTRUCTIONS First time before 1.1 Check the proper assembly of the car safety gear 6.3.4 of EN 81:20...
