Miboxer LD1020260 Quick Manual

RGB+CCT LED Wall Washer Light ( DMX512&RDM)

Features

1. Accord with DMX512 standard protocol.
2. Digital Display, Set DMX initial address through button.
3. Support RDM function.
4. Logarithm/Linear dimming curve is optional.
5. 16 million colors to change, color temparature and brightness adjustable.
6. IP66 waterproof rate

Parameter

LD1020260
72W RGBW LED Wall Washer Light
Input Voltage: AC100~240V 50/60Hz
Power: 72W
CRI: >80 PF: >0.9
Color Temp.: 2700~3000K
Beam Angle: 15*60°
Working Temp.: -20~45°C
Luminous Flux:
R G B
560LM 1080LM 300LM

Function Settings

1.Digital Display status description
Self-locking: Get into locking state when there is no operation over 30 seconds, digital
display with low light or OFF.
Unlock: Long press M button 2 seconds to make digital display with high light, quit
self-locking state.
Address always ON: DMX signal valid.
Address flickering: DMX signal invaild.
2. DMX initial address setting
Under unlock status, when digital display show 001-512( for example
or ▼ buttom, you can change the DMX initial address; Long press, you can change it quickly.
For Example: Set Initial address to 100
Occupy 4 address 100-103
3. System Parameter Setting Instruction
Under unlock status: Long press M button 3 seconds to make digital display show
then get into system parameter setting. By this time, short press M button to switch 3 different
parameter setting circularly.
Parameter 1: Dimming Curve setting (Show
button to switch.
Dimming curve is logarithm dimming. (Factory default parameter)
Dimming curve is linear dimming.
Parameter 2: Dimming smoothness setting(show
or ▼ button to switch.
Smooth dimming. (Factory defaut setting)
Standard dimming.

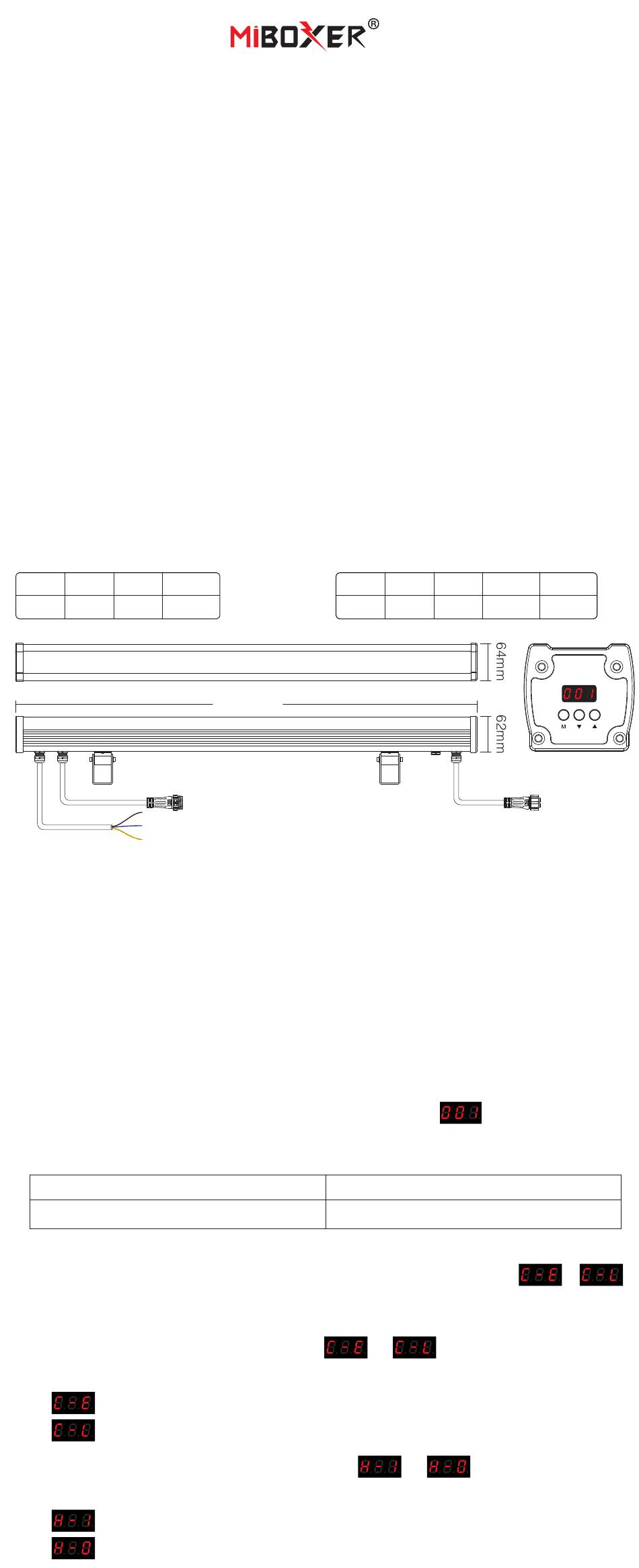

Model No.: LD1020260 - LD1020260
WW
2600LM
1020mm
LD1020260
LD1020261
72W RGB+CCT LED Wall Washer Light
Input Voltage: AC100~240V 50/60Hz
Power: 72W
CRI: >80 PF: >0.9
Color Temp.: 2700~6500K
Beam Angle: 15*60°
Working Temp.: -20~45°C
Luminous Flux:
R G B
280LM 540LM 150LM
LD1020261
Occupy 5 address 100-104
or ), short press ▲ button or ▼
or
CW WW
1800LM 1650LM
), Short press ▲ button
or
), short press ▲ button
,
