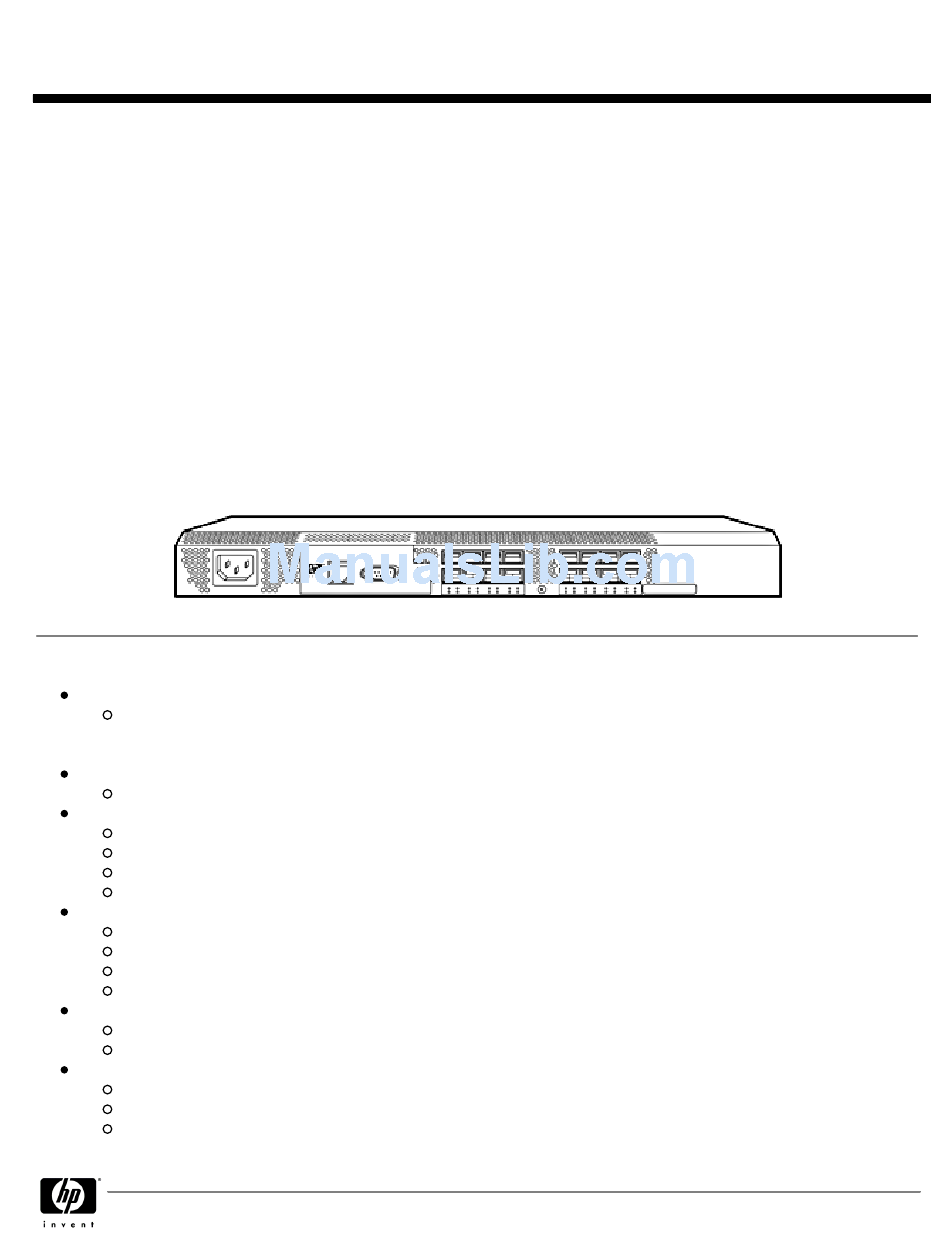

QuickSpecs
Overview
The new HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch Power Pack delivers affordable and flexible 4 Gb/s connectivity
for a storage area networks (SANs). The new interconnects can be incorporated into an extensive core fabric or placed at the edge.
Both 4/16 SAN Switch variants scale to full SAN configurations as defined by the SAN Design Guide. The 4/16 SAN Switch includes
web management tools and hardware and software enforced zoning.
The new switches deliver sixteen high performance auto Sensing 1, 2, and 4 Gb/s Fibre Channel ports. In addition, the 4/16 SAN
Switch and the 4/16 SAN Switch Power Pack are fully non-blocking and provide 128 Gb switching (4 Gb full duplex) capacity for
un-congested sustained, 4 Gb full duplex throughput. Small-form-factor-pluggable optical transceivers (SFPs) must be ordered
separately. All models include one power supply.
The 4/16 Power Pack includes the 4/16 SAN Switch plus a value added software package. The optional Power Pack software
bundle can be purchased separately and includes Fabric Watch, ISL Trunking, Extended Fabric and Advanced Performance Monitor.
The software bundle provides the SAN administrator with the necessary tools to monitor the health and performance of the network,
while also ensuring the highest levels of security, scalability and manageability. Power Pack software provides the foundation for
integration into HP OpenView Storage Area Manager (SAM), enabling infrastructure management through a single-pane-of-glass.
Key Features and Benefits
Key Features and Benefits
Key Features and Benefits
Key Features and Benefits
Flexible storage connectivity
The only SAN solutions providing the complete HP SAN Switch functionality from Embedded to Enterprise. The HP B-
series line of products allows the capability to apply the complete SAN Switch functionality to an affordable entry level
SAN deployment and then to grow that deployment to the largest SAN fabric solutions supported by HP.
Reduced Total Cost of Ownership for SAN Infrastructure
Enables storage consolidation, simplified management of data center SAN environment
Broadest range of compatibility with SAN products
Multi-vendor server and storage environment
Widest range of HP SAN solutions
Backward compatible with previously installed 1Gb, 2Gb and 4Gb SAN Switches
Interoperability with more than 2 Million HP SAN Switch installed base
HP Power Pack Software Bundle (Optional) - highest supported modular functionality
Trunking - highest throughput between switches (32Gb/sec)
Proactive threshold monitor (Fabric Watch)
Advanced Performance Monitor
Extended Fabric
Broadest Range of HP Packaged SAN Services
Mission critical SAN Services SAN-ES
Assessment and installation services for security
Highest integration with Storage Essentials via:
SAN Switch API
SAN Switch element managers
HP StorageWorks Fabric Manager
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch Power Pack Family
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch Power Pack Family
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch Power Pack Family
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch Power Pack Family
DA - 12343
Worldwide — Version 11 — January 26, 2009
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch
HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch
Power Pack Family
Power Pack Family
Power Pack Family
Power Pack Family
Page 1

Advertising

   Related Manuals for HP StorageWorks 16-EL

   Summary of Contents for HP StorageWorks 16-EL

  • Page 1

    Overview The new HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch Power Pack delivers affordable and flexible 4 Gb/s connectivity for a storage area networks (SANs). The new interconnects can be incorporated into an extensive core fabric or placed at the edge.

  • Page 2

    Power Pack Models Power Pack Models Power Pack Models HP StorageWorks B-Series 8-31 port Power Pack software bundle license DA - 12343 HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch...

  • Page 3

    An ASIC based capability in the B-series family of switches that enables new applications and features. The switch now has the ability to "view" the first 64 bytes of the Fibre Channel frame. At this time, Frame Filtering enables advanced capabilities such as Advanced Zoning and Advanced Performance Monitoring.

  • Page 4: Product Highlights

    For high performance enhanced Trunking, this optional license logically groups up to four E-ports to provide a high bandwidth trunk between two switches. Each 4Gb switch needs its own license. The switch operating system views the trunk as a single, high bandwidth resource (up to 32 Gb) when routing connections between switches.

  • Page 5

    Product Highlights Data Center Fabric Data Center Fabric Data Center Fabric Data Center Fabric HP StorageWorks Data Center Fabric Manager Professional is a server based management application Manager Professional Manager Professional Manager Professional Manager Professional available at no-charge and comes with B-series SAN Switches and includes the following features:...

  • Page 6

    Software Warranty - HP warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery. EXCLUSIVE REMEDY. The entire liability of HP and its suppliers and your exclusive remedy for software that does not conform to this Limited Warranty shall be the repair or replacement of the defective media.

  • Page 7

    HP Care Pack Information HP Care Pack Information HP Care Pack Information HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage. HP Care Pack is not available for less than the product's warranty duration.

  • Page 8

    Hot plug fans Hot plug fans DA - 12343 HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch...

  • Page 9

    Enclosure DA - 12343 HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch...

  • Page 10

    Yes, in EVA 4400 Enclosure DA - 12343 HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch...

  • Page 11: Configuration Information

    FC-AL-2 Rev 7.0 FC-FLA Rev 2.7 DA - 12343 HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch FC-GS-2 Rev 5.3...

  • Page 12: Technical Specifications

    Options SFP media DA - 12343 HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch HP StorageWorks 4/16 SAN Switch and 4/16 SAN Switch Worldwide —...

  • Page 13

    The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
