48VG---A and 48VG---B
Performance™ 15 and 16 SEER
2---Stage Packaged Air Conditioner and Gas Furnace
System With Puronr (R---410A) Refrigerant
Single and Three Phase
2---5 Nominal Tons (Sizes 24---60)
Owner's Information Manual
For your convenience, please record the model and serial numbers of your new equipment in the spaces
provided. This information, along with the installation data and dealer contact information, will be helpful
should your system require maintenance or service.
UNIT INFORMATION
Model # _____________________________________
Serial # ______________________________________
ACCESSORIES (List type of model #)
_____________________________________________
_____________________________________________
_____________________________________________

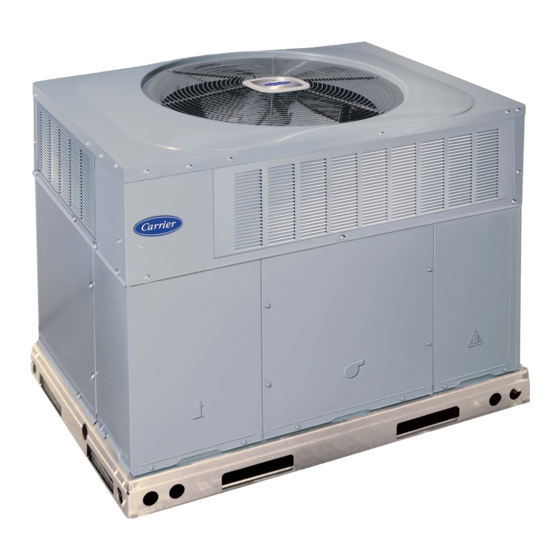

Fig. 1 - - Unit 48VG- -A, 48VG- -B
NOTE TO EQUIPMENT OWNER:
NOTE TO INSTALLER:
This manual must be left with the equipment owner.
INSTALLATION INFORMATION
Date Installed________________________________
DEALERSHIP CONTACT INFORMATION
Company Name_______________________________
Address______________________________________
_____________________________________________
Phone Number _______________________________
Technician Name _____________________________
_____________________________________________
1
A09033

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 48VG-B and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier 48VG-B

Summary of Contents for Carrier 48VG-B

  • Page 1 48VG---A and 48VG---B Performance™ 15 and 16 SEER 2---Stage Packaged Air Conditioner and Gas Furnace System With Puronr (R---410A) Refrigerant Single and Three Phase 2---5 Nominal Tons (Sizes 24---60) Owner’s Information Manual A09033 Fig. 1 - - Unit 48VG- -A, 48VG- -B NOTE TO EQUIPMENT OWNER: For your convenience, please record the model and serial numbers of your new equipment in the spaces provided.

  • Page 2: Safety Considerations

    SAFETY CONSIDERATIONS WARNING Improper installation, adjustment, alteration, service maintenance, or use can cause explosion, fire, electrical shock, or other FIRE AND EXPLOSION HAZARD conditions which may cause death, personal injury, or property Failure to follow this warning could result in personal damage.

  • Page 3: Unit Introduction

    UNIT INTRODUCTION WARNING This unit is a small packaged gas heat/electric cooling system that utilizes the comfort of gas heating packaged along with efficient electric air conditioning. This unit uses Puronr, the ozone FIRE AND EXPLOSION HAZARD friendly refrigerant for cooling. Failure to follow this warning could result in personal Starting or Shutting Off Unit injury, death, and/or property damage.

  • Page 4: Operating Your Unit

    To start unit electric cooling: Maintenance and Care for the Equipment Owner Refer to Fig. 6 while proceeding with the following steps. Before performing equipment maintenance yourself, please carefully consider the following: 1. Set the temperature selector on room thermostat to highest temperature setting and set system SWITCH to OFF.
  • Page 5 MAIN STEP 3 STEP 1 STEP 2 STEP 5 (208/230 VAC MODELS) STEP 4 STEP 5 STEP 6 STEP 6 (208/230 VAC MODELS) (460 VAC MODELS) (460 VAC MODELS) MAIN STEP 7 STEP 8 STEP 9 STEP 10 A13035 Fig. 4 - - To Start Unit Gas Heat...
  • Page 6 MAIN STEP 1 STEP 2 STEP 3 STEP 5 STEP 4 (208/230 VAC MODELS) STEP 6 STEP 5 (460 VAC MODELS) A13036 Fig. 5 - - To Shut- -off Unit Gas Heat MAIN STEP 4 & 5 STEP 2 STEP 1 STEP 3 A09194 Fig.
  • Page 7 MAIN STEP 1 STEP 2 STEP 3 A07797 Fig. 7 - - To Shut- -off Unit Electric Cooling Condenser (Outdoor) Fan To replace or inspect filters in accessory filter rack (See Fig. 2): 1. Remove the filter access panel using a 5/16- -in. nut driver. WARNING 2.

  • Page 8: Burn Hazard

    4. Inspection and, if required, cleaning of the outdoor and indoor coils. Copyright 2014 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Edition Date: 10/14 Catalog No: OM48VG ---02 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
