48VG: Owner's Information Manual
c
48VG
Performance™ 15 and 16 SEER
2-Stage Packaged Air Conditioner and Gas Furnace
System With Puron® (R-410A) Refrigerant
Single and Three Phase
2-5 Nominal Tons (Sizes 24-60)
For your convience, please record the model and serial numbers of your new equipment in the spaces
provided. This information, along with the installation data and dealer contact information, will be
helpful should your system require maintenance or service.
UNIT INFORMATION
Model #
Serial #
ACCESSORIES (List type of model #)
Our products are designed, tested and built in accordance with DOE standardized procedures; however, actual operating results and efficiencies may
vary based on manufacturing and supplier tolerances, equipment configuration, operating conditions and installation practices.
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
Owner's Information Manual

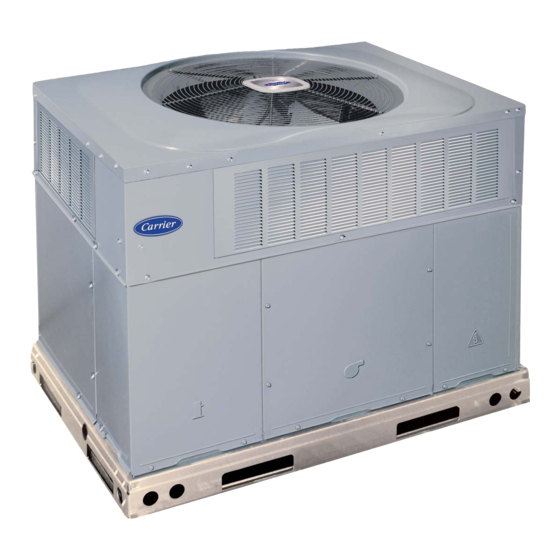

Fig. 1 – Unit 48VG
NOTE TO EQUIPMENT OWNER:
NOTE TO INSTALLER:
This manual must be left with the eqipment owner.
INSTALLATION INFORMATION
Date Installed
DEALERSHIP CONTACT INFORMATION
Company Name
Address
Phone Number
Technician Name
1
A09033

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performance 48VG Series and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier Performance 48VG Series

Summary of Contents for Carrier Performance 48VG Series

  • Page 1 48VG: Owner’s Information Manual 48VG Performance™ 15 and 16 SEER 2-Stage Packaged Air Conditioner and Gas Furnace System With Puron® (R-410A) Refrigerant Single and Three Phase 2-5 Nominal Tons (Sizes 24-60) Owner’s Information Manual A09033 Fig. 1 – Unit 48VG NOTE TO EQUIPMENT OWNER: For your convience, please record the model and serial numbers of your new equipment in the spaces provided.
  • Page 2 48VG: Owner’s Information Manual Safety Considerations WARNING Improper installation, adjustment, alteration, service maintenance, or use can cause explosion, fire, electrical shock, or other conditions which FIRE, EXPLOSION, ELECTRICAL SHOCK HAZARD may cause death, personal injury, or property damage. Consult a Failure to follow this warning could result in personal injury, death or qualified installer, service agency, or your distributor or branch for property damage.

  • Page 3: Unit Introduction

    48VG: Owner’s Information Manual WARNING FIRE, EXPLOSION, ELECTRICAL SHOCK HAZARD Failure to follow this warning could result in personal injury, death and/or property damage. Do not turn off the electrical power to unit without first turning off the gas supply. Before attempting to start the gas heating section, familiarize yourself with all the procedures that must be followed.

  • Page 4: Operating Your Unit

    48VG: Owner’s Information Manual Operating Your Unit The operation of your unit is controlled by the indoor temperature control (thermostat). You simply adjust the thermostat and it maintains the indoor temperature at the level you select. Most thermostats of heating and cooling systems have 3 controls: a temperature control selector, a FAN control, and a SYSTEM or MODE control.

  • Page 5: Air Filters

    48VG: Owner’s Information Manual Air Filters Table 1 – Indoor Air Filter Data Unit Size Filter Size in. (mm) CAUTION 2 each 20 x 12 x 1 24-040/060 (508 x 305 x 25 mm) UNIT OPERATION HAZARD Failure to follow this caution may result in property damage. 2 each 20 x 12 x 1 30-040/060 (508 x 305 x 25 mm)
  • Page 6 48VG: Owner’s Information Manual MAIN STEP 3 STEP 1 STEP 2 STEP 5 (208/230 VAC MODELS) STEP 4 STEP 5 STEP 6 STEP 6 (208/230 VAC MODELS) (460 VAC MODELS) (460 VAC MODELS) MAIN STEP 7 STEP 8 STEP 9 STEP 10 A13035 Fig.
  • Page 7 48VG: Owner’s Information Manual MAIN STEP 1 STEP 2 STEP 3 STEP 5 STEP 4 (208/230 VAC MODELS) STEP 6 STEP 5 (460 VAC MODELS) A13036 Fig. 5 – To Shut-off Unit Gas Heat MAIN STEP 2 STEP 4 & 5 STEP 1 STEP 3 A09194...

  • Page 8: Refrigerant Circuit

    48VG: Owner’s Information Manual MAIN STEP 1 STEP 2 STEP 3 A07797 Fig. 7 – To Shut-off Unit Electric Cooling Electrical Controls and Wiring To replace or inspect filters in accessory filter rack (See Fig. 1. Remove the filter access panel using a 5/16-in. nut driver. Electrical controls are difficult to check without proper instrumentation.

  • Page 9: Warranty Certificate

    48VG: Owner’s Information Manual Warranty Certificate CAUTION Your unit has a limited warranty. Be sure to read the warranty carefully to determine the coverage for your unit. BURN HAZARD Before you call for service... Failure to follow this caution may result in personal injury..check for several easily-solved problems.
  • Page 10 1. The above list may not include all maintenance items. Inspection intervals may vary depending on climate and operating hours. Consult your HVAC dealer about a service contract for seasonal inspections. 2. Do not use harsh chemicals or high pressure water on coils. More frequent rinsing is required for units near a sea coast. © 2020 Carrier. All rights reserved. Edition Date: 08/20 Catalog No: OM48VG-06 Replaces: OM48VG-05 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
