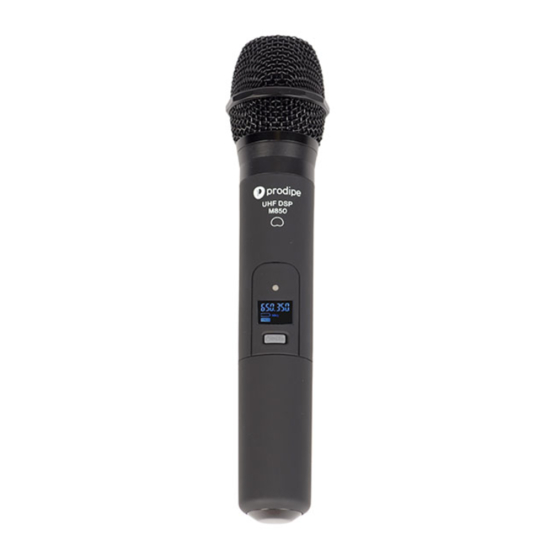

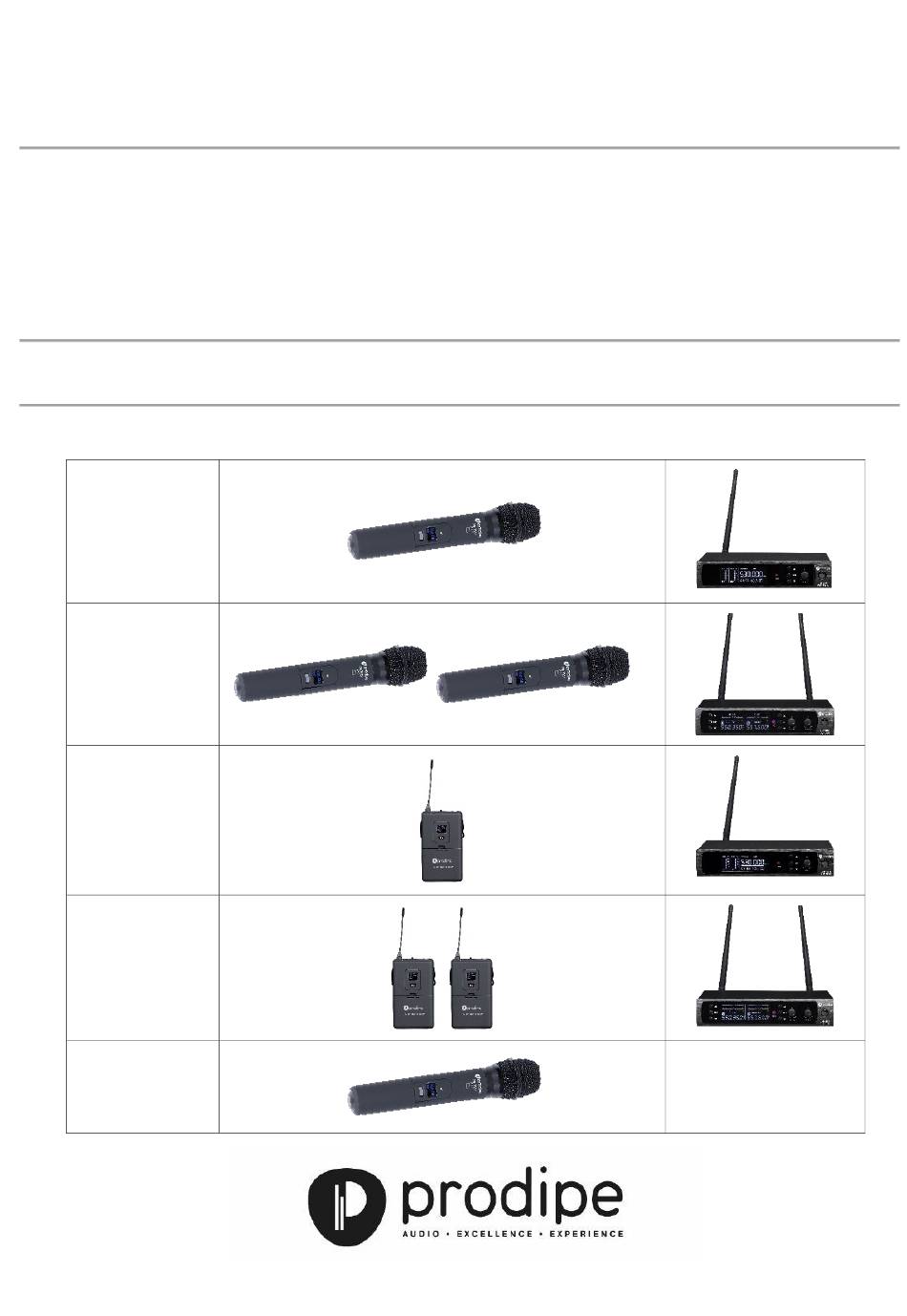

  • Page 1 M850 DSP Solo / M850 DSP Duo B210 DSP Solo / B210 DSP Duo B210 DSP Headset Solo / B210 DSP Headset Duo B210 Lavalier Solo / B210 Lavalier Duo M850 MK2 Mic Manuel utilisateur / User guide M850 DSP Solo UHF...

  • Page 2: Mesures De Sécurité

    Ce logo indique que ce produit est recyclable. Une fois usagé, ne le jetez pas à la poubelle mais rapportez-le à votre revendeur ou déposez-le dans une borne de collecte spécifique. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 2 Copyright © 2022 IPE Music/Prodipe...

  • Page 3: Déclarations De Conformité

    Ce matériel radio est prévu pour une utilisation en spectacles professionnels, applications similaires et auxiliaires de radio diffusion. *Voir déclarations de conformité sur www.prodipe.com Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 3 Copyright © 2022 IPE Music/Prodipe...

  • Page 4: Fonctions Et Caractéristiques Du Récepteur

    BNC : antenne voie A et antenne voie B. L'inversion de ces antennes peut limiter la portée de vos UHF. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 4 Copyright © 2022 IPE Music/Prodipe...

  • Page 5: Fonctions Et Caractéristiques Du Transmetteur

    6. Récepteur [IR] pour appairage. 7. Compartiment des piles LR6 / AA (x2). 8. Couvercle des piles. 9. Atténuateur trois positions. 10. Adaptateur de connectique. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 5 Copyright © 2022 IPE Music/Prodipe...

  • Page 6: Configuration Des Canaux De Transmission

    • Micro M850 : Cellule [IR] sous le compartiment des piles sous le micro. • Bodypack B210 : Cellule [IR] devant le corps du bodypack. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 6 Copyright © 2022 IPE Music/Prodipe...
  • Page 7 ATTENTION, vous devez impérativement éteindre le microphone ou le bodypack déjà synchronisé avant de synchroniser le second. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 7 Copyright © 2022 IPE Music/Prodipe...
  • Page 8 Pour l'utilisation du micro-cravate Lavalier de Prodipe, référez-vous directement au manuel d'utilisation de ce micro afin d'obtenir un positionnement optimal. Pour l'utilisation des micros instruments de la Série 21 de Prodipe, référez-vous directement aux manuels d'utilisation de ces micros afin d'obtenir un positionnement optimal.
  • Page 9 Cellule M85 pour le micro main M850. • Utilisation simultanée : jusqu’à 8 systèmes UHF émetteur/récepteur Solo ou 4 systèmes Duo. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 9 Copyright © 2022 IPE Music/Prodipe...

  • Page 10: Précautions D'emploi Et Garantie

    Pour conserver toute la sensibilité et la qualité de la reproduction sonore, évitez d’exposer votre micro à l’humidité et aux températures extrêmes (soleil par ex.). Prodipe et ses distributeurs déclinent toute responsabilité pour toute panne due à une utilisation de cet appareil qui ne correspond pas aux conditions d'emploi ci-dessus.

  • Page 11: Spécifications Techniques

    Sensibilité RX < -94dBm < -94dBm Sortie audio asymétrique 1 mix out 1 mix out (Jack 6.35mm) Sortie audio symétrique (XLR) Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 11 Copyright © 2022 IPE Music/Prodipe...
  • Page 12 666.85 666.85 679.35 641.85 666.85 642.10 654.60 642.10 667.10 667.10 679.60 642.10 667.10 642.35 654.85 642.35 667.35 667.35 679.85 642.35 667.35 Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 12 Copyright © 2022 IPE Music/Prodipe...
  • Page 13 577.35 539.85 552.35 564.85 577.35 540.10 552.60 565.10 577.60 540.10 552.60 565.10 577.60 540.35 552.85 565.35 577.85 540.35 552.85 565.35 577.85 Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 13 Copyright © 2022 IPE Music/Prodipe...

  • Page 14: Safety Informations

    Return the product to the shop where you purchased it or place it in the designated recycling container. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 14 Copyright © 2022 IPE Music/Prodipe...

  • Page 15: Declarations Of Conformity

    *See declarations of conformity at www.prodipe.com Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 15 Copyright © 2022 IPE Music/Prodipe...
  • Page 16 For M850 Duo and B210 Duo receivers, you must respect the antenna frequencies on each BNC output: channel A antenna and channel B antenna. The inversion of these antennas can limit the range of your UHF. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 16 Copyright © 2022 IPE Music/Prodipe...

  • Page 17: Transmitter Functions And Features

    6. Receiver [IR] for pairing. 7. Battery compartment LR6 / AA (x2). 8. Battery cover. 9. Three positions switch attenuator. 10. Connector adapter. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 17 Copyright © 2022 IPE Music/Prodipe...

  • Page 18: Configuration Of Transmission Channels

    • M850 Microphone: IR cell at the base of the microphone under the battery cover. • B210 Bodypack: IR cell on front of bodypack. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 18 Copyright © 2022 IPE Music/Prodipe...
  • Page 19 CAUTION, once you have synchronized one microphone or bodypack you MUST switch it off before synchronizing the other. Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 19 Copyright © 2022 IPE Music/Prodipe...
  • Page 20 If you are using a Prodipe Lavalier tie-clip microphone, refer to the accompanying user manual for the best position. If you are using microphones from the Prodipe 21 Series, refer to the accompanying user manuals for the best position.
  • Page 21 Use of M850 MK2 mic The M850 MK2 microphone is a UHF M850 microphone sold alone, to be used only and in addition to the B210 DSP Solo or B210 DSP Duo receivers, which were manufactured after the year 2020.

  • Page 22: Precautions During Use And Guarantee

    To preserve the sensitivity and sound reproduction quality of your microphone, it should never be exposed to humidity or extreme temperatures (e.g. direct sunlight). Prodipe and its distributors disclaim all liability for damage to this device resulting from use other than as described above.

  • Page 23: Technical Specifications

    RX sensitivity < -94dBm < -94dBm Unbalanced audio output 1 mix out 1 mix out (6.35mm jack) Balanced audio output (XLR) Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 23 Copyright © 2022 IPE Music/Prodipe...
  • Page 24 666.85 666.85 679.35 641.85 666.85 642.10 654.60 642.10 667.10 667.10 679.60 642.10 667.10 642.35 654.85 642.35 667.35 667.35 679.85 642.35 667.35 Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 24 Copyright © 2022 IPE Music/Prodipe...
  • Page 25 577.35 539.85 552.35 564.85 577.35 540.10 552.60 565.10 577.60 540.10 552.60 565.10 577.60 540.35 552.85 565.35 577.85 540.35 552.85 565.35 577.85 Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 25 Copyright © 2022 IPE Music/Prodipe...
  • Page 26 _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 26 Copyright © 2022 IPE Music/Prodipe...
  • Page 27 _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 27 Copyright © 2022 IPE Music/Prodipe...
  • Page 28 IPE Music 20, rue Clément ADER Z.A. Les Gloriets 85340 Les Sables d’Olonne France www.prodipe.com Illustrations et photos non contractuelles Actual product(s) may differ from illustrations/photographs used Page 28 Copyright © 2022 IPE Music/Prodipe...
