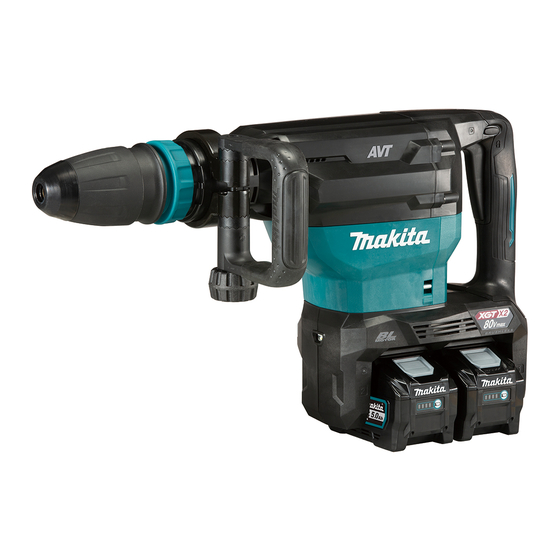

- Page 1 INSTRUCTION MANUAL Cordless Demolition Hammer HM002G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: HM002G Blows per minute 950 - 1,900 min Rated voltage D.C. 72 V - 80 V max Overall length 574 mm Net weight 12.0 - 13.3 kg • Due to our continuing program of research and development, the specifications herein are subject to change without notice. • Specifications may differ from country to country. • The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heavi- est combination, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL4020 / BL4025 / BL4040* / BL4050F*... -
Page 3: Ec Declaration Of Conformity
Do not abuse the cord. Never use the cord for WARNING: The vibration emission during carrying, pulling or unplugging the power tool. actual use of the power tool can differ from the Keep cord away from heat, oil, sharp edges declared value(s) depending on the ways in which or moving parts. - Page 4 Battery tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one...
- Page 5 Follow your local regulations relating to unnecessarily. disposal of battery. SAVE THESE INSTRUCTIONS. 12. Use the batteries only with the products specified by Makita. Installing the batteries to WARNING: DO NOT let comfort or familiarity non-compliant products may result in a fire, exces- with product (gained from repeated use) replace sive heat, explosion, or leak of electrolyte.
- Page 6 Do not disassemble or tamper with the wire- supplied case or a static-free container. less unit. 26. Do not insert any devices other than Makita Keep the wireless unit away from young chil- wireless unit into the slot on the tool.
-
Page 7: Functional Description
Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps CAUTION: Always be sure that the tool is light up for a few seconds. switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch off the tool before... -
Page 8: Overheat Protection
Overheat protection Speed change When the tool or battery is overheated, the tool stops automatically. In this case, let the tool and battery cool before turning the tool on again. NOTE: When the tool is overheated, the lamp blinks. Overdischarge protection When the battery capacity is not enough, the tool stops automatically. In this case, remove the battery from the tool and charge the battery. Switch action WARNING: Before installing the battery car- tridge into the tool, always check to see that the ► 1 . Speed adjusting dial switch trigger actuates properly and returns to the "OFF"... -
Page 9: Electronic Function
The side handle can be swung in a vertical direction Lighting up the front lamp and secured at any desired position. It can also be adjusted at eight steps back and forth in a horizontal direction. Loosen the clamp nut to swing the side han- dle to a desired position, and then tighten the clamp nut securely. ► 1 . Lamp CAUTION: Do not look in the light or see the source of light directly. - Page 10 Insert the bit into the tool. Turn the bit and push it in until it engages. Dust extractor attachment If the bit cannot be pushed in, remove the bit. Pull the release cover down a couple of times. Then insert the Optional accessory bit again.
-
Page 11: Operation
Connect the hose to the hose of the vacuum the tool’s capability may not be fully obtained. In this cleaner with the hose joint. case, warm up the battery cartridge by using the tool with no load for a while to fully obtain the tool’s NOTE: If the hose is not included, attach the dust capability. cover to the cleaner's joint or attach it to Makita's hose ø28. Chipping/Scaling/Demolition Adjust the distance between the dust cover and the tip of the chisel or bull point. The recommended Hold the tool firmly with both hands. Turn the tool on distance is 30 mm to 100 mm. - Page 12 Open the lid on the tool as shown in the figure. WIRELESS ACTIVATION FUNCTION Optional accessory What you can do with the wireless activation function The wireless activation function enables clean and com- fortable operation. By connecting a supported vacuum cleaner to the tool, you can run the vacuum cleaner automatically along with the switch operation of the tool. ► 1 . Lid Insert the wireless unit to the slot and then close the lid.
- Page 13 Tool registration for the vacuum cleaner NOTE: A Makita vacuum cleaner supporting the wireless activation function is required for the tool registration. NOTE: Finish installing the wireless unit to the tool before starting the tool registration.
- Page 14 Push the wireless activation button on the tool NOTE: The wireless activation lamps finish blinking briefly. The wireless activation lamp will blink in blue. in green after 20 seconds elapsed. Press the wireless activation button on the tool while the wireless acti- vation lamp on the cleaner is blinking. If the wireless activation lamp does not blink in green, push the wire- less activation button briefly and hold it down again.
- Page 15 Description of the wireless activation lamp status ► 1 . Wireless activation lamp The wireless activation lamp shows the status of the wireless activation function. Refer to the table below for the meaning of the lamp status. Status Wireless activation lamp Description Color Duration...
- Page 16 If the cancellation is performed successfully, the wire- Cancelling tool registration for the less activation lamps will light up in red for 2 seconds vacuum cleaner and start blinking in blue. NOTE: The wireless activation lamps finish blinking in Perform the following procedure when cancelling the red after 20 seconds elapsed. Press the wireless acti- tool registration for the vacuum cleaner.
- Page 17 Troubleshooting for wireless activation function Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy The wireless activation lamp does The wireless unit is not installed into the tool. Install the wireless unit correctly. not light/blink. The wireless unit is improperly installed into the tool. The terminal of the wireless unit and/or Gently wipe off dust and dirt on the terminal of the the slot is dirty.
-
Page 18: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. - Page 20 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885853-222 www.makita.com 20201111...
