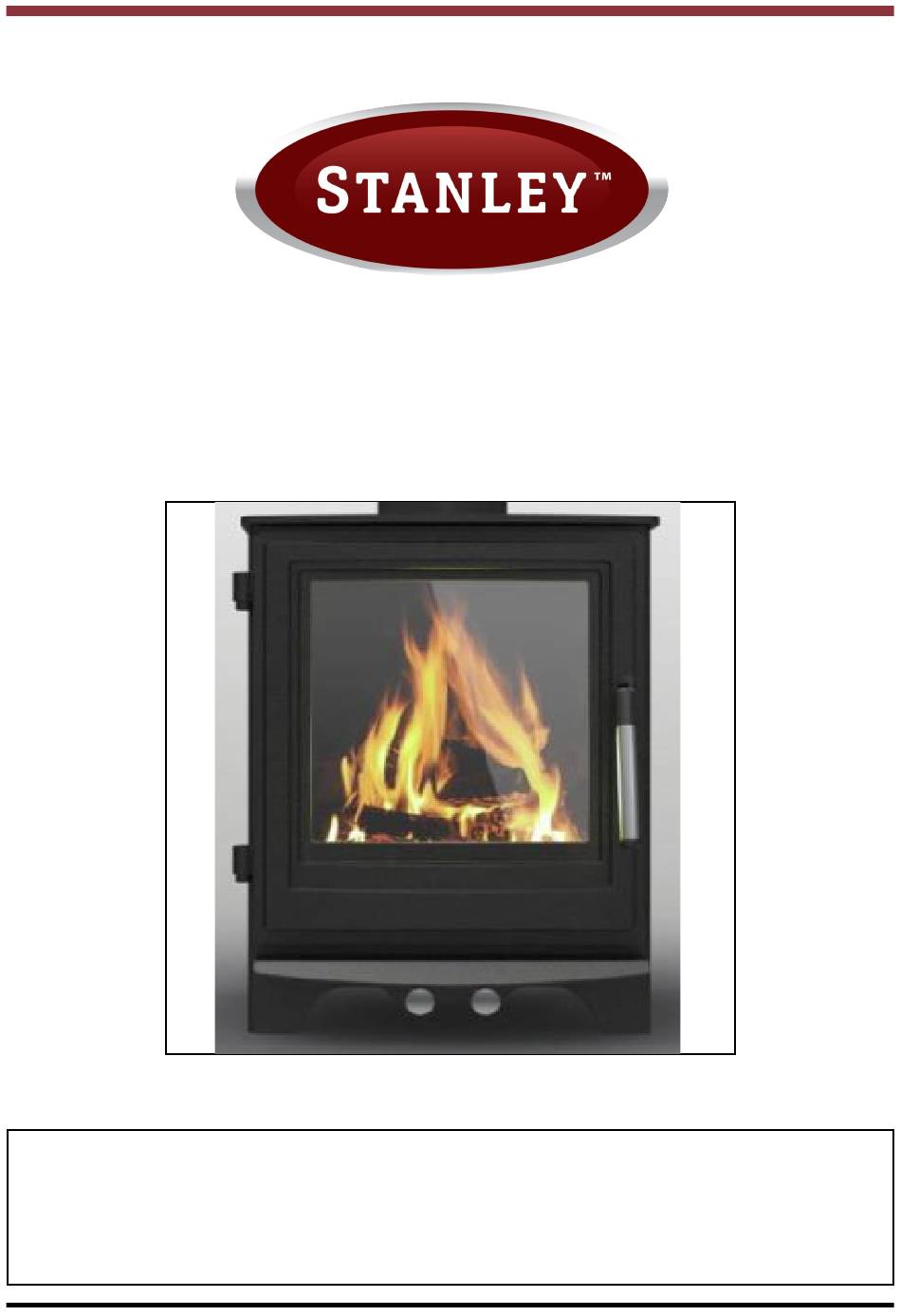

PLEASE RETAIN
Solis F500 Edge
Wood Stove
INSTALLATION AND OPERATING INSTRUCTIONS
This appliance is hot while in operation and retains its heat for a long period of time after use. Children,
aged or infirm persons should be supervised at all times and should not be allowed to touch the hot
working surfaces while in use or until the appliance has thoroughly cooled.
When using the boiler stove in situations where children, aged and/or infirm persons are present a fire-
guard must be used to prevent accidental contact with the stove.
The fireguard should be
manufactured in accordance with BS 8423:2010.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STANLEY Solis F500 Edge and is the answer not in the manual?

Questions and answers

Summary of Contents for Waterford STANLEY Solis F500 Edge

  • Page 1 PLEASE RETAIN Solis F500 Edge Wood Stove INSTALLATION AND OPERATING INSTRUCTIONS This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE NO. Stanley Stove Warranty ............2 Installation Checklist .
  • Page 3: Stanley Stove Warranty

    Department. All warranty claims must be reported to the Waterford Stanley Service Department and must be submitted with the prod- uct serial number (located on the front casting), date of purchase, proof of purchase (if requested) and details of the specific nature of the problem.
  • Page 4: Installation Checklist

    INSTALLATION CHECK LIST Tick Flue System 1. Minimum Flue Height of 4.6 metres (15 feet). 2. Appliance should be connected to a 125mm (5”) flue pipe within a metre and then the flue size increased to a minimum of 150mm (6”) diameter. 3.
  • Page 5: Important Operation/ Maintenance Notes

    IMPORTANT OPERATION / MAINTENANCE NOTES Now that your Stanley Stove is installed and no doubt you are looking forward to the many comforts it will pro- vide, we would like to give you some tips on how to get the best results from your stove. 1.
  • Page 6: Installation & Operating Instructions

    INSTALLATION & OPERATING INSTRUCTIONS Please refer to the current standards, BS EN 15287- GENERAL 1:2007 Design, Installation and Commissioning of When installing, operating and maintaining your chimneys. BS EN 14336:2004: Heating Systems in Stanley Stove respect basic standards of fire safety. Buildings.
  • Page 7: Flue Exit (Top And Rear)

    All register plates, restrictor plates, damper etc., The stove comes partially configured for top outlet which could obstruct the flue at a future date should and requires the flue spigot (supplied in the firebox) be removed before connecting this appliance. to be fitted to the top outlet flue connection as shown in Fig 3 using the nuts &...
  • Page 8: Down Draughts

    VENTILATION & COMBUSTION AIR REQUIRE- Fig.4 MENTS It is imperative that there is sufficient air supply to the stove in order to support correct combustion. The air supply to this appliance must comply with current Building Regulations Part J, Heat Providing Appliances.
  • Page 9: External Ducted Air

    If there is an extraction fan fitted in adjacent rooms EXTERNAL DUCTED AIR where this appliance is fitted, additional air vents may be required to alleviate the possibility of An outside air kit which will allow for the air supply spillage of products of combustion from the appli- for the stove to be ducted from outside and is avail- able to order for connection to the stove.
  • Page 10: Heat Recovery Ventilation (Hrv)

    HEAT RECOVERY VENTILATION Fig.7 Where a stove is to be installed in a dwelling with Vertical Heat Shield Heat Recovery Ventilation (HRV) a number of precautionary measures must be undertaken: Where the product is to be installed with a Mechanical Ventilation, the stove must be connect- Back Heat ed to an external air supply, The ductwork for the Shield...
  • Page 11: Stove Dimensions

    STOVE DIMENSIONS Fig.9 WARNING: DO NOT OBSTRUCT PRIMARY AIR SUPPLY TO THE STOVE Note: Dimensions stated are in millimetres unless otherwise stated and may be subject to a slight +/- variation. COMMISSIONING AND HANDOVER OPERATION On completion of the installation allow a suitable period of time for any fire cement and mortar to dry Check that all dampers and catches are operating out, when a small fire may be lit and checked to...
  • Page 12: Recommended Fuels

    RECOMMENDED FUELS This stove has obtained HETAS Ltd approval for burning wood logs. HETAS Approval does not cover All fuels should be stored under cover and kept the use of other fuels either alone or mixed with the as dry as possible prior to use. recommended fuels listed, nor does it cover instruc- tions for the use of other fuels.
  • Page 13: Lighting

    LIGHTING REFUELLING Before lighting the stove check with the installer that Before opening the door, open the primary air con- the installation work and commissioning checks trol fully as this will help to eliminate any smoke or described previously have been carried out correct- fly ash resident in the combustion chamber.
  • Page 14: Monthly Maintenance

    PERIODIC MAINTENANCE MONTHLY MAINTENANCE Adjusting the Door Catch Cleaning Stove Flue Pathways Over time, the fire door latch can loosen due to the It is recommended that the flue pathways in the continual compression and hardening of the rope stove are cleaned on a monthly basis (or less seal between the door and the front casting.
  • Page 15: Fire Safety

    GLASS REPLACEMENT WARNING NOTE: Properly installed, operated and maintained this Open the door fully. stove will not emit fumes into the dwelling. Remove the four fixing screws and clips Occasional fumes from the de-ashing and re- (see Fig 14). fuelling may occur. However, persistent fume emis- Clean the glass recess in the door.
  • Page 16: Exploded View

    - GRATE RISER 15. HEATSHIELD - A4 HS RE 16. FIRE DOOR - 13886 4KW DOOR Manufactured for Waterford Stanley Ltd., Unit 401-403, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315 N00840AXX Rev:001 NH 300418...
