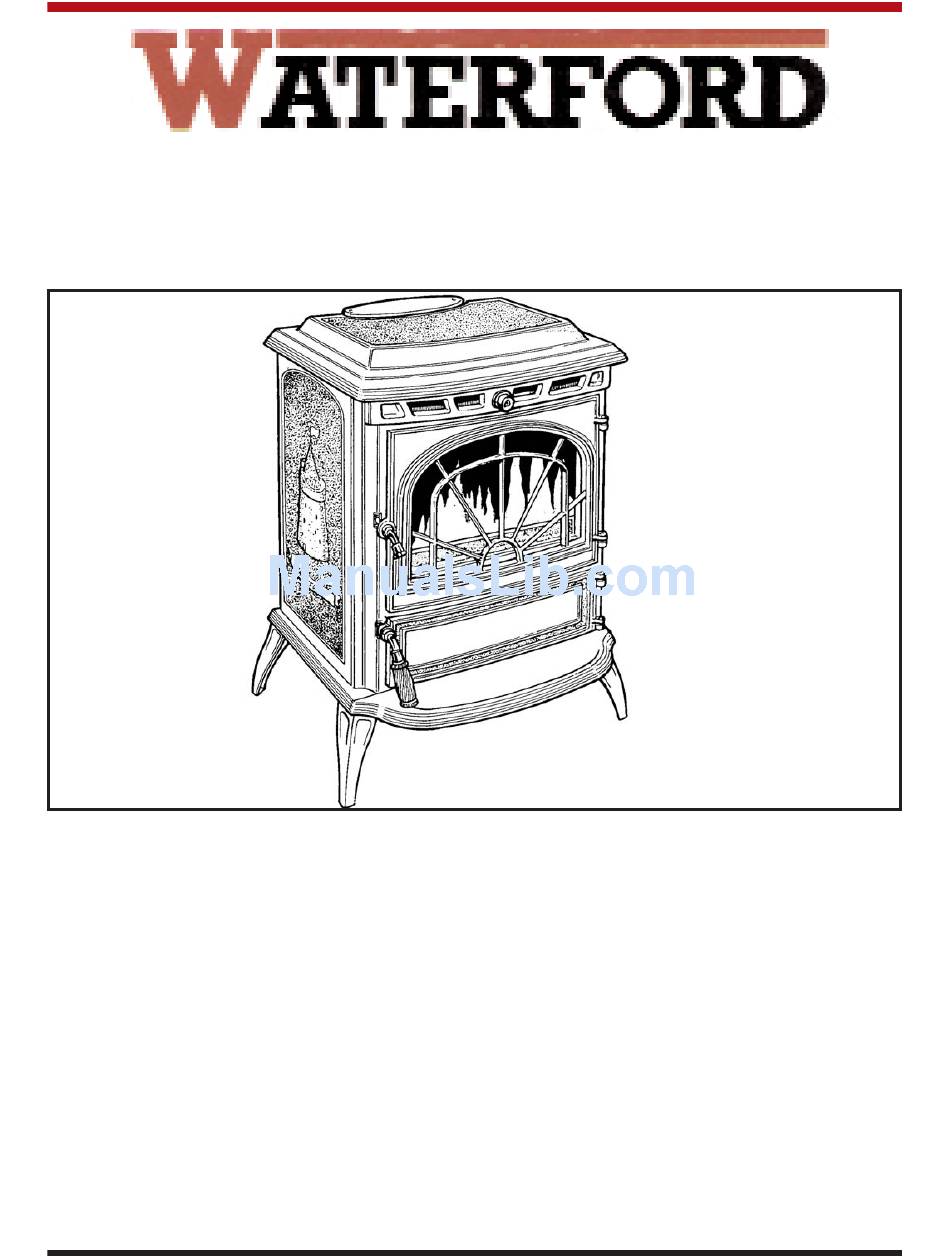

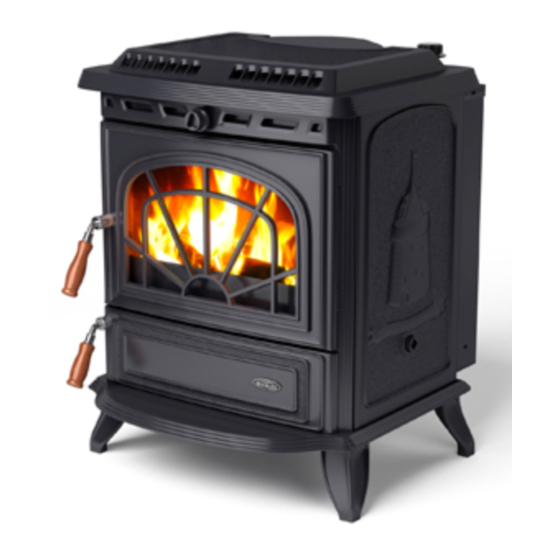

ERIN 90 T/V & R/V
WoodBurning Stove
IMPORTANT
This stove has two U.s. Environmental Protection Agency Temporary labels on the front door. One of the labels
reads; "Heat output 10,200 to 39,900 BTU's/Hr (5.7 grams per hour) 63% efficiency." This label shows the per-
formance of the unit when connected to a Rear Exit configuration.
The second label reads; "Heat output 10,500 to 40,900 BTU's/Hr. (4.2 grams per hour), 63% efficiency. This
label shows the performance of the unit when connected to a Top Exit configuration.
SAFETY NOTICE
Please read this entire manual before you install and use your new room heater. Failure to follow instructions
may result in property damage, bodily injury or even death.
If this stove is not properly installed, a house fire may result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
The stove must be connected to a UL/ULC listed high temperature residential type H.T. and building heat appli-
ance chimney or an approved masonry chimney with flue liner.
MANUFACTURED BY: WATERFORD STANLEY LIMITED,
BILBERRY, WATERFORD, IRELAND.
INSTALLATION & OPERATING INSTRUCTIONS
