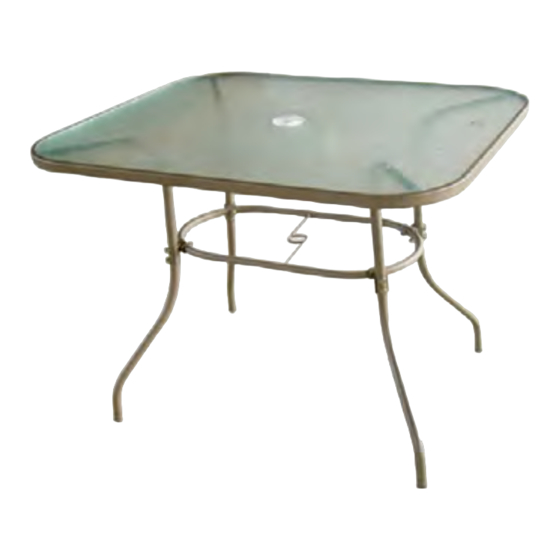

Courtyard Creations TGS38HS Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

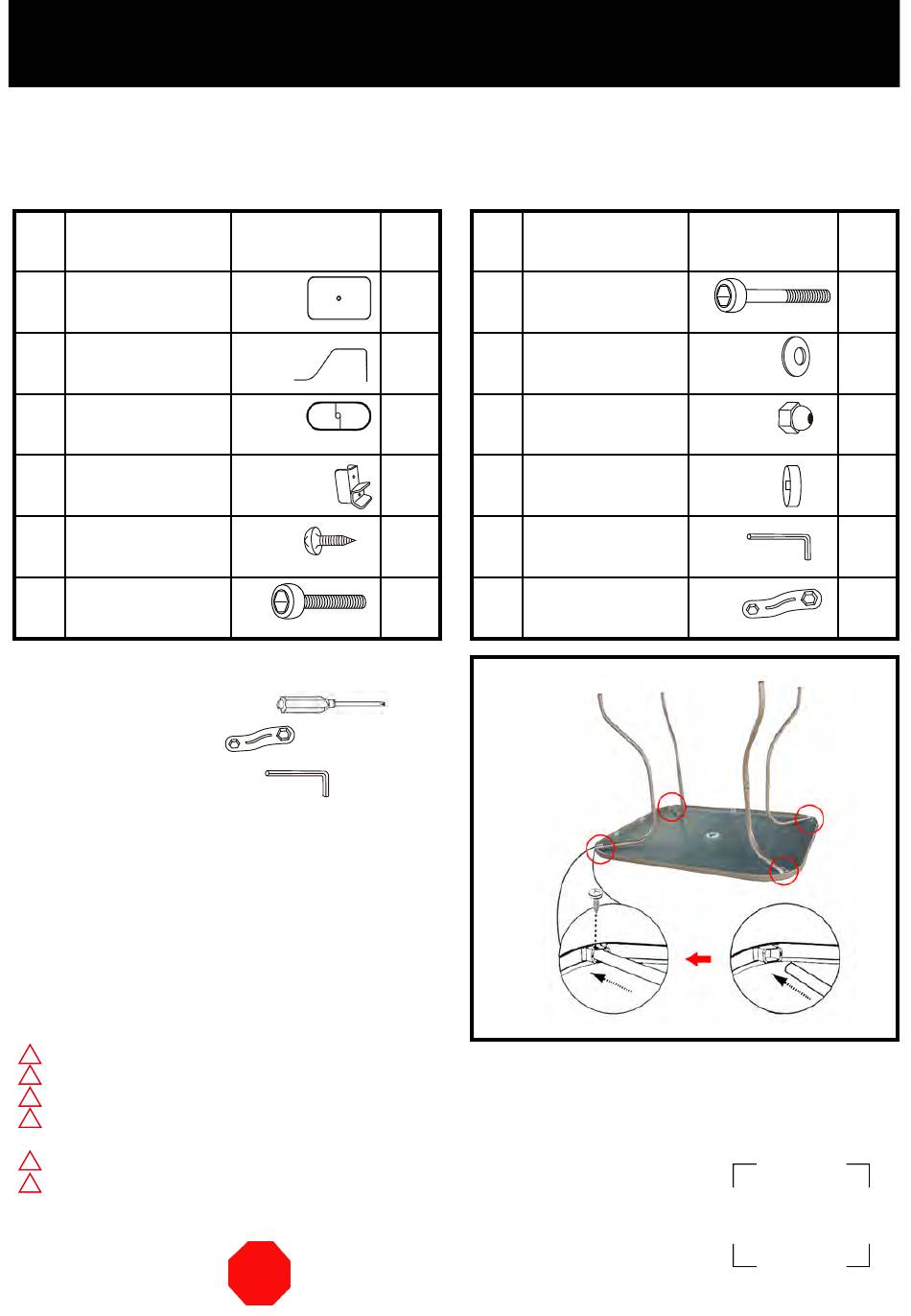

PARTS LIST

PART
MATERIAL CODE
NO.
1
TGS38HS-CS01
2
TGS36HY-CS02
3
62TGS38HSY101
4
27LA09076
5
17C17A0403001Y4
6
17C01A0714003Y4

You will need the following tools:

- Phillips Screwdriver (Not included)
- Nut Wrench (See Part #12)
- Hex. Key Wrench (See Part #11)
Attention:
Make sure that each bolt needed for all steps match
the corresponding figure to ensure proper assembly.

STEP 1:

Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with the underside facing upwards.
Fasten the legs (#2) to the plastic holders attached
on the table top rim by using screws (#5).
See Figure 1.
!
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
Do not discard any of the packaging until you have checked that you have all the parts and pack of fittings.
!
Keep children away during assembly. This item contains small parts which can be swallowed by children.
Children should always be under direct adult supervision while using the product.
!
Retain the assembly instructions for future reference.
!
Please quote following FQC NO. when contacting service center.
INTENDED FOR RESIDENTIAL USE ONLY.
TGS38HS
PART
Q'TY
TABLE TOP
LEG
CENTER
CONNECTOR WITH RING
U-SHAPED WASHER
SCREW ST4.2*12
BOLT M6*40
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
-WM
PART
MATERIAL CODE
NO.
7 17C01A0721091Y4
1
4 8
17FA05040301-Y4
9
1800C23001
1
4 10
1800337002
4 11
17KAA0201----Y4
4 12
17KAB1101----Y4
FIGURE 1
5
PART
BOLT M6*60
WASHER d6.5*D13*1.0
PLASTIC NUT M6*P1.0
BOLT CAP M6
HEX.KEY WRENCH 6MM
NUT WRENCH 10&13MM
2
2
2
1
COURTYARD CREATIONS INC.
Q'TY
4
16
8
8
1
1
2
