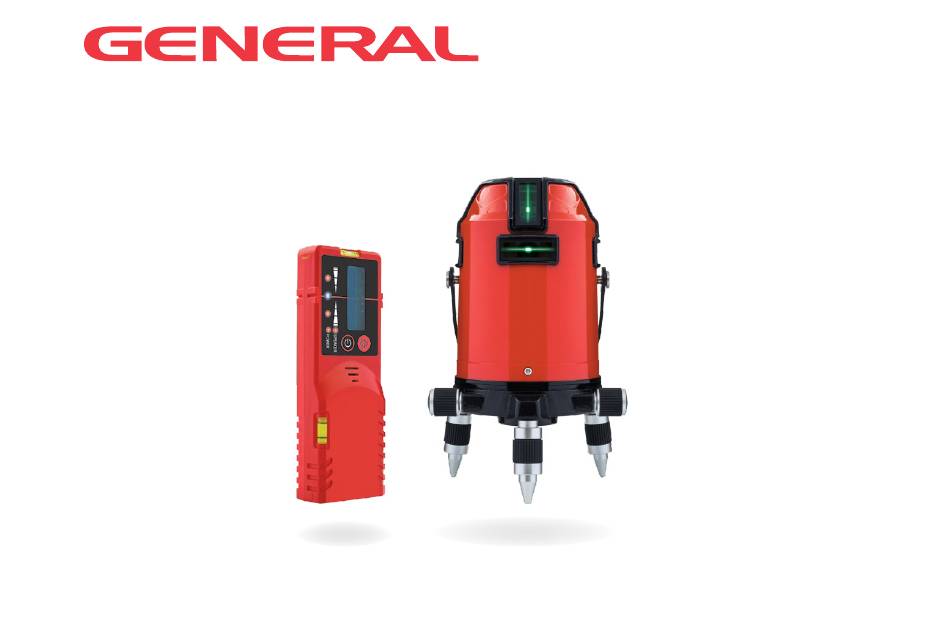

- Page 1 X L 4 G M U L T I - L I N E L A S E R I N S T R U C T I O N M A N U A L...
- Page 3 SAFETY Read the following safety instructions before ▪ Tool service must be performed only by attempting to operate this product. qualified repair personnel. Repairs, service Keep these instructions in a safe place or store or maintenance performed by unqualified in the carry case for future reference. personnel will void the warranty.
- Page 4 WARNING: DO NOT DISASSEMBLE ▪ Do not set up the tool at a position where THE LASER. There are no user serviceable the laser beam can cross any person at head height. parts inside. Disassembling the laser will ▪ Do not let children come in contact with the void all warranties on the product.
-
Page 5: Item Checklist
ITEM CHECKLIST Please ensure the following items are included with your laser level. If anything is missing please contact your retailer. INCHES General XL4G Detector & clamp Wall mount Tripod spacer Laser target Laser glasses Mains power adaptor Carry case... - Page 6 LASER OVERVIEW (FRONT) Control panel Vertical laser port (x4) Horizontal laser port (x4) Carry strap 360° protractor base Fine rotation adjustment Adjustable support legs 5/8” x 11 tripod thread...
- Page 7 LASER OVERVIEW (BACK) Vertical laser port (x4) Horizontal laser port (x4) Rechargeable battery pack Carry strap Rechargeable battery pack screw Mains power adaptor / charging port 360° protractor base Fine rotation adjustment Adjustable support legs...
- Page 8 LASER CONTROL PANEL Vertical lines Vertical line LED pulse mode indicator LED power indicator Power Horizontal lines LED levelling indicator Pulse mode...
-
Page 9: Detector Overview
DETECTOR OVERVIEW LED direction indicator Bubble vial Laser sensor LED centre indicator LED direction indicator LED speaker indicator LED power indicator Sound on / off Power Speaker Bubble vial... - Page 10 USING YOUR LASER POWER SUPPLY ▪ Insert the mains power adaptor / indoor charger into the battery pack and plug into a ▪ The instrument is supplied with a Lithium- power source. ion battery pack as its standard power source. Progress will be shown by the power indicator ▪...
- Page 12 Mains power ▪ The instrument can operate on mains power as an alternative to battery operation. ▪ Insert the mains power adaptor / charger into the port beside the battery door and plug into a power source. ▪ Do not store in locations where moisture can be present or where the mains power adaptor / charger could be exposed to extreme temperatures.
- Page 13 SET UP and off repeatedly. If this occurs, reposition the instrument onto a level surface until the ▪ Select a place as close as practical instrument can level off. to the work site. Ensure the location is ▪ Press the V and H buttons on the clear of traffic.
- Page 14 X-axis ▪ Press the V or V to adjust the slope of the X-axis. ▪ To adjust the Y-axis, press the H button. The LED levelling indicator will begin Y-axis flashing. The instrument is now set to grade on the Y-axis. ▪...
- Page 15 Tilt lock ▪ Press the power button to turn the instrument on. Self levelling will commence and the horizontal beam will activate. ▪ Press the V and H buttons on the control panel to select the beams required. ▪ Press and hold the H button for three seconds until the LED levelling indicator begins flashing.
- Page 16 USING YOUR DETECTOR ▪ Press the pulse mode button on the top of the instrument to enter into pulse mode. ▪ Switch the detector on by pressing the power button. The speaker will beep indicating the instrument is operating. ▪ Move the detector into the path of the laser beam.
- Page 17 MOUNTING TO THE WALL MOUNT ▪ Thread the tripod spacer into the instrument. ▪ Attach the instrument to the mount using the thumb screw. ▪ The wall mount can be clamped onto a ceiling track or mounted with screws via the screw fixing points.
- Page 18 MOUNTING TO A CONSTRUCTION TRIPOD NOTE: construction tripod an optional accessory which can be purchased from your retailer. ▪ Stand the tripod on a level surface with legs spaced for stability. ▪ Screw the tripod spacer into the base of the instrument until firm.
-
Page 19: Troubleshooting
TROUBLE SHOOTING Error Cause & Solution ▪ Check the batteries. They may be in the wrong way or need replacing. Laser does not turn on ▪ Check the battery compartment for signs of damage. Ensure they are clean and not bent. ▪... -
Page 20: Care And Maintenance
CARE AND MAINTENANCE ▪ This is a precision measuring instrument ▪ The operator should check the accuracy and should always be handled with care and of the instrument before precision levelling transported within the carry case provided. is attempted. Failure to do so may result in inaccurate measurements. -
Page 21: Warranty
WARRANTY The General XL4G comes with a 3 (three) year manufacturers warranty. AUSTRALIA NEW ZEALAND “Our goods come with guarantees that more information please visit cannot be excluded under the Australian consumerprotection.govt.nz Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. -
Page 22: Customer Support
CUSTOMER SUPPORT To assist you with any queries or technical questions please contact customer support Australia: 1300 658 338 New Zealand: 0800 367 527... -
Page 23: Specifications
SPECIFICATIONS Specifications General XL4G Product code 70034 Warranty 3 Years Accuracy ±1mm at 10m Operating range 50m (with included detector) Levelling range ±8° Laser class 3 Green Battery life 3.5 hours+ Battery type Li-ion battery pack Vertical lines Horizontal lines... - Page 24 www.s p o to n. c o m .a u...
