Operating Manual
1. Functions

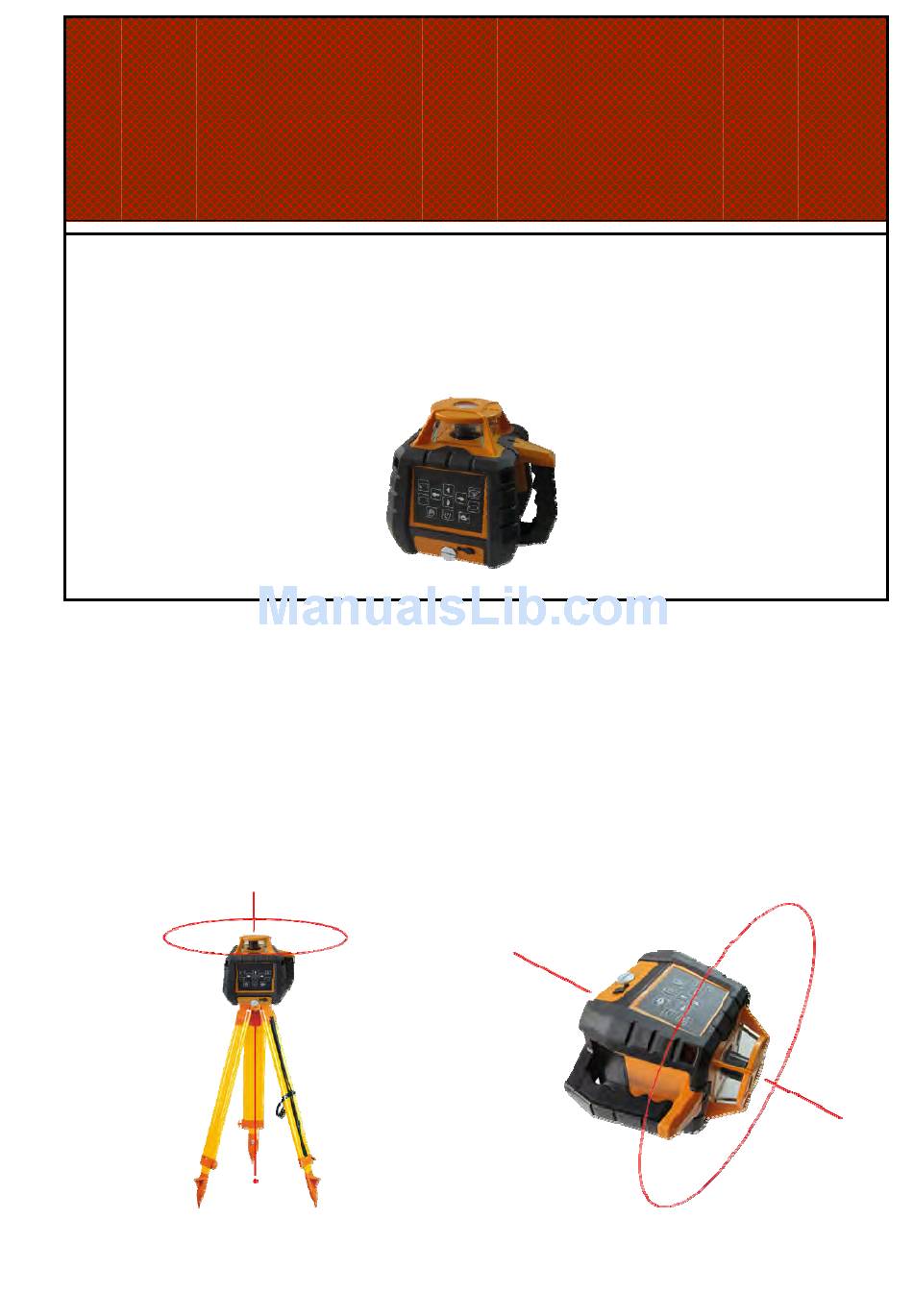

This instrument is equipped with the semiconductor diode with wavelength of 635nm(green:532nm), which the
laser beam has supreme visibility. And the laser module of instrument will rotate freely to form a laser-scanning
surface. Emitting direction of rotary laser-beam illustrated as follows:
Upright-setting
When the instrument is set upright, it will emit laser-beam to form a horizontal scanning surface and a plumb
line automatically. When set horizontally, it will form a plumb scanning surface and a vertical line.
Self-leveling Rotary Laser
1
Horizontal-setting
