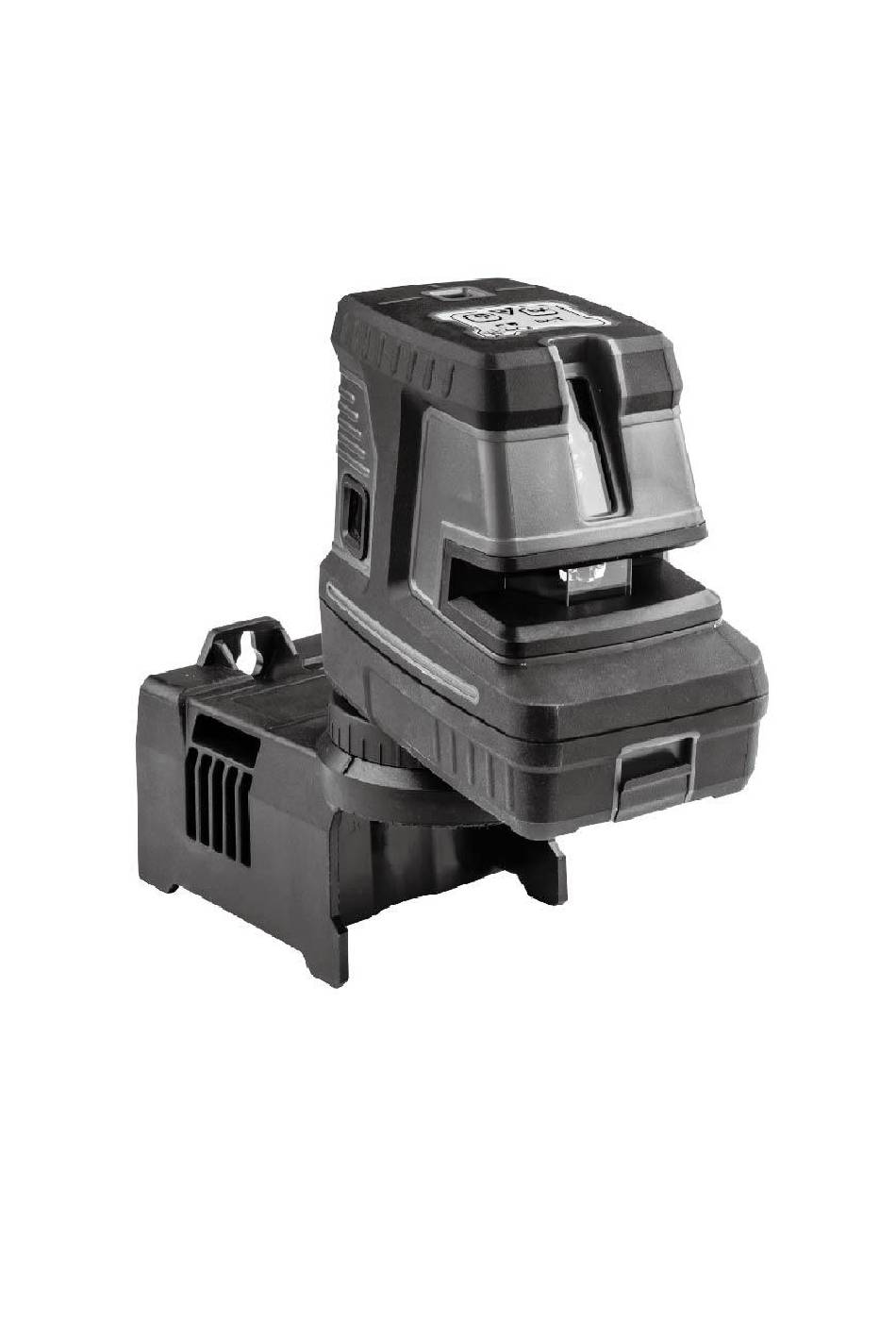

- Page 1 Spot-On GreenLiner X2 P5 Laser Level USER GUIDE...
- Page 2 Contents Congratulations! You have chosen one of our laser tools that’s guaranteed reliable and tough for professional tool users at various job sites. • Safety • Operation Modes & Setup • User Guide, Maintenance and Care • Specifications • Warranty...
- Page 3 Safety WARNING: • Read the Safety Instructions and User Manual thoroughly before using this product. All users must fully understand and adhere to these instructions. CAUTION: • While the product is in operation, be careful not to expose your eyes to the emitting laser beam.
- Page 4 Operation Modes and Setup General Notes: • Press to turn laser tool ON; Press and hold for around 2 seconds to turn laser tool OFF while in any mode. • Press repeatedly to cycle through the available modes. Self-leveling Mode - is enabled when the laser tool is switched to the unlocked position.
- Page 6 User Guide, Maintenance and Care • The laser tool is sealed and calibrated at the plant to the accuracies specified. • It’s recommended to carry out an accuracy check before its first use and periodic checks during future use especially for precise layouts. •...
- Page 7 Specifications Laser Class: Class 2 (IEC/EN60825-1/2014) Laser Wavelength: 515nm Laser diodes: 15mW Laser output power: <1mW Levelling Accuracy: ±2mm/10m Up Plumb Spot Accuracy: 3mm/10m Down Plumb Spot Accuracy: 4mm/10m Levelling/Compensation Range: 4°±1° Working Distance (Dot): 60m Working Distance (Line): 30m Working Distance (Line with Receiver): 60m Operating Time: 6 Hours (all lines &...
- Page 8 Warranty We are confident of the quality of our products and offer outstanding guarantee for professional users of the products. This statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user.
