SNOWJOE SUNJOE SPX9006-PRO Operator's Manual

Commercial grade electric pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

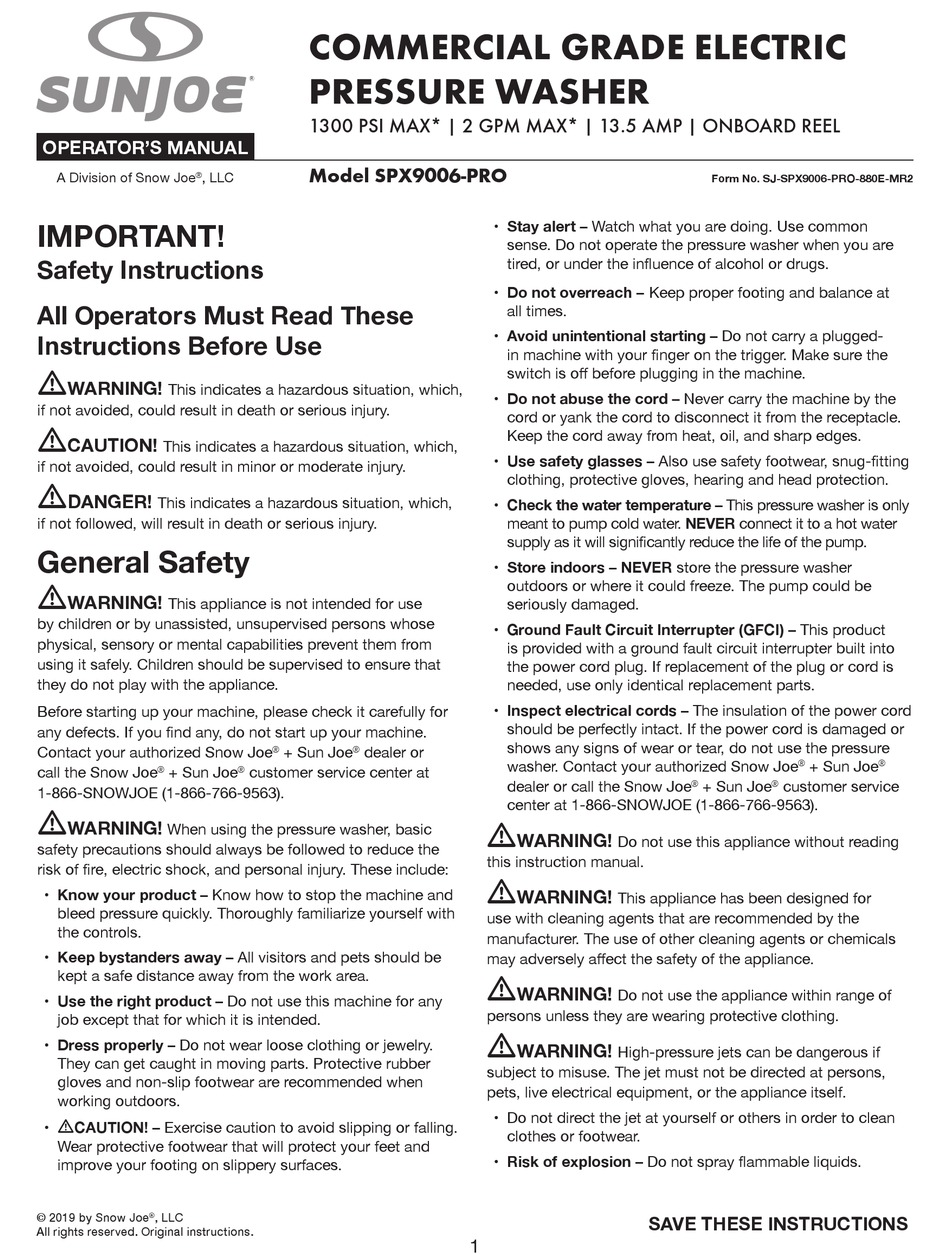

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
Contact your authorized Snow Joe
call the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
When using the pressure washer, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine and
bleed pressure quickly. Thoroughly familiarize yourself with
the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
CAUTION! – Exercise caution to avoid slipping or falling.
•
m
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
© 2019 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

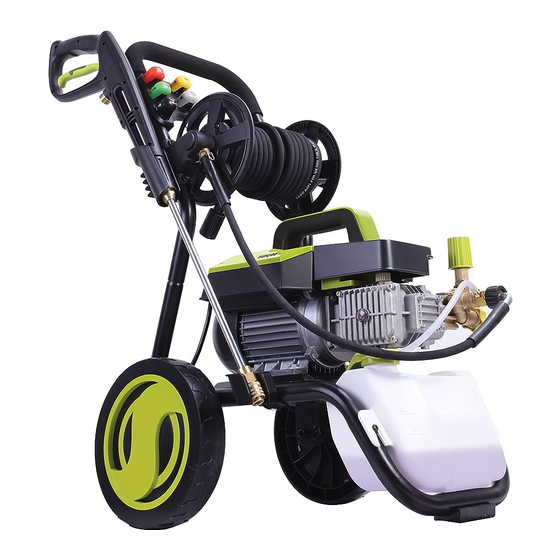

COMMERCIAL GRADE ELECTRIC
PRESSURE WASHER
R
1300 PSI MAX* | 2 GPM MAX* | 13.5 AMP | ONBOARD REEL
Model SPX9006-PRO
+ Sun Joe
dealer or
®
®
customer service center at
®
• Stay alert – Watch what you are doing. Use common
sense. Do not operate the pressure washer when you are
tired, or under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at
all times.
• Avoid unintentional starting – Do not carry a plugged-
in machine with your finger on the trigger. Make sure the
switch is off before plugging in the machine.
• Do not abuse the cord – Never carry the machine by the
cord or yank the cord to disconnect it from the receptacle.
Keep the cord away from heat, oil, and sharp edges.
• Use safety glasses – Also use safety footwear, snug-fitting
clothing, protective gloves, hearing and head protection.
• Check the water temperature – This pressure washer is only
meant to pump cold water. NEVER connect it to a hot water
supply as it will significantly reduce the life of the pump.
• Store indoors – NEVER store the pressure washer
outdoors or where it could freeze. The pump could be
seriously damaged.
• Ground Fault Circuit Interrupter (GFCI) – This product
is provided with a ground fault circuit interrupter built into
the power cord plug. If replacement of the plug or cord is
needed, use only identical replacement parts.
• Inspect electrical cords – The insulation of the power cord
should be perfectly intact. If the power cord is damaged or
shows any signs of wear or tear, do not use the pressure
washer. Contact your authorized Snow Joe
dealer or call the Snow Joe
center at 1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
Do not use this appliance without reading
this instruction manual.
m
WARNING!
This appliance has been designed for
use with cleaning agents that are recommended by the
manufacturer. The use of other cleaning agents or chemicals
may adversely affect the safety of the appliance.
m
WARNING!
Do not use the appliance within range of
persons unless they are wearing protective clothing.
m
WARNING!
High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
• Do not direct the jet at yourself or others in order to clean
clothes or footwear.
• Risk of explosion – Do not spray flammable liquids.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-SPX9006-PRO-880E-MR2
+ Sun Joe
®
+ Sun Joe
customer service
®
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNJOE SPX9006-PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SNOWJOE SUNJOE SPX9006-PRO

Summary of Contents for SNOWJOE SUNJOE SPX9006-PRO

  • Page 1 Snow Joe + Sun Joe customer service ® ® 1-866-SNOWJOE (1-866-766-9563). center at 1-866-SNOWJOE (1-866-766-9563). WARNING! When using the pressure washer, basic WARNING! Do not use this appliance without reading safety precautions should always be followed to reduce the this instruction manual.

  • Page 2: Electrical Safety

    ® ® grounded conductor can result in a risk of electrocution. Check 1-866-SNOWJOE (1-866-766-9563). with a qualified electrician or service personnel if you are in • Keep the machine on a stable, flat surface during operation, doubt as to whether the outlet is properly grounded. Do not handling, transportation, and storage.

  • Page 3: Risk Of Electrocution

    6. To prevent the appliance cord from disconnecting from the temperature inside the pump is over 140°F (65°C), and the valve closes when the temperature is lowered down. extension cord during operation, make a knot with the two cords as shown in Table 1. 3.

  • Page 4: Product Description

    Product Description Purpose • This electric high pressure washer is intended for residential use. It is designed for medium-to-heavy duty cleaning jobs on boats, motorcycles, RV’s, ATV’s, trailers, decks, barbecues, siding, patio furniture, and more. Areas of application • Never use the machine in potentially explosive areas under any circumstances! •...

  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow all instructions in the WARNING! Electrical shock hazard.
  • Page 6 Know Your Commercial Grade Pressure Washer Read the owner’s manual and safety rules carefully before operating the pressure washer. Compare the illustration below to the unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

  • Page 7: Technical Data

    + Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric pressure washer. The packaging is made of recyclable Oil inlet materials.
  • Page 8 Fig. 6 Fig. 3 measuring plug Water outlet Connecting hose NOTE: Be sure to retain the oil inlet nut in event that the 7. Connect the high-pressure hose to the trigger gun (Fig. 7). pressure washer needs to be transported. NOTE: Use the oil inlet nut when transporting the pressure Fig.

  • Page 9: Operation

    Fig. 8 Fig. 10 Water inlet 3. Make sure the unit is switched off before plugging the unit into the power outlet. 4. Check that the electrical supply voltage and frequency Garden hose (Volt/Hz) correspond to those specified on the rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig.

  • Page 10: Adjusting Pressure

    Using Nozzles 7. Press the ON/OFF switch on the ON(I) side to start the pressure washer (Fig. 13). Before beginning any cleaning task, determine the best nozzle for the job. Each of the nozzles has a different spray pattern. Fig. 13 The nozzle patterns are 40˚...

  • Page 11: Working With Detergents

    To disconnect a nozzle from the spray wand once the cleaning CAUTION! Always test the detergent in an job is complete: inconspicuous area before use. 1. Turn off the pressure washer and shut off the water supply. 4. Apply detergent from the bottom to the top of the dry Pull the trigger to release water pressure.

  • Page 12: Shutting Down

    • Ammonia products Fig. 19 • Acid-based products These chemicals will harm the unit and will damage the cleaning surface. Shutting down 1. Make sure the pressure adjustable valve is closed. Turn the switch to the OFF (0) position and unplug the power cord from the outlet.
  • Page 13 Maintenance Fig. 21 CAUTION! Before working on the pressure washer, disconnect the plug from the power supply socket. Change Pump Oil The pump was filled with standard 5W-40 synthetic oil at the Hand crank factory. Check the table below for compatible pump oil and schedule of oil changes.

  • Page 14: Recycling The Pressure Washer

    Fig. 26 Fig. 23 Oil measuring plug Filter MIN. oil level Oil inlet 2. Clean the nozzle with the needle clean-out tool provided (Fig. 27). Remove the spray wand from the gun; remove any dirt from the nozzle hole and rinse. 5.

  • Page 15: Service & Support

    + Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit.

  • Page 16: Troubleshooting

    • Please call the Snow Joe • Pump seals worn out. + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Machine stops • Fuse has blown. • Replace fuse. Switch off other machines using the same circuit.

  • Page 17: Optional Accessories

    NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563).
  • Page 18 NOTES...
  • Page 19 WHO CAN SEEK WARRANTY COVERAGE? Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or This Warranty is extended by Snow Joe + Sun Joe to the owner ®...
  • Page 20 sunjoe.com...
