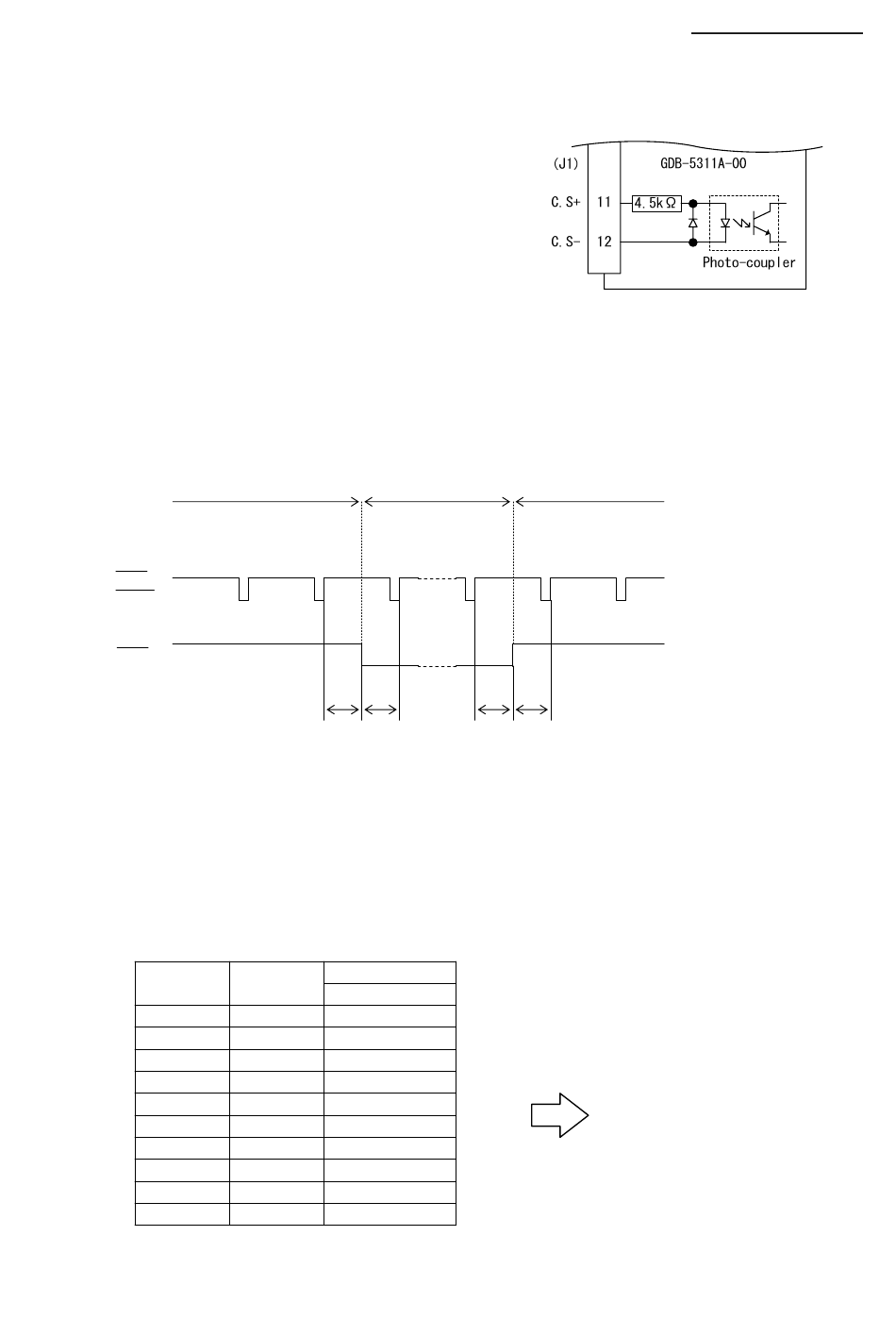

(6) Step angle switch input（C.S）
① Operating current range : 4.0mA～5.3mA
The photo-coupler turns on with
inter-terminal voltage of 19.1 V～25.1 V.
(Photo-coupler diode V
● Step angle division is switched to 1/20 divisions with the photo-coupler ON.
The setting for the STEP ANGLE SELECT switch is ignored.
●No displacement occurs even if the step angle is switched by the C.S signal.
② Timing chart
Number of divisions
of STEP SEL switch
CWP
CCWP
C.S
t1≧30ms
t2≧ 1ms
● Switching the step angle by the C.S signal requires time "t1" and "t2" before
and after inputting drive pulse.
③ STEP ANGLE SELECT switch and C.S signal
〔STEP ANGLE SELECT switch〕
Number of
Switch No.
Divisions
０
１
２
３
４
５
６
７
８
９
≒ 1.1 V)
F
1/20divisions
ON
t1 t2
Step angle(°)
0.72°Motor
1/1 0.72
1/2 0.36
1/4 0.18
1/10 0.072
1/20 0.036
1/40 0.018
1/100 0.0072
1/200 0.0036
1/400 0.0018
1/800 0.0009
Number of divisions
of STEP SEL switch
OFF
t1 t2
〔When the C.S signal is input〕
-34-
Instructions Manual
1/20 divisions
(0.036°)
