Codesoft Image Platform CS80 Series Quick Manual page 2

Reading techniques
1. Move the barcode to close to the image platform.
2. In general, the reading range of the image platform is limited to 2-8cm regardless of the
size of the minimal element of the barcode.
3. On a successful reading, the beeper will beep and the LED will light. If no barcode closes
to the image platform in a moment, the image platform will go to sleep.

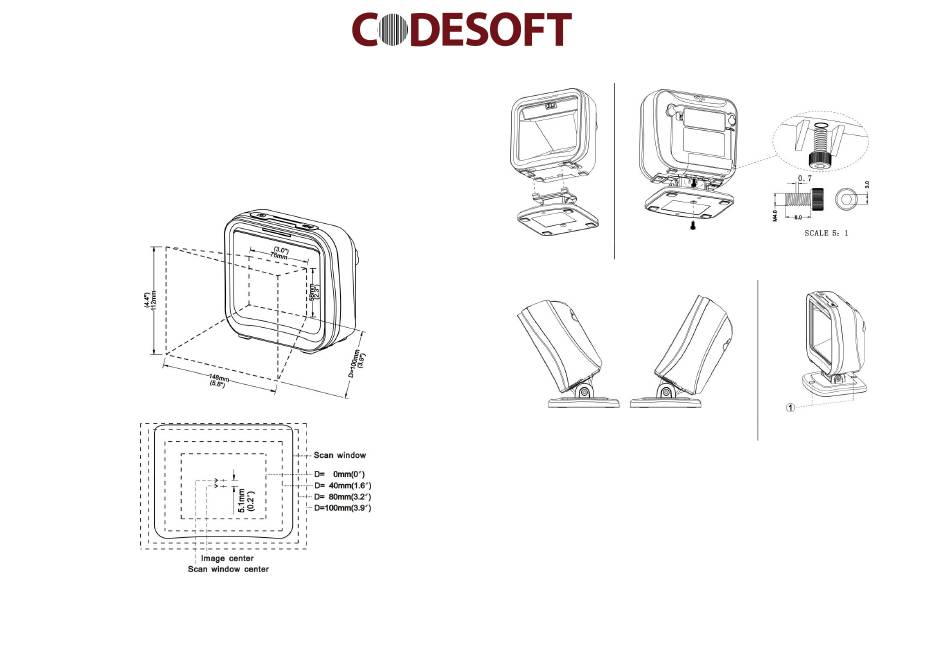

Field of view
Figure 1-1 Field of view
Figure 1-2 Field of view – Front view
Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: CS80xx_QG_EN_V1.2.
Assembling the stand
Figure 2-1
Figure 2-3
1. As shown in Figure 2-1, plug in two connection-arms to the two associated notches on the
bottom of the image platform.
2. As shown in Figure 2-2, well connect the image platform with the stand by tightening the
single screw.
3. As shown in Figure 2-3, adjust the image platform forward/backward for a desired position.
4. As shown in Figure 2-4, if you want to fix the stand on a table or other platform, you can
remove two plastic stopper on the stand (see ①), then fix the stand with a table with
appropriate screws.
Figure 2-2
Figure 2-4
