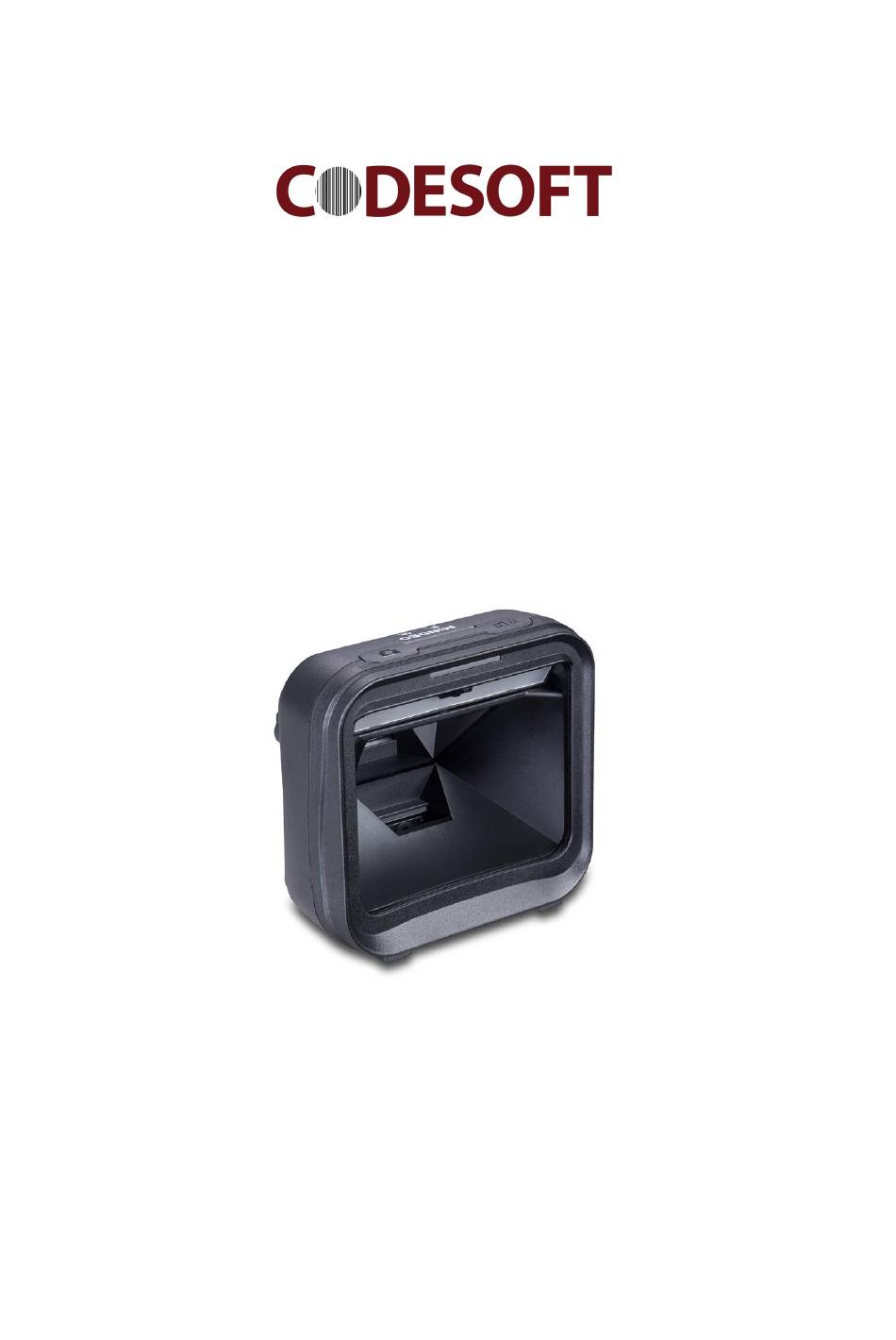

Page 1
CS80xx Image Platform User Manual Version: CS80xx_UM_EN_V1.1.3...
Page 3
NOTICE Warning: Ensure that the optional DC adapter works at +5V, especially for the RS-232 interface cable. 1. All software, including firmware, furnished to the user is on a licensed basis. 2. The right is reserved to make changes to any software or product to improve reliability, function, or design.
2 Cable connector pin-outs descriptions Figure 2-1 Cable connector interface pin-outs The pin-outs descriptions in Table 2-1 apply to the cable connector on the image platform and are for reference only. Table 2-1 Cable connector pin-outs descriptions RS232 Keyboard (PS2) Power (+5V) Power (+5V) Power (+5V)
5 Parts of image platform Figure 5-1 Parts of image platform ① Scan window ② Camera push button ③ LED ④ Beeper push button ⑤ Beeper ⑥ Hanging holes ⑦ USB interface ⑧ Auxiliary interface for handheld scanner, etc ⑨ Host interface...
6 Introduction to installation Note: If any of the below operation is incorrect, turn off the power immediately and check the image platform for any improper connections. Go through all steps again. 6-1 Installation - keyboard wedge 1. Switch off the host and unplug the keyboard connector. 2.
6-2 Installation - RS-232 1. Switch off the host. 2. Attach the phone jack connector of the RS-232 cable to Host interface on the image platform. 3. Connect another end of the RS-232 cable to the serial port (PIN 9) on the device. 4.
7 Parameter menus 7-1 Single-parameter setting by scanning barcodes Important notes: 1. During the process of programming, LED is lighting to indicate the programming correctness. LED will go off if any incorrect programming operation performed. 2. After each successful programming, LED will go off and the image platform will beep twice. 3.
7-2 Operate the image platform by receiving command via UART Note: 1- The information in this chapter is provided for the image platform with RS232 cable or USB cable. 2- If the image platform is with USB cable, the setting of USB device type must be set as “USB virtual COM”.
7-3 Interface selection This image platform supports interfaces such as keyboard wedge, RS-232 serial wedge, and USB interface. In most of the cases, simply selecting an appropriate cable provided by the manufacturer will work for a specific interface. Interface selection: Auto detection- By setting this function, the image platform will automatically detect the keyboard wedge, RS-232 or USB interface for user.
7-4 Keyboard wedge interface Keyboard type: As a keyboard interface, the image platform supports most of the popular PCs and IBM terminals. Keyboard layout: The image platform supports different national keyboard layouts. Commonly an 7-7 Scan appropriate encoding system must be selected. Please refer to Character encoding system of “ mod &...
Page 20
Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry IBM AT, PS/2 Keyboard type Apple Mac compatibles Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian Czech Character encoding system “7-7 Scan mode & Some global settings”...
7-5 RS-232 interface Flow control: None-The communication only uses TxD and RxD signals without any hardware or software handshaking protocol. RTS/CTS- If the image platform wants to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication.
Page 24
Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 00-99 Response delay 00-99 (100ms) 1200 2400 4800 Baud rate 9600 19200 38400 57600 115200 None Parity bit Even 8 bits Data bit 7 bits One bit Stop bit Two bits...
7-6 USB interface USB device type: HID keyboard– By setting, the image platform is used as a USB HID keyboard emulation device. The “7-4 Keyboard wedge keyboard layout setting follows the setting of keyboard layout in the chapter of interface” USB virtual COM–...
Page 26
Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry HID keyboard HID keyboard for Apple Mac USB device type USB virtual COM Simple COM Port Emulation Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian Czech Character encoding system...
7-7 Scan mode & Some global settings Scan mode: Good-read off- The Camera push button can be pressed once to activate scanning. The image platform stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.
Page 29
This function is not effective for all types of barcode. Data output delay in continue-scan mode: If it is enabled, in the continue-scan mode, the image platform can store the data while continue-scanning. The image platform will output the data after the predefined delay elapsed.
Page 31
Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 01-99 Global min. code length 01-99 00-66 Global G1-G6 string selection 00-66 Disable Element amendment Enable None Character output restraint Printable character only Alphanumeric character only Disable Decoder optimization Enable Data output delay in 00-FF 00-FF (100ms)
7-8 LED and Beeper Indication Power on alert: After power-on the image platform will generate an alert signal to indicate a successful self-test. LED indication: After each successful reading, the LED above the image platform will light up to indicate a good barcode reading.
Page 33
Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Power on alert Enable Disable LED indication Enable Disable Beeper indication Enable 01-09 Beep tone duration 01-09 (10ms ) Volume of beeper Middle High Type 1 Type 2 Beeper Tone Type 3 Type 4 Type 5...
7-9 LED illumination level LED illumination level: Illumination does aid image platform to get better quality images. The effectiveness of the illumination decreases as the distance to the target increases. Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry LED illumination level Middle High...
7-10 Multi-symbols read Multi-symbols read: By setting Enable, the image platform allows to read multiple symbols in one image. By setting Disable, the image platform will only read the symbol closest to the center area in the image. Multiple-scan setting Single-scan setting Option barcode Option...
7-11 UPC-A Read: Format System character Data digits (10 digits) Check digit (1 digit) Check digit verification: The check digit is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.
7-12 UPC-E Read: Format System character “0” Data digits (6 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. “7-11 UPC-A”...
7-13 UPC-E1 Read: Format System character “1” Data digits (6 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. “7-11 UPC-A”...
7-14 EAN-13 (ISBN/ISSN) Read: Format Data digits (12 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-11UPC-A”...
7-15 EAN-8 Read: Format Data digits (7 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. “7-11 UPC-A”...
7-16 Code 39 (Code 32, Trioptic Code 39) Read: Format Start character(*) Data digits (variable) Check digit (1 digit, optional) End character(*) Check digit verification: The check digit is optional and made as the sum module 43 of the numerical value of the data digits.
7-17 Interleaved 2 of 5 Read: Format Data digits (Variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification (USS) and the Optical Product Code Council (OPCC).
7-18 Industrial 2 of 5 (Discrete 2 of 5) Read: Format Data digits (variable) “7-16 Code 39(Code 32, Trioptic Code 39)” Max./Min. code length: Refer to Max./Min. code length of “7-11 UPC-A” Code ID setting: Refer to Code ID setting of “7-11 UPC-A”...
7-19 Matrix 2 of 5 Read: Format Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-16 Code 39(Code 32, Trioptic Code 39)”...
7-20 Codabar Read: Format Start Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-16 Code 39(Code 32, Trioptic Code 39)”...
7-21 Code 128 Read: Format Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-16 Code 39(Code 32, Trioptic Code 39)”...
7-22 UCC/EAN 128 (GS1-128) UCC/EAN 128 and GS1-128 are the same kind of barcode symbols with same standard. Read: Format Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted.
7-23 ISBT 128 Read: Format “=” or “&” Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-16 Code 39(Code 32, Trioptic Code 39)”...
7-24 Code 93 Read: Format Data digits (variable) Check digits (2 digits, optional) Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-16 Code 39(Code 32, Trioptic Code 39)”...
7-25 Code 11 Read: Format Data digits (variable) Check digit 1 (optional ) Check digit 2 (optional) Check digit verification: The check digit is presented as the sum module 11 of all data digits. Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your selected check digit verification method.
7-26 MSI/Plessey Read: Format Data digits (variable) Check digit 1 (optional) Check digit 2 (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods of verifying check digits, i.e. Mod10, Mod10/10 and Mod 11/10. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits.
7-27 UK/Plessey Read: Format Data digits (variable) Check digits (2 digits, optional) Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.
7-28 China Post Read: Format Data digits (11 digits) “7-16 Code 39(Code 32, Trioptic Code 39)” Max. /Min. code length: Refer to Max./Min. code length of The code length of China Post is 11. “7-11 UPC-A” Code ID setting: Refer to Code ID setting of “7-11 UPC-A”...
7-29 China Finance Note: This type of barcode is not Omni-directionally decodable. The encodable character set includes numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical pattern;...
Page 68
Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Only 6 converted to B Only 7 converted to C Only 8 converted to D Only 9 converted to E Disable Assigned to 0 Assigned to 5(A) Assigned to 6(B) Assigned to 7(C) Leading character assignment Assigned to 8(D) Assigned to 9(E)
7-30 GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read: Format Data digits (16 digits)
7-31 GS1 DataBar Limited Read: Format Data digits (16 digits) “7-11 UPC-A” Code ID setting: Refer to Code ID setting of “7-11 UPC-A” Insertion group selection: Refer to Insertion group selection of “7-30 GS1 DataBar (GS1 DataBar Truncated)” Conversion: Refer to Conversion of Multiple-scan setting Single-scan setting Option barcode...
7-32 GS1 DataBar Expanded Read: Format Data characters (variable) “7-11 UPC-A” Code ID setting: Refer to Code ID setting of “7-11 UPC-A” Insertion group selection: Refer to Insertion group selection of Conversion: “7-35 String transmission” UCC/EAN 128- Refer to Code ID transmission of , ]Cm will be identified as AIM ID.
7-33 G1-G6 & C1-C3 & FN1 substitution string setting Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS. For a Windows/DOS OS, <enter>...
Page 73
Testing barcode: FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string. Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated. Also a single character can be un-defined.
Page 74
Testing barcode: Multiple characters C3 replacement: By setting, a number of defined characters in the data string can be replaced by other defined characters. The maximum number of characters to replace is 11. Example: Replace all the “A” character in a data string with “B” character; replace “C” with “D”; replace “E”...
Page 76
Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry Once Repeat of a G5 character setting Defined times 01-22 Un-defined times (All) A un-defined character Truncate ending G6 string setting 1-22 defined characters 01-7F <0> Once Repeat of a G6 character setting Defined times 01-22 Un-defined times (All)
7-34 G1-G4 string position & Code ID position Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The image platform offers 4 positions to insert strings among the symbol.
7-35 String transmission Note: The information in this chapter is closely related to the chapter of String setting. Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
Page 80
Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Keyboard wedge/USB RS-232 Keyboard wedge / USB / RS-232 All-non-printable-character string Disable transmission with string setting Enable Transmit the first N data characters only 01-99 Transmit the last N data characters only 01-99...
9 Maintenance Cleaning the scan window is the only maintenance required. A dirty window may affect scanning accuracy. Do not allow any abrasive material to touch the window. Remove any dirt particles with a damp cloth. Wipe the window using a tissue moistened with water. Do not spray water or other cleaning liquids directly into the window.
10 Assembling the stand Figure 10-1 Figure 10-2 Figure 10-3 Figure 10-4 As shown in Figure 10-1, plug in two connection-arms to the two associated notches on the bottom of the image platform. As shown in Figure 10-2, well connect the image platform with the stand by tightening the single screw.
11 ASCII Table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Notes: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”.
1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select “code128”, then select “CODE A”...
13 Return default parameters & firmware version WARNING: Default value initialization If you wish to return the image platform to all the factory default settings, scan the barcode above. Firmware version list If you wish to display the firmware version, scan the barcode above.
