Codesoft Image Platform CS80 Series Quick Manual

CS80xx Image Platform Quick Guide
Notice
A standard packing includes an image platform, a 5V adaptor, a USB cable and a

CD (or a user manual).

Accessories include a stand, a RS232 cable and a PS2 cable.

Use a piece of dry and soft cloth when cleaning the image platform is in need.

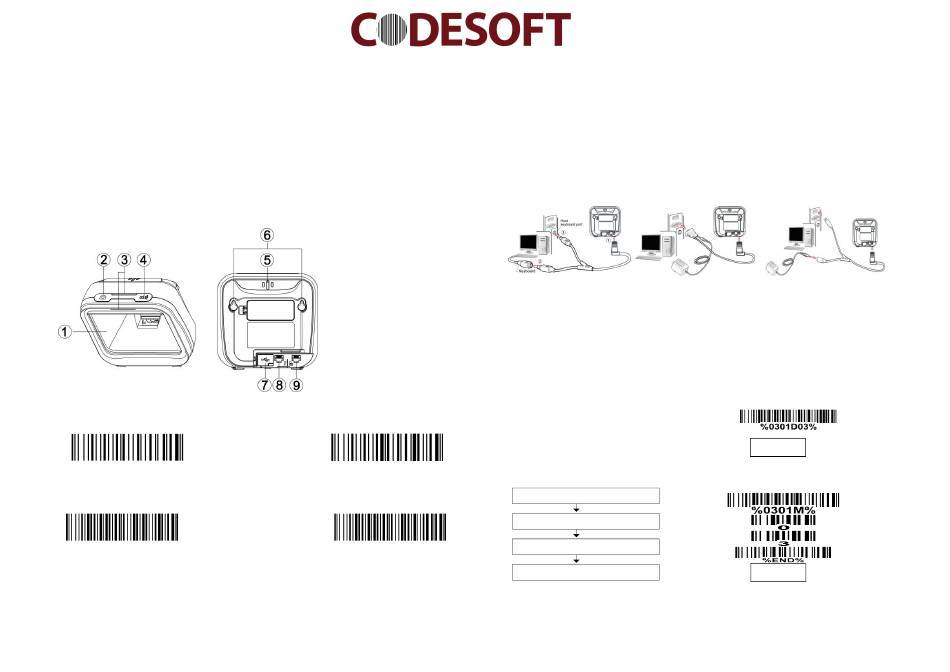

Parts of the scanner
Returning default parameters and listing version information
Default value initialization
Scan mode (Alternative)
Good-read off (Default)
① Exit window
② Camera push button
③ LED
④ Beeper push button
⑤ Beeper
⑥ Hanging holes
⑦ USB interface
⑧ Auxiliary interface for
handheld scanner, etc
⑨ Host interface
Firmware version list
Timeout off
Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: CS80xx_QG_EN_V1.2.
Installing the cable
1. Switch off the host system;
2. Refer to the below pictures, connect the host with the image platform based on different
cables;
3. Ensure that all connections are secure.
4. Switch on the host system. If the installation is successful, the beeper will beep and LED
will light.
PS2 cable RS232 cable
Programming instruction and example
Two programming modes have been provided as bellows:
Single-scan setting

Scan the appropriate barcode on
the right.
Multiple-scan setting

Scan "Option bar code"
Scan "The 1st character of option"
Scan "The 2nd character of option"
Scan "END"
USB cable
Example: to set Flow control to be XON/XOFF.
Example: to set Flow control to be XON/XOFF.
