SECTION 4: KNOW YOUR LAWN TRACTOR
A
B
C
D
E
F
A Systems Indicator Monitor/Hour Meter
B Throttle Control Lever
C Choke Control
D Parking Brake Lever
E Fuel Tank Cap
F Seat Adjustment Lever
G Ignition Switch Module
NOTE:
Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
BATTERY OIL PRESSURE
PTO / BLADE ENGAGE PARKING
HOURS 1/10
NOTE:

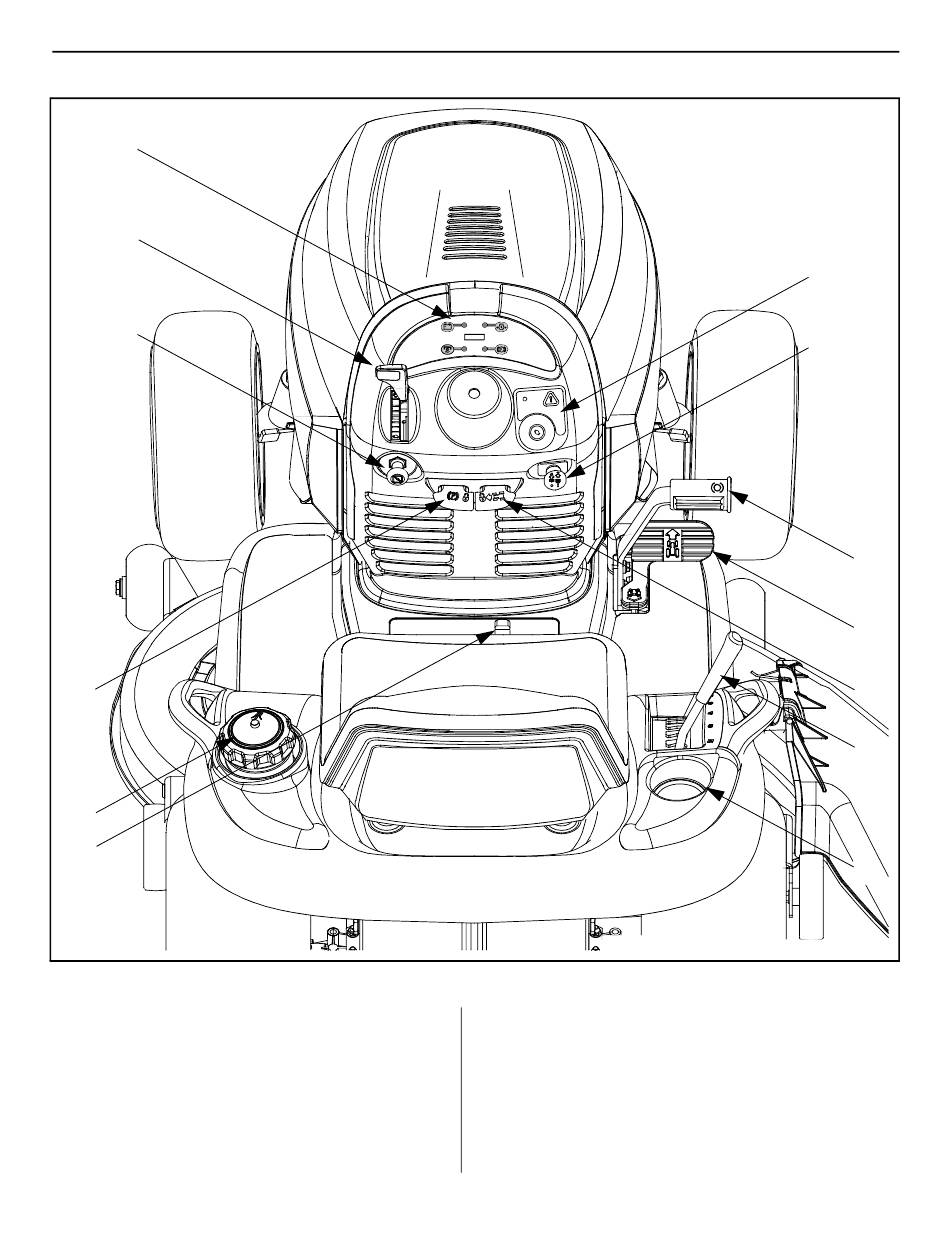

Figure 1
H PTO (Blade Engage) Knob
I Brake Pedal
J Drive Pedal
K Cruise Control Lever
L Deck Lift Lever
M Cup Holder
9
G
H
BRAKE
Steering Wheel not shown for clarity.
I
J
K
L
M
