6 Burner Gas Grill
OWNER'S MANUAL
ASSEMBLY AND OPERATING IN STRUC TIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE
Model GAS2660AS
WARNING
NOTICE TO INSTALLER:
HAZARDOUS EXPLOSION MAY RESULT IF THESE
LEAVE THESE INSTRUCTIONS WITH
WARNINGS AND INSTRUCTIONS ARE IGNORED. READ
THE GRILL OWNER FOR FUTURE
AND FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS
MANUAL TO AVOID PERSONAL INJURY, INCLUDING DEATH
REFERENCE .
OR PROPERTY DAMAGE.
Natural Gas
Conversion Kit Required
Advertisement
Table of Contents
Related Manuals for Even Embers GAS2660AS
Summary of Contents for Even Embers GAS2660AS
- Page 1 6 Burner Gas Grill OWNER’S MANUAL ASSEMBLY AND OPERATING IN STRUC TIONS SAVE THIS MANUAL FOR FUTURE REFERENCE Model GAS2660AS WARNING NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE LEAVE THESE INSTRUCTIONS WITH WARNINGS AND INSTRUCTIONS ARE IGNORED. READ...
- Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
-
Page 3: Table Of Contents
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. This grill is designed with Dual Fuel Valves to easily convert from ® LP (propane) gas to natural gas. An Even Embers conversion kit must be purchased and installed for use with natural gas. -
Page 4: General Warnings
GENERAL WARNINGS: WARNING • Leak test all connections before fi rst use, even if grill was purchased fully assembled and after each tank refi ll. Check the propane tank rubber seal for damage. • Always check the grill and propane tank prior to each use as indicated in the “Checking for Leaks” & “Pre-Start Check List”... -
Page 5: Lp Gas Cylinder (Tank) Specifications And Installation
• Grill is hot when in use. To avoid burns: • DO NOT attempt to move the grill. • Block the wheels so the unit does not accidentally move. • Wear protective gloves or oven mitts. • DO NOT touch any hot grill surfaces. •... - Page 6 LP GAS CYLINDER (TANK) SPECIFICATIONS: LP gas cylinder (not supplied with this grill) The LP (Liquid Propane) gas cylinder specifi cally designed to be used with this grill must be 12” (30.5 cm) diameter x 18” (45.7 cm) tall and have a 20 lb. (9.1 kg) capacity incorporating a Type 1 cylinder valve and an over-fi lling protection device (OPD).
-
Page 7: Hose & Regulator Specifications And Installation
DO NOT attempt to connect grill, as purchased for LP (propane) gas, to any other fuel supply source such as a natural gas line. For dual fuel grills that can be converted to natural gas, a Even Embers conversion kit must be purchased and installed for use with natural gas. •... -
Page 8: Leak Testing
HOSE AND REGULATOR: Your grill is equipped with a Type 1 connection device with the following features: 1. The system will not allow gas fl ow from the cylinder until a positive connection to the valve has been made. Note: The cylinder valve and all grill burner knobs must be turned OFF before any connection is made or removed. - Page 9 DANGER To prevent fi re or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS in a well ventilated area that is protected from the wind. • Never perform a leak test with a match or open fl ame.
-
Page 10: Pre-Start Check List
PRE-START CHECK LIST: DANGER Property damage, bodily harm, severe burns, and death could result from failure to follow these safety steps. These steps should be performed after the grill has been assembled and prior to each use. DO NOT operate this grill until you have read and understand ALL of the warnings and instructions in this manual. - Page 11 5. To light other burners, follow steps 3-4. 6. If burner does not ignite using the igniter, see “Match Lighting the Main Burners” section. To turn off, turn each control knob clockwise until it locks in the “OFF” position. This does not turn off the gas fl ow from the cylinder.
-
Page 12: Operating The Grill
OPERATING THE GRILL: WARNING • Read and follow all warnings and instructions contained in the preceding sections of this manual. • Flavoring chips must be contained in a metal smoking box to contain ash and prevent fi res. • DO NOT cover cooking grates or other components with aluminum foil, as this blocks ventilation and damage to grill or personal injury may occur. -
Page 13: Using Other Features Of The Grill
ROTISSERIE COOKING: • Your grill was pre-drilled from the factory to include mounting holes for a rotisserie (sold separately). • Read and follow all instructions provided with the rotisserie. Save instructions for future reference. WARNING • When using an AC current rotisserie, it must be electrically grounded in accordance with local codes, or in the absence of local codes: •... -
Page 14: Proper Care And Maintenance
PROPER CARE & MAINTENANCE: WARNING: If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on the cooking surfaces prior to grilling as loose bristles may attach to food. CLEANING INTERIOR OF GRILL: •... - Page 15 BURNER ASSEMBLY/MAINTENANCE: • Although your burners are constructed of stainless steel, they may corrode as a result of the extreme heat and acids from cooking foods. Regularly inspect the burners for cracks, abnormal holes, and other signs of corrosion damage. If found, replace the burner.
-
Page 16: Transporting And Storage
TRANSPORTING AND STORAGE: WARNING • Never move a grill when hot or in use. • Make sure that cylinder valve is closed and burner knobs are in the off position. • DO NOT store a spare LP gas cylinder (fi lled or empty) under or near the grill. •... -
Page 17: Trouble Shooting
TROUBLE SHOOTING: Problem Possible Cause Prevention/Cure Burner will not light LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank, turn LP gas tank valve to “OPEN” LP gas tank is low or empty Check if LP gas tank is empty. -
Page 18: Grill Cooking Tips
Problem Possible Cause Prevention/Cure Flame blows out High or gusting winds Do not use grill in high winds Low on LP gas Replace or refi ll LP gas tank Burner holes may be obstructed Refer to “Burner Assembly/Maintenance” instructions Flow limiting device tripped Refer to “Regulator Resetting Procedure”... -
Page 19: Assembly Instructions
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN AS SEM BLING THIS UNIT. The following tools are required to assemble this Even Embers 6 Burner Gas Grill: • Phillips Screwdriver Left Front Leg... - Page 20 NOTE: Some screws are pre-assembled to the grill. You may need to loosen some screws partially while others may need to be removed to assemble parts.
- Page 21 Loosen two screws on left front leg then attach to left side panel assembly Remove fi ve screws and set aside for later use. Loosen two screws Remove fi ve screws Loosen two screws on right front leg then attach to right side panel .
- Page 22 Remove two screws Remove two screws from cart base Attach cart base to front and back legs using two pre-attached screws on front legs and two screws removed from Step 1 and Step 2. Tighten all screws on cart base and back panel.
- Page 23 Remove four screws Remove four pre-attached screws on rear legs. Attach cart back panel to rear legs and cart base using six screws. (two screws were removed from Step 4.) Remove two pre-attached screws and attach door stopper to cart base. Attach upper door brace using four screws (removed from Step 1 and Step 2).
- Page 24 Remove one screw from tank block bar and one screw from cart base. Attach tank block bar to cart base and back panel. Remove pre-attached screws from door handles attach door handles using screws and door inserts Install left and right doors into lower door brace and secure with door pins...
- Page 25 Remove two protective brackets from right and left Remove side of grill assembly. Loosen Brackets four screws. Loosen four screws Set grill body on cart assembly. Loosen screw and rotate brackets upward and tighten screws. Loosen four screws Remove two screws and washers.
- Page 26 Loosen 4 screws Remove one screw. Loosen four screws. Attach left side Remove table over keyholes. screw Make sure front panels are aligned. Tighten screws. LEFT SIDE TABLE Install screw removed from Step 16. Tighten screw Tighten screw Install screw removed from Step 15.
- Page 27 Loosen 4 screws Remove one screw. Loosen four screws. Attach side Remove burner table over screw keyholes. Make sure front panels are aligned. Tighten screws. RIGHT SIDE TABLE Install screw removed from Step 19. Tighten screw Tighten screw Install screw removed from Step 15.
- Page 28 Burner Venturi Remove wing nut and side burner. Insert side burner valve through control panel. Burner Wing Nut Slide valve down in keyholes. Nozzle Tighten screws. Re-install side burner and make sure burner venturi fi ts over valve Keyholes Control Knob nozzle.
- Page 29 Slide grease tray grease cup into back of grill. Install heat tents , cooking grates and warming rack...

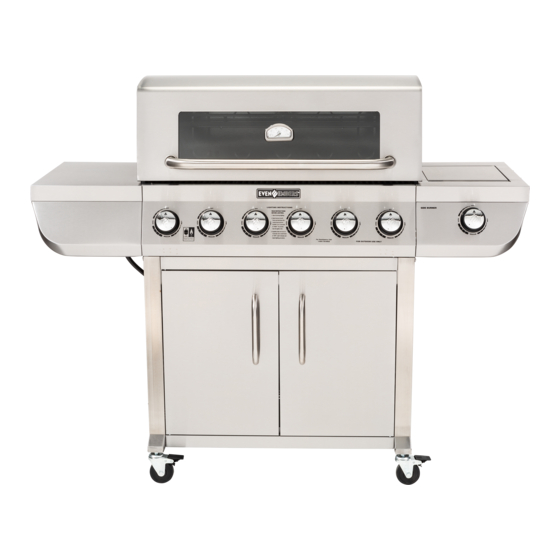

- Page 30 Even Embers GAS2660AS Assembled...
- Page 31 LISTED ABOVE FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIM I TA TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE EVEN EMBERS ®...
