Psion Teklogix UHF-CA3-A5 Instructions

W
ORKABOUT
Important: All Approval and safety information is outlined in the 'Workabout pro G2 Handheld-computer
User Manual' – part number 8100140A. This manual is available on our website
through the Teknet extranet.
Important: The WORKABOUT PRO G2 with the RFID option must not be held closer than 20 cm
from the rest of the body. This product must not be used in a holster or on a belt-clip.

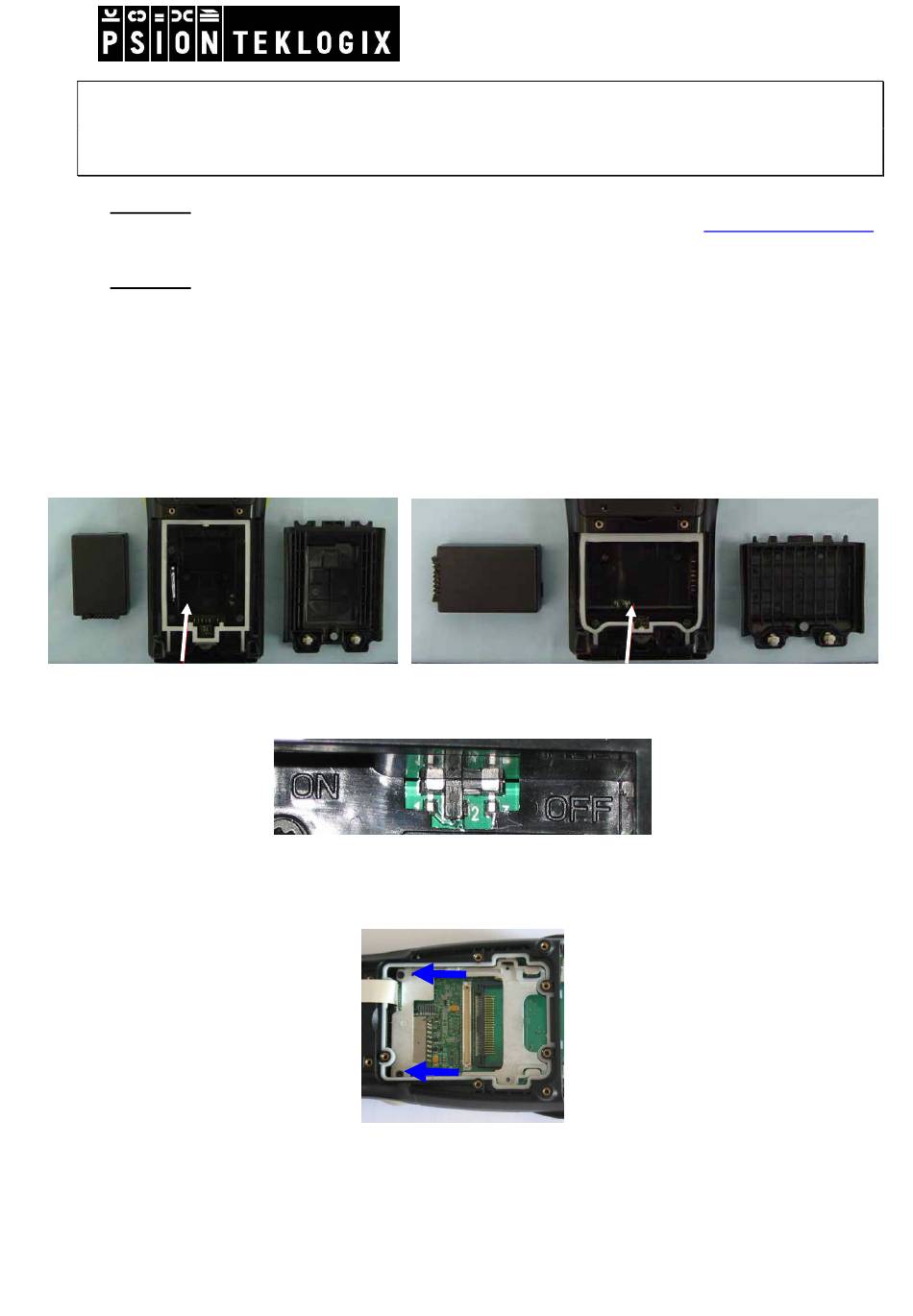

Easily installable expansion modules for the WORKABOUT PRO allow you to customise this hand-held to
meet your specific mobile computing requirements. This chapter outlines how to install the RFID Module
UHF-CA3-A5 (this module is composed of one RFID Coupler UHF-CA3 and RFID Antenna UHF-A5).
Before installing a module in the WORKABOUT PRO G2, all power sources must be turned off.
•
Remove the batteries. If your unit is using AC power, disconnect it.
•
Stick the FCC / IC Label
WAP C G2
Label area
•
Slide the switch to position OFF to shut off internal battery power.
With the power shut down, you can install the RFID Module UHF-CA3-A5-G2.
•
Remove and discard the two screws on the bottom of the metal frame.
•
Put the RFID Coupler UHF-CA3 in the same alignment of the expansion connector on the
WORKABOUT PRO G2. Apply slight pressure to snap the module into place on the hand-held.
•
Use four new screws (M2 x 6 mm) provided to secure the module in place.
P G RFID MODULE UHF-CA3-A5
RO 2
E M
XPANSION ODULE
(FCC ID: GM3UHFCA3A5, IC ID: 2739D-UHFCA3A5)
I
NSTRUCTIONS
underneath the battery.
WAP S G2
Label area
DPD A00465 A00 Sheet 1 of 3
www.psionteklogix.com
March 09, 2009
