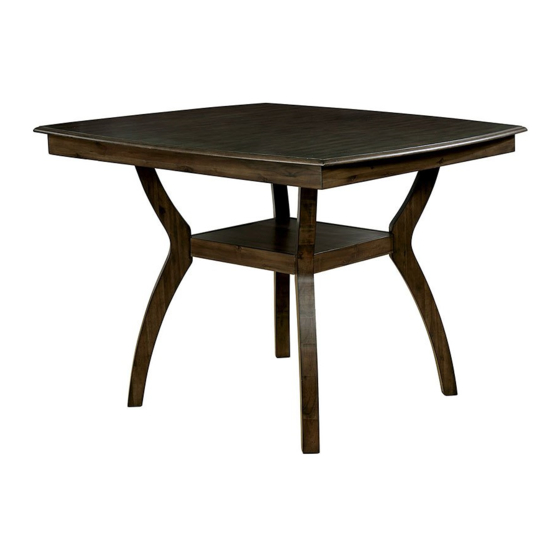

Furniture of America CM3023PT Assembly Instructions

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM3023PT

DIFFICULT

Tools Required For Assembly:

Allen Wrench

2 PERSONS RECOMMENDED

Page 1 of 5

(Included)

Rev: 18-05- 17

Need help?

Do you have a question about the CM3023PT and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3023PT ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being Allen Wrench (Included) easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #A x 10pcs #1 x 1pc Bolt Ø5/16" x 1-1/2" Table Top #B x 8pcs #2 x 2pcs Bolt Ø5/16"...
Page 4 Align legs (#4) to the holes of the shelf (#3), then secure by using bolts (#B) with washers (#C,D). #B x 8pcs #C x 8pcs #D x 8pcs DO NOT FULLY TIGHTEN ALL BOLTS UNTIL ASSEMBLY IS COMPLETED. Align frames (#2) to the holes of the legs (#4), then secure by using bolts (#A) with washers (#C,D).
Page 5 Align frames (#2) to the holes of the table top (#1), then secure by using bolts (#A) with washers (#C,D). #A x 6pcs #C x 6pcs #D x 6pcs ASSEMBLY IS COMPLETED Page 5 of 5...
